comet3(z) displays a comet plot of the data
specified in z versus x- and
y-values matching the indices of z. A
comet is an animation of a marker (head) and a line (tail) tracing
a growing line over the data points. The tail is a solid line that traces the entire
function.
comet3(x,y,z)
displays a comet plot of z versus x and
y.
comet3(x,y,z,p)
specifies the comet body length. The comet body is a trailing segment in a different color
that follows the head before fading. The body length is p*length(y),
where p is a scalar in [0, 1).

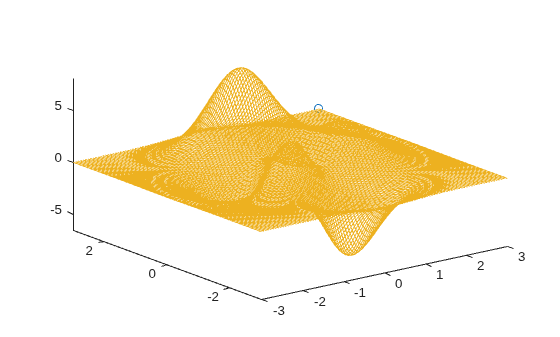

Create a comet plot of the data in z versus the data in x and y. Use the peaks function to load x, y, and z data in matrix forms. Convert the data into vector arrays. Then, plot the data.
Create a comet plot and specify the comet body length by setting the scale factor input p. The comet body is a trailing segment in a different color that follows the head before fading.
Use the peaks function to load x, y, and z data in matrix forms. Convert the data into vector arrays. Specify p as 0.5 so that the body length is 0.5*length(y). Then, plot the data.

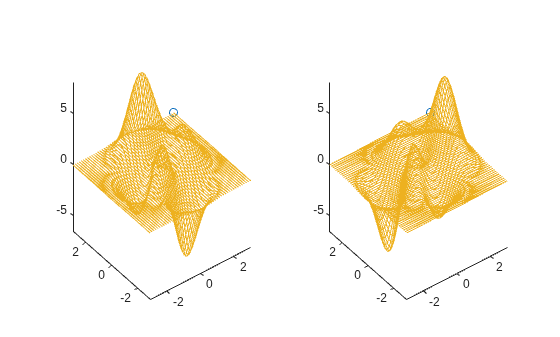

Create two comet plots in a tiled chart layout by specifying the target axes for each plot.
Use the peaks function to load x, y, and z data in matrix forms. Convert the data into vector arrays. Specify the body length scale factor p as 0.25 so that the body length is 0.5*length(y).
Store the two Axes objects as ax1 and ax2. Specify the target axes for each comet plot by including the Axes object as the first input argument to comet.
