# ezmeshc

(Not recommended) Easy-to-use combination mesh/contour plotter

`ezmeshc` is not recommended. Use `fmesh` instead. For more information, see Compatibility Considerations.

## Syntax

``ezmeshc(f)``
``ezmeshc(f,xyinterval)``
``ezmeshc(funx,funy,funz)``
``ezmeshc(funx,funy,funz,uvinterval)``
``ezmeshc(___,n)``
``ezmeshc(___,'circ')``
``ezmeshc(ax,___)``
``sc = ezmeshc(___)``

## Description

example

````ezmeshc(f)` creates a mesh plot of the function `z = f(x,y)` using the `meshc` function. The function plots `f` over the default interval `[-2π 2π]` for `x` and `y`.`ezmeshc` automatically adds a title and axis labels to the plot.```
````ezmeshc(f,xyinterval)` plots over the specified interval. To use the same interval for both `x` and `y`, specify `xyinterval` as a two-element vector of the form `[min max]`. To use different intervals, specify a four-element vector of the form `[xmin xmax ymin ymax]`.```
````ezmeshc(funx,funy,funz)` plots the parametric mesh defined by `x = funx(u,v)`, ```y = funy(u,v)```, `z = funz(u,v)` over the default interval `[-2π 2π]` for `u` and `v`.```
````ezmeshc(funx,funy,funz,uvinterval)` plots the parametric mesh over the specified interval. To use the same interval for both `u` and `v`, specify `uvinterval` as a two-element vector of the form `[min max]`. To use different intervals, specify a four-element vector of the form `[umin umax vmin vmax]`.```
````ezmeshc(___,n)` plots using an `n`-by-`n` grid. Use this option after any of the input argument combinations in the previous syntaxes.```
````ezmeshc(___,'circ')` plots over a disk centered on the interval.```
````ezmeshc(ax,___)` plots into the axes specified by `ax` instead of the current axes `gca`. Specify the axes before any of the input argument combinations in any of the previous syntaxes.```
````sc = ezmeshc(___)` returns a graphics array that includes the chart surface object and the contour object. Use `sc` to modify the mesh and contour plots after they are created. For a list of properties, see Surface Properties and Contour Properties.```

## Examples

collapse all

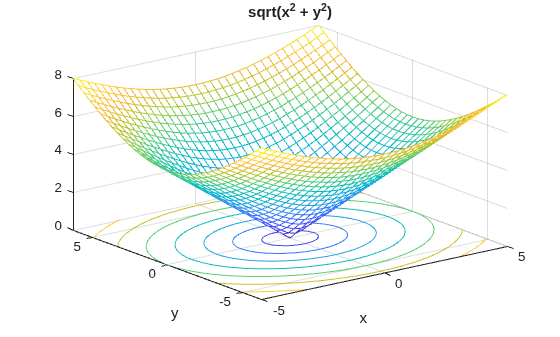

Create a mesh/contour plot of the expression $f\left(x,y\right)=\sqrt{{x}^{2}+{y}^{2}}$ over the domain $-5 and $-2\pi with a computational grid size of 35-by-35.

`ezmeshc('sqrt(x^2 + y^2)',[-5,5,-2*pi,2*pi],35)`

## Input Arguments

collapse all

3-D function to plot, specified as a character vector, string scalar, or function handle to a named or anonymous function.

Specify a function of the form `z = f(x,y)`. The function must accept two matrix input arguments and return a matrix output argument of the same size.

When specifying the function as a character vector or string scalar, array multiplication, division, and exponentiation are always implied. For example, `x^2` is interpreted as `x.^2`.

Example: `'sqrt(x^2 + y^2)'`

When specifying the function as a function handle, use array operators instead of matrix operators for the best performance. For example, use `.*` (`times`) instead of * (`mtimes`).

Example: `@(x,y) sin(x).*cos(y)`

Plotting interval for `x` and `y`, specified in one of these forms:

• Vector of form `[min max]` — Use the interval `[min max]` for both `x` and `y`.

• Vector of form `[xmin xmax ymin ymax]` — Use the interval `[xmin xmax]` for `x` and `[ymin ymax]` for `y`.

Parametric function for x coordinates, specified as a character vector, string scalar, or function handle to a named or anonymous function.

Specify a function of the form `x = funx(u,v)`. The function must accept two matrix input arguments and return a matrix output argument of the same size.

When specifying the function as a character vector or string scalar, array multiplication, division, and exponentiation are always implied. For example, `x^2` is interpreted as `x.^2`.

Example: `'u*sin(v)'`

When specifying the function as a function handle, use array operators instead of matrix operators for the best performance. For example, use `.*` (`times`) instead of * (`mtimes`).

Example: `@(u,v) u.*sin(v)`

Parametric function for y coordinates, specified as a character vector, string scalar, or function handle to a named or anonymous function.

Specify a function of the form `y = funy(u,v)`. The function must accept two matrix input arguments and return a matrix output argument of the same size.

When specifying the function as a character vector or string scalar, array multiplication, division, and exponentiation are always implied. For example, `x^2` is interpreted as `x.^2`.

Example: `'-u*cos(v)'`

When specifying the function as a function handle, use array operators instead of matrix operators for the best performance. For example, use `.*` (`times`) instead of * (`mtimes`).

Example: `@(u,v) -u.*cos(v)`

Parametric function for z coordinates, specified as a character vector, string scalar, or function handle to a named or anonymous function.

Specify a function of the form `z = funz(u,v)`. The function must accept two matrix input arguments and return a matrix output argument of the same size.

When specifying the function as a character vector or string scalar, array multiplication, division, and exponentiation are always implied. For example, `x^2` is interpreted as `x.^2`.

Example: `'-u*cos(v)'`

When specifying the function as a function handle, use array operators instead of matrix operators for the best performance. For example, use `.*` (`times`) instead of * (`mtimes`).

Example: `@(u,v) v`

Plotting interval for `u` and `v`, specified in one of these forms:

• Vector of form `[min max]` — Use the interval `[min max]` for both `u` and `v`.

• Vector of form `[umin umax vmin vmax]` — Use the interval `[umin umax]` for `u` and `[vmin vmax]` for `v`.

Size of the grid, specified as a positive integer. The grid has dimensions `n`-by-`n`.

Axes object. If you do not specify an axes object, then `ezmeshc` uses the current axes.

## Version History

Introduced before R2006a

collapse all

### R2016a: `ezmeshc` is not recommended

`ezmeshc` is not recommended. Use `fmesh` instead. There are no plans to remove `ezmeshc`.

`fmesh` requires that the input function to plot is a function handle. `ezmeshc` accepts either a function handle, a character vector, or a string. This table shows some typical usages of `ezmeshc` and how to update your code to use `fmesh` instead.

Not RecommendedRecommended
`ezmeshc(@(x,y)x.*exp(-x.^2-y.^2),42)````fmesh(@(x,y) x.*exp(-x.^2-y.^2),'MeshDensity',42,'ShowContours','on')```
`ezmeshc('real(atan(x+i*y))')````fmesh(@(x,y) real(atan(x+i*y)),'ShowContours','on')```
`ezmeshc(@(x,y) sqrt(x.^2+y.^2))````fmesh(@(x,y) sqrt(x.^2+y.^2),'ShowContours','on')```
