Compute 2-D streamline data


XY = stream2(x,y,u,v,startx,starty)
XY = stream2(u,v,startx,starty)
XY = stream2(...,options)


XY = stream2(x,y,u,v,startx,starty) computes streamlines from vector data u and v.

The arrays x and y, which define the coordinates for u and v, must be monotonic, but do not need to be uniformly spaced. x and y must have the same number of elements, as if produced by meshgrid.

startx and starty define the starting positions of the streamlines.

The returned value XY contains a cell array of vertex arrays.

XY = stream2(u,v,startx,starty) assumes the arrays x and y are defined as [x,y] = meshgrid(1:n,1:m) where [m,n] = size(u).

XY = stream2(...,options) specifies the options used when creating the streamlines. Define options as a one- or two-element vector containing the step size or the step size and the maximum number of vertices in a streamline:



[stepsize, max_number_vertices]

If you do not specify a value, MATLAB® software uses the default:

  • Step size = 0.1 (one tenth of a cell)

  • Maximum number of vertices = 10000

Use the streamline command to plot the data returned by stream2.


collapse all

Plot 2-D streamlines from data representing air currents over regions of North America.

load wind
[sx,sy] = meshgrid(80,20:10:50);

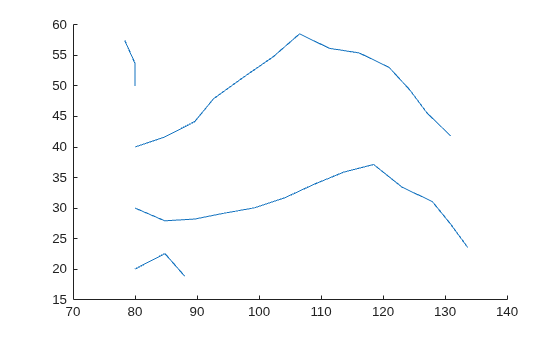

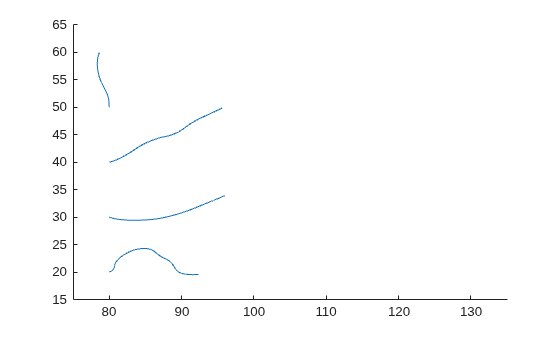

Figure contains an axes object. The axes object contains 4 objects of type line.
