Find body load assigned to geometric region



bl = findBodyLoad(structuralmodel.BodyLoads,RegionType,RegionID) returns the body load assigned to a geometric region of the structural model. A body load must use units consistent with the geometry and other model attributes.


collapse all

Create a structural model.

structuralModel = createpde('structural','static-solid');

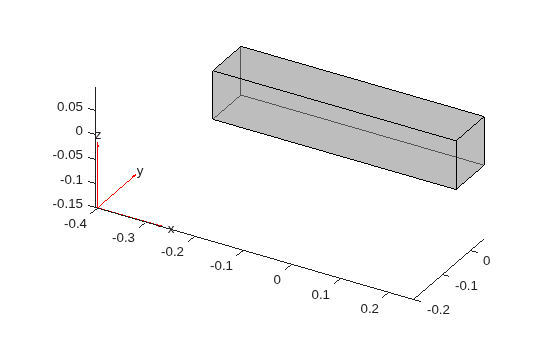

Create and plot the geometry.

gm = multicuboid(0.5,0.1,0.1);
structuralModel.Geometry = gm;

Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

Specify the Young's modulus, Poisson's ratio, and mass density. Notice that the mass density value is required for modeling gravitational effects.

structuralProperties(structuralModel,'YoungsModulus',210E3, ...

Specify the gravity load on the beam.

structuralBodyLoad(structuralModel, ...

Check the body load specification for cell 1.

ans =
  BodyLoadAssignment with properties:

                   RegionType: 'Cell'
                     RegionID: 1
    GravitationalAcceleration: [3x1 double]
              AngularVelocity: []
                  Temperature: []
                     TimeStep: []
                        Label: []

Input Arguments

collapse all

Body loads of the model, specified as a BodyLoads property of a StructuralModel object.

Geometric region type, specified as 'Face' for a 2-D model or 'Cell' for a 3-D model.

Example: findBodyLoad(structuralmodel.BodyLoads,'Cell',1)

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using pdegplot.

Example: findBodyLoad(structuralmodel.BodyLoads,'Cell',1)

Data Types: double

Output Arguments

collapse all

Body load assignment, returned as a BodyLoadAssignment object. For details, see BodyLoadAssignment Properties.

Introduced in R2017b
