MagnetostaticResults
Description
A MagnetostaticResults
object contains the
magnetic potential, magnetic field, magnetic flux density, and mesh values in a form
convenient for plotting and postprocessing.
The magnetic potential, magnetic field, and magnetic flux density are calculated at the
nodes of the triangular or tetrahedral mesh generated by generateMesh
. Magnetic potential values at the nodes appear in the
MagneticPotential
property. Magnetic field values at the nodes appear in
the MagneticField
property. Magnetic flux density values at the nodes
appear in the MagneticFluxDensity
property.
To interpolate the magnetic potential, magnetic field, and magnetic flux density to a
custom grid, such as the one specified by meshgrid
, use the interpolateMagneticPotential
, interpolateMagneticField
, and interpolateMagneticFlux
functions.
Creation
Solve a magnetostatic problem using the solve
function. This function returns a solution as a MagnetostaticResults
object.
Properties
MagneticPotential
— Magnetic potential values at nodes
vector | FEStruct
object
This property is read-only.
Magnetic potential values at nodes, returned as a vector for a 2-D problem or an
FEStruct
object for a 3-D problem. The properties of this object
contain the components of the magnetic potential at nodes.
MagneticField
— Magnetic field values at nodes
FEStruct
object
This property is read-only.
Magnetic field values at nodes, returned as an FEStruct
object.
The properties of this object contain the components of the magnetic field at
nodes.
MagneticFluxDensity
— Magnetic flux density values at nodes
FEStruct
object
This property is read-only.
Magnetic flux density values at nodes, returned as an FEStruct
object. The properties of this object contain the components of the magnetic flux
density at nodes.
Mesh
— Finite element mesh
FEMesh
object
This property is read-only.
Finite element mesh, returned as an FEMesh
object. For details,
see FEMesh Properties. For a 3-D model, the mesh must be
linear.
Object Functions
interpolateMagneticPotential | Interpolate magnetic potential in magnetostatic result at arbitrary spatial locations |
interpolateMagneticField | Interpolate magnetic field in magnetostatic result at arbitrary spatial locations |
interpolateMagneticFlux | Interpolate magnetic flux density in magnetostatic result at arbitrary spatial locations |
Examples
Solution to 2-D Magnetostatic Analysis Model
Solve a 2-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.
Create an electromagnetic model for magnetostatic analysis.
emagmodel = createpde("electromagnetic","magnetostatic");

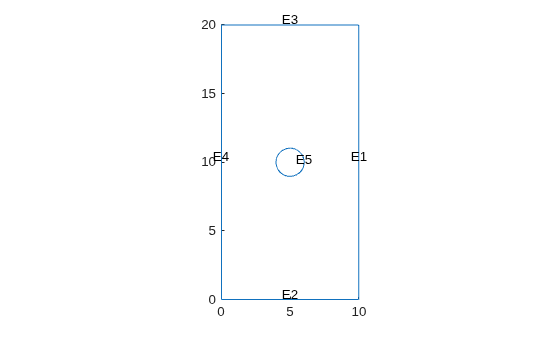

Import and plot the geometry representing a plate with a hole.
importGeometry(emagmodel,"PlateHolePlanar.stl"); pdegplot(emagmodel,"EdgeLabels","on")
Specify the vacuum permeability value in the SI system of units.
emagmodel.VacuumPermeability = 1.2566370614e-6;
Specify the relative permeability of the material.
electromagneticProperties(emagmodel,"RelativePermeability",5000);
Apply the magnetic potential boundary conditions on the edges framing the rectangle and the circle.
electromagneticBC(emagmodel,"MagneticPotential",0,"Edge",1:4); electromagneticBC(emagmodel,"MagneticPotential",0.01,"Edge",5);
Specify the current density for the entire geometry.
electromagneticSource(emagmodel,"CurrentDensity",0.5);
Generate the mesh.
generateMesh(emagmodel);
Solve the model.
R = solve(emagmodel)
R = MagnetostaticResults with properties: MagneticPotential: [1218x1 double] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

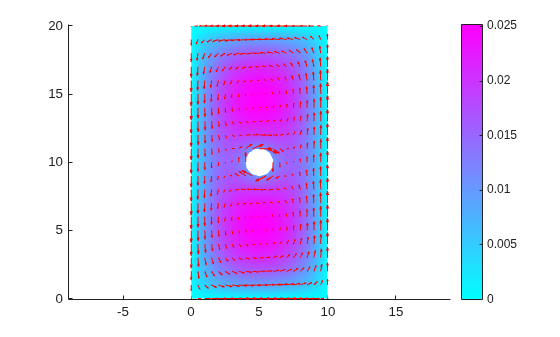

Plot the magnetic potential and field.
pdeplot(emagmodel,"XYData",R.MagneticPotential, ... "FlowData",[R.MagneticField.Hx ... R.MagneticField.Hy]) axis equal
Solution to 3-D Magnetostatic Analysis Model
Solve a 3-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.
Create an electromagnetic model for magnetostatic analysis.
emagmodel = createpde("electromagnetic","magnetostatic");

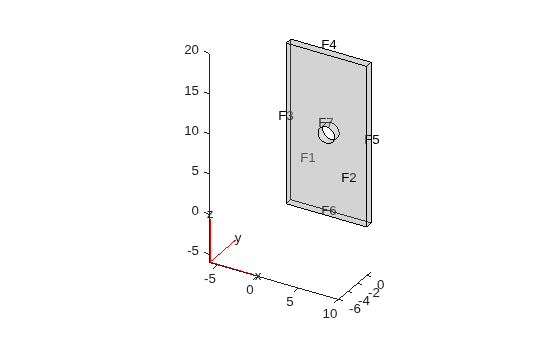

Import and plot the geometry representing a plate with a hole.
importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(emagmodel,"FaceLabels","on","FaceAlpha",0.3)
Specify the vacuum permeability value in the SI system of units.
emagmodel.VacuumPermeability = 1.2566370614e-6;
Specify the relative permeability of the material.
electromagneticProperties(emagmodel,"RelativePermeability",5000);
Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.
electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6); electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);
Specify the current density for the entire geometry.
electromagneticSource(emagmodel,"CurrentDensity",[0;0;0.5]);
Generate the mesh.
generateMesh(emagmodel);
Solve the model.
R = solve(emagmodel)
R = MagnetostaticResults with properties: MagneticPotential: [1x1 FEStruct] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

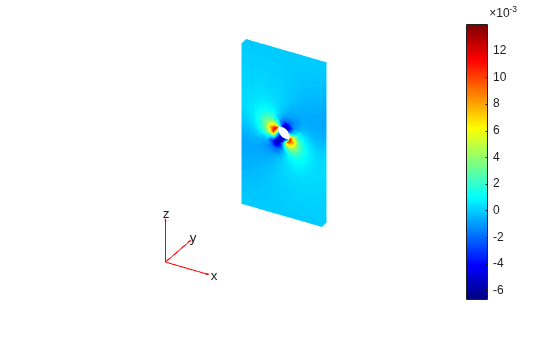

Plot the z-component of the magnetic potential.
pdeplot3D(emagmodel,"ColormapData",R.MagneticPotential.Az)

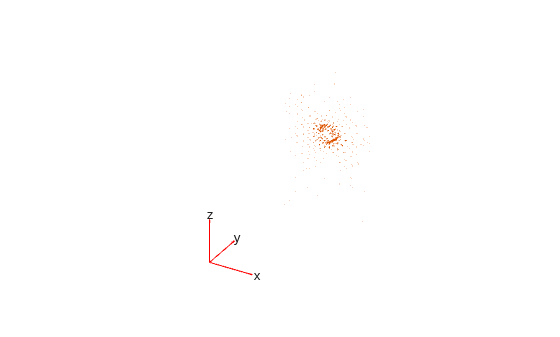

Plot the magnetic field.
pdeplot3D(emagmodel,"FlowData",[R.MagneticField.Hx ... R.MagneticField.Hy ... R.MagneticField.Hz])
DC Conduction Solution as Current Density for Magnetostatic Model
Use a solution obtained by performing a DC conduction analysis to specify current density for a magnetostatic model.
Create an electromagnetic model for DC conduction analysis.
emagmodel = createpde("electromagnetic","conduction");
Import and plot a geometry representing a plate with a hole.
gm = importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(gm,"FaceLabels","on","FaceAlpha",0.3)
Specify the conductivity of the material.
electromagneticProperties(emagmodel,"Conductivity",6e4);
Apply the voltage boundary conditions on the left, right, top, and bottom faces of the plate.
electromagneticBC(emagmodel,"Voltage",0,"Face",3:6);
Specify the surface current density on the face bordering the hole.
electromagneticBC(emagmodel,"SurfaceCurrentDensity",100,"Face",7);
Generate the mesh.
generateMesh(emagmodel);
Solve the model.
R = solve(emagmodel);
Change the analysis type of the model to magnetostatic.
emagmodel.AnalysisType = "magnetostatic";
This model already has a quadratic mesh that you generated for the DC conduction analysis. For a 3-D magnetostatic model, the mesh must be linear. Generate a new linear mesh. The generateMesh
function creates a linear mesh by default if the model is 3-D and magnetostatic.
generateMesh(emagmodel);
Specify the vacuum permeability value in the SI system of units.
emagmodel.VacuumPermeability = 1.2566370614e-6;
Specify the relative permeability of the material.
electromagneticProperties(emagmodel,"RelativePermeability",5000);
Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.
electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6); electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);
Specify the current density for the entire geometry using the DC conduction solution.
electromagneticSource(emagmodel,"CurrentDensity",R);
Solve the model.
Rmagnetostatic = solve(emagmodel);
Plot the x- and z-components of the magnetic potential.
pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Ax)
pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Az)
Solution to 2-D Magnetostatic Model with Permanent Magnet
Solve a magnetostatic model of a copper square with a permanent neodymium magnet in its center.
Create the unit square geometry with a circle in its center.
L = 0.8; r = 0.25; sq = [3 4 -L L L -L -L -L L L]'; circ = [1 0 0 r 0 0 0 0 0 0]'; gd = [sq,circ]; sf = "sq + circ"; ns = char('sq','circ'); ns = ns'; g = decsg(gd,sf,ns);

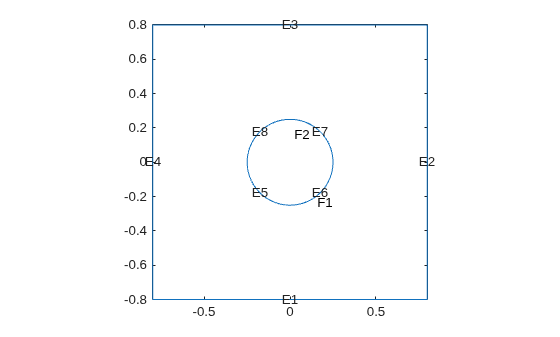

Plot the geometry with the face and edge labels.
pdegplot(g,"FaceLabels","on","EdgeLabels","on")
Create a magnetostatic model and include the geometry in the model.
emagmodel = createpde("electromagnetic","magnetostatic"); geometryFromEdges(emagmodel,g);
Specify the vacuum permeability value in the SI system of units.
emagmodel.VacuumPermeability = 1.2566370614e-6;
Specify the relative permeability of the copper for the square.
electromagneticProperties(emagmodel,"Face",1, ... "RelativePermeability",1);
Specify the relative permeability of the neodymium for the circle.
electromagneticProperties(emagmodel,"Face",2, ... "RelativePermeability",1.05);
Specify the magnetization magnitude for the neodymium magnet.
M = 1e6;
Specify magnetization on the circular face in the positive x-direction. Magnetization for a 2-D model is a column vector of two elements.
dir = [1;0]; electromagneticSource(emagmodel,"Face",2,"Magnetization",M*dir);
Apply the magnetic potential boundary conditions on the edges framing the square.
electromagneticBC(emagmodel,"Edge",1:4,"MagneticPotential",0);

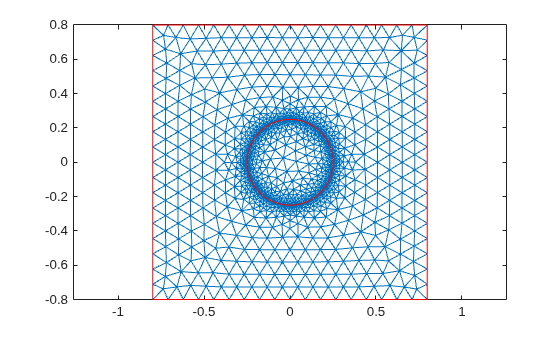

Generate the mesh with finer meshing near the edges of the circle.
generateMesh(emagmodel,"Hedge",{5:8,0.007});
figure
pdemesh(emagmodel)
Solve the model, and find the resulting magnetic fields B and H. Here, , where is the absolute magnetic permeability of the material, is the vacuum permeability, and is the magnetization.
R = solve(emagmodel); Bmag = sqrt(R.MagneticFluxDensity.Bx.^2 + R.MagneticFluxDensity.By.^2); Hmag = sqrt(R.MagneticField.Hx.^2 + R.MagneticField.Hy.^2);

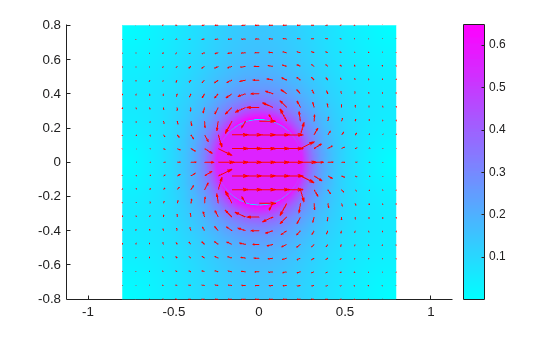

Plot the magnetic field B.
figure pdeplot(emagmodel,"XYData",Bmag, ... "FlowData",[R.MagneticFluxDensity.Bx ... R.MagneticFluxDensity.By])

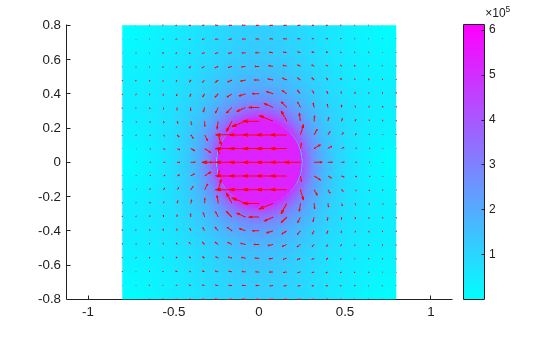

Plot the magnetic field H.
figure pdeplot(emagmodel,"XYData",Hmag, ... "FlowData",[R.MagneticField.Hx R.MagneticField.Hy])
Version History
Introduced in R2021a
