# specifyCoefficients

Specify coefficients in a PDE model

## Syntax

``specifyCoefficients(model,Name,Value)``
``specifyCoefficients(model,Name,Value,RegionType,RegionID)``
``CA = specifyCoefficients(___)``

## Description

Coefficients of a PDE

`solvepde` solves PDEs of the form

`$m\frac{{\partial }^{2}u}{\partial {t}^{2}}+d\frac{\partial u}{\partial t}-\nabla ·\left(c\nabla u\right)+au=f$`

`solvepdeeig` solves PDE eigenvalue problems of the form

`$\begin{array}{l}-\nabla ·\left(c\nabla u\right)+au=\lambda du\\ \text{or}\\ -\nabla ·\left(c\nabla u\right)+au={\lambda }^{2}mu\end{array}$`

`specifyCoefficients` defines the coefficients m, d, c, a, and f in the PDE model.

example

````specifyCoefficients(model,Name,Value)` defines the specified coefficients in each `Name` to each associated `Value`, and includes them in `model`. You must specify all of these names: `m`, `d`, `c`, `a`, and `f`. This syntax applies coefficients to the entire geometry. NoteInclude geometry in `model` before using `specifyCoefficients`. ```

example

````specifyCoefficients(model,Name,Value,RegionType,RegionID)` assigns coefficients for a specified geometry region.```

example

````CA = specifyCoefficients(___)` returns a handle to the coefficient assignment object in `model`.```

## Examples

collapse all

Specify the coefficients for Poisson's equation $-\nabla \cdot \nabla u=1$.

`solvepde` addresses equations of the form

$m\frac{{\partial }^{2}u}{\partial {t}^{2}}+d\frac{\partial u}{\partial t}-\nabla \cdot \left(c\nabla u\right)+au=f$.

Therefore, the coefficients for Poisson's equation are $m=0$, $d=0$, $c=1$, $a=0$, $f=1$. Include these coefficients in a PDE model of the L-shaped membrane.

```model = createpde(); geometryFromEdges(model,@lshapeg); specifyCoefficients(model,"m",0,... "d",0,... "c",1,... "a",0,... "f",1);```

Specify zero Dirichlet boundary conditions, mesh the model, and solve the PDE.

```applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0); generateMesh(model,"Hmax",0.25); results = solvepde(model);```

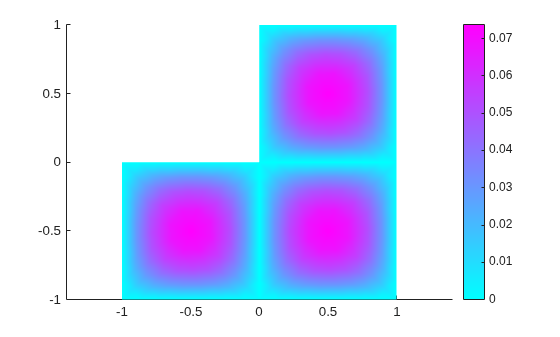

View the solution.

`pdeplot(model,"XYData",results.NodalSolution)` Specify coefficients for Poisson's equation in 3-D with a nonconstant source term, and obtain the coefficient object.

The equation coefficients are $m=0$, $d=0$, $c=1$, $a=0$. For the nonconstant source term, take $f={y}^{2}\mathrm{tanh}\left(z\right)/1000$.

`f = @(location,state)location.y.^2.*tanh(location.z)/1000;`

Set the coefficients in a 3-D rectangular block geometry.

```model = createpde(); importGeometry(model,"Block.stl"); CA = specifyCoefficients(model,"m",0,... "d",0,... "c",1,... "a",0,... "f",f)```
```CA = CoefficientAssignment with properties: RegionType: 'cell' RegionID: 1 m: 0 d: 0 c: 1 a: 0 f: @(location,state)location.y.^2.*tanh(location.z)/1000 ```

Set zero Dirichlet conditions on face 1, mesh the geometry, and solve the PDE.

```applyBoundaryCondition(model,"dirichlet","Face",1,"u",0); generateMesh(model); results = solvepde(model);```

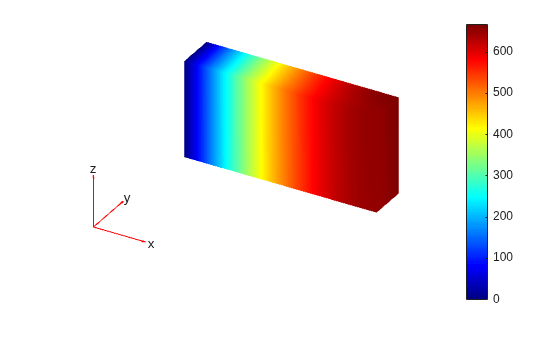

View the solution on the surface.

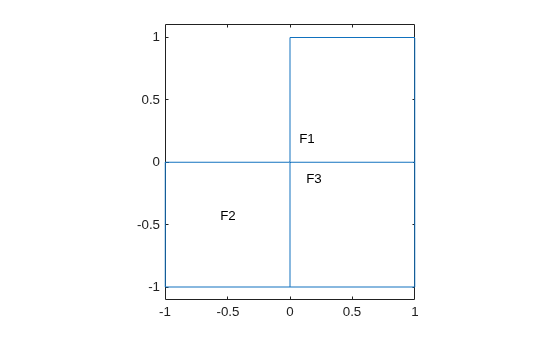

`pdeplot3D(model,"ColorMapData",results.NodalSolution)` Create a scalar PDE model with the L-shaped membrane as the geometry. Plot the geometry and subdomain labels.

```model = createpde(); geometryFromEdges(model,@lshapeg); pdegplot(model,"FaceLabels","on") axis equal ylim([-1.1,1.1])``` Set the `c` coefficient to 1 in all domains, but the `f` coefficient to 1 in subdomain 1, 5 in subdomain 2, and -8 in subdomain 3. Set all other coefficients to 0.

```specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",1,"Face",1); specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",5,"Face",2); specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",-8,"Face",3);```

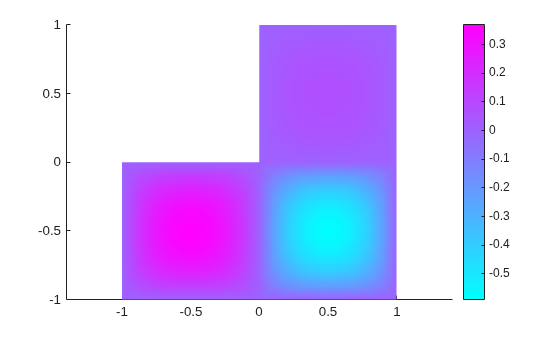

Set zero Dirichlet boundary conditions to all edges. Create a mesh, solve the PDE, and plot the result.

```applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0); generateMesh(model,"Hmax",0.25); results = solvepde(model); pdeplot(model,"XYData",results.NodalSolution)``` ## Input Arguments

collapse all

PDE model, specified as a `PDEModel` object.

Example: `model = createpde`

### Name-Value Arguments

Example: `specifyCoefficients(model,"m",0,"d",0,"c",1,"a",0,"f",@fcoeff)`

Note

You must specify all of these names: `m`, `d`, `c`, `a`, and `f`.

Second-order time derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.

Specify 0 on the entire geometry if the term is not part of your problem. If this coefficient is zero in one subdomain of the geometry, it must be zero on the entire geometry.

Example: `specifyCoefficients("m",@mcoef,"d",0,"c",1,"a",0,"f",1,"Face",1:4)`

Data Types: `double` | `function_handle`
Complex Number Support: Yes

First-order time derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.

Note

If the `m` coefficient is nonzero, `d` must be `0` or a matrix, and not a function handle. See d Coefficient When m is Nonzero.

Specify 0 on the entire geometry if the term is not part of your problem. If this coefficient is zero in one subdomain of the geometry, it must be zero on the entire geometry.

Example: `specifyCoefficients("m",0,"d",@dcoef,"c",1,"a",0,"f",1,"Face",1:4)`

Data Types: `double` | `function_handle`
Complex Number Support: Yes

Second-order space derivative coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see c Coefficient for specifyCoefficients.

This coefficient must not be zero in one subdomain of the geometry while nonzero in another subdomain.

Example: `specifyCoefficients("m",0,"d",0,"c",@ccoef,"a",0,"f",1,"Face",1:4)`

Data Types: `double` | `function_handle`
Complex Number Support: Yes

Solution multiplier coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see m, d, or a Coefficient for specifyCoefficients.

Specify `0` if the term is not part of your problem. This coefficient can be zero in one subdomain and nonzero in another.

Example: `specifyCoefficients("m",0,"d",0,"c",1,"a",@acoef,"f",1,"Face",1:4)`

Data Types: `double` | `function_handle`
Complex Number Support: Yes

Source coefficient, specified as a scalar, column vector, or function handle. For details on the sizes, and for details of the function handle form of the coefficient, see f Coefficient for specifyCoefficients.

Specify `0` if the term is not part of your problem. This coefficient can be zero in one subdomain and nonzero in another.

Example: `specifyCoefficients("m",0,"d",0,"c",1,"a",0,"f",@fcoeff,"Face",1:4)`

Data Types: `double` | `function_handle`
Complex Number Support: Yes

Geometric region type, specified as `"Face"` or `"Cell"`.

Example: `specifyCoefficients("m",0,"d",0,"c",1,"a",0,"f",10,"Cell",2)`

Data Types: `char` | `string`

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using `pdegplot`.

Example: `specifyCoefficients("m",0,"d",0,"c",1,"a",0,"f",10,"Cell",1:3)`

Data Types: `double`

## Output Arguments

collapse all

Coefficient assignment, returned as a CoefficientAssignment Properties object.

collapse all

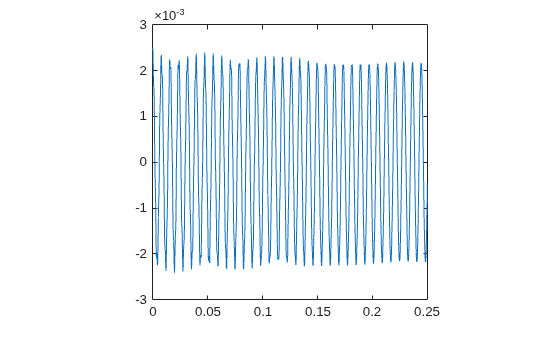

### `d` Coefficient When `m` is Nonzero

The `d` coefficient takes a special matrix form when `m` is nonzero. You must specify `d` as a matrix of a particular size, and not as a function handle.

`d` represents a damping coefficient in the case of nonzero `m`. To specify `d`, perform these two steps:

1. Call `results = assembleFEMatrices(...)` for the problem with your original coefficients and using `d` = 0. Use the default `"none"` method for `assembleFEMatrices`.

2. Take the `d` coefficient as a matrix of size `results.M`. Generally, `d` is either proportional to `results.M`, or is a linear combination of `results.M` and `results.K`.

## Tips

• For eigenvalue equations, the coefficients cannot depend on the solution `u` or its gradient.

• You can transform a partial differential equation into the required form by using Symbolic Math Toolbox™. The `pdeCoefficients` (Symbolic Math Toolbox) converts a PDE into the required form and extracts the coefficients into a structure that can be used by `specifyCoefficients`.

The `pdeCoefficients` function also can return a structure of symbolic expressions, in which case you need to use `pdeCoefficientsToDouble` (Symbolic Math Toolbox) to convert these expressions to double format before passing them to `specifyCoefficients`.

## Version History

Introduced in R2016a
