View array geometry

Since R2021a


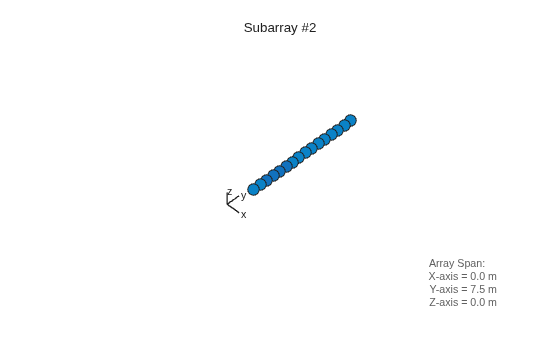

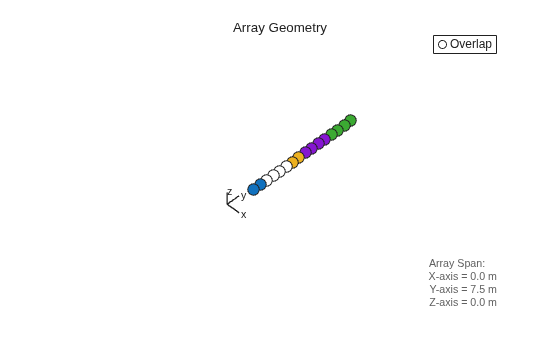

    viewArray(array) displays the geometry of the array.


    viewArray(array,Name,Value) displays the geometry of the array, with additional options specified by one or more Name,Value pair arguments.

    hndl = viewArray(___) returns the handle of the array elements in the figure window. All input arguments described for the previous syntaxes also apply here.


    collapse all

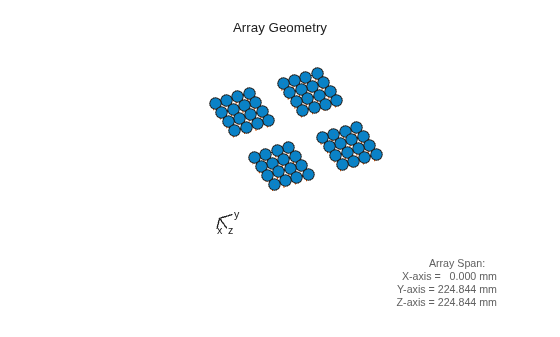

    Construct a 5G antenna array where the grid is 2-by-2 and each panel is 4-by-4 array. Each antenna element consists of two short-dipole antennas with different dipole axis directions. The antenna elements are spaced 1/2 wavelength apart and the panels are spaced 3 wavelengths apart. The array operates at 6 GHz.

    c = physconst('LightSpeed');
    fc = 6.0e9;
    lambda = c/fc;
    antenna1 = phased.ShortDipoleAntennaElement('AxisDirection','Z');
    antenna2 = phased.ShortDipoleAntennaElement('AxisDirection','X');
    array = phased.NRRectangularPanelArray('ElementSet', ...
        {antenna1, antenna2},'Size',[4, 4, 2, 2], ...
    viewArray(array,'ShowNormals',true, ...
        'ShowLocalCoordinates',true,'Orientation',[60;100;45], ...

    Input Arguments

    collapse all

    Phased array, specified as a System object.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: 'ShowNormals',true,'ShowIndex','All','ShowTaper',true

    Handle to the axes along which the array geometry is displayed.

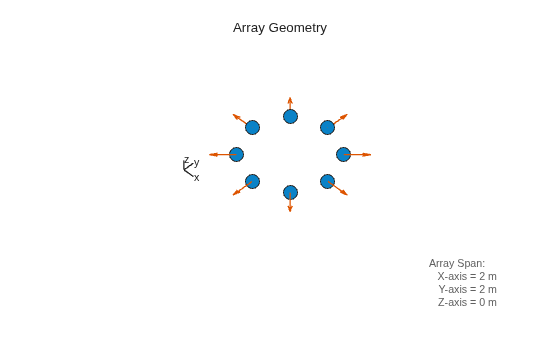

    Option to show normal directions, specified as the comma-separated pair consisting of 'ShowNormals' and a Boolean value.

    • true — show the normal directions of all elements in the array

    • false — plot the elements without showing normal directions

    Example: false

    Data Types: logical

    Logical flag specifying whether to show the local coordinate axes.

    Data Types: logical

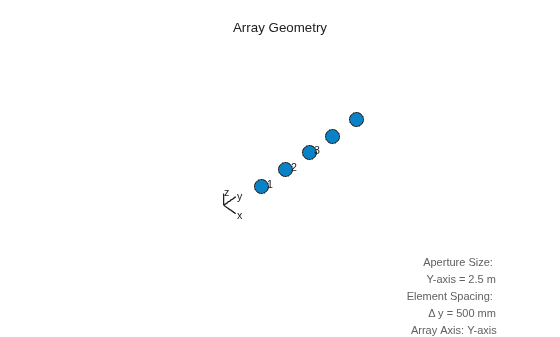

    Logical flag specifying whether to show the annotations in the UI panel of the figure. Annotation shows aperture size and element spacing based on array axis of array.

    Data Types: logical

    Orientation of the array, specified as a 3-by-1 column vector containing the rotation angles with respect to the x-, y-, and z-axes of the local coordinate system, respectively. The default value is [0;0;0].

    Data Types: double

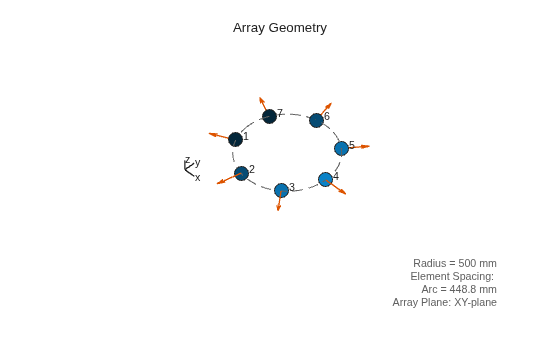

    Option to show taper magnitude, specified as the comma-separated pair consisting of 'ShowTaper' and a Boolean value.

    • true — change the element color brightness in proportion to the element taper magnitude

    • false — plot all elements using the same color

    Example: true

    Data Types: logical

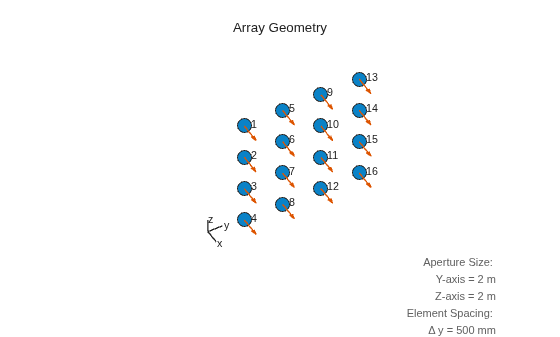

    Element indices to show in the figure, specified as the comma-separated pair consisting of 'ShowIndex' and a vector of positive integers. Each number in the vector must be an integer between 1 and the number of elements. To show all of indices of the array, specify 'All'. To suppress all indices, specify 'None'.

    Example: [1,2,3]

    Data Types: double

    Plot title, specified as a character vector.

    Example: 'My array plot'

    Data Types: char | string

    Output Arguments

    collapse all

    Handle of array elements plot in the figure window, returned as a scalar.

    Version History

    Introduced in R2021a
