detect

Detect anomalies in signals

Since R2023a

    Description

    [lbls,loss] = detect(d,data) detects anomalies in signals stored in data.

    The function assigns a normal label to signal windows whose aggregated loss value is below the detection threshold, and an abnormal label to signal windows whose aggregated loss value is greater than or equal to the detection threshold.

    example

    [lbls,loss] = detect(d,data,Name=Value) specifies additional options using name-value arguments.

    example

    Examples

    collapse all

    Load a convolutional anomaly detector trained with three-channel sinusoidal signals. Display the model, threshold, and window properties of the detector.

    load sineWaveAnomalyDetector
    D
    D =
      deepSignalAnomalyDetectorCNN with properties:

                    IsTrained: 1
                  NumChannels: 3

       Model Information
                    ModelType: 'convautoencoder'
                   FilterSize: 8
                   NumFilters: 32
          NumDownsampleLayers: 2
             DownsampleFactor: 2
           DropoutProbability: 0.2000

       Threshold Information
                    Threshold: 0.0510
              ThresholdMethod: 'contaminationFraction'
           ThresholdParameter: 0.0100

       Window Information
                 WindowLength: 1
                OverlapLength: 'auto'
        WindowLossAggregation: 'mean'



    Load the file sineWaveAnomalyData.mat, which contains two sets of synthetic three-channel sinusoidal signals.

    • sineWaveNormal contains the 10 sinusoids used to train the convolutional anomaly detector. Each signal has a series of small-amplitude impact-like imperfections but otherwise has stable amplitude and frequency.

    • sineWaveAbnormal contains three signals of similar length and amplitude to the training data. One of the signals has an abrupt, finite-time change in frequency. Another signal has a finite-duration amplitude change in one of its channels. A third has random spikes in each channel.

    Plot three normal signals and the three signals with anomalies.

    load sineWaveAnomalyData

    tiledlayout(3,2,TileSpacing="compact",Padding="compact")
    rnd = randperm(length(sineWaveNormal));
    for kj = 1:3
        nexttile
        plot(sineWaveNormal{rnd(kj)})
        title("Normal Signal")
        nexttile
        plot(sineWaveAbnormal{kj})
        title("Signal with Anomalies")
    end

    Figure contains 6 axes objects. Axes object 1 with title Normal Signal contains 3 objects of type line. Axes object 2 with title Signal with Anomalies contains 3 objects of type line. Axes object 3 with title Normal Signal contains 3 objects of type line. Axes object 4 with title Signal with Anomalies contains 3 objects of type line. Axes object 5 with title Normal Signal contains 3 objects of type line. Axes object 6 with title Signal with Anomalies contains 3 objects of type line.

    Use the trained anomaly detector to detect the anomalies in the abnormal data.

    [lbls,loss] = detect(D,sineWaveAbnormal);

    The first output of detect is a categorical array that declares each sample of a signal as being anomalous or not.

    tiledlayout("vertical")
    for kj = 1:3
        nexttile
        plot(sineWaveAbnormal{kj})
        hold on
        plot(lbls{kj},LineWidth=2)
    end

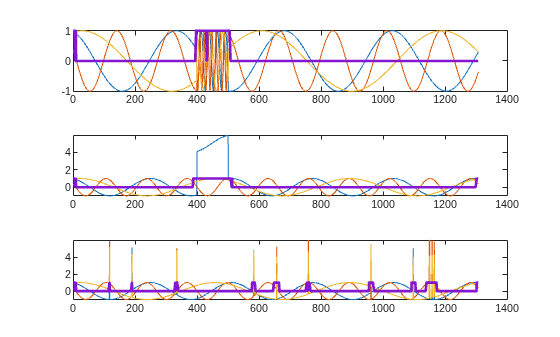

    Figure contains 3 axes objects. Axes object 1 contains 4 objects of type line. Axes object 2 contains 4 objects of type line. Axes object 3 contains 4 objects of type line.

    Load the file sineWaveAnomalyData.mat, which contains two sets of synthetic three-channel sinusoidal signals.

    • sineWaveNormal contains the 10 sinusoids used to train the convolutional anomaly detector. Each signal has a series of small-amplitude impact-like imperfections but otherwise has stable amplitude and frequency.

    • sineWaveAbnormal contains three signals of similar length and amplitude to the training data. One of the signals has an abrupt, finite-time change in frequency. Another signal has a finite-duration amplitude change in one of its channels. A third has random spikes in each channel.

    Plot three normal signals and the three signals with anomalies.

    load sineWaveAnomalyData

    tiledlayout(3,2,TileSpacing="compact",Padding="compact")
    rnd = randperm(length(sineWaveNormal));
    for kj = 1:length(sineWaveAbnormal)
        nexttile
        plot(sineWaveNormal{rnd(kj)})
        title("Normal Signal")
        nexttile
        plot(sineWaveAbnormal{kj})
        title("Signal with Anomalies")
    end

    Figure contains 6 axes objects. Axes object 1 with title Normal Signal contains 3 objects of type line. Axes object 2 with title Signal with Anomalies contains 3 objects of type line. Axes object 3 with title Normal Signal contains 3 objects of type line. Axes object 4 with title Signal with Anomalies contains 3 objects of type line. Axes object 5 with title Normal Signal contains 3 objects of type line. Axes object 6 with title Signal with Anomalies contains 3 objects of type line.

    Create a long short-term memory (LSTM) forecaster object to detect the anomalies in the abnormal signals. Specify a window length of 10 samples.

    D = deepSignalAnomalyDetector(3,"lstmforecaster",windowLength=10);

    Train the forecaster using the anomaly-free sinusoids. Use the training options for the adaptive moment estimation (Adam) optimizer and specify a maximum number of 100 epochs. For more information, see trainingOptions (Deep Learning Toolbox).

    opts = trainingOptions("adam",MaxEpochs=100,ExecutionEnvironment="cpu");
    trainDetector(D,sineWaveNormal,opts)
        Iteration    Epoch    TimeElapsed    LearnRate    TrainingLoss
        _________    _____    ___________    _________    ____________
                1        1       00:00:00        0.001          0.6369
               50       50       00:00:03        0.001         0.19706
              100      100       00:00:05        0.001        0.064225
    Training stopped: Max epochs completed
    Computing threshold...
    Threshold computation completed.


    Use the trained detector to find the anomalies in the first signal. Reset the state of the detector. Stream the data one sample at a time and have the detector keep its state after each reading. Compute the reconstruction loss for each one-sample frame. Categorize signal regions where the loss exceeds a specified threshold as anomalous.

    resetState(D)

    sg = sineWaveAbnormal{1};
    anoms = NaN(size(sg));
    losss = zeros(size(sg));

    for kj = 1:length(sg)
        frame = sg(kj,:);
        [lb,lo] = detect(D,frame, ...
            KeepState=true,ExecutionEnvironment="cpu");
        anoms(kj) = lb;
        losss(kj) = lo;
    end

    Plot the anomalous signal, the reconstruction loss, and the categorical array that declares each sample of the signal as being anomalous or not.

    figure
    tiledlayout("vertical")
    nexttile
    plot(sg)
    nexttile
    plot(losss)
    nexttile
    stem(anoms,".")

    Figure contains 3 axes objects. Axes object 1 contains 3 objects of type line. Axes object 2 contains 3 objects of type line. Axes object 3 contains 3 objects of type stem.

    Reset the state of the detector. Find the anomalies in the third signal. Plot the anomalous signal, the reconstruction loss, and the categorical array that declares each sample of the signal as being anomalous or not.

    resetState(D)

    sg = sineWaveAbnormal{3};
    anoms = NaN(size(sg));
    losss = zeros(size(sg));

    for kj = 1:length(sg)
        frame = sg(kj,:);
        [lb,lo] = detect(D,frame, ...
            KeepState=true,ExecutionEnvironment="cpu");
        anoms(kj) = lb;
        losss(kj) = lo;
    end

    figure
    tiledlayout("vertical")
    nexttile
    plot(sg)
    nexttile
    plot(losss)
    nexttile
    stem(anoms,".")

    Figure contains 3 axes objects. Axes object 1 contains 3 objects of type line. Axes object 2 contains 3 objects of type line. Axes object 3 contains 3 objects of type stem.

    Input Arguments

    collapse all

    Anomaly detector, specified as a deepSignalAnomalyDetectorCNN object, a deepSignalAnomalyDetectorLSTM object, or a deepSignalAnomalyDetectorLSTMForecaster object. Use the deepSignalAnomalyDetector function to create d.

    Signal data set, specified as one of these:

    • Nc-column matrix — A single multichannel signal observation (M = 1), where Nc is equal to the value of the NumChannels property of the detector.

    • M-element cell array — M multichannel signal observations, where each cell contains an Nc-column matrix.

    • Timetable — A single multichannel signal observation, contained in a MATLAB® timetable. The timetable must contain increasing, uniformly-sampled, and finite values. The timetable can have:

      • A single variable containing an Nc-column matrix, where each column corresponds to a signal channel.

      • Nc variables, where each variable contains a vector that corresponds to a signal channel.

    • Datastore — A signalDatastore, audioDatastore (Audio Toolbox), or arrayDatastore object. The detector uses the readall function to read all the signal observations contained in the datastore at once. You can also use a CombinedDatastore or TransformedDatastore object containing any of the supported datastores.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: MiniBatchSize=64,ExecutionEnvironment="cpu" instructs the function to use a mini-batch size of 64 and use the computer CPU to detect anomalies.

    Option to expand window labels to each sample, specified as either false or true.

    • If you specify ExpandWindowLabels as false, then lbls contains one label per window.

    • If you specify ExpandWindowLabels as true, then lbls contains one label per sample.

    Data Types: logical

    Label priority for overlapped windows when ExpandWindowLabels is true, specified as "anomaly" or "normal".

    • If you specify OverlapPriority as "anomaly", the function labels samples in an abnormal window overlapped with a normal window as abnormal.

    • If you specify OverlapPriority as "normal", the function labels samples in a normal window overlapped with an abnormal window as normal.

    This argument applies only when you set ExpandWindowLabels is true and the window overlap length is greater than zero.

    Data Types: char | string

    Since R2024a

    Option to keep the internal states of the anomaly detector so they persist during subsequent calls to detect, specified as false or true. Specify this argument as true when processing a continuous signal across multiple calls to ensure that the model incorporates historical data.

    KeepState can be true only when:

    • ModelType is "lstmforecaster".

    • WindowLength is a number. fullSignal is not supported.

    • OverlapLength is equal to WindowLength – 1.

    • data has a batch size greater than 1.

    Data Types: logical

    Mini-batch size used by the network to compute reconstructed signals, specified as a positive integer scalar.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Execution environment used by the network, specified as one of these:

    • "auto" — If available, use the GPU. If the GPU is not available, use the CPU.

    • "gpu" — Use the GPU.

    • "cpu" — Use the CPU.

    Data Types: char | string

    Output Arguments

    collapse all

    Labels, returned as a logical column vector, cell array, or timetable. The output format of lbls depends on the format of data.

    • If data is an Nc-column matrix, then lbls is a logical column vector.

    • If data is an M-element cell array, then lbls is a cell array containing M logical column vectors.

    • If data is a timetable, then lbls is a timetable with a single variable containing a logical column vector.

    • If data is a datastore, then lbls is a vector or cell array depending on the format of the data contained in the datastore.

    A normal label has a value equal to false, and an abnormal label has a value equal to true.

    Window loss, returned as a column vector, cell array, or timetable. The output format of loss depends on the format of data:

    • If data is an Nc-column matrix, then loss is a single-precision column vector.

    • If data is an M-element cell array, then loss is a cell array containing M single-precision column vectors.

    • If data is a timetable, then loss is a timetable with a single variable containing a single-precision column vector.

    • If data is a datastore, then loss is a vector or cell array depending on the format of the data contained in the datastore.

    Extended Capabilities

    Version History

    Introduced in R2023a
