gausswin

Gaussian window

Description

example

w = gausswin(L) returns an L-point Gaussian window.

w = gausswin(L,alpha) returns an L-point Gaussian window with width factor alpha.

Note

If the window appears to be clipped, increase L, the number of points.

Examples

collapse all

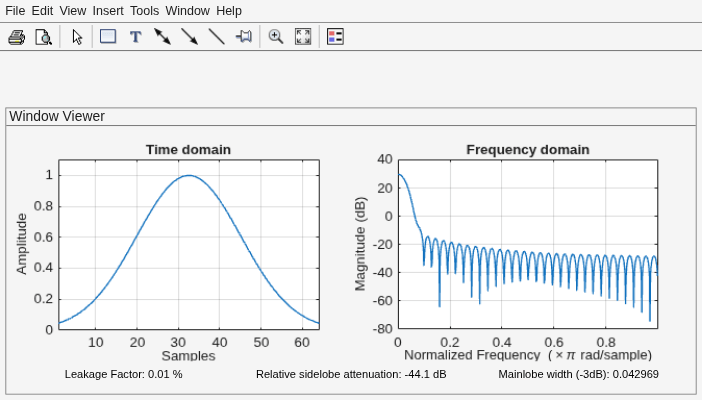

Create a 64-point Gaussian window. Display the result in wvtool.

L = 64;
wvtool(gausswin(L))

{"String":"Figure Window Visualization Tool contains 2 axes objects and other objects of type uimenu, uitoolbar, uipanel. Axes object 1 with title Time domain contains an object of type line. Axes object 2 with title Frequency domain contains an object of type line.","Tex":["Time domain","Frequency domain"],"LaTex":[]}

This example shows that the Fourier transform of the Gaussian window is also Gaussian with a reciprocal standard deviation. This is an illustration of the time-frequency uncertainty principle.

Create a Gaussian window of length N=64 by using gausswin and the defining equation. Set α=8, which results in a standard deviation of (N-1)/2α=63/16. The Gaussian is essentially limited to the mean plus or minus 3 standard deviations, or an approximate support of [–12, 12].

N = 64;
n = -(N-1)/2:(N-1)/2;
alpha = 8;

w = gausswin(N,alpha);

stdev = (N-1)/(2*alpha);
y = exp(-1/2*(n/stdev).^2);

plot(n,w)
hold on
plot(n,y,".")
hold off

xlabel("Samples")
title("Gaussian Window, N = "+N)
legend(["gausswin" "Definition"])

Figure contains an axes object. The axes object with title Gaussian Window, N = 64 contains 2 objects of type line. These objects represent gausswin, Definition.

Obtain the Fourier transform of the Gaussian window at 4N=256 points. Use fftshift to center the Fourier transform at zero frequency (DC).

nfft = 4*N;
freq = -pi:2*pi/nfft:pi-pi/nfft;

wdft = fftshift(fft(w,nfft));

The Fourier transform of the Gaussian window is also Gaussian with a standard deviation that is the reciprocal of the time-domain standard deviation. Include the Gaussian normalization factor in your computation.

ydft = exp(-1/2*(freq/(1/stdev)).^2)*(stdev*sqrt(2*pi));

plot(freq/pi,abs(wdft))
hold on
plot(freq/pi,abs(ydft),".")
hold off

xlabel("Normalized frequency (\times\pi rad/sample)")
title("Fourier Transform of Gaussian Window")
legend(["fft" "Definition"])

Figure contains an axes object. The axes object with title Fourier Transform of Gaussian Window contains 2 objects of type line. These objects represent fft, Definition.

Input Arguments

collapse all

Window length, specified as a positive integer.

Data Types: single | double

Width factor, specified as a positive real scalar. alpha is inversely proportional to the width of the window.

Data Types: single | double

Output Arguments

collapse all

Gaussian window, returned as a column vector.

Algorithms

The coefficients of a Gaussian window are computed from the following equation:

w(n)=e12(αn(L1)/2)2=en2/2σ2,

where –(L – 1)/2 ≤ n ≤ (L – 1)/2, and α is inversely proportional to the standard deviation, σ, of a Gaussian random variable. The exact correspondence with the standard deviation of a Gaussian probability density function is σ = (L – 1)/(2α).

References

[1] Hansen, Eric W. Fourier Transforms: Principles and Applications. New York: John Wiley & Sons, 2014.

[2] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a
