impz

Impulse response of digital filter

Syntax

[h,t] = impz(b,a)

[h,t] = impz(B,A,"ctf")

[h,t] = impz({B,A,g},"ctf")

[h,t] = impz(d)

[h,t] = impz(sos)

[h,t] = impz(___,n)

[h,t] = impz(___,n,fs)

impz(___)

Description

[h,t] = impz(b,a) returns the impulse response of the specified digital filter. Specify a digital filter with numerator coefficients b and denominator coefficients a. The function chooses the number of samples and returns the response coefficients in h and the sample times in t.

[h,t] = impz(B,A,"ctf") returns the impulse response of the digital filter represented as Cascaded Transfer Functions (CTF) with numerator coefficients B and denominator coefficients A. (since R2024b)

[h,t] = impz({B,A,g},"ctf") returns the impulse response of the digital filter in CTF format. Specify the filter with numerator coefficients B, denominator coefficients A, and scaling values g across filter sections. (since R2024b)

[h,t] = impz(d) returns the impulse response of the digital filter d. Use designfilt to generate d based on frequency-response specifications.

[h,t] = impz(sos) returns the impulse response of the filter specified by the second-order sections matrix sos.

[h,t] = impz(___,n) specifies what impulse-response samples to compute. You can specify the filter using any of the previous syntaxes.

[h,t] = impz(___,n,fs) returns a vector t with consecutive samples spaced 1/fs units apart.

impz(___) with no output arguments plots the impulse response of the filter.

Examples

Impulse Response of Elliptic Lowpass Filter

Design a fourth-order lowpass elliptic filter with normalized passband frequency 0.4 rad/sample. Specify a passband ripple of 0.5 dB and a stopband attenuation of 20 dB. Plot the first 50 samples of the impulse response.

[b,a] = ellip(4,0.5,20,0.4);

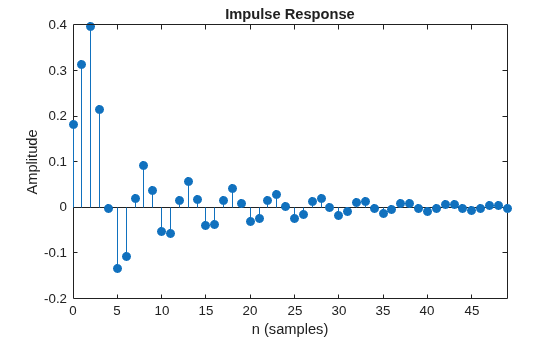

impz(b,a,50)

Design the same filter using designfilt. Plot the first 50 samples of its impulse response.

d = designfilt('lowpassiir','DesignMethod','ellip','FilterOrder',4, ...
               'PassbandFrequency',0.4, ...
               'PassbandRipple',0.5,'StopbandAttenuation',20);
p = impz(d,50);

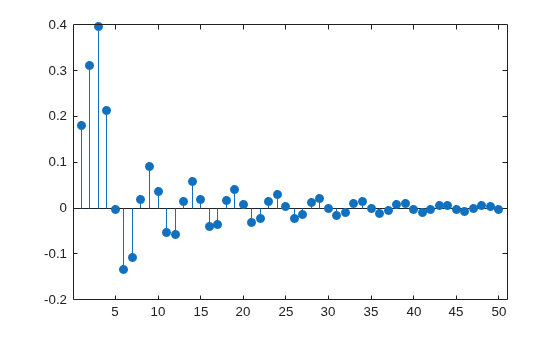

stem(p,"Filled")

Impulse Response of Highpass FIR Filter

Design an FIR highpass filter of order 18 using a Kaiser window with $$\beta =4$$. Specify a sample rate of 100 Hz and a cutoff frequency of 30 Hz. Display the impulse response of the filter.

b = fir1(18,30/(100/2),'high',kaiser(19,4));

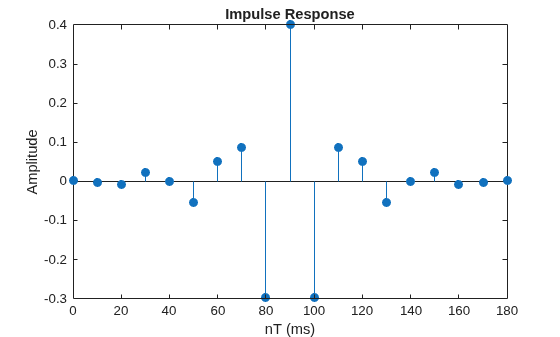

impz(b,1,[],100)

Design the same filter using designfilt and plot its impulse response.

d = designfilt('highpassfir','FilterOrder',18,'SampleRate',100, ...
               'CutoffFrequency',30,'Window',{'kaiser',4});
[p,t] = impz(d,[],100);

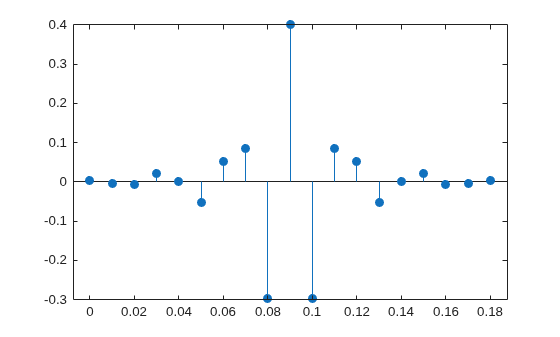

stem(t,p,"filled")

Impulse Response from Cascaded Transfer Functions

Since R2024b

Design a 40th-order lowpass Chebyshev type II digital filter with a stopband edge frequency of 0.4 and stopband attenuation of 50 dB. Plot the first 64 samples of filter impulse response using the filter coefficients in the CTF format.

[B,A] = cheby2(40,50,0.4,"ctf");

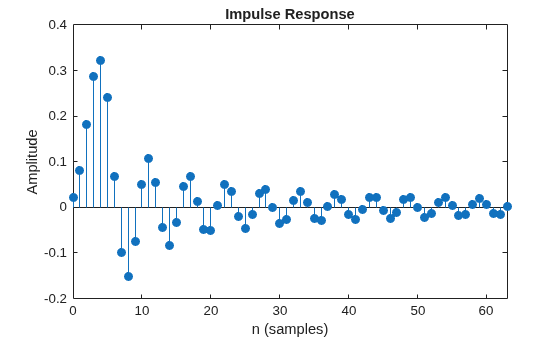

impz(B,A,"ctf",64)

Design a 30th-order bandpass elliptic digital filter with passband edge frequencies of 0.3 and 0.7, passband ripple of 0.1 dB, and stopband attenuation of 50 dB. Plot the first 64 samples of filter impulse response using the filter coefficients and gain in the CTF format.

[B,A,g] = ellip(30,0.1,50,[0.3 0.7],"ctf");

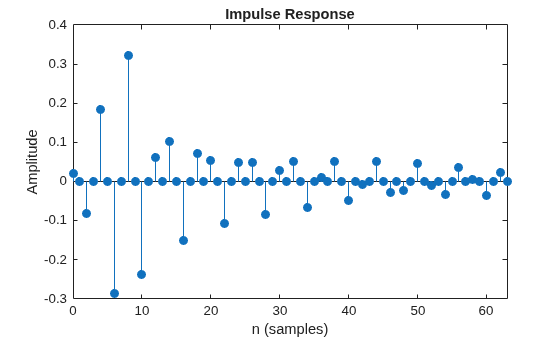

impz({B,A,g},"ctf",64)

Input Arguments

b, a — Transfer function coefficients

vectors

Transfer function coefficients, specified as vectors. Express the transfer function in terms of b and a as

$$H(z)=\frac{B(z)}{A(z)}=\frac{b_1+b_2{z}^{-1}\cdots +b_n{z}^{-\left(n-1\right)}+b_{n+1}{z}^{-n}}{a_1+a_2{z}^{-1}\cdots +a_m{z}^{-\left(m-1\right)}+a_{m+1}{z}^{-m}}$$

Example: b = [1 3 3 1]/6 and a = [3 0 1 0]/3 specify a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Data Types: double | single
Complex Number Support: Yes

B,A — Cascaded transfer function (CTF) coefficients

scalars | vectors | matrices

Since R2024b

Cascaded transfer function (CTF) coefficients, specified as scalars, vectors, or matrices. B and A list the numerator and denominator coefficients of the cascaded transfer function, respectively.

B must be of size L-by-(m + 1) and A must be of size L-by-(n + 1), where:

• L represents the number of filter sections.

• m represents the order of the filter numerators.

• n represents the order of the filter denominators.

For more information about the cascaded transfer function format and coefficient matrices, see Specify Digital Filters in CTF Format.

Note

If any element of A(:,1) is not equal to 1, then impz normalizes the filter coefficients by A(:,1). In this case, A(:,1) must be nonzero.

Data Types: double | single
Complex Number Support: Yes

g — Scale values

scalar | vector

Since R2024b

Scale values, specified as a real-valued scalar or as a real-valued vector with L + 1 elements, where L is the number of CTF sections. The scale values represent the distribution of the filter gain across sections of the cascaded filter representation.

The impz function applies a gain to the filter sections using the scaleFilterSections function depending on how you specify g:

• Scalar — The function distributes the gain uniformly across all filter sections.

• Vector — The function applies the first L gain values to the corresponding filter sections and distributes the last gain value uniformly across all filter sections.

Data Types: double | single

d — Digital filter

digitalFilter object

Digital filter, specified as a digitalFilter object. Use designfilt to generate a digital filter based on frequency-response specifications.

Example: d = designfilt('lowpassiir','FilterOrder',3,'HalfPowerFrequency',0.5) specifies a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

sos — Second-order section coefficients

matrix

Second-order section coefficients, specified as a matrix. sos is a K-by-6 matrix, where the number of sections, K, must be greater than or equal to 2. If the number of sections is less than 2, the function treats the input as a numerator vector. Each row of sos corresponds to the coefficients of a second-order (biquad) filter. The ith row of sos corresponds to [bi(1) bi(2) bi(3) ai(1) ai(2) ai(3)].

Example: s = [2 4 2 6 0 2;3 3 0 6 0 0] specifies a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Data Types: double | single
Complex Number Support: Yes

n — Number of points over which to evaluate response

positive integer | vector of nonnegative integers | []

Number of points over which to evaluate response, specified as a positive integer, a vector of nonnegative integers, or an empty vector.

• If n is a positive integer, impz computes the first n samples of the impulse response and returns t as (0:n-1)'.

• If n is a vector of nonnegative integers, impz computes the impulse response at the locations specified in the vector.

• If n is an empty vector, impz computes the number of samples automatically. See Algorithms for more information.

Example: impz([2 4 2 6 0 2;3 3 0 6 0 0],5) computes the first five samples of the impulse response of a Butterworth filter.

Example: impz([2 4 2 6 0 2;3 3 0 6 0 0],[0 3 2 1 4 5]) computes the first six samples of the impulse response of a Butterworth filter.

Example: impz([2 4 2 6 0 2;3 3 0 6 0 0],[],5e3) computes the impulse response of a Butterworth filter designed to filter signals sampled at 5 kHz.

fs — Sample rate

positive scalar

Sample rate, specified as a positive scalar. When the unit of time is seconds, fs is expressed in hertz.

Data Types: double

Output Arguments

h — Impulse response coefficients

column vector

Impulse response coefficients, returned as a column vector.

t — Sample times

column vector

Sample times, returned as a column vector.

More About

Cascaded Transfer Functions

Partitioning an IIR digital filter into cascaded sections improves its numerical stability and reduces its susceptibility to coefficient quantization errors. The cascaded form of a transfer function H(z) in terms of the L transfer functions H₁(z), H₂(z), …, H_L(z) is

$$H(z)={\displaystyle \prod _{l=1}^L{H}_l(z)}=H_1(z)\times H_2(z)\times \cdots \times H_L(z).$$

Specify Digital Filters in CTF Format

You can specify digital filters in the CTF format for analysis, visualization, and signal filtering. Specify a filter by listing its coefficients B and A. You can also include the filter scaling gain across sections by specifying a scalar or vector g.

Filter Coefficients

When you specify the coefficients as L-row matrices,

$$B=\left[\begin{array}{cccc}{b}_{11}& b_{12}& \cdots & b_{1,m+1}\\ b_{21}& b_{22}& \cdots & b_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ b_{L1}& b_{L2}& \cdots & b_{L,m+1}\end{array}\right],A=\left[\begin{array}{cccc}{a}_{11}& a_{12}& \cdots & a_{1,n+1}\\ a_{21}& a_{22}& \cdots & a_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ a_{L1}& a_{L2}& \cdots & a_{L,n+1}\end{array}\right],$$

it is assumed that you have specified the filter as a sequence of L cascaded transfer functions, such that the full transfer function of the filter is

$$H\left(z\right)=\frac{b_{11}+b_{12}{z}^{-1}+\cdots +b_{1,m+1}{z}^{-m}}{a_{11}+a_{12}{z}^{-1}+\cdots +a_{1,n+1}{z}^{-n}}\times \frac{b_{21}+b_{22}{z}^{-1}+\cdots +b_{2,m+1}{z}^{-m}}{a_{21}+a_{22}{z}^{-1}+\cdots +a_{2,n+1}{z}^{-n}}\times \cdots \times \frac{b_{L1}+b_{L2}{z}^{-1}+\cdots +b_{L,m+1}{z}^{-m}}{a_{L1}+a_{L2}{z}^{-1}+\cdots +a_{L,n+1}{z}^{-n}},$$

where m ≥ 0 is the numerator order of the filter and n ≥ 0 is the denominator order.

• If you specify both B and A as vectors, it is assumed that the underlying system is a one-section IIR filter (L = 1), with B representing the numerator of the transfer function and A representing its denominator.

• If B is scalar, it is assumed that the filter is a cascade of all-pole IIR filters with each section having an overall system gain equal to B.

• If A is scalar, it is assumed that the filter is a cascade of FIR filters with each section having an overall system gain equal to 1/A.

Note

• To convert second-order section matrices to cascaded transfer functions, use the sos2ctf function.

• To convert a zero-pole-gain filter representation to cascaded transfer functions, use the zp2ctf function.

Coefficients and Gain

If you have an overall scaling gain or multiple scaling gains factored out from the coefficient values, you can specify the coefficients and gain as a cell array of the form {B,A,g}. Scaling filter sections is especially important when you work with fixed-point arithmetic to ensure that the output of each filter section has similar amplitude levels, which helps avoid inaccuracies in the filter response due to limited numeric precision.

The gain can be a scalar overall gain or a vector of section gains.

• If the gain is scalar, the value applies uniformly to all the cascade filter sections.

• If the gain is a vector, it must have one more element than the number of filter sections L in the cascade. Each of the first L scale values applies to the corresponding filter section, and the last value applies uniformly to all the cascade filter sections.

If you specify the coefficient matrices and gain vector as

$$B=\left[\begin{array}{cccc}{b}_{11}& b_{12}& \cdots & b_{1,m+1}\\ b_{21}& b_{22}& \cdots & b_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ b_{L1}& b_{L2}& \cdots & b_{L,m+1}\end{array}\right],A=\left[\begin{array}{cccc}{a}_{11}& a_{12}& \cdots & a_{1,n+1}\\ a_{21}& a_{22}& \cdots & a_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ a_{L1}& a_{L2}& \cdots & a_{L,n+1}\end{array}\right],g=\left[\begin{array}{ccccc}{g}_1& g_2& \cdots & g_L& g_{\text{S}}\end{array}\right],$$

it is assumed that the transfer function of the filter system is

$$H\left(z\right)=g_{\text{S}}\left(g_1\frac{b_{11}+b_{12}{z}^{-1}+\cdots +b_{1,m+1}{z}^{-m}}{a_{11}+a_{12}{z}^{-1}+\cdots +a_{1,n+1}{z}^{-n}}\times g_2\frac{b_{21}+b_{22}{z}^{-1}+\cdots +b_{2,m+1}{z}^{-m}}{a_{21}+a_{22}{z}^{-1}+\cdots +a_{2,n+1}{z}^{-n}}\times \cdots \times g_L\frac{b_{L1}+b_{L2}{z}^{-1}+\cdots +b_{L,m+1}{z}^{-m}}{a_{L1}+a_{L2}{z}^{-1}+\cdots +a_{L,n+1}{z}^{-n}}\right).$$

Tips

• You can obtain filters in CTF format, including the scaling gain. Use the outputs of digital IIR filter design functions, such as butter, cheby1, cheby2, and ellip. Specify the "ctf" filter-type argument in these functions and specify to return B, A, and g to get the scale values. (since R2024b)

Algorithms

impz filters a length-n impulse sequence using

filter(b,a,[1 zeros(1,n-1)])

and plots the result using stem.

Note

If the input to impz is single precision, the function computes the impulse response using single-precision arithmetic and returns single-precision output.

When impz calculates n automatically, the algorithm depends on the properties of the filter:

• FIR filters — n is the length of b.

• IIR filters — impz first finds the poles of the transfer function using roots.

  • If the filter is unstable, n is chosen to be the point at which the term from the largest pole reaches 10⁶ times its original value.

  • If the filter is stable, n is chosen as the point at which the term from the largest-amplitude pole is 5 × 10^–5 times its original amplitude.

  • If the filter is oscillatory with poles on the unit circle only, impz computes five periods of the slowest oscillation.

  • If the filter has both oscillatory and damped terms, n is the greater of five periods of the slowest oscillation, or the point at which the term due to the largest pole is 5 × 10^–5 times its original amplitude.

impz also allows for delays in the numerator polynomial. The number of delays is incorporated into the computation of the number of samples.

References

[1] Lyons, Richard G. Understanding Digital Signal Processing. Upper Saddle River, NJ: Prentice Hall, 2004.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• If you input CTF coefficients to the impz function, you must include the "ctf" input argument in the impz syntax to generate code.

• If the first input to impz is a variable-size matrix at compile time, then it must not become a vector at runtime.

Version History

Introduced before R2006a

R2025a: Visualize cascaded transfer functions using Create Plot Live Editor task

You can use cascaded transfer functions (CTF) in the Create Plot Live Editor task to visualize the output of impz interactively.

R2024b: Analyze filters using cascaded transfer functions

The impz function supports inputs in the cascaded transfer function (CTF) format.

R2023a: Visualize function outputs using Create Plot Live Editor task

You can now use the Create Plot Live Editor task to visualize the output of impz interactively. You can select different chart types and set optional parameters. The task also automatically generates code that becomes part of your live script.
