# Algebraic Constraint

Constrain input signal

Libraries:
Simulink / Math Operations

## Description

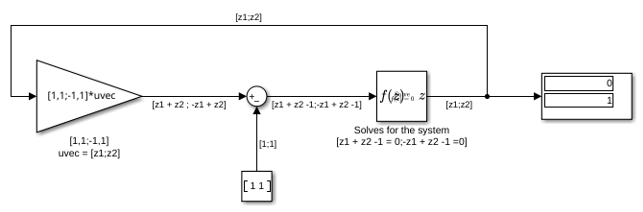

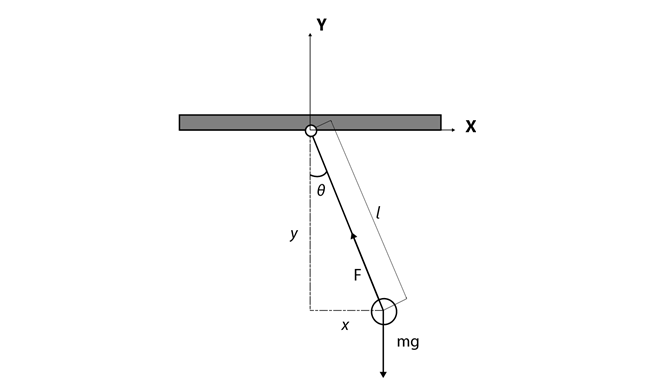

The Algebraic Constraint block constrains the input signal f(z) to z or 0 and outputs an algebraic state z. The block outputs a value that produces 0 or z at the input. The output must affect the input through a direct feedback path. In other words, the feedback path only contains blocks with direct feedthrough. For example, you can specify algebraic equations for index 1 differential-algebraic systems (DAEs).

## Ports

### Input

expand all

Signal is subjected to the constraint f(z) = 0 or f(z) = z to solve the algebraic loop.

Data Types: `double`

### Output

expand all

Solution to the algebraic loop when the input signal f(z) is subjected to the constraint f(z) = 0 or f(z) = z.

Data Types: `double`

## Parameters

expand all

Type of constraint for which to solve. You can solve for ```f(z) = 0``` or `f(z) = z`

#### Programmatic Use

 Block Parameter: `Constraint` Type: character vector Values: `'f(z) = 0' | 'f(z) = z'` Default: `'f(z) = 0'`

Choose between the Trust region [1], [2] or Line search [3] algorithms to solve the algebraic loop. By default this value is set to `auto`, which selects the algebraic loop solver based on the model configuration and switches the solver between the Trust region and Line search algorithm during simulation

#### Programmatic Use

 Block Parameter: `Solver` Type: character vector Values: `'auto' | 'Trust region' | 'Line search'` Default: `'auto'`

This option is visible when you explicitly specify a solver to be used (Trust region or Line Search) in the Solver drop-down menu. Specify a smaller value for higher accuracy or a larger value for faster execution. By default it is set to `auto`.

#### Programmatic Use

 Block Parameter: `Tolerance` Type: character vector Values: `'auto' |` positive scalar Default: `'auto'`

Initial guess for the algebraic state z that is close to the expected solution value to improve the efficiency of the algebraic loop solver. By default, this value is set to 0

#### Programmatic Use

 Block Parameter: `InitialGuess` Type: character vector Values: scalar Default: `'0'`

## Block Characteristics

 Data Types `double` Direct Feedthrough `no` Multidimensional Signals `no` Variable-Size Signals `no` Zero-Crossing Detection `no`

## References

[1] Garbow, B. S., K. E. Hillstrom, and J. J. Moré. User Guide for MINPACK-1. Argonne, IL: Argonne National Laboratory, 1980.

[2] Rabinowitz, P. H. Numerical Methods for Nonlinear Algebraic Equations. New York: Gordon and Breach, 1970.

[3] Kelley, C. T. Iterative Methods for Linear and Nonlinear Equations. Society for Industrial and Applied Mathematics, Philadelphia, PA: 1995.

## Version History

Introduced before R2006a
