Enumerated Constant
Generate enumerated constant value
Libraries:
Simulink /
Sources
HDL Coder /
Sources
Description
The Enumerated Constant block outputs a scalar, array, or matrix of enumerated values. You can also use the Constant block to output enumerated values, but it provides block parameters that do not apply to enumerated types, such as Output minimum and Output maximum. When you need a block that outputs only constant enumerated values, use Enumerated Constant rather than Constant. For more information, see Simulink Enumerations.
Examples

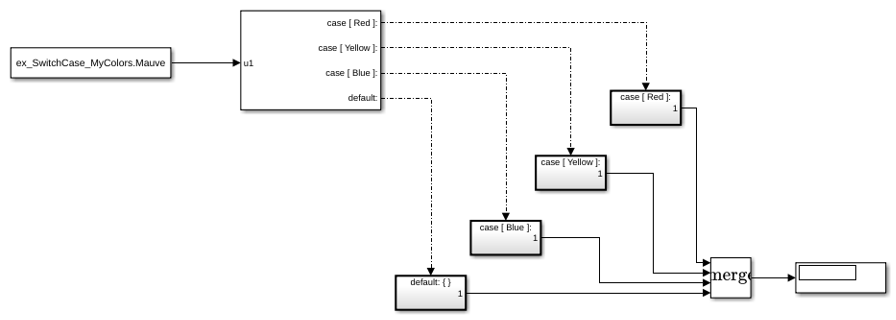

Control Algorithm Execution Using Enumerated Signal
Use a signal of an enumerated data type to control the execution of a block algorithm.
Data Typing in Simulink
Use data types in Simulink®. The model used in this example converts a double-precision sine wave having an amplitude of 150 to various data types and displays the converted signals on two scopes.
Switch Between Sets of Parameter Values During Simulation and Code Execution
Switch between independent sets of values for the same block parameters by storing the sets in an array of structures.
Ports
Output
Port_1 — Enumerated constant
scalar | vector | matrix
Enumerated constant value, specified as a scalar, vector, or matrix.
Data Types: enumerated
Parameters
Output data type — Output data type
Enum: SlDemoSign
(default) | Enum:<ClassName>
Specify the enumerated type from which you want the block to output one or
more values. The initial value,
Enum:
SlDemoSign
, is a dummy
enumerated type that prevents a newly cloned block from causing an error. To
specify the desired enumerated type, select it from the drop-down list or
enter
Enum:
in the Output data type field, where
ClassName
is the name
of the MATLAB® class that defines the type.ClassName
Programmatic Use
Block Parameter:
OutDataTypeStr |
Type: character vector |
Values:
'Enum:<ClassName>' |
Default: 'Enum:
SlDemoSign' |
Mode — Category of data to specify
Enumerated
(default)
Select the category of data to specify.
-
Enumerated
Enumerated data types. Selecting
Enumerated
enables a second menu/text box to the right, where you can enter the class name.
Value — Enumerated value
SlDemoSign.Positive
(default) | Enum:<ClassName.Value>
Specify the value or values that the block outputs. The output of the
block has the same dimensions and elements as the Value
parameter. The initial value, SlDemoSign.Positive
, is a
dummy enumerated value that prevents a newly cloned block from causing an
error.
To specify the desired enumerated values, select from the drop-down list
or enter any MATLAB expression that evaluates to the desired result, including an
expression that uses tunable parameters. All specified values must be of the
type indicated by the Output data type. To
specify an array that includes every value in the enumerated type, use the
enumeration
function.
Programmatic Use
Block Parameter:
Value |
Type: character vector |
Values: 'SlDemoSign.Positive' |
'SlDemoSign.Zero' |
'SlDemoSign.Negative' |
'Enum:<ClassName.Value>' |
Default:
'SlDemoSign.Positive' |
Sample time — Sample time
inf
(default) | scalar | vector
Specify the interval between times that the block output can change during
simulation (for example, due to tuning the Value
parameter). The default value of inf
indicates that the
block output can never change. A sample time of inf
speeds the simulation and generated code by avoiding the need to recompute
the block output. For more information, see Specify Sample Time.
Programmatic Use
Block Parameter:
SampleTime |
Type: character vector |
Values: scalar | vector |
Default:
'inf' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline | Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is
|
OutputPipeline | Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
Version History
Introduced in R2009b
