State Reader

Read a block state

•

Libraries:
Simulink / Signal Routing

Description

The State Reader block reads the current state of a supported state owner block.

State Reader blocks can read state from these state owner blocks:

• Discrete State-Space

• Discrete-Time Integrator

• Delay

• Unit Delay

• Discrete Transfer Fcn

• Discrete Filter

• Discrete FIR Filter

• Integrator

• Second-Order Integrator

• Outport of conditional subsystem blocks such as Enabled Subsystem, Triggered Subsystem, and Function-Call Subsystem

• S-Function with multiple discrete states

  To configure an S-Function block as a state owner block, each data type work vector must be declared as a discrete state vector using ssSetDWorkUsedAsDState and named using ssSetDWorkName or ssSetDWorkRTWIdentifier in mdlInitializeSizes.

Tip

You can determine whether a block is a supported state owner block by the value of the block's IsStateOwnerBlock parameter. The expression

get_param(blk,'IsStateOwnerBlock')

where blk is a block name or handle, returns 'on' if the block is a supported state owner block and 'off' otherwise.

To add a State Reader or State Writer block to your model, click a state owner block to highlight it. Then, from the current block tab of the Simulink^® toolstrip, click Reader-Writer. From the menu, select State Reader Block or State Writer Block.

Note

The current block tab of the toolstrip might be labeled with the name of the highlighted block, for example, Outport, or it might be labeled Block, depending on the type of block you highlight.

If the state owner block has multiple states, then the State Reader or State Writer block dialog opens. Select a state from the State Owner Selector Tree.

Note

Before adding a State Reader or State Writer block for a Second-Order Integrator block, you must explicitly name the states. See Specifying the State Names.

After you create a State Reader or State Writer block, a badge appears above the state owner block, and the name of the state owner block appears next to the State Reader or State Writer block.

A State Reader or State Writer block cannot remain in the same system as its state owner block. After you create a State Reader or State Writer block, cut and paste it to move it to the desired location within the model hierarchy.

Alternatively, you can add a State Reader or State Writer block to your model from the Simulink Library Browser, then set the State owner block parameter from the block parameters dialog.

Note

When you create a library block with a State Reader or State Writer block, you must also include the corresponding state owner block in the library block. In addition to custom library blocks created using the workflow mentioned in Create Custom Library, Simulink treats model components created using Subsystem Reference block as a one-block library.

You can select a State Reader or State Writer block or a corresponding state owner block to highlight blocks related to it. To show a related block in an open diagram or new tab, pause on the ellipsis that appears after selection. Then, select Related Blocks from the action bar. When multiple blocks correspond to the selected block, a list of related blocks opens. You can filter the list of related blocks by entering a search term in the text box. After you select a related block from the list, window focus goes to the open diagram or new tab that shows the related block.

Examples

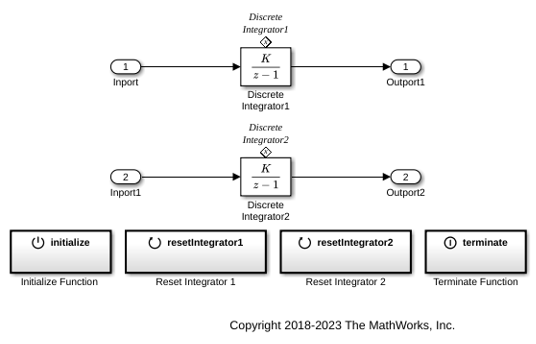

Initialize, Reset, and Terminate State of Simulink Block

Use the Initialize Function, Reset Function, and Terminate Function blocks to respond to events in a Simulink model.

• Open Model

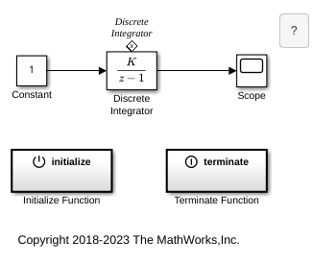

Reading and Writing States with the Initialize Function and Terminate Function Blocks

In this example, the Initialize Function block uses the State Writer block to set the initial condition of a Discrete Integrator block to 10.

• Open Model

Ports

Output

Out — State value

scalar | vector

State value read from a state owner block.

The dimension of the output is the dimension of the full state vector. Refer to the Initial conditions parameter for specific blocks. For example, for a Delay block with a Delay length of N, the State Reader block returns a state vector of length [1xN].

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

State owner block — Name of state owner block

none (default)

Name of state owner block whose state this block is reading. To change the state owner block, select a block from the State Owner Selector Tree.

Note

If the name of a state owner block contains a slash (/), the slash appears as two slashes (//) in the State Reader block parameters dialog. This notation distinguishes the slash in the block name itself from slashes that separate names at different levels of the model hierarchy.

Programmatic Use

Block Parameter: StateOwnerBlock

Type: character vector

Value: '' | '<model path/block name>'

Default: ''

Block Characteristics

Data Types	Boolean | bus | double | enumerated | fixed point | half | integer | single
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
