fairnessMetrics
Description
fairnessMetrics
computes fairness metrics (bias and group
metrics) for a data set or binary classification model with respect to sensitive attributes.
The data-level evaluation examines binary, true labels of the data. The model-level evaluation
examines the predicted labels returned by one or more binary classification models, using both
true labels and predicted labels.
Bias metrics measure differences across groups, and group metrics contain information within the group. You can use the metrics to determine if your data or models contain bias toward a group within each sensitive attribute.
After creating a fairnessMetrics
object, use the report
function to

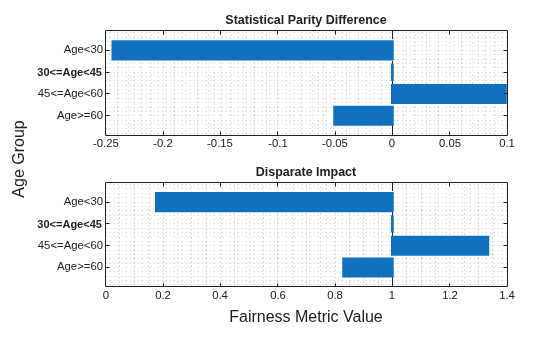

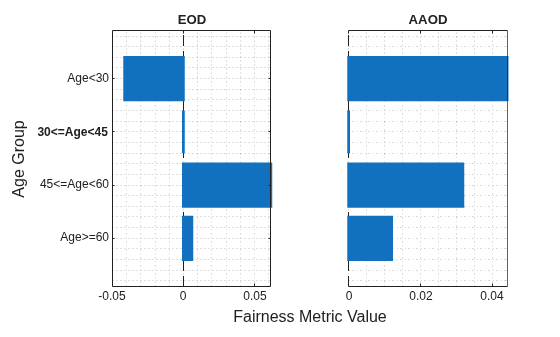

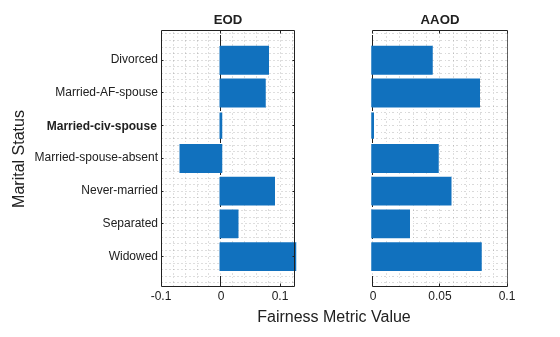

generate a fairness metrics report or use the plot
function to
create a bar graph of the metrics.
Creation
Syntax
Description
computes fairness metrics for the true, binary class labels in the vector
evaluator
= fairnessMetrics(SensitiveAttributes
,Y
)Y
with respect to the sensitive attributes in the
SensitiveAttributes
matrix. The fairnessMetrics
function returns the fairnessMetrics
object
evaluator
, which stores bias metrics and group metrics in the
BiasMetrics
and
GroupMetrics
properties, respectively.
computes fairness metrics using the sensitive attributes and response variable in the
table evaluator
= fairnessMetrics(Tbl
,ResponseName
)Tbl
. The input argument ResponseName
specifies the name of the variable in Tbl
that contains the class
labels.
specifies a subset of the variables in evaluator
= fairnessMetrics(___,SensitiveAttributeNames=sensitiveAttributeNames
)Tbl
(whose names correspond to
sensitiveAttributeNames
) as sensitive attributes, or assigns names
to the sensitive attributes in sensitiveAttributeNames
. You can
specify this argument in addition to any of the input argument combinations in the
previous syntaxes.
computes fairness metrics for one or more binary classification models when you specify
each model's predicted labels by using the evaluator
= fairnessMetrics(___,Predictions=predictions
)predictions
argument.
fairnessMetrics
uses both true labels and predicted labels for the
model-level evaluation.
specifies additional options using one or more name-value arguments. For example, specify
evaluator
= fairnessMetrics(___,Name=Value
)SensitiveAttributeNames="age",ReferenceGroup=30
to compute bias
metrics for each group in the age
variable with respect to the
reference age group 30
.
Input Arguments
SensitiveAttributes
— Sensitive attributes
vector | matrix
Sensitive attributes, specified as a vector or matrix. If you specify
SensitiveAttributes
as a matrix, each row of
SensitiveAttributes
corresponds to one observation, and each
column corresponds to one sensitive attribute.
You can use the sensitiveAttributeNames
argument to assign names to the variables in
SensitiveAttributes
.
Data Types: single
| double
| logical
| char
| string
| cell
| categorical
Y
— True, binary class labels
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors
True, binary class labels, specified as a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors.
fairnessMetrics
supports only binary classification.Y
must contain exactly two distinct classes.You can specify one of the two classes as a positive class by using the
PositiveClass
name-value argument.The length of
Y
must be equal to the number of observations inSensitiveAttributes
orTbl
.If
Y
is a character array, then each label must correspond to one row of the array.
Data Types: single
| double
| logical
| char
| string
| cell
| categorical
Tbl
— Sample data
table
Sample data, specified as a table. Each row of Tbl
corresponds to one observation, and each column corresponds to one sensitive
attribute. Multicolumn variables and cell arrays other than cell arrays of character
vectors are not allowed.
Optionally, Tbl
can contain columns for the true class
labels, predicted class labels, and observation weights.
You must specify the true class label variable using
ResponseName
, the predicted class label variables usingPredictions
, and the observation weight variable usingWeights
.fairnessMetrics
uses the remaining variables as sensitive attributes. To use a subset of the remaining variables inTbl
as sensitive attributes, specify the variables by usingsensitiveAttributeNames
.The true class label variable must be a categorical, character, or string array, a logical or numeric vector, or a cell array of character vectors.
fairnessMetrics
supports only binary classification. The true class label variable must contain exactly two distinct classes.You can specify one of the two classes as a positive class by using the
PositiveClass
name-value argument.
The column for the weights must be a numeric vector.
If Tbl
does not contain the true class label variable, then
specify the variable by using Y
. The
length of the response variable Y
and the number of rows in
Tbl
must be equal. To use a subset of the variables in
Tbl
as sensitive attributes, specify the variables by using
sensitiveAttributeNames
.
Data Types: table
ResponseName
— Name of true class label variable
name of variable in Tbl
Name of the true class label variable, specified as a character vector or string
scalar containing the name of the response variable in Tbl
.
Example: "trueLabel"
indicates that the
trueLabel
variable in Tbl
(Tbl.trueLabel
) is the true class label variable.
Data Types: char
| string
sensitiveAttributeNames
— Names of sensitive attribute variables
character vector | string array of unique names | cell array of unique character vectors
Names of the sensitive attribute variables, specified as a character vector,
string array of unique names, or cell array of unique character vectors. The
functionality of sensitiveAttributeNames
depends on the way you
supply the sample data.
If you supply
SensitiveAttributes
andY
, then you can usesensitiveAttributeNames
to assign names to the variables inSensitiveAttributes
.The order of the names in
sensitiveAttributeNames
must correspond to the column order ofSensitiveAttributes
. That is,sensitiveAttributeNames{1}
is the name ofSensitiveAttributes(:,1)
,sensitiveAttributeNames{2}
is the name ofSensitiveAttributes(:,2)
, and so on. Also,size(SensitiveAttributes,2)
andnumel(sensitiveAttributeNames)
must be equal.By default,
sensitiveAttributeNames
is{'x1','x2',...}
.
If you supply
Tbl
, then you can usesensitiveAttributeNames
to specify the variables to use as sensitive attributes. That is,fairnessMetrics
uses only the variables insensitiveAttributeNames
to compute fairness metrics.sensitiveAttributeNames
must be a subset ofTbl.Properties.VariableNames
and cannot include the name of a class label variable or observation weight variable.By default,
sensitiveAttributeNames
is a set of all variable names inTbl
, except the variables specified byResponseName
,Predictions
, andWeights
.
Example: SensitiveAttributeNames="Gender"
Example: SensitiveAttributeNames=["age","marital_status"]
Data Types: char
| string
| cell
predictions
— Predicted class labels
[]
(default) | names of variables in Tbl
| matrix
Predicted class labels (model predictions), specified as []
,
the names of variables in Tbl
, or a matrix.
Before R2023a: Specify predicted labels for at most one
binary classifier by using the name of a variable in Tbl
or a
vector.
[]
—fairnessMetrics
computes fairness metrics for the true class label variable (Y
or theResponseName
variable inTbl
).Names of variables in
Tbl
— If you specify the input data as a tableTbl
, thenpredictions
can specify the name of one or more variables inTbl
, where each variable contains the predicted class labels for one model. In this case, you must specifypredictions
as a character vector, string array, or cell array of character vectors. For example, if the table contains one vector of class labels, stored asTbl.Pred
, then specifypredictions
as"Pred"
.Matrix — Each row of the matrix corresponds to a sample, and each column corresponds to one model's predicted class labels. The number of rows in
predictions
must be equal to the number of samples inY
orTbl
. The predicted class labels inpredictions
must be elements of the true class label variable, andpredictions
must have the same data type as the true class label variable.
Note
If you specify predicted labels for one or more binary classification models,
fairnessMetrics
computes fairness metrics for each model that
returned predicted labels.
Example: Predictions="Pred"
Example: Predictions=["SVMPred","TreePred"]
Data Types: single
| double
| logical
| char
| string
| cell
| categorical
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: Predictions="P",Weights="W"
specifies the variables
P
and W
in the table Tbl
as
the model predictions and observation weights, respectively.
ModelNames
— Names of models
character vector | string array of unique names | cell array of unique character vectors
Since R2023a
Names of the models with the predicted class labels predictions
, specified as a character vector, string array of unique
names, or cell array of unique character vectors.
When
predictions
is an array of names inTbl
, the order of the names inModelNames
must correspond to the order of the names inpredictions
. That is,ModelNames{1}
is the name of the model with predicted labels in thepredictions{1}
table variable,ModelNames{2}
is the name of the model with predicted labels in thepredictions{2}
table variable, and so on.numel(ModelNames)
andnumel(predictions)
must be equal. By default, theModelNames
value is equivalent topredictions
.When
predictions
is a matrix, the order of the names inModelNames
must correspond to the column order ofpredictions
. That is,ModelNames{1}
is the name of the model with the predicted labelspredictions(:,1)
,ModelNames{2}
is the name of the model with the predicted labelspredictions(:,2)
, and so on.numel(ModelNames)
andsize(predictions,2)
must be equal. By default, theModelNames
value is{'Model1','Model2',...}
.When
predictions
is[]
, theModelNames
value is'Model1'
.Note
You cannot specify the
ModelNames
value when thepredictions
value is[]
.
Example: ModelNames="Ensemble"
Example: ModelNames=["SVM","Tree"]
Data Types: char
| string
| cell
PositiveClass
— Label of positive class
scalar
Label of the positive class, specified as a scalar.
PositiveClass
must have the same data type as the true class
label variable.
The default PositiveClass
value is the second class of the
binary labels, according to the order returned by the unique
function with the "sorted"
option specified
for the true class label variable.
Example: PositiveClass=categorical(">50K")
Data Types: categorical
| char
| string
| logical
| single
| double
| cell
ReferenceGroup
— Reference group
vector containing mode of each sensitive attribute (default) | numeric vector | string array | cell array
Reference group for each sensitive attribute, specified as a numeric vector,
string array, or cell array. Each element in the ReferenceGroup
value must have the same data type as the corresponding sensitive attribute. If the
sensitive attributes have mixed types, specify ReferenceGroup
as a cell array. The number of elements in the ReferenceGroup
value must match the number of sensitive attributes.
The default ReferenceGroup
value is a vector containing the
mode of each sensitive attribute. The mode is the most frequently occurring value
without taking into account observation weights.
Example: ReferenceGroup={30,categorical("Married-civ-spouse")}
Data Types: single
| double
| string
| cell
Weights
— Observation weights
vector of 1
s (default) | vector of scalar values | name of variable in Tbl
Observation weights, specified as a vector of scalar values or the name of a
variable in Tbl
. The
software weights the observations in each row of SensitiveAttributes
or Tbl
with the corresponding
value in Weights
. The size of Weights
must
equal the number of rows in SensitiveAttributes
or
Tbl
.
If you specify the input data as a table Tbl
, then
Weights
can be the name of a variable in
Tbl
that contains a numeric vector. In this case, you must
specify Weights
as a character vector or string scalar. For
example, if the weights vector W
is stored in
Tbl.W
, then specify Weights
as
"W"
.
Example: Weights="W"
Data Types: single
| double
| char
| string
Properties
BiasMetrics
— Bias metrics
table
This property is read-only.
Bias metrics, specified as a table.
fairnessMetrics
computes the bias metrics for each group in each
sensitive attribute, compared to the reference group of the attribute.
Each row of BiasMetrics
contains the bias metrics for a group
in a sensitive attribute.
For data-level evaluation, the first and second variables in
BiasMetrics
correspond to the sensitive attribute name (SensitiveAttributeNames
column) and the group name (Groups
column), respectively.For model-level evaluation, the first variable corresponds to the model name (
ModelNames
column). The second and third variables correspond to the sensitive attribute name and the group name, respectively.
The rest of the variables correspond to the bias metrics in this table.
Metric Name | Description | Evaluation Type |
---|---|---|
StatisticalParityDifference | Statistical parity difference (SPD) | Data-level or model-level evaluation |
DisparateImpact | Disparate impact (DI) | Data-level or model-level evaluation |
EqualOpportunityDifference | Equal opportunity difference (EOD) | Model-level evaluation |
AverageAbsoluteOddsDifference | Average absolute odds difference (AAOD) | Model-level evaluation |
The supported bias metrics depend on whether you specify predicted labels by using
the Predictions
argument when you create a fairnessMetrics
object.
Data-level evaluation — If you specify true labels and do not specify predicted labels, the
BiasMetrics
property contains onlyStatisticalParityDifference
andDisparateImpact
.Model-level evaluation — If you specify both true labels and predicted labels, the
BiasMetrics
property contains all metrics listed in the table.
For definitions of the bias metrics, see Bias Metrics.
Data Types: table
GroupMetrics
— Group metrics
table
This property is read-only.
Group metrics, specified as a table.
The fairnessMetrics
function computes the group metrics for each
group in each sensitive attribute. Note that the function does not use the observation
weights (specified by the Weights
name-value argument) to count the number of samples in each group
(GroupCount
value). The function uses Weights
to compute the other metrics.
Each row of GroupMetrics
contains the group metrics for a group
in a sensitive attribute.
For data-level evaluation, the first and second variables in
GroupMetrics
correspond to the sensitive attribute name (SensitiveAttributeNames
column) and the group name (Groups
column), respectively.For model-level evaluation, the first variable corresponds to the model name (
ModelNames
column). The second and third variables correspond to the sensitive attribute name and the group name, respectively.
The rest of the variables correspond to the group metrics in this table.
Metric Name | Description | Evaluation Type |
---|---|---|
GroupCount | Group count, or number of samples in the group | Data-level or model-level evaluation |
GroupSizeRatio | Group count divided by the total number of samples | Data-level or model-level evaluation |
TruePositives | Number of true positives (TP) | Model-level evaluation |
TrueNegatives | Number of true negatives (TN) | Model-level evaluation |
FalsePositives | Number of false positives (FP) | Model-level evaluation |
FalseNegatives | Number of false negatives (FN) | Model-level evaluation |
TruePositiveRate | True positive rate (TPR), also known as recall or sensitivity,
TP/(TP+FN) | Model-level evaluation |
TrueNegativeRate | True negative rate (TNR), or specificity,
TN/(TN+FP) | Model-level evaluation |
FalsePositiveRate | False positive rate (FPR), also known as fallout or 1-specificity,
FP/(TN+FP) | Model-level evaluation |
FalseNegativeRate | False negative rate (FNR), or miss rate,
FN/(TP+FN) | Model-level evaluation |
FalseDiscoveryRate | False discovery rate (FDR), FP/(TP+FP) | Model-level evaluation |
FalseOmissionRate | False omission rate (FOR), FN/(TN+FN) | Model-level evaluation |
PositivePredictiveValue | Positive predictive value (PPV), or precision,
TP/(TP+FP) | Model-level evaluation |
NegativePredictiveValue | Negative predictive value (NPV), TN/(TN+FN) | Model-level evaluation |
RateOfPositivePredictions | Rate of positive predictions (RPP),
(TP+FP)/(TP+FN+FP+TN) | Model-level evaluation |
RateOfNegativePredictions | Rate of negative predictions (RNP),
(TN+FN)/(TP+FN+FP+TN) | Model-level evaluation |
Accuracy | Accuracy, (TP+TN)/(TP+FN+FP+TN) | Model-level evaluation |
The supported group metrics depend on whether you specify predicted labels by using
the Predictions
argument when you create a fairnessMetrics
object.
Data-level evaluation — If you specify true labels and do not specify predicted labels, the
GroupMetrics
property contains onlyGroupCount
andGroupSizeRatio
.Model-level evaluation — If you specify both true labels and predicted labels, the
GroupMetrics
property contains all metrics listed in the table.
Data Types: table
ModelNames
— Names of models
character vector | cell array of unique character vectors
Since R2023a
This property is read-only.
Names of the models with the predicted class labels predictions
,
specified as a character vector or cell array of unique character vectors. (The software treats string arrays as cell arrays of character
vectors.)
The ModelNames
name-value argument sets this property.
Data Types: char
| cell
PositiveClass
— Label of positive class
scalar
This property is read-only.
Label of the positive class, specified as a scalar. (The software treats a string scalar as a character vector.)
The PositiveClass
name-value argument sets this property.
Data Types: categorical
| char
| logical
| single
| double
| cell
ReferenceGroup
— Reference group
numeric vector | cell array
This property is read-only.
Reference group, specified as a numeric vector or cell array. (The software treats string arrays as cell arrays of character vectors.)
The ReferenceGroup
name-value argument sets this property.
Data Types: single
| double
| cell
ResponseName
— Name of true class label variable
character vector
This property is read-only.
Name of the true class label variable, specified as a character vector containing the name of the response variable. (The software treats a string scalar as a character vector.)
If you specify the
ResponseName
argument, then the specified value determines this property.If you specify
Y
, then the property value is'Y'
.
Data Types: char
SensitiveAttributeNames
— Names of sensitive attribute variables
character vector | cell array of unique character vectors
This property is read-only.
Names of the sensitive attribute variables, specified as a character vector or cell array of unique character vectors. (The software treats string arrays as cell arrays of character vectors.)
The sensitiveAttributeNames
argument sets this property.
Data Types: char
| cell
Examples
Evaluate Fairness of Data
Compute fairness metrics for true labels with respect to sensitive attributes by creating a fairnessMetrics
object. Then, create a table of fairness metrics by using the report
function, and plot bar graphs of the metrics by using the plot
function.
Load the sample data census1994
, which contains the training data adultdata
and the test data adulttest
. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.
load census1994
head(adultdata)
age workClass fnlwgt education education_num marital_status occupation relationship race sex capital_gain capital_loss hours_per_week native_country salary ___ ________________ __________ _________ _____________ _____________________ _________________ _____________ _____ ______ ____________ ____________ ______________ ______________ ______ 39 State-gov 77516 Bachelors 13 Never-married Adm-clerical Not-in-family White Male 2174 0 40 United-States <=50K 50 Self-emp-not-inc 83311 Bachelors 13 Married-civ-spouse Exec-managerial Husband White Male 0 0 13 United-States <=50K 38 Private 2.1565e+05 HS-grad 9 Divorced Handlers-cleaners Not-in-family White Male 0 0 40 United-States <=50K 53 Private 2.3472e+05 11th 7 Married-civ-spouse Handlers-cleaners Husband Black Male 0 0 40 United-States <=50K 28 Private 3.3841e+05 Bachelors 13 Married-civ-spouse Prof-specialty Wife Black Female 0 0 40 Cuba <=50K 37 Private 2.8458e+05 Masters 14 Married-civ-spouse Exec-managerial Wife White Female 0 0 40 United-States <=50K 49 Private 1.6019e+05 9th 5 Married-spouse-absent Other-service Not-in-family Black Female 0 0 16 Jamaica <=50K 52 Self-emp-not-inc 2.0964e+05 HS-grad 9 Married-civ-spouse Exec-managerial Husband White Male 0 0 45 United-States >50K
Each row contains the demographic information for one adult. The information includes sensitive attributes, such as age
, marital_status
, relationship
, race
, and sex
. The third column flnwgt
contains observation weights, and the last column salary
shows whether a person has a salary less than or equal to $50,000 per year (<=50K
) or greater than $50,000 per year (>50K
).
This example evaluates the fairness of the salary
variable with respect to age. Group the age
variable into four bins.
ageGroups = ["Age<30","30<=Age<45","45<=Age<60","Age>=60"]; adultdata.age_group = discretize(adultdata.age, ... [min(adultdata.age) 30 45 60 max(adultdata.age)], ... categorical=ageGroups);

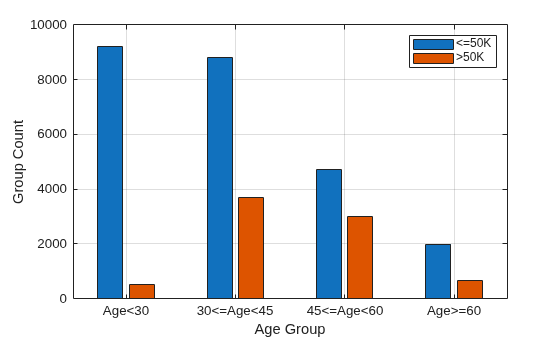

Plot the counts of individuals in each class (<=50K
and >50K
) by age.
figure gc = groupcounts(adultdata,["age_group","salary"]); bar([gc.GroupCount(1:2:end),gc.GroupCount(2:2:end)]) xticklabels(ageGroups) xlabel("Age Group") ylabel("Group Count") legend(["<=50K",">50K"]) grid on
Compute fairness metrics for the salary
variable with respect to the age_group
variable by using fairnessMetrics
.
evaluator = fairnessMetrics(adultdata,"salary", ... SensitiveAttributeNames="age_group",Weights="fnlwgt")
evaluator = fairnessMetrics with properties: SensitiveAttributeNames: 'age_group' ReferenceGroup: '30<=Age<45' ResponseName: 'salary' PositiveClass: >50K BiasMetrics: [4x4 table] GroupMetrics: [4x4 table]
evaluator
is a fairnessMetrics
object. By default, the fairnessMetrics
function selects the majority group of the sensitive attribute (group with the largest number of individuals) as the reference group for the attribute. Also, the fairnessMetrics
function orders the labels by using the unique
function with the "sorted"
option, and specifies the second class of the labels as the positive class. In this data set, the reference group of age_group
is the group 30<=Age<45
, and the positive class is >50K
. evaluator
stores bias metrics and group metrics in the BiasMetrics
and GroupMetrics
properties, respectively. Display the properties.
evaluator.BiasMetrics
ans=4×4 table
SensitiveAttributeNames Groups StatisticalParityDifference DisparateImpact
_______________________ __________ ___________________________ _______________
age_group Age<30 -0.24365 0.17661
age_group 30<=Age<45 0 1
age_group 45<=Age<60 0.098497 1.3329
age_group Age>=60 -0.05041 0.82965
evaluator.GroupMetrics
ans=4×4 table
SensitiveAttributeNames Groups GroupCount GroupSizeRatio
_______________________ __________ __________ ______________
age_group Age<30 9711 0.29824
age_group 30<=Age<45 12489 0.38356
age_group 45<=Age<60 7717 0.237
age_group Age>=60 2644 0.081201
According to the bias metrics, the salary
variable is biased toward the age group 45 to 60 years and biased against the age group less than 30 years, compared to the reference group (30<=Age<45
).
You can create a table that contains both bias metrics and group metrics by using the report
function. Specify GroupMetrics
as "all"
to include all group metrics. You do not have to specify the BiasMetrics
name-value argument because its default value is "all"
.
metricsTbl = report(evaluator,GroupMetrics="all")
metricsTbl=4×6 table
SensitiveAttributeNames Groups StatisticalParityDifference DisparateImpact GroupCount GroupSizeRatio
_______________________ __________ ___________________________ _______________ __________ ______________
age_group Age<30 -0.24365 0.17661 9711 0.29824
age_group 30<=Age<45 0 1 12489 0.38356
age_group 45<=Age<60 0.098497 1.3329 7717 0.237
age_group Age>=60 -0.05041 0.82965 2644 0.081201
Visualize the bias metrics by using the plot
function.
figure t = tiledlayout(2,1); nexttile plot(evaluator,"spd") xlabel("") ylabel("") nexttile plot(evaluator,"di") xlabel("") ylabel("") xlabel(t,"Fairness Metric Value") ylabel(t,"Age Group")
The vertical line in each plot ( for statistical parity difference and for disparate impact) indicates the metric value for the reference group. If the labels do not have a bias for a target group compared to the reference group, the metric value for the target group is the same as the metric value for the reference group.
Evaluate Fairness of Classifier
Compute fairness metrics for predicted labels with respect to sensitive attributes by creating a fairnessMetrics
object. Then, create a table of fairness metrics by using the report
function, and plot bar graphs of the metrics by using the plot
function.
Load the sample data census1994
, which contains the training data adultdata
and the test data adulttest
. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.
load census1994
head(adultdata)
age workClass fnlwgt education education_num marital_status occupation relationship race sex capital_gain capital_loss hours_per_week native_country salary ___ ________________ __________ _________ _____________ _____________________ _________________ _____________ _____ ______ ____________ ____________ ______________ ______________ ______ 39 State-gov 77516 Bachelors 13 Never-married Adm-clerical Not-in-family White Male 2174 0 40 United-States <=50K 50 Self-emp-not-inc 83311 Bachelors 13 Married-civ-spouse Exec-managerial Husband White Male 0 0 13 United-States <=50K 38 Private 2.1565e+05 HS-grad 9 Divorced Handlers-cleaners Not-in-family White Male 0 0 40 United-States <=50K 53 Private 2.3472e+05 11th 7 Married-civ-spouse Handlers-cleaners Husband Black Male 0 0 40 United-States <=50K 28 Private 3.3841e+05 Bachelors 13 Married-civ-spouse Prof-specialty Wife Black Female 0 0 40 Cuba <=50K 37 Private 2.8458e+05 Masters 14 Married-civ-spouse Exec-managerial Wife White Female 0 0 40 United-States <=50K 49 Private 1.6019e+05 9th 5 Married-spouse-absent Other-service Not-in-family Black Female 0 0 16 Jamaica <=50K 52 Self-emp-not-inc 2.0964e+05 HS-grad 9 Married-civ-spouse Exec-managerial Husband White Male 0 0 45 United-States >50K
Each row contains the demographic information for one adult. The information includes sensitive attributes, such as age
, marital_status
, relationship
, race
, and sex
. The third column flnwgt
contains observation weights, and the last column salary
shows whether a person has a salary less than or equal to $50,000 per year (<=50K
) or greater than $50,000 per year (>50K
).
Train a classification tree using the training data set adultdata
. Specify the response variable, predictor variables, and observation weights by using the variable names in the adultdata
table.
predictorNames = ["capital_gain","capital_loss","education", ... "education_num","hours_per_week","occupation","workClass"]; Mdl = fitctree(adultdata,"salary", ... PredictorNames=predictorNames,Weights="fnlwgt");
Predict the test sample labels by using the trained tree Mdl
.
labels = predict(Mdl,adulttest);
This example evaluates the fairness of the predicted labels with respect to age and marital status. Group the age
variable into four bins.
ageGroups = ["Age<30","30<=Age<45","45<=Age<60","Age>=60"]; adulttest.age_group = discretize(adulttest.age, ... [min(adulttest.age) 30 45 60 max(adulttest.age)], ... categorical=ageGroups);

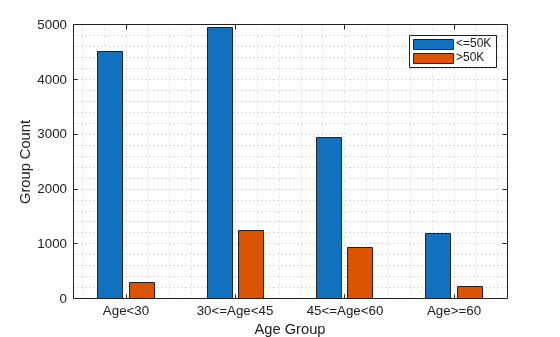

Plot the counts of individuals in each predicted class (<=50K
and >50K
) by age.
figure gs_age = groupcounts({adulttest.age_group,labels}); b_age = bar([gs_age(1:2:end),gs_age(2:2:end)]); xticklabels(ageGroups) xlabel("Age Group") ylabel("Group Count") legend(["<=50K",">50K"]) grid minor

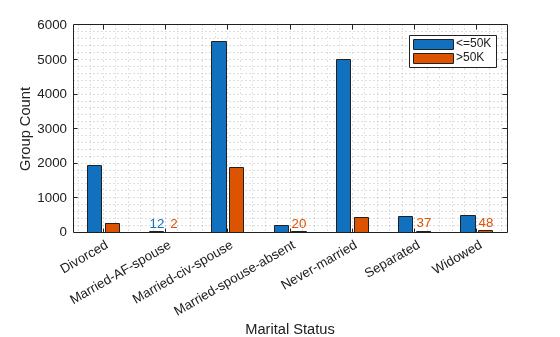

Plot the counts of individuals by marital status. Display the count values near the tips of the bars if the values are smaller than 100.
figure gs_status = groupcounts({adulttest.marital_status,labels}); b_status = bar([gs_status(1:2:end),gs_status(2:2:end)]); xticklabels(unique(adulttest.marital_status)) xlabel("Marital Status") ylabel("Group Count") legend(["<=50K",">50K"]) grid minor xtips1 = b_status(1).XEndPoints; ytips1 = b_status(1).YEndPoints; labels1 = string(b_status(1).YData); ind1 = ytips1 < 100; text(xtips1(ind1),ytips1(ind1),labels1(ind1), ... HorizontalAlignment="center",VerticalAlignment="bottom", ... Color=b_status(1).FaceColor) xtips2 = b_status(2).XEndPoints; ytips2 = b_status(2).YEndPoints; labels2 = string(b_status(2).YData); ind2 = ytips2 < 100; text(xtips2(ind2),ytips2(ind2),labels2(ind2), ... HorizontalAlignment="center",VerticalAlignment="bottom", ... Color=b_status(2).FaceColor)
Compute fairness metrics for the predictions (labels
) with respect to the age_group
and marital_status
variables by using fairnessMetrics
.
MdlEvaluator = fairnessMetrics(adulttest,"salary", ... SensitiveAttributeNames=["age_group","marital_status"], ... Predictions=labels,Weights="fnlwgt")
MdlEvaluator = fairnessMetrics with properties: SensitiveAttributeNames: {'age_group' 'marital_status'} ReferenceGroup: {'30<=Age<45' 'Married-civ-spouse'} ResponseName: 'salary' PositiveClass: >50K BiasMetrics: [11x7 table] GroupMetrics: [11x20 table] ModelNames: 'Model1'
MdlEvaluator
is a fairnessMetrics
object. By default, the fairnessMetrics
function selects the majority group of each sensitive attribute (group with the largest number of individuals) as the reference group for the attribute. Also, the fairnessMetrics
function orders the labels by using the unique
function with the "sorted"
option, and specifies the second class of the labels as the positive class. In this data set, the reference groups of age_group
and marital_status
are the groups 30<=Age<45
and Married-civ-spouse
, respectively, and the positive class is >50K
. MdlEvaluator
stores bias metrics and group metrics in the BiasMetrics
and GroupMetrics
properties, respectively.
Create a table with fairness metrics by using the report
function. Specify BiasMetrics
as ["eod","aaod"]
to include the equal opportunity difference (EOD) and average absolute odds difference (AAOD) metrics in the report table. The fairnessMetrics
function computes the two metrics by using the true positive rates (TPR) and false positive rates (FPR). Specify GroupMetrics
as ["tpr","fpr"]
to include TPR and FPR values in the table.
metricsTbl = report(MdlEvaluator, ... BiasMetrics=["eod","aaod"],GroupMetrics=["tpr","fpr"])
metricsTbl=11×7 table
ModelNames SensitiveAttributeNames Groups EqualOpportunityDifference AverageAbsoluteOddsDifference TruePositiveRate FalsePositiveRate
__________ _______________________ _____________________ __________________________ _____________________________ ________________ _________________
Model1 age_group Age<30 -0.041319 0.044114 0.41333 0.041709
Model1 age_group 30<=Age<45 0 0 0.45465 0.088618
Model1 age_group 45<=Age<60 0.061495 0.031809 0.51614 0.086495
Model1 age_group Age>=60 0.0060387 0.011955 0.46069 0.070746
Model1 marital_status Divorced 0.078541 0.043643 0.54263 0.075653
Model1 marital_status Married-AF-spouse 0.073166 0.078782 0.53726 0
Model1 marital_status Married-civ-spouse 0 0 0.46409 0.084398
Model1 marital_status Married-spouse-absent -0.067098 0.048093 0.39699 0.055311
Model1 marital_status Never-married 0.0886 0.057557 0.55269 0.057883
Model1 marital_status Separated 0.027256 0.026751 0.49135 0.058151
Model1 marital_status Widowed 0.12442 0.080073 0.58851 0.048675
Plot the EOD and AAOD values for the sensitive attribute age_group
. Because age_group
is the first element in the SensitiveAttributeNames
property of MdlEvaluator
, it is the default value for the property. Therefore, you do not have to specify the SensitiveAttributeName
argument of the plot
function.
figure t = tiledlayout(1,2); nexttile plot(MdlEvaluator,"eod") title("EOD") xlabel("") ylabel("") nexttile plot(MdlEvaluator,"aaod") title("AAOD") xlabel("") ylabel("") yticklabels("") xlabel(t,"Fairness Metric Value") ylabel(t,"Age Group")
The vertical line at indicates the metric value for the reference group (30<=Age<45
). If the labels do not have a bias for a target group compared to the reference group, the metric value for the target group is the same as the metric value for the reference group. According to the EOD values (differences in TPR), the predictions for the salary
variable are most biased toward the group 45<=Age<60
compared to the reference group. According to the AAOD values (averaged differences in TPR and FPR), the predictions are most biased toward the group Age<30
.
Plot the EOD and AAOD values for the sensitive attribute marital_status
by specifying the SensitiveAttributeName
argument of the plot
function as marital_status
.
figure t = tiledlayout(1,2); nexttile plot(MdlEvaluator,"eod",SensitiveAttributeName="marital_status") title("EOD") xlabel("") ylabel("") nexttile plot(MdlEvaluator,"aaod",SensitiveAttributeName="marital_status") title("AAOD") xlabel("") ylabel("") yticklabels("") xlabel(t,"Fairness Metric Value") ylabel(t,"Marital Status")
The vertical line at indicates the metric value for the reference group (Married-civ-spouse
). According to the EOD values, the predictions for the salary
variable are most biased toward the group Widowed
compared to the reference group. According to the AAOD values, the predictions are similarly biased toward the groups Widowed
and Married-AF-spouse
.
Compare Model Predictions Using Fairness Metrics
Train two classification models, and compare the model predictions by using fairness metrics.
Read the sample file CreditRating_Historical.dat
into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency.
creditrating = readtable("CreditRating_Historical.dat");
Because each value in the ID
variable is a unique customer ID—that is, length(unique(creditrating.ID))
is equal to the number of observations in creditrating
—the ID
variable is a poor predictor. Remove the ID
variable from the table, and convert the Industry
variable to a categorical
variable.
creditrating.ID = []; creditrating.Industry = categorical(creditrating.Industry);
In the Rating
response variable, combine the AAA
, AA
, A
, and BBB
ratings into a category of "good" ratings, and the BB
, B
, and CCC
ratings into a category of "poor" ratings.
Rating = categorical(creditrating.Rating); Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good"); Rating = mergecats(Rating,["BB","B","CCC"],"poor"); creditrating.Rating = Rating;
Train a support vector machine (SVM) model on the creditrating
data. For better results, standardize the predictors before fitting the model. Use the trained model to predict labels and compute the misclassification rate for the training data set.
predictorNames = ["WC_TA","RE_TA","EBIT_TA","MVE_BVTD","S_TA"]; SVMMdl = fitcsvm(creditrating,"Rating", ... PredictorNames=predictorNames,Standardize=true); SVMPredictions = resubPredict(SVMMdl); resubLoss(SVMMdl)
ans = 0.0872
Train a generalized additive model (GAM).
GAMMdl = fitcgam(creditrating,"Rating", ... PredictorNames=predictorNames); GAMPredictions = resubPredict(GAMMdl); resubLoss(GAMMdl)
ans = 0.0542
GAMMdl
achieves better accuracy on the training data set.
Compute fairness metrics with respect to the sensitive attribute Industry
by using the model predictions for both models.
predictions = [SVMPredictions,GAMPredictions]; evaluator = fairnessMetrics(creditrating,"Rating", ... SensitiveAttributeNames="Industry",Predictions=predictions, ... ModelNames=["SVM","GAM"]);
Display the bias metrics by using the report
function.
report(evaluator)
ans=48×5 table
Metrics SensitiveAttributeNames Groups SVM GAM
___________________________ _______________________ ______ _________ __________
StatisticalParityDifference Industry 1 -0.028441 0.0058208
StatisticalParityDifference Industry 2 -0.04014 0.0063339
StatisticalParityDifference Industry 3 0 0
StatisticalParityDifference Industry 4 -0.04905 -0.0043007
StatisticalParityDifference Industry 5 -0.015615 0.0041607
StatisticalParityDifference Industry 6 -0.03818 -0.024515
StatisticalParityDifference Industry 7 -0.01514 0.007326
StatisticalParityDifference Industry 8 0.0078632 0.036581
StatisticalParityDifference Industry 9 -0.013863 0.042266
StatisticalParityDifference Industry 10 0.0090218 0.050095
StatisticalParityDifference Industry 11 -0.004188 0.001453
StatisticalParityDifference Industry 12 -0.041572 -0.028589
DisparateImpact Industry 1 0.92261 1.017
DisparateImpact Industry 2 0.89078 1.0185
DisparateImpact Industry 3 1 1
DisparateImpact Industry 4 0.86654 0.98742
⋮
Among the bias metrics, compare the equal opportunity difference (EOD) values. Create a bar graph of the EOD values by using the plot
function.
b = plot(evaluator,"eod"); b(1).FaceAlpha = 0.2; b(2).FaceAlpha = 0.2; legend(Location="southwest")
To better understand the distributions of EOD values, plot the values using box plots.
boxchart(evaluator.BiasMetrics.EqualOpportunityDifference, ... GroupByColor=evaluator.BiasMetrics.ModelNames) ax = gca; ax.XTick = []; ylabel("Equal Opportunity Difference") legend
The EOD values for GAM are closer to 0 compared to the values for SVM.
More About
Bias Metrics
The fairnessMetrics
object supports four bias metrics:
statistical parity difference (SPD), disparate impact (DI), equal opportunity difference
(EOD), and average absolute odds difference (AAOD). The object supports EOD and AAOD only
for evaluating model predictions.
A fairnessMetrics
object computes bias metrics for each group in each
sensitive attribute with respect to the reference group of the attribute.
Statistical parity (or demographic parity) difference (SPD)
The SPD value of the ith sensitive attribute (Si) for the group sij with respect to the reference group sir is defined by
The SPD value is the difference between the probability of being in the positive class when the sensitive attribute value is sij and the probability of being in the positive class when the sensitive attribute value is sir (reference group). This metric assumes that the two probabilities (statistical parities) are equal if the labels are unbiased with respect to the sensitive attribute.
If you specify the
Predictions
argument, the software computes SPD for the probabilities of the model predictions instead of the true labels Y.Disparate impact (DI)
The DI value of the ith sensitive attribute (Si) for the group sij with respect to the reference group sir is defined by
The DI value is the ratio of the probability of being in the positive class when the sensitive attribute value is sij to the probability of being in the positive class when the sensitive attribute value is sir (reference group). This metric assumes that the two probabilities are equal if the labels are unbiased with respect to the sensitive attribute. In general, a DI value less than
0.8
or greater than1.25
indicates bias with respect to the reference group [2].If you specify the
Predictions
argument, the software computes DI for the probabilities of the model predictions instead of the true labels Y.Equal opportunity difference (EOD)
The EOD value of the ith sensitive attribute (Si) for the group sij with respect to the reference group sir is defined by
The EOD value is the difference in the true positive rate (TPR) between the group sij and the reference group sir. This metric assumes that the two rates are equal if the predicted labels are unbiased with respect to the sensitive attribute.
Average absolute odds difference (AAOD)
The AAOD value of the ith sensitive attribute (Si) for the group sij with respect to the reference group sir is defined by
The AAOD value represents the difference in the true positive rates (TPR) and false positive rates (FPR) between the group sij and the reference group sir. This metric assumes no difference in TPR and FPR if the predicted labels are unbiased with respect to the sensitive attribute.
Algorithms
fairnessMetrics
considers NaN
, ''
(empty character vector), ""
(empty string),
<missing>
, and <undefined>
values in
Tbl
, Y
, and
SensitiveAttributes
to be missing values.
fairnessMetrics
does not use observations with missing values.
References
[1] Mehrabi, Ninareh, et al. “A Survey on Bias and Fairness in Machine Learning.” ArXiv:1908.09635 [cs.LG], Sept. 2019. arXiv.org.
[2] Saleiro, Pedro, et al. “Aequitas: A Bias and Fairness Audit Toolkit.” ArXiv:1811.05577 [cs.LG], April 2019. arXiv.org.
Version History
Introduced in R2022bR2023a: Compare fairness metrics across models
You can compare fairness metrics across multiple binary classifiers by using the fairnessMetrics
function. In the call to the function, use the predictions
argument and
specify the predicted class labels for each model. To specify the names of the models, you
can use the ModelNames
name-value argument. The model name information
is stored in the BiasMetrics
, GroupMetrics
, and
ModelNames
properties of the fairnessMetrics
object.
After you create a fairnessMetrics
object, use the report
or plot
object function.
The
report
object function returns a fairness metrics table, whose format depends on the value of theDisplayMetricsInRows
name-value argument. (For more information, seemetricsTbl
.) You can specify a subset of models to include in the report table by using theModelNames
name-value argument.The
plot
object function returns a bar graph as an array ofBar
objects. The bar colors indicate the models whose predicted labels are used to compute the specified metric. You can specify a subset of models to include in the plot by using theModelNames
name-value argument.
In previous releases, the first and second variables in the
BiasMetrics
and GroupMetrics
properties of the
fairnessMetrics
object always corresponded to the sensitive attribute
name (SensitiveAttributeNames
column) and the group name
(Groups
column), respectively. For more information on the current
behavior, see BiasMetrics
and
GroupMetrics
.
See Also
Topics
- Introduction to Fairness in Binary Classification
- Explore Fairness Metrics for Credit Scoring Model (Risk Management Toolbox)
Commande MATLAB
Vous avez cliqué sur un lien qui correspond à cette commande MATLAB :
Pour exécuter la commande, saisissez-la dans la fenêtre de commande de MATLAB. Les navigateurs web ne supportent pas les commandes MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
