fairnessWeights

Reweight observations for fairness in binary classification

Since R2022b

Syntax

``weights = fairnessWeights(Tbl,AttributeName,ResponseVarName)``
``weights = fairnessWeights(Tbl,AttributeName,Y)``
``weights = fairnessWeights(attribute,Y)``
``weights = fairnessWeights(___,Weights=initialWeights)``

Description

````weights = fairnessWeights(Tbl,AttributeName,ResponseVarName)` reweights observations using the `AttributeName` sensitive attribute and the `ResponseVarName` response variable in the data set `Tbl`. For every combination of a group in the sensitive attribute and a class label in the response variable, the software computes a weight value. The function then assigns each observation in `Tbl` its corresponding weight. The returned `weights` vector introduces fairness across the sensitive attribute groups. For more information, see Algorithms. ```

example

````weights = fairnessWeights(Tbl,AttributeName,Y)` computes fairness weights using the class labels in the response variable `Y`.```
````weights = fairnessWeights(attribute,Y)` computes fairness weights using the sensitive attribute specified by `attribute` and the response variable `Y`.```
````weights = fairnessWeights(___,Weights=initialWeights)` specifies to use the observation weights `initialWeights` before computing the fairness weights, using any of the input argument combinations in previous syntaxes. These initial weights are typically used to capture some aspect of the data set that is unrelated to the sensitive attribute, such as expected class distributions.```

example

Examples

collapse all

Compute fairness weights. Then, compare the fairness weights to the default observation weights using grouped scatter plots.

Suppose you want to create a binary classifier that predicts whether a patient is a smoker based on the patient's diastolic and systolic blood pressure values. Furthermore, you want the model predictions to be independent of the gender of the patient. Before training the model, you can use fairness weights to try to reduce the effects of gender status on the smoker status predictions.

Load the `patients` data set, which contains medical information for 100 patients. Convert the `Gender` and `Smoker` variables to `categorical` variables. Specify the descriptive category names `Smoker` and `Nonsmoker` rather than `1` and `0`.

```load patients Gender = categorical(Gender); Smoker = categorical(Smoker,logical([1 0]), ... ["Smoker","Nonsmoker"]);```

Create a table using the `Gender` and `Smoker` variables in addition to the `Diastolic` and `Systolic` variables.

`tbl = table(Diastolic,Gender,Smoker,Systolic)`
```tbl=100×4 table Diastolic Gender Smoker Systolic _________ ______ _________ ________ 93 Male Smoker 124 77 Male Nonsmoker 109 83 Female Nonsmoker 125 75 Female Nonsmoker 117 80 Female Nonsmoker 122 70 Female Nonsmoker 121 88 Female Smoker 130 82 Male Nonsmoker 115 78 Male Nonsmoker 115 86 Female Nonsmoker 118 77 Female Nonsmoker 114 68 Female Nonsmoker 115 74 Male Nonsmoker 127 95 Male Smoker 130 79 Female Nonsmoker 114 92 Male Smoker 130 ⋮ ```

Compute fairness weights with respect to the sensitive attribute `Gender` and the binary response variable `Smoker`, and add the fairness weights to `tbl`.

```fairWeights = fairnessWeights(tbl,"Gender","Smoker"); tbl.Weights = fairWeights;```

Display the fairness weight for each combination of gender and smoker status.

```tblstats = grpstats(tbl,["Gender","Smoker"],@(x)unique(x), ... DataVars="Weights", ... VarNames=["Gender","Smoker","NumObservations","FairnessWeight"])```
```tblstats=4×4 table Gender Smoker NumObservations FairnessWeight ______ _________ _______________ ______________ Female_Smoker Female Smoker 13 1.3862 Female_Nonsmoker Female Nonsmoker 40 0.8745 Male_Smoker Male Smoker 21 0.76095 Male_Nonsmoker Male Nonsmoker 26 1.1931 ```

You can replicate the fairness weight computation by using the `tblstats` output. For example, compute the fairness weight directly for the group of female smokers.

```numSmoker = sum(tblstats.NumObservations([1 3])); numTotal = sum(tblstats.NumObservations); numFemale = sum(tblstats.NumObservations([1 2])); numFemaleSmoker = tblstats.NumObservations(1); pIdealFemaleSmoker = (numSmoker/numTotal)*(numFemale/numTotal)```
```pIdealFemaleSmoker = 0.1802 ```
`pObservedFemaleSmoker = numFemaleSmoker/numTotal`
```pObservedFemaleSmoker = 0.1300 ```
`weightFemaleSmoker = pIdealFemaleSmoker/pObservedFemaleSmoker`
```weightFemaleSmoker = 1.3862 ```

For this group, the ideal probability `pIdealFemaleSmoker` is greater than the observed probability `pObservedFemaleSmoker`. This result indicates bias against the smoker class for female patients in the original data set.

Visualize the fairness weights using grouped scatter plots. Without the fairness weights, all observations have the same weight by default.

```markSize = 20; tiledlayout(1,2) nexttile gscatter(Diastolic,Systolic,Gender.*Smoker,[],[], ... markSize) legend(Location="southoutside") title("Original Observations") nexttile gscatter(Diastolic,Systolic,Gender.*Smoker,[],[], ... markSize*tblstats.FairnessWeight) legend(Location="southoutside") title("Weighted Observations")```

In the weighted scheme, the female smoker and male nonsmoker observations have more weight than in the original scheme.

To understand how fairness weights affect the observations, find the statistical parity difference (SPD) for each group in `Gender` after applying the fairness weights. Use the `fairnessMetrics` function, which computes bias and group metrics for a data set or binary classification model with respect to sensitive attributes.

```metrics = fairnessMetrics(tbl,"Smoker", ... SensitiveAttributeNames="Gender",Weights="Weights"); metrics.PositiveClass```
```ans = categorical Nonsmoker ```
`report(metrics,BiasMetrics="StatisticalParityDifference")`
```ans=2×3 table SensitiveAttributeNames Groups StatisticalParityDifference _______________________ ______ ___________________________ Gender Female 0 Gender Male -6.6613e-16 ```

The SPD for each group in the sensitive attribute is approximately 0. This result indicates that, with the fairness weights, the proportion of female nonsmokers to female patients is the same as the proportion of male nonsmokers to male patients.

You can now use the fairness weights to train a binary classifier. For example, train a tree classifier.

`tree = fitctree(tbl,"Smoker",Weights="Weights")`
```tree = ClassificationTree PredictorNames: {'Diastolic' 'Gender' 'Systolic'} ResponseName: 'Smoker' CategoricalPredictors: 2 ClassNames: [Smoker Nonsmoker] ScoreTransform: 'none' NumObservations: 100 ```

See how predictions change when you train a binary classifier with fairness weights. In particular, compare the disparate impact and accuracy of the predictions.

Load the sample data `census1994`, which contains the training data `adultdata` and the test data `adulttest`. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over \$50,000 per year. Preview the first few rows of the training data set.

```load census1994 head(adultdata)```
``` age workClass fnlwgt education education_num marital_status occupation relationship race sex capital_gain capital_loss hours_per_week native_country salary ___ ________________ __________ _________ _____________ _____________________ _________________ _____________ _____ ______ ____________ ____________ ______________ ______________ ______ 39 State-gov 77516 Bachelors 13 Never-married Adm-clerical Not-in-family White Male 2174 0 40 United-States <=50K 50 Self-emp-not-inc 83311 Bachelors 13 Married-civ-spouse Exec-managerial Husband White Male 0 0 13 United-States <=50K 38 Private 2.1565e+05 HS-grad 9 Divorced Handlers-cleaners Not-in-family White Male 0 0 40 United-States <=50K 53 Private 2.3472e+05 11th 7 Married-civ-spouse Handlers-cleaners Husband Black Male 0 0 40 United-States <=50K 28 Private 3.3841e+05 Bachelors 13 Married-civ-spouse Prof-specialty Wife Black Female 0 0 40 Cuba <=50K 37 Private 2.8458e+05 Masters 14 Married-civ-spouse Exec-managerial Wife White Female 0 0 40 United-States <=50K 49 Private 1.6019e+05 9th 5 Married-spouse-absent Other-service Not-in-family Black Female 0 0 16 Jamaica <=50K 52 Self-emp-not-inc 2.0964e+05 HS-grad 9 Married-civ-spouse Exec-managerial Husband White Male 0 0 45 United-States >50K ```

Each row contains the demographic information for one adult. The last column, `salary`, shows whether a person has a salary less than or equal to \$50,000 per year or greater than \$50,000 per year.

Remove observations from `adultdata` and `adulttest` that contain missing values.

```adultdata = rmmissing(adultdata); adulttest = rmmissing(adulttest);```

Train a neural network classifier using the training set `adultdata`. Specify `salary` as the response variable and `fnlwgt` as the observation weights. Standardize the predictor variables before training the model. After training the model, predict the salary (class label) of the observations in the test set `adulttest`.

```rng("default") % For reproducibility mdl = fitcnet(adultdata,"salary",Weights="fnlwgt", ... Standardize=true); labels = predict(mdl,adulttest);```

Compute the fairness weights with respect to the sensitive attribute `race`. Use the initial observation weights `fnlwgt` to adjust the fairness weight computation. Create a new table `newadultdata` that contains the adjusted fairness weights rather than the initial observation weights.

```fw = fairnessWeights(adultdata,"race","salary", ... Weights="fnlwgt"); newadultdata = adultdata; newadultdata.fnlwgt = fw;```

Train the same type of neural network classifier as `mdl`, but use the adjusted fairness weights. As before, predict the salary (class label) of the observations in the test set `adulttest`.

```rng("default") % For reproducibility newMdl = fitcnet(newadultdata,"salary",Weights="fnlwgt", ... Standardize=true); newLabels = predict(newMdl,adulttest);```

Compare the disparate impact values for the predictions made by the original model (`mdl`) to the predictions made by the model trained with fairness weights (`newMdl`). For each group in the sensitive attribute, the disparate impact is the proportion of predictions in that group with a positive class value (${p}_{g+}$) divided by the proportion of predictions in the reference group with a positive class value (${p}_{r+}$). An ideal classifier makes predictions so that, for each group, ${p}_{g+}$ is close to ${p}_{r+}$ (that is, the disparate impact value is close to 1).

Compute the disparate impact values for the `mdl` predictions and the `newMdl` predictions by using the `fairnessMetrics` function. Specify to include observation weights. You can use the `report` object function to display bias metrics, such as disparate impact, that are stored in the `evaluator` object.

```evaluator = fairnessMetrics(adulttest,"salary", ... SensitiveAttributeNames="race",Predictions=[labels,newLabels], ... Weights="fnlwgt",ModelNames=["Original Model","New Model"]); evaluator.PositiveClass```
```ans = categorical >50K ```
`evaluator.ReferenceGroup`
```ans = 'White' ```
`report(evaluator,BiasMetrics="DisparateImpact")`
```ans=5×5 table Metrics SensitiveAttributeNames Groups Original Model New Model _______________ _______________________ __________________ ______________ _________ DisparateImpact race Amer-Indian-Eskimo 0.20508 0.46838 DisparateImpact race Asian-Pac-Islander 1.1012 1.2304 DisparateImpact race Black 0.44286 0.68301 DisparateImpact race Other 0.33739 0.74539 DisparateImpact race White 1 1 ```

For the `mdl` predictions, several of the disparate impact values are well below 1, which indicates bias in the predictions with respect to the positive class `>50K` and the sensitive attribute `race`. Compared to the disparate impact values for the `mdl` predictions, most of the disparate impact values for the `newMdl` predictions are closer to 1.

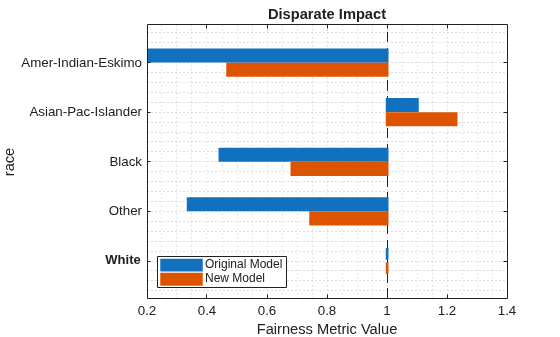

Visually compare the disparate impact values by using a bar graph returned by the `plot` object function.

```plot(evaluator,"DisparateImpact") legend(Location="southwest")```

The fairness weights seem to improve the model predictions on the test set with respect to the disparate impact metric.

Check whether the fairness weights have negatively affected the accuracy of the model predictions. Compute the accuracy of the test set predictions for the two models `mdl` and `newMdl`.

`accuracy = 1-loss(mdl,adulttest,"salary")`
```accuracy = 0.8429 ```
`newAccuracy = 1-loss(newMdl,adulttest,"salary")`
```newAccuracy = 0.8427 ```

The model trained using fairness weights (`newMdl`) achieves similar test set accuracy compared to the model trained without fairness weights (`mdl`).

Input Arguments

collapse all

Data set, specified as a table. Each row of `Tbl` corresponds to one observation, and each column corresponds to one variable. If you use a table with the `fairnessWeights` function, then the table must include the sensitive attribute. The table can include additional variables, such as those containing class labels (`ResponseVarName`) and observation weights (`initialWeights`). Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

Data Types: `table`

Sensitive attribute name, specified as the name of a variable in `Tbl`. You must specify `AttributeName` as a character vector or a string scalar. For example, if the sensitive attribute is stored as `Tbl.Attribute`, then specify it as `"Attribute"`.

The sensitive attribute must be a numeric vector, logical vector, character array, string array, cell array of character vectors, or categorical vector.

Data Types: `char` | `string`

Response variable name, specified as the name of a variable in `Tbl`. You must specify `ResponseVarName` as a character vector or a string scalar. For example, if the response variable is stored as `Tbl.Y`, then specify it as `"Y"`.

The response variable must be a numeric vector, logical vector, character array, string array, cell array of character vectors, or categorical vector.

Data Types: `char` | `string`

Response variable, specified as a numeric vector, logical vector, character array, string array, cell array of character vectors, or categorical vector.

• If `Y` is a character array, then each row of the array must correspond to a class label.

• The length of `Y` must be equal to the number of rows in `Tbl` or the length of `attribute`.

Data Types: `single` | `double` | `logical` | `char` | `string` | `cell` | `categorical`

Sensitive attribute, specified as a numeric column vector, logical column vector, character array, string array, cell array of character vectors, or categorical column vector.

• If `attribute` is an array, then each row of the array must correspond to a group in the sensitive attribute.

• `attribute` and `Y` must have the same length.

Data Types: `single` | `double` | `logical` | `char` | `string` | `cell` | `categorical`

Observation weights, specified as a nonnegative column vector or the name of a variable in `Tbl`. The length of `initialWeights` must be equal to the number of observations in `Tbl` or `attribute`.

If you use a data set `Tbl`, then `initialWeights` can be the name of a variable in `Tbl` that contains a numeric vector. In this case, you must specify `initialWeights` as a character vector or a string scalar. For example, if the initial weights vector `W` is stored as `Tbl.W`, then specify it as `"W"`.

Data Types: `single` | `double` | `char` | `string`

Output Arguments

collapse all

Fairness weights, returned as a nonnegative column vector, where each row corresponds to an observation. You can pass the weights to an appropriate training function by using the `Weights` name-value argument. For an example, see Understand and Visualize Fairness Weights.

The software returns a fairness weight of `0` for any observation with a missing sensitive attribute, class label, or initial weight. The software treats `NaN`, empty character vector (`''`), empty string (`""`), `<missing>`, and `<undefined>` elements as missing values.

For information on how the software computes fairness weights, see Algorithms.

Algorithms

Assume x is an observation in class k with sensitive attribute g. If you do not specify initial weights (`initialWeights`), then the `fairnessWeights` function assigns the following fairness weight to the observation: $fw\left(x\right)=\frac{{\stackrel{˜}{p}}_{gk}}{{\stackrel{^}{p}}_{gk}}=\left(\frac{{n}_{g}}{{n}_{gk}}\right)\cdot \left(\frac{{n}_{k}}{n}\right)$.

• ng is the number of observations with sensitive attribute g.

• nk is the number of observations in class k.

• ngk is the number of observations in class k with sensitive attribute g.

• n is the total number of observations.

• ${\stackrel{˜}{p}}_{gk}=\left(\frac{{n}_{g}}{n}\right)\cdot \left(\frac{{n}_{k}}{n}\right)$ is the ideal probability of an observation having sensitive attribute g and being in class k—that is, the product of the probability of an observation having sensitive attribute g and the probability of an observation being in class k. Note that this equation holds for the true probability if the sensitive attribute and the response variable are independent.

• ${\stackrel{^}{p}}_{gk}=\left(\frac{{n}_{gk}}{n}\right)$ is the observed probability of an observation having sensitive attribute g and being in class k.
