# fitckernel

Fit Gaussian kernel classification model using random feature expansion

## Syntax

``Mdl = fitckernel(X,Y)``
``Mdl = fitckernel(Tbl,ResponseVarName)``
``Mdl = fitckernel(Tbl,formula)``
``Mdl = fitckernel(Tbl,Y)``
``Mdl = fitckernel(___,Name,Value)``
``[Mdl,FitInfo] = fitckernel(___)``
``[Mdl,FitInfo,HyperparameterOptimizationResults] = fitckernel(___)``

## Description

`fitckernel` trains or cross-validates a binary Gaussian kernel classification model for nonlinear classification. `fitckernel` is more practical for big data applications that have large training sets but can also be applied to smaller data sets that fit in memory.

`fitckernel` maps data in a low-dimensional space into a high-dimensional space, then fits a linear model in the high-dimensional space by minimizing the regularized objective function. Obtaining the linear model in the high-dimensional space is equivalent to applying the Gaussian kernel to the model in the low-dimensional space. Available linear classification models include regularized support vector machine (SVM) and logistic regression models.

To train a nonlinear SVM model for binary classification of in-memory data, see `fitcsvm`.

example

````Mdl = fitckernel(X,Y)` returns a binary Gaussian kernel classification model trained using the predictor data in `X` and the corresponding class labels in `Y`. The `fitckernel` function maps the predictors in a low-dimensional space into a high-dimensional space, then fits a binary SVM model to the transformed predictors and class labels. This linear model is equivalent to the Gaussian kernel classification model in the low-dimensional space.```
````Mdl = fitckernel(Tbl,ResponseVarName)` returns a kernel classification model `Mdl` trained using the predictor variables contained in the table `Tbl` and the class labels in `Tbl.ResponseVarName`.```
````Mdl = fitckernel(Tbl,formula)` returns a kernel classification model trained using the sample data in the table `Tbl`. The input argument `formula` is an explanatory model of the response and a subset of predictor variables in `Tbl` used to fit `Mdl`.```
````Mdl = fitckernel(Tbl,Y)` returns a kernel classification model using the predictor variables in the table `Tbl` and the class labels in vector `Y`.```

example

````Mdl = fitckernel(___,Name,Value)` specifies options using one or more name-value pair arguments in addition to any of the input argument combinations in previous syntaxes. For example, you can implement logistic regression, specify the number of dimensions of the expanded space, or specify to cross-validate.```

example

````[Mdl,FitInfo] = fitckernel(___)` also returns the fit information in the structure array `FitInfo` using any of the input arguments in the previous syntaxes. You cannot request `FitInfo` for cross-validated models.```

example

````[Mdl,FitInfo,HyperparameterOptimizationResults] = fitckernel(___)` also returns the hyperparameter optimization results `HyperparameterOptimizationResults` when you optimize hyperparameters by using the `'OptimizeHyperparameters'` name-value pair argument. ```

## Examples

collapse all

Train a binary kernel classification model using SVM.

Load the `ionosphere` data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`) or good (`'g'`).

```load ionosphere [n,p] = size(X)```
```n = 351 ```
```p = 34 ```
`resp = unique(Y)`
```resp = 2x1 cell {'b'} {'g'} ```

Train a binary kernel classification model that identifies whether the radar return is bad (`'b'`) or good (`'g'`). Extract a fit summary to determine how well the optimization algorithm fits the model to the data.

```rng('default') % For reproducibility [Mdl,FitInfo] = fitckernel(X,Y)```
```Mdl = ClassificationKernel ResponseName: 'Y' ClassNames: {'b' 'g'} Learner: 'svm' NumExpansionDimensions: 2048 KernelScale: 1 Lambda: 0.0028 BoxConstraint: 1 Properties, Methods ```
```FitInfo = struct with fields: Solver: 'LBFGS-fast' LossFunction: 'hinge' Lambda: 0.0028 BetaTolerance: 1.0000e-04 GradientTolerance: 1.0000e-06 ObjectiveValue: 0.2604 GradientMagnitude: 0.0028 RelativeChangeInBeta: 8.2512e-05 FitTime: 0.1526 History: [] ```

`Mdl` is a `ClassificationKernel` model. To inspect the in-sample classification error, you can pass `Mdl` and the training data or new data to the `loss` function. Or, you can pass `Mdl` and new predictor data to the `predict` function to predict class labels for new observations. You can also pass `Mdl` and the training data to the `resume` function to continue training.

`FitInfo` is a structure array containing optimization information. Use `FitInfo` to determine whether optimization termination measurements are satisfactory.

For better accuracy, you can increase the maximum number of optimization iterations (`'IterationLimit'`) and decrease the tolerance values (`'BetaTolerance'` and `'GradientTolerance'`) by using the name-value pair arguments. Doing so can improve measures like `ObjectiveValue` and `RelativeChangeInBeta` in `FitInfo`. You can also optimize model parameters by using the `'OptimizeHyperparameters'` name-value pair argument.

Load the `ionosphere` data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`) or good (`'g'`).

```load ionosphere rng('default') % For reproducibility```

Cross-validate a binary kernel classification model. By default, the software uses 10-fold cross-validation.

`CVMdl = fitckernel(X,Y,'CrossVal','on')`
```CVMdl = ClassificationPartitionedKernel CrossValidatedModel: 'Kernel' ResponseName: 'Y' NumObservations: 351 KFold: 10 Partition: [1x1 cvpartition] ClassNames: {'b' 'g'} ScoreTransform: 'none' Properties, Methods ```
`numel(CVMdl.Trained)`
```ans = 10 ```

`CVMdl` is a `ClassificationPartitionedKernel` model. Because `fitckernel` implements 10-fold cross-validation, `CVMdl` contains 10 `ClassificationKernel` models that the software trains on training-fold (in-fold) observations.

Estimate the cross-validated classification error.

`kfoldLoss(CVMdl)`
```ans = 0.0940 ```

The classification error rate is approximately 9%.

Optimize hyperparameters automatically using the `'OptimizeHyperparameters'` name-value pair argument.

Load the `ionosphere` data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`) or good (`'g'`).

`load ionosphere`

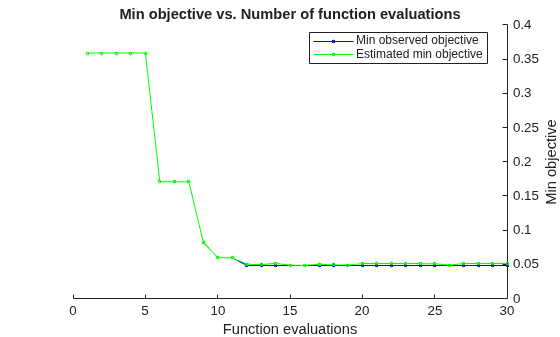

Find hyperparameters that minimize five-fold cross-validation loss by using automatic hyperparameter optimization. Specify `'OptimizeHyperparameters'` as `'auto'` so that `fitckernel` finds optimal values of the `'KernelScale'` and `'Lambda'` name-value pair arguments. For reproducibility, set the random seed and use the `'expected-improvement-plus'` acquisition function.

```rng('default') [Mdl,FitInfo,HyperparameterOptimizationResults] = fitckernel(X,Y,'OptimizeHyperparameters','auto',... 'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName','expected-improvement-plus'))```
```|=====================================================================================================| | Iter | Eval | Objective | Objective | BestSoFar | BestSoFar | KernelScale | Lambda | | | result | | runtime | (observed) | (estim.) | | | |=====================================================================================================| | 1 | Best | 0.35897 | 0.61226 | 0.35897 | 0.35897 | 64.836 | 4.4811e-06 | | 2 | Accept | 0.35897 | 0.89723 | 0.35897 | 0.35897 | 0.036335 | 0.015885 | | 3 | Accept | 0.39601 | 1.0719 | 0.35897 | 0.36053 | 0.0022147 | 6.8254e-06 | | 4 | Accept | 0.35897 | 0.51388 | 0.35897 | 0.35898 | 5.1259 | 0.28097 | | 5 | Accept | 0.35897 | 0.87527 | 0.35897 | 0.35897 | 0.24853 | 0.10828 | | 6 | Accept | 0.35897 | 0.33667 | 0.35897 | 0.35897 | 885.09 | 0.00057316 | | 7 | Best | 0.10826 | 1.4449 | 0.10826 | 0.10833 | 8.0346 | 0.0048286 | | 8 | Best | 0.076923 | 0.60785 | 0.076923 | 0.076999 | 7.0902 | 0.0034068 | | 9 | Accept | 0.091168 | 0.7268 | 0.076923 | 0.077059 | 9.1504 | 0.0020604 | | 10 | Best | 0.062678 | 0.88783 | 0.062678 | 0.062723 | 3.5487 | 0.0025912 | | 11 | Accept | 0.062678 | 0.90467 | 0.062678 | 0.062741 | 2.3869 | 0.003321 | | 12 | Accept | 0.41026 | 0.76809 | 0.062678 | 0.062536 | 0.14075 | 0.0022499 | | 13 | Accept | 0.062678 | 1.1677 | 0.062678 | 0.062532 | 3.4215 | 0.0036803 | | 14 | Accept | 0.062678 | 1.1586 | 0.062678 | 0.061956 | 3.2928 | 0.0030533 | | 15 | Best | 0.05698 | 0.95405 | 0.05698 | 0.057204 | 5.0598 | 0.0025499 | | 16 | Accept | 0.062678 | 1.0064 | 0.05698 | 0.057186 | 5.3401 | 0.0015096 | | 17 | Accept | 0.05698 | 0.70785 | 0.05698 | 0.057118 | 1.813 | 0.0069209 | | 18 | Accept | 0.059829 | 0.6706 | 0.05698 | 0.057092 | 1.5122 | 0.0046637 | | 19 | Accept | 0.059829 | 0.80386 | 0.05698 | 0.05718 | 1.9277 | 0.0056364 | | 20 | Accept | 0.065527 | 0.76025 | 0.05698 | 0.057189 | 1.4064 | 0.0094306 | |=====================================================================================================| | Iter | Eval | Objective | Objective | BestSoFar | BestSoFar | KernelScale | Lambda | | | result | | runtime | (observed) | (estim.) | | | |=====================================================================================================| | 21 | Accept | 0.05698 | 1.1415 | 0.05698 | 0.057033 | 5.1719 | 0.0023614 | | 22 | Best | 0.054131 | 2.5181 | 0.054131 | 0.054176 | 1.9618 | 6.5704e-05 | | 23 | Best | 0.042735 | 0.7694 | 0.042735 | 0.042763 | 1.9463 | 1.0169e-05 | | 24 | Accept | 0.082621 | 1.2229 | 0.042735 | 0.042775 | 1.0661 | 1.3245e-05 | | 25 | Accept | 0.054131 | 2.0186 | 0.042735 | 0.042789 | 3.288 | 2.0035e-05 | | 26 | Accept | 0.062678 | 1.393 | 0.042735 | 0.042769 | 2.657 | 3.0334e-06 | | 27 | Accept | 0.059829 | 1.1079 | 0.042735 | 0.043054 | 2.0381 | 1.9791e-05 | | 28 | Accept | 0.042735 | 2.2283 | 0.042735 | 0.042764 | 3.5043 | 0.0001237 | | 29 | Accept | 0.054131 | 0.89117 | 0.042735 | 0.042764 | 1.3897 | 3.2288e-06 | | 30 | Accept | 0.062678 | 1.2096 | 0.042735 | 0.042792 | 2.2414 | 0.0002259 | ```

```__________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 69.4698 seconds Total objective function evaluation time: 31.3772 Best observed feasible point: KernelScale Lambda ___________ __________ 1.9463 1.0169e-05 Observed objective function value = 0.042735 Estimated objective function value = 0.043106 Function evaluation time = 0.7694 Best estimated feasible point (according to models): KernelScale Lambda ___________ _________ 3.5043 0.0001237 Estimated objective function value = 0.042792 Estimated function evaluation time = 1.6119 ```
```Mdl = ClassificationKernel ResponseName: 'Y' ClassNames: {'b' 'g'} Learner: 'svm' NumExpansionDimensions: 2048 KernelScale: 3.5043 Lambda: 1.2370e-04 BoxConstraint: 23.0320 Properties, Methods ```
```FitInfo = struct with fields: Solver: 'LBFGS-fast' LossFunction: 'hinge' Lambda: 1.2370e-04 BetaTolerance: 1.0000e-04 GradientTolerance: 1.0000e-06 ObjectiveValue: 0.0426 GradientMagnitude: 0.0028 RelativeChangeInBeta: 8.9154e-05 FitTime: 0.3753 History: [] ```
```HyperparameterOptimizationResults = BayesianOptimization with properties: ObjectiveFcn: @createObjFcn/inMemoryObjFcn VariableDescriptions: [4x1 optimizableVariable] Options: [1x1 struct] MinObjective: 0.0427 XAtMinObjective: [1x2 table] MinEstimatedObjective: 0.0428 XAtMinEstimatedObjective: [1x2 table] NumObjectiveEvaluations: 30 TotalElapsedTime: 69.4698 NextPoint: [1x2 table] XTrace: [30x2 table] ObjectiveTrace: [30x1 double] ConstraintsTrace: [] UserDataTrace: {30x1 cell} ObjectiveEvaluationTimeTrace: [30x1 double] IterationTimeTrace: [30x1 double] ErrorTrace: [30x1 double] FeasibilityTrace: [30x1 logical] FeasibilityProbabilityTrace: [30x1 double] IndexOfMinimumTrace: [30x1 double] ObjectiveMinimumTrace: [30x1 double] EstimatedObjectiveMinimumTrace: [30x1 double] ```

For big data, the optimization procedure can take a long time. If the data set is too large to run the optimization procedure, you can try to optimize the parameters using only partial data. Use the `datasample` function and specify `'Replace','false'` to sample data without replacement.

## Input Arguments

collapse all

Predictor data, specified as an n-by-p numeric matrix, where n is the number of observations and p is the number of predictors.

The length of `Y` and the number of observations in `X` must be equal.

Data Types: `single` | `double`

Class labels, specified as a categorical, character, or string array, logical or numeric vector, or cell array of character vectors.

• `fitckernel` supports only binary classification. Either `Y` must contain exactly two distinct classes, or you must specify two classes for training by using the `ClassNames` name-value pair argument.

• If `Y` is a character array, then each element must correspond to one row of the array.

• The length of `Y` must be equal to the number of observations in `X` or `Tbl`.

• A good practice is to specify the class order by using the `ClassNames` name-value pair argument.

Data Types: `categorical` | `char` | `string` | `logical` | `single` | `double` | `cell`

Sample data used to train the model, specified as a table. Each row of `Tbl` corresponds to one observation, and each column corresponds to one predictor variable. Optionally, `Tbl` can contain one additional column for the response variable. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

• If `Tbl` contains the response variable, and you want to use all remaining variables in `Tbl` as predictors, then specify the response variable by using `ResponseVarName`.

• If `Tbl` contains the response variable, and you want to use only a subset of the remaining variables in `Tbl` as predictors, then specify a formula by using `formula`.

• If `Tbl` does not contain the response variable, then specify a response variable by using `Y`. The length of the response variable and the number of rows in `Tbl` must be equal.

Data Types: `table`

Response variable name, specified as the name of a variable in `Tbl`.

You must specify `ResponseVarName` as a character vector or string scalar. For example, if the response variable `Y` is stored as `Tbl.Y`, then specify it as `'Y'`. Otherwise, the software treats all columns of `Tbl`, including `Y`, as predictors when training the model.

The response variable must be a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. If `Y` is a character array, then each element of the response variable must correspond to one row of the array.

A good practice is to specify the order of the classes by using the `ClassNames` name-value argument.

Data Types: `char` | `string`

Explanatory model of the response variable and a subset of the predictor variables, specified as a character vector or string scalar in the form `'Y~x1+x2+x3'`. In this form, `Y` represents the response variable, and `x1`, `x2`, and `x3` represent the predictor variables.

To specify a subset of variables in `Tbl` as predictors for training the model, use a formula. If you specify a formula, then the software does not use any variables in `Tbl` that do not appear in `formula`.

The variable names in the formula must be both variable names in `Tbl` (`Tbl.Properties.VariableNames`) and valid MATLAB® identifiers. You can verify the variable names in `Tbl` by using the `isvarname` function. If the variable names are not valid, then you can convert them by using the `matlab.lang.makeValidName` function.

Data Types: `char` | `string`

Note

The software treats `NaN`, empty character vector (`''`), empty string (`""`), `<missing>`, and `<undefined>` elements as missing values, and removes observations with any of these characteristics:

• Missing value in the response variable

• At least one missing value in a predictor observation (row in `X` or `Tbl`)

• `NaN` value or `0` weight (`'Weights'`)

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: ```Mdl = fitckernel(X,Y,'Learner','logistic','NumExpansionDimensions',2^15,'KernelScale','auto')``` implements logistic regression after mapping the predictor data to the `2^15` dimensional space using feature expansion with a kernel scale parameter selected by a heuristic procedure.

Note

You cannot use any cross-validation name-value pair argument along with the `'OptimizeHyperparameters'` name-value pair argument. You can modify the cross-validation for `'OptimizeHyperparameters'` only by using the `'HyperparameterOptimizationOptions'` name-value pair argument.

Kernel Classification Options

collapse all

Linear classification model type, specified as the comma-separated pair consisting of `'Learner'` and `'svm'` or `'logistic'`.

In the following table, $f\left(x\right)=T\left(x\right)\beta +b.$

• x is an observation (row vector) from p predictor variables.

• $T\left(·\right)$ is a transformation of an observation (row vector) for feature expansion. T(x) maps x in ${ℝ}^{p}$ to a high-dimensional space (${ℝ}^{m}$).

• β is a vector of m coefficients.

• b is the scalar bias.

ValueAlgorithmResponse RangeLoss Function
`'svm'`Support vector machiney ∊ {–1,1}; 1 for the positive class and –1 otherwiseHinge: $\ell \left[y,f\left(x\right)\right]=\mathrm{max}\left[0,1-yf\left(x\right)\right]$
`'logistic'`Logistic regressionSame as `'svm'`Deviance (logistic): $\ell \left[y,f\left(x\right)\right]=\mathrm{log}\left\{1+\mathrm{exp}\left[-yf\left(x\right)\right]\right\}$

Example: `'Learner','logistic'`

Number of dimensions of the expanded space, specified as the comma-separated pair consisting of `'NumExpansionDimensions'` and `'auto'` or a positive integer. For `'auto'`, the `fitckernel` function selects the number of dimensions using `2.^ceil(min(log2(p)+5,15))`, where `p` is the number of predictors.

For details, see Random Feature Expansion.

Example: `'NumExpansionDimensions',2^15`

Data Types: `char` | `string` | `single` | `double`

Kernel scale parameter, specified as the comma-separated pair consisting of `'KernelScale'` and `'auto'` or a positive scalar. The software obtains a random basis for random feature expansion by using the kernel scale parameter. For details, see Random Feature Expansion.

If you specify `'auto'`, then the software selects an appropriate kernel scale parameter using a heuristic procedure. This heuristic procedure uses subsampling, so estimates can vary from one call to another. Therefore, to reproduce results, set a random number seed by using `rng` before training.

Example: `'KernelScale','auto'`

Data Types: `char` | `string` | `single` | `double`

Box constraint, specified as the comma-separated pair consisting of `'BoxConstraint'` and a positive scalar.

This argument is valid only when `'Learner'` is `'svm'`(default) and you do not specify a value for the regularization term strength `'Lambda'`. You can specify either `'BoxConstraint'` or `'Lambda'` because the box constraint (C) and the regularization term strength (λ) are related by C = 1/(λn), where n is the number of observations.

Example: `'BoxConstraint',100`

Data Types: `single` | `double`

Regularization term strength, specified as the comma-separated pair consisting of `'Lambda'` and `'auto'` or a nonnegative scalar.

For `'auto'`, the value of `'Lambda'` is 1/n, where n is the number of observations.

You can specify either `'BoxConstraint'` or `'Lambda'` because the box constraint (C) and the regularization term strength (λ) are related by C = 1/(λn).

Example: `'Lambda',0.01`

Data Types: `char` | `string` | `single` | `double`

Cross-Validation Options

collapse all

Flag to train a cross-validated classifier, specified as the comma-separated pair consisting of `'Crossval'` and `'on'` or `'off'`.

If you specify `'on'`, then the software trains a cross-validated classifier with 10 folds.

You can override this cross-validation setting using the `CVPartition`, `Holdout`, `KFold`, or `Leaveout` name-value pair argument. You can use only one cross-validation name-value pair argument at a time to create a cross-validated model.

Example: `'Crossval','on'`

Cross-validation partition, specified as a `cvpartition` partition object created by `cvpartition`. The partition object specifies the type of cross-validation and the indexing for the training and validation sets.

To create a cross-validated model, you can specify only one of these four name-value arguments: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: Suppose you create a random partition for 5-fold cross-validation on 500 observations by using `cvp = cvpartition(500,'KFold',5)`. Then, you can specify the cross-validated model by using `'CVPartition',cvp`.

Fraction of the data used for holdout validation, specified as a scalar value in the range (0,1). If you specify `'Holdout',p`, then the software completes these steps:

1. Randomly select and reserve `p*100`% of the data as validation data, and train the model using the rest of the data.

2. Store the compact, trained model in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value arguments: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'Holdout',0.1`

Data Types: `double` | `single`

Number of folds to use in a cross-validated model, specified as a positive integer value greater than 1. If you specify `'KFold',k`, then the software completes these steps:

1. Randomly partition the data into `k` sets.

2. For each set, reserve the set as validation data, and train the model using the other `k` – 1 sets.

3. Store the `k` compact, trained models in a `k`-by-1 cell vector in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value arguments: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'KFold',5`

Data Types: `single` | `double`

Leave-one-out cross-validation flag, specified as the comma-separated pair consisting of `'Leaveout'` and `'on'` or `'off'`. If you specify `'Leaveout','on'`, then, for each of the n observations (where n is the number of observations excluding missing observations), the software completes these steps:

1. Reserve the observation as validation data, and train the model using the other n – 1 observations.

2. Store the n compact, trained models in the cells of an n-by-1 cell vector in the `Trained` property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: `CVPartition`, `Holdout`, `KFold`, or `Leaveout`.

Example: `'Leaveout','on'`

Convergence Controls

collapse all

Relative tolerance on the linear coefficients and the bias term (intercept), specified as the comma-separated pair consisting of `'BetaTolerance'` and a nonnegative scalar.

Let ${B}_{t}=\left[{\beta }_{t}{}^{\prime }\text{\hspace{0.17em}}\text{\hspace{0.17em}}{b}_{t}\right]$, that is, the vector of the coefficients and the bias term at optimization iteration t. If ${‖\frac{{B}_{t}-{B}_{t-1}}{{B}_{t}}‖}_{2}<\text{BetaTolerance}$, then optimization terminates.

If you also specify `GradientTolerance`, then optimization terminates when the software satisfies either stopping criterion.

Example: `'BetaTolerance',1e–6`

Data Types: `single` | `double`

Absolute gradient tolerance, specified as the comma-separated pair consisting of `'GradientTolerance'` and a nonnegative scalar.

Let $\nabla {ℒ}_{t}$ be the gradient vector of the objective function with respect to the coefficients and bias term at optimization iteration t. If ${‖\nabla {ℒ}_{t}‖}_{\infty }=\mathrm{max}|\nabla {ℒ}_{t}|<\text{GradientTolerance}$, then optimization terminates.

If you also specify `BetaTolerance`, then optimization terminates when the software satisfies either stopping criterion.

Example: `'GradientTolerance',1e–5`

Data Types: `single` | `double`

Maximum number of optimization iterations, specified as the comma-separated pair consisting of `'IterationLimit'` and a positive integer.

The default value is 1000 if the transformed data fits in memory, as specified by the `BlockSize` name-value pair argument. Otherwise, the default value is 100.

Example: `'IterationLimit',500`

Data Types: `single` | `double`

Other Kernel Classification Options

collapse all

Maximum amount of allocated memory (in megabytes), specified as the comma-separated pair consisting of `'BlockSize'` and a positive scalar.

If `fitckernel` requires more memory than the value of `'BlockSize'` to hold the transformed predictor data, then the software uses a block-wise strategy. For details about the block-wise strategy, see Algorithms.

Example: `'BlockSize',1e4`

Data Types: `single` | `double`

Random number stream for reproducibility of data transformation, specified as the comma-separated pair consisting of `'RandomStream'` and a random stream object. For details, see Random Feature Expansion.

Use `'RandomStream'` to reproduce the random basis functions that `fitckernel` uses to transform the predictor data to a high-dimensional space. For details, see Managing the Global Stream Using RandStream and Creating and Controlling a Random Number Stream.

Example: `'RandomStream',RandStream('mlfg6331_64')`

Size of the history buffer for Hessian approximation, specified as the comma-separated pair consisting of `'HessianHistorySize'` and a positive integer. At each iteration, `fitckernel` composes the Hessian approximation by using statistics from the latest `HessianHistorySize` iterations.

Example: `'HessianHistorySize',10`

Data Types: `single` | `double`

Verbosity level, specified as the comma-separated pair consisting of `'Verbose'` and either `0` or `1`. `Verbose` controls the display of diagnostic information at the command line.

ValueDescription
`0``fitckernel` does not display diagnostic information.
`1``fitckernel` displays and stores the value of the objective function, gradient magnitude, and other diagnostic information. `FitInfo.History` contains the diagnostic information.

Example: `'Verbose',1`

Data Types: `single` | `double`

Other Classification Options

collapse all

Categorical predictors list, specified as one of the values in this table.

ValueDescription
Vector of positive integers

Each entry in the vector is an index value corresponding to the column of the predictor data that contains a categorical variable. The index values are between 1 and `p`, where `p` is the number of predictors used to train the model.

If `fitckernel` uses a subset of input variables as predictors, then the function indexes the predictors using only the subset. The `'CategoricalPredictors'` values do not count the response variable, the observation weight variable, and any other variables that the function does not use.

Logical vector

A `true` entry means that the corresponding column of predictor data is a categorical variable. The length of the vector is `p`.

Character matrixEach row of the matrix is the name of a predictor variable. The names must match the entries in `PredictorNames`. Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectorsEach element in the array is the name of a predictor variable. The names must match the entries in `PredictorNames`.
`'all'`All predictors are categorical.

By default, if the predictor data is in a table (`Tbl`), `fitckernel` assumes that a variable is categorical if it is a logical vector, categorical vector, character array, string array, or cell array of character vectors. If the predictor data is a matrix (`X`), `fitckernel` assumes that all predictors are continuous. To identify any other predictors as categorical predictors, specify them by using the `'CategoricalPredictors'` name-value argument.

For the identified categorical predictors, `fitckernel` creates dummy variables using two different schemes, depending on whether a categorical variable is unordered or ordered. For an unordered categorical variable, `fitckernel` creates one dummy variable for each level of the categorical variable. For an ordered categorical variable, `fitckernel` creates one less dummy variable than the number of categories. For details, see Automatic Creation of Dummy Variables.

Example: `'CategoricalPredictors','all'`

Data Types: `single` | `double` | `logical` | `char` | `string` | `cell`

Names of classes to use for training, specified as a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. `ClassNames` must have the same data type as the response variable in `Tbl` or `Y`.

If `ClassNames` is a character array, then each element must correspond to one row of the array.

Use `ClassNames` to:

• Specify the order of the classes during training.

• Specify the order of any input or output argument dimension that corresponds to the class order. For example, use `ClassNames` to specify the order of the dimensions of `Cost` or the column order of classification scores returned by `predict`.

• Select a subset of classes for training. For example, suppose that the set of all distinct class names in `Y` is `{'a','b','c'}`. To train the model using observations from classes `'a'` and `'c'` only, specify `'ClassNames',{'a','c'}`.

The default value for `ClassNames` is the set of all distinct class names in the response variable in `Tbl` or `Y`.

Example: `'ClassNames',{'b','g'}`

Data Types: `categorical` | `char` | `string` | `logical` | `single` | `double` | `cell`

Misclassification cost, specified as the comma-separated pair consisting of `'Cost'` and a square matrix or structure.

• If you specify the square matrix `cost` (`'Cost',cost`), then `cost(i,j)` is the cost of classifying a point into class `j` if its true class is `i`. That is, the rows correspond to the true class, and the columns correspond to the predicted class. To specify the class order for the corresponding rows and columns of `cost`, use the `ClassNames` name-value pair argument.

• If you specify the structure `S` (`'Cost',S`), then it must have two fields:

• `S.ClassNames`, which contains the class names as a variable of the same data type as `Y`

• `S.ClassificationCosts`, which contains the cost matrix with rows and columns ordered as in `S.ClassNames`

The default value for `Cost` is ```ones(K) – eye(K)```, where `K` is the number of distinct classes.

`fitckernel` uses `Cost` to adjust the prior class probabilities specified in `Prior`. Then, `fitckernel` uses the adjusted prior probabilities for training and resets the cost matrix to its default.

Example: `'Cost',[0 2; 1 0]`

Data Types: `single` | `double` | `struct`

Predictor variable names, specified as a string array of unique names or cell array of unique character vectors. The functionality of `PredictorNames` depends on the way you supply the training data.

• If you supply `X` and `Y`, then you can use `PredictorNames` to assign names to the predictor variables in `X`.

• The order of the names in `PredictorNames` must correspond to the column order of `X`. That is, `PredictorNames{1}` is the name of `X(:,1)`, `PredictorNames{2}` is the name of `X(:,2)`, and so on. Also, `size(X,2)` and `numel(PredictorNames)` must be equal.

• By default, `PredictorNames` is `{'x1','x2',...}`.

• If you supply `Tbl`, then you can use `PredictorNames` to choose which predictor variables to use in training. That is, `fitckernel` uses only the predictor variables in `PredictorNames` and the response variable during training.

• `PredictorNames` must be a subset of `Tbl.Properties.VariableNames` and cannot include the name of the response variable.

• By default, `PredictorNames` contains the names of all predictor variables.

• A good practice is to specify the predictors for training using either `'PredictorNames'` or `formula`, but not both.

Example: `'PredictorNames',{'SepalLength','SepalWidth','PetalLength','PetalWidth'}`

Data Types: `string` | `cell`

Prior probabilities for each class, specified as the comma-separated pair consisting of `'Prior'` and `'empirical'`, `'uniform'`, a numeric vector, or a structure array.

This table summarizes the available options for setting prior probabilities.

ValueDescription
`'empirical'`The class prior probabilities are the class relative frequencies in `Y`.
`'uniform'`All class prior probabilities are equal to 1/`K`, where `K` is the number of classes.
numeric vectorEach element is a class prior probability. Order the elements according to their order in `Y`. If you specify the order using the `'ClassNames'` name-value pair argument, then order the elements accordingly.
structure array

A structure `S` with two fields:

• `S.ClassNames` contains the class names as a variable of the same type as `Y`.

• `S.ClassProbs` contains a vector of corresponding prior probabilities.

`fitckernel` normalizes the prior probabilities in `Prior` to sum to 1.

Example: `'Prior',struct('ClassNames',{{'setosa','versicolor'}},'ClassProbs',1:2)`

Data Types: `char` | `string` | `double` | `single` | `struct`

Response variable name, specified as a character vector or string scalar.

Example: `'ResponseName','response'`

Data Types: `char` | `string`

Score transformation, specified as a character vector, string scalar, or function handle.

This table summarizes the available character vectors and string scalars.

ValueDescription
`'doublelogit'`1/(1 + e–2x)
`'invlogit'`log(x / (1 – x))
`'ismax'`Sets the score for the class with the largest score to 1, and sets the scores for all other classes to 0
`'logit'`1/(1 + ex)
`'none'` or `'identity'`x (no transformation)
`'sign'`–1 for x < 0
0 for x = 0
1 for x > 0
`'symmetric'`2x – 1
`'symmetricismax'`Sets the score for the class with the largest score to 1, and sets the scores for all other classes to –1
`'symmetriclogit'`2/(1 + ex) – 1

For a MATLAB function or a function you define, use its function handle for the score transform. The function handle must accept a matrix (the original scores) and return a matrix of the same size (the transformed scores).

Example: `'ScoreTransform','logit'`

Data Types: `char` | `string` | `function_handle`

Observation weights, specified as a nonnegative numeric vector or the name of a variable in `Tbl`. The software weights each observation in `X` or `Tbl` with the corresponding value in `Weights`. The length of `Weights` must equal the number of observations in `X` or `Tbl`.

If you specify the input data as a table `Tbl`, then `Weights` can be the name of a variable in `Tbl` that contains a numeric vector. In this case, you must specify `Weights` as a character vector or string scalar. For example, if the weights vector `W` is stored as `Tbl.W`, then specify it as `'W'`. Otherwise, the software treats all columns of `Tbl`, including `W`, as predictors or the response variable when training the model.

By default, `Weights` is `ones(n,1)`, where `n` is the number of observations in `X` or `Tbl`.

The software normalizes `Weights` to sum to the value of the prior probability in the respective class.

Data Types: `single` | `double` | `char` | `string`

Hyperparameter Optimization Options

collapse all

Parameters to optimize, specified as the comma-separated pair consisting of `'OptimizeHyperparameters'` and one of these values:

• `'none'` — Do not optimize.

• `'auto'` — Use `{'KernelScale','Lambda'}`.

• `'all'` — Optimize all eligible parameters.

• Cell array of eligible parameter names.

• Vector of `optimizableVariable` objects, typically the output of `hyperparameters`.

The optimization attempts to minimize the cross-validation loss (error) for `fitckernel` by varying the parameters. To control the cross-validation type and other aspects of the optimization, use the `HyperparameterOptimizationOptions` name-value pair argument.

Note

`'OptimizeHyperparameters'` values override any values you set using other name-value pair arguments. For example, setting `'OptimizeHyperparameters'` to `'auto'` causes the `'auto'` values to apply.

The eligible parameters for `fitckernel` are:

• `KernelScale``fitckernel` searches among positive values, by default log-scaled in the range `[1e-3,1e3]`.

• `Lambda``fitckernel` searches among positive values, by default log-scaled in the range `[1e-3,1e3]/n`, where `n` is the number of observations.

• `Learner``fitckernel` searches among `'svm'` and `'logistic'`.

• `NumExpansionDimensions``fitckernel` searches among positive integers, by default log-scaled in the range `[100,10000]`.

Set nondefault parameters by passing a vector of `optimizableVariable` objects that have nondefault values. For example:

```load fisheriris params = hyperparameters('fitckernel',meas,species); params(2).Range = [1e-4,1e6];```

Pass `params` as the value of `'OptimizeHyperparameters'`.

By default, iterative display appears at the command line, and plots appear according to the number of hyperparameters in the optimization. For the optimization and plots, the objective function is log(1 + cross-validation loss) for regression and the misclassification rate for classification. To control the iterative display, set the `Verbose` field of the `'HyperparameterOptimizationOptions'` name-value pair argument. To control the plots, set the `ShowPlots` field of the `'HyperparameterOptimizationOptions'` name-value pair argument.

For an example, see Optimize Kernel Classifier.

Example: `'OptimizeHyperparameters','auto'`

Options for optimization, specified as the comma-separated pair consisting of `'HyperparameterOptimizationOptions'` and a structure. This argument modifies the effect of the `OptimizeHyperparameters` name-value pair argument. All fields in the structure are optional.

Field NameValuesDefault
`Optimizer`
• `'bayesopt'` — Use Bayesian optimization. Internally, this setting calls `bayesopt`.

• `'gridsearch'` — Use grid search with `NumGridDivisions` values per dimension.

• `'randomsearch'` — Search at random among `MaxObjectiveEvaluations` points.

`'gridsearch'` searches in a random order, using uniform sampling without replacement from the grid. After optimization, you can get a table in grid order by using the command `sortrows(Mdl.HyperparameterOptimizationResults)`.

`'bayesopt'`
`AcquisitionFunctionName`

• `'expected-improvement-per-second-plus'`

• `'expected-improvement'`

• `'expected-improvement-plus'`

• `'expected-improvement-per-second'`

• `'lower-confidence-bound'`

• `'probability-of-improvement'`

Acquisition functions whose names include `per-second` do not yield reproducible results because the optimization depends on the runtime of the objective function. Acquisition functions whose names include `plus` modify their behavior when they are overexploiting an area. For more details, see Acquisition Function Types.

`'expected-improvement-per-second-plus'`
`MaxObjectiveEvaluations`Maximum number of objective function evaluations.`30` for `'bayesopt'` or `'randomsearch'`, and the entire grid for `'gridsearch'`
`MaxTime`

Time limit, specified as a positive real. The time limit is in seconds, as measured by `tic` and `toc`. Run time can exceed `MaxTime` because `MaxTime` does not interrupt function evaluations.

`Inf`
`NumGridDivisions`For `'gridsearch'`, the number of values in each dimension. The value can be a vector of positive integers giving the number of values for each dimension, or a scalar that applies to all dimensions. This field is ignored for categorical variables.`10`
`ShowPlots`Logical value indicating whether to show plots. If `true`, this field plots the best objective function value against the iteration number. If there are one or two optimization parameters, and if `Optimizer` is `'bayesopt'`, then `ShowPlots` also plots a model of the objective function against the parameters.`true`
`SaveIntermediateResults`Logical value indicating whether to save results when `Optimizer` is `'bayesopt'`. If `true`, this field overwrites a workspace variable named `'BayesoptResults'` at each iteration. The variable is a `BayesianOptimization` object.`false`
`Verbose`

Display to the command line.

• `0` — No iterative display

• `1` — Iterative display

• `2` — Iterative display with extra information

For details, see the `bayesopt` `Verbose` name-value pair argument.

`1`
`UseParallel`Logical value indicating whether to run Bayesian optimization in parallel, which requires Parallel Computing Toolbox™. Due to the nonreproducibility of parallel timing, parallel Bayesian optimization does not necessarily yield reproducible results. For details, see Parallel Bayesian Optimization.`false`
`Repartition`

Logical value indicating whether to repartition the cross-validation at every iteration. If `false`, the optimizer uses a single partition for the optimization.

`true` usually gives the most robust results because this setting takes partitioning noise into account. However, for good results, `true` requires at least twice as many function evaluations.

`false`
Use no more than one of the following three field names.
`CVPartition`A `cvpartition` object, as created by `cvpartition`.`'Kfold',5` if you do not specify any cross-validation field
`Holdout`A scalar in the range `(0,1)` representing the holdout fraction.
`Kfold`An integer greater than 1.

Example: `'HyperparameterOptimizationOptions',struct('MaxObjectiveEvaluations',60)`

Data Types: `struct`

## Output Arguments

collapse all

Trained kernel classification model, returned as a `ClassificationKernel` model object or `ClassificationPartitionedKernel` cross-validated model object.

If you set any of the name-value pair arguments `CrossVal`, `CVPartition`, `Holdout`, `KFold`, or `Leaveout`, then `Mdl` is a `ClassificationPartitionedKernel` cross-validated classifier. Otherwise, `Mdl` is a `ClassificationKernel` classifier.

To reference properties of `Mdl`, use dot notation. For example, enter `Mdl.NumExpansionDimensions` in the Command Window to display the number of dimensions of the expanded space.

Note

Unlike other classification models, and for economical memory usage, a `ClassificationKernel` model object does not store the training data or training process details (for example, convergence history).

Optimization details, returned as a structure array including fields described in this table. The fields contain final values or name-value pair argument specifications.

FieldDescription
`Solver`

Objective function minimization technique: `'LBFGS-fast'`, `'LBFGS-blockwise'`, or `'LBFGS-tall'`. For details, see Algorithms.

`LossFunction`Loss function. Either `'hinge'` or `'logit'` depending on the type of linear classification model. See `Learner`.
`Lambda`Regularization term strength. See `Lambda`.
`BetaTolerance`Relative tolerance on the linear coefficients and the bias term. See `BetaTolerance`.
`GradientTolerance`Absolute gradient tolerance. See `GradientTolerance`.
`ObjectiveValue`Value of the objective function when optimization terminates. The classification loss plus the regularization term compose the objective function.
`GradientMagnitude`Infinite norm of the gradient vector of the objective function when optimization terminates. See `GradientTolerance`.
`RelativeChangeInBeta`Relative changes in the linear coefficients and the bias term when optimization terminates. See `BetaTolerance`.
`FitTime`Elapsed, wall-clock time (in seconds) required to fit the model to the data.
`History`History of optimization information. This field is empty (`[]`) if you specify `'Verbose',0`. For details, see `Verbose` and Algorithms.

To access fields, use dot notation. For example, to access the vector of objective function values for each iteration, enter `FitInfo.ObjectiveValue` in the Command Window.

A good practice is to examine `FitInfo` to assess whether convergence is satisfactory.

Cross-validation optimization of hyperparameters, returned as a `BayesianOptimization` object or a table of hyperparameters and associated values. The output is nonempty when the value of `'OptimizeHyperparameters'` is not `'none'`. The output value depends on the `Optimizer` field value of the `'HyperparameterOptimizationOptions'` name-value pair argument:

Value of `Optimizer` FieldValue of `HyperparameterOptimizationResults`
`'bayesopt'` (default)Object of class `BayesianOptimization`
`'gridsearch'` or `'randomsearch'`Table of hyperparameters used, observed objective function values (cross-validation loss), and rank of observations from lowest (best) to highest (worst)

## Limitations

• `fitckernel` does not accept initial conditions for the vector of coefficients beta (β) and bias term (b) used to determine the decision function, $f\left(x\right)=T\left(x\right)\beta +b.$

• `fitckernel` does not support standardization.

collapse all

### Random Feature Expansion

Random feature expansion, such as Random Kitchen Sinks[1] and Fastfood[2], is a scheme to approximate Gaussian kernels of the kernel classification algorithm to use for big data in a computationally efficient way. Random feature expansion is more practical for big data applications that have large training sets, but can also be applied to smaller data sets that fit in memory.

The kernel classification algorithm searches for an optimal hyperplane that separates the data into two classes after mapping features into a high-dimensional space. Nonlinear features that are not linearly separable in a low-dimensional space can be separable in the expanded high-dimensional space. All the calculations for hyperplane classification use only dot products. You can obtain a nonlinear classification model by replacing the dot product x1x2' with the nonlinear kernel function $G\left({x}_{1},{x}_{2}\right)=〈\phi \left({x}_{1}\right),\phi \left({x}_{2}\right)〉$, where xi is the ith observation (row vector) and φ(xi) is a transformation that maps xi to a high-dimensional space (called the “kernel trick”). However, evaluating G(x1,x2) (Gram matrix) for each pair of observations is computationally expensive for a large data set (large n).

The random feature expansion scheme finds a random transformation so that its dot product approximates the Gaussian kernel. That is,

`$G\left({x}_{1},{x}_{2}\right)=〈\phi \left({x}_{1}\right),\phi \left({x}_{2}\right)〉\approx T\left({x}_{1}\right)T\left({x}_{2}\right)\text{'},$`

where T(x) maps x in ${ℝ}^{p}$ to a high-dimensional space (${ℝ}^{m}$). The Random Kitchen Sink scheme uses the random transformation

`$T\left(x\right)={m}^{-1/2}\mathrm{exp}\left(iZx\text{'}\right)\text{'},$`

where $Z\in {ℝ}^{m×p}$ is a sample drawn from $N\left(0,{\sigma }^{-2}\right)$ and σ2 is a kernel scale. This scheme requires O(mp) computation and storage. The Fastfood scheme introduces another random basis V instead of Z using Hadamard matrices combined with Gaussian scaling matrices. This random basis reduces the computation cost to O(m`log`p) and reduces storage to O(m).

The `fitckernel` function uses the Fastfood scheme for random feature expansion and uses linear classification to train a Gaussian kernel classification model. Unlike solvers in the `fitcsvm` function, which require computation of the n-by-n Gram matrix, the solver in `fitckernel` only needs to form a matrix of size n-by-m, with m typically much less than n for big data.

### Box Constraint

A box constraint is a parameter that controls the maximum penalty imposed on margin-violating observations, and aids in preventing overfitting (regularization). Increasing the box constraint can lead to longer training times.

The box constraint (C) and the regularization term strength (λ) are related by C = 1/(λn), where n is the number of observations.

## Algorithms

`fitckernel` minimizes the regularized objective function using a Limited-memory Broyden-Fletcher-Goldfarb-Shanno (LBFGS) solver with ridge (L2) regularization. To find the type of LBFGS solver used for training, type `FitInfo.Solver` in the Command Window.

• `'LBFGS-fast'` — LBFGS solver.

• `'LBFGS-blockwise'` — LBFGS solver with a block-wise strategy. If `fitckernel` requires more memory than the value of `BlockSize` to hold the transformed predictor data, then it uses a block-wise strategy.

• `'LBFGS-tall'` — LBFGS solver with a block-wise strategy for tall arrays.

When `fitckernel` uses a block-wise strategy, `fitckernel` implements LBFGS by distributing the calculation of the loss and gradient among different parts of the data at each iteration. Also, `fitckernel` refines the initial estimates of the linear coefficients and the bias term by fitting the model locally to parts of the data and combining the coefficients by averaging. If you specify `'Verbose',1`, then `fitckernel` displays diagnostic information for each data pass and stores the information in the `History` field of `FitInfo`.

When `fitckernel` does not use a block-wise strategy, the initial estimates are zeros. If you specify `'Verbose',1`, then `fitckernel` displays diagnostic information for each iteration and stores the information in the `History` field of `FitInfo`.

## References

[1] Rahimi, A., and B. Recht. “Random Features for Large-Scale Kernel Machines.” Advances in Neural Information Processing Systems. Vol. 20, 2008, pp. 1177–1184.

[2] Le, Q., T. Sarlós, and A. Smola. “Fastfood — Approximating Kernel Expansions in Loglinear Time.” Proceedings of the 30th International Conference on Machine Learning. Vol. 28, No. 3, 2013, pp. 244–252.

[3] Huang, P. S., H. Avron, T. N. Sainath, V. Sindhwani, and B. Ramabhadran. “Kernel methods match Deep Neural Networks on TIMIT.” 2014 IEEE International Conference on Acoustics, Speech and Signal Processing. 2014, pp. 205–209.
