boundary

Piecewise distribution boundaries

collapse all in page

Syntax

[p,q] = boundary(pd)
[p,q] = boundary(pd,j)

Description

[p,q] = boundary(pd) returns the boundary points between segments in pd, the piecewise distribution. p is a vector of the cumulative probabilities at the boundaries, and q is a vector of the corresponding quantiles.

example

[p,q] = boundary(pd,j) returns boundary values of the jth boundary.

Examples

collapse all

Open Live Script

Generate a sample data set and create a paretotails object by fitting a piecewise distribution with Pareto tails to the generated data. Find the boundary points between segments in a paretotails object by using the object function boundary.

Generate a sample data set containing 20% outliers.

rng('default');  % For reproducibility
left_tail = -exprnd(1,100,1);
right_tail = exprnd(5,100,1);
center = randn(800,1);
x = [left_tail;center;right_tail];

Create a paretotails object by fitting a piecewise distribution to x. Specify the boundaries of the tails using the lower and upper tail cumulative probabilities so that a fitted object consists of the empirical distribution for the middle 80% of the data set and generalized Pareto distributions (GPDs) for the lower and upper 10% of the data set.

pd = paretotails(x,0.1,0.9)
pd =
Piecewise distribution with 3 segments
      -Inf < x < -1.33251    (0 < p < 0.1): lower tail, GPD(-0.0063504,0.567017)
   -1.33251 < x < 1.80149  (0.1 < p < 0.9): interpolated empirical cdf
        1.80149 < x < Inf    (0.9 < p < 1): upper tail, GPD(0.24874,3.00974)

Return the boundary values between the piecewise segments by using the boundary function.

[p,q] = boundary(pd)
p = 2×1

    0.1000
    0.9000


q = 2×1

   -1.3325
    1.8015

The values in p are the cumulative probabilities at the boundaries, and the values in q are the corresponding quantiles.

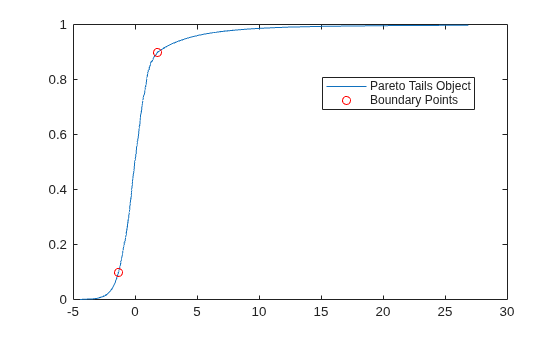

Plot the cdf of the paretotails object and mark the boundary points on the figure.

xi = sort(x);
plot(xi,cdf(pd,xi))
hold on
plot(q,p,'ro')
legend('Pareto Tails Object','Boundary Points','Location','best')
hold off

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Pareto Tails Object, Boundary Points.

Input Arguments

collapse all

Piecewise distribution with Pareto tails, specified as a paretotails object.

Boundary index indicating which boundary to return, specified as a positive integer.

Data Types: single | double

Output Arguments

collapse all

Cumulative probability at each boundary, returned as a numeric vector of range (0,1) values.

Quantile at each boundary, returned as a numeric vector.

Version History

Introduced in R2007a
