plot

Plot Shapley values

    Description

    example

    plot(explainer) creates a horizontal bar graph of the Shapley values of the shapley object explainer. These values are stored in the object's ShapleyValues property. Each bar shows the Shapley value of each feature in the blackbox model (explainer.BlackboxModel) for the query point (explainer.QueryPoint).

    example

    plot(explainer,Name,Value) specifies additional options using one or more name-value arguments. For example, specify 'NumImportantPredictors',5 to plot the Shapley values of the five features with the highest absolute Shapley values.

    b = plot(___) returns a bar graph object b using any of the input argument combinations in the previous syntaxes. Use b to query or modify Bar Properties of the bar graph after it is created.

    Examples

    collapse all

    Train a classification model and create a shapley object. Then plot the Shapley values by using the object function plot.

    Load the CreditRating_Historical data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

    tbl = readtable('CreditRating_Historical.dat');

    Display the first three rows of the table.

    head(tbl,3)
    ans=3×8 table
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
        _____    _____    _____    _______    ________    _____    ________    ______

        62394    0.013    0.104     0.036      0.447      0.142       3        {'BB'}
        48608    0.232    0.335     0.062      1.969      0.281       8        {'A' }
        42444    0.311    0.367     0.074      1.935      0.366       1        {'A' }



    Train a blackbox model of credit ratings by using the fitcecoc function. Use the variables from the second through seventh columns in tbl as the predictor variables. A recommended practice is to specify the class names to set the order of the classes.

    blackbox = fitcecoc(tbl,'Rating', ...
        'PredictorNames',tbl.Properties.VariableNames(2:7), ...
        'CategoricalPredictors','Industry', ...
        'ClassNames',{'AAA' 'AA' 'A' 'BBB' 'BB' 'B' 'CCC'});

    Create a shapley object that explains the prediction for the last observation. For faster computation, subsample 25% of the observations from tbl with stratification and use the samples to compute the Shapley values.

    queryPoint = tbl(end,:)
    queryPoint=1×8 table
         ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA    Industry    Rating
        _____    _____    _____    _______    ________    ____    ________    ______

        73104    0.239    0.463     0.065      2.924      0.34       2        {'AA'}


    rng('default') % For reproducibility
    c = cvpartition(tbl.Rating,'Holdout',0.25);
    tbl_s = tbl(test(c),:);
    explainer = shapley(blackbox,tbl_s,'QueryPoint',queryPoint);

    For a classification model, shapley computes Shapley values using the predicted class score for each class. Display the values in the ShapleyValues property.

    explainer.ShapleyValues
    ans=6×8 table
        Predictor        AAA            AA             A            BBB            BB              B             CCC
        __________    __________    __________    ___________    __________    ___________    ___________    ___________

        "WC_TA"         0.014583     0.0064712      0.0027454    0.00045582     -0.0079591      -0.011812      -0.011279
        "RE_TA"         0.047796      0.027069       0.015173    -0.0031936      -0.025054      -0.059564       -0.08344
        "EBIT_TA"     0.00034325    0.00015238     0.00012385    3.5202e-05    -0.00019141    -0.00038252    -0.00033693
        "MVE_BVTD"       0.38221       0.38228        0.19382    -0.0079011       -0.15755       -0.21522       -0.17022
        "S_TA"        -0.0035662    -0.0025999    -0.00021203    -0.0010166    -2.0954e-05     0.00041414    -0.00058886
        "Industry"     -0.028314     -0.013387     0.00088939      0.022877       0.025637       0.028474       0.044835



    The ShapleyValues property contains the Shapley values of all features for each class.

    Plot the Shapley values for the predicted class by using the plot function. To display an existing underscore in any predictor name, change the TickLabelInterpreter value of the axes to 'none'.

    f = figure;
    plot(explainer);
    f.CurrentAxes.TickLabelInterpreter = 'none';

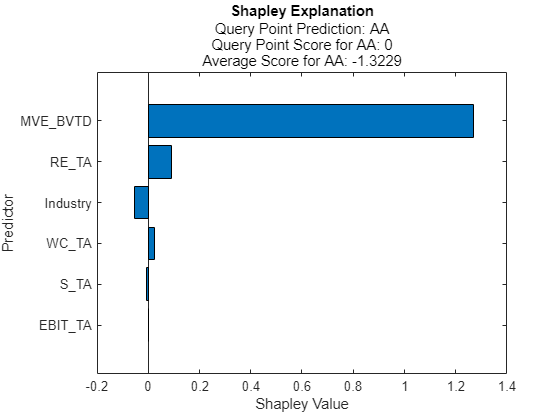

    Figure contains an axes. The axes contains an object of type bar. This object represents AA.

    The horizontal bar graph shows the Shapley values for all variables, sorted by their absolute values. Each Shapley value explains the deviation of the score for the query point from the average score of the predicted class, due to the corresponding variable.

    Plot the Shapley values for all classes by specifying all class names in explainer.BlackboxModel.

    f = figure;
    plot(explainer,'ClassNames',explainer.BlackboxModel.ClassNames)
    f.CurrentAxes.TickLabelInterpreter = 'none';

    Figure contains an axes. The axes contains 7 objects of type bar. These objects represent AAA, AA, A, BBB, BB, B, CCC.

    Train a regression model and create a shapley object. Use the object function fit to compute the Shapley values for the specified query point. Then plot the Shapley values of the predictors by using the object function plot. Specify the number of important predictors to plot when you call the plot function.

    Load the carbig data set, which contains measurements of cars made in the 1970s and early 1980s.

    load carbig

    Create a table containing the predictor variables Acceleration, Cylinders, and so on, as well as the response variable MPG.

    tbl = table(Acceleration,Cylinders,Displacement,Horsepower,Model_Year,Weight,MPG);

    Removing missing values in a training set can help reduce memory consumption and speed up training for the fitrkernel function. Remove missing values in tbl.

    tbl = rmmissing(tbl);

    Train a blackbox model of MPG by using the fitrkernel function

    rng('default') % For reproducibility
    mdl = fitrkernel(tbl,'MPG','CategoricalPredictors',[2 5]);

    Create a shapley object. Specify the data set tbl, because mdl does not contain training data.

    explainer = shapley(mdl,tbl)
    explainer =
      shapley with properties:

                BlackboxModel: [1x1 RegressionKernel]
                   QueryPoint: []
               BlackboxFitted: []
                ShapleyValues: []
                   NumSubsets: 64
                            X: [392x7 table]
        CategoricalPredictors: [2 5]
                       Method: 'interventional-kernel'



    explainer stores the training data tbl in the X property.

    Compute the Shapley values of all predictor variables for the first observation in tbl.

    queryPoint = tbl(1,:)
    queryPoint=1×7 table
        Acceleration    Cylinders    Displacement    Horsepower    Model_Year    Weight    MPG
        ____________    _________    ____________    __________    __________    ______    ___

             12             8            307            130            70         3504     18


    explainer = fit(explainer,queryPoint);

    For a regression model, shapley computes Shapley values using the predicted response, and stores them in the ShapleyValues property. Display the values in the ShapleyValues property.

    explainer.ShapleyValues
    ans=6×2 table
          Predictor       ShapleyValue
        ______________    ____________

        "Acceleration"       -0.1561
        "Cylinders"         -0.18306
        "Displacement"      -0.34203
        "Horsepower"        -0.27291
        "Model_Year"         -0.2926
        "Weight"            -0.32402



    Display the predicted response for the query point, and plot the Shapley values for the query point by using the plot function. To display an existing underscore in any predictor name, change the TickLabelInterpreter value of the axes to 'none'. Specify 'NumImportantPredictors',5 to plot only the five most important predictors for the predicted response.

    explainer.BlackboxFitted
    ans = 21.0495

    f = figure;
    plot(explainer,'NumImportantPredictors',5)
    f.CurrentAxes.TickLabelInterpreter = 'none';

    Figure contains an axes. The axes contains an object of type bar.

    The horizontal bar graph shows the Shapley values for the five most important predictors, sorted by their absolute values. Each Shapley value explains the deviation of the prediction for the query point from the average, due to the corresponding variable.

    Input Arguments

    collapse all

    Object explaining the blackbox model, specified as a shapley object.

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: plot(explainer,'NumImportantPredictors',5,'ClassNames',c) creates a bar graph containing the Shapley values of the five most important predictors for the class c.

    Number of important predictors to plot, specified as a positive integer. The plot function plots the Shapley values of the specified number of predictors with the highest absolute Shapley values.

    Example: 'NumImportantPredictors',5 specifies to plot the five most important predictors. The plot function determines the order of importance by using the absolute Shapley values.

    Data Types: single | double

    Class labels to plot, specified as a categorical or character array, logical or numeric vector, or cell array of character vectors. The values and data types in the 'ClassNames' value must match those of the class names in the ClassNames property of the machine learning model in explainer (explainer.BlackboxModel.ClassNames).

    You can specify one or more labels. If you specify multiple class labels, the function plots multiple bars for each feature with different colors.

    The default value is the predicted class for the query point (the BlackboxFitted property of explainer).

    This argument is valid only when the machine learning model (BlackboxModel) in explainer is a classification model.

    Example: 'ClassNames',{'red','blue'}

    Example: 'ClassNames',explainer.BlackboxModel.ClassNames specifies 'ClassNames' as all classes in BlackboxModel.

    Data Types: single | double | logical | char | cell | categorical

    More About

    collapse all

    Shapley Values

    In game theory, the Shapley value of a player is the average marginal contribution of the player in a cooperative game. In the context of machine learning prediction, the Shapley value of a feature for a query point explains the contribution of the feature to a prediction (response for regression or score of each class for classification) at the specified query point.

    The Shapley value corresponds to the deviation of the prediction for the query point from the average prediction, due to the feature. For a query point, the sum of the Shapley values for all features corresponds to the total deviation of the prediction from the average.

    For more details, see Shapley Values for Machine Learning Model.

    References

    [1] Lundberg, Scott M., and S. Lee. "A Unified Approach to Interpreting Model Predictions." Advances in Neural Information Processing Systems 30 (2017): 4765–774.

    [2] Aas, Kjersti, Martin. Jullum, and Anders Løland. "Explaining Individual Predictions When Features Are Dependent: More Accurate Approximations to Shapley Values." arXiv:1903.10464 (2019).

    Introduced in R2021a
