This example shows how to use System Composer to set up the architecture for a small unmanned aerial vehicle, composed of six top-level components. Learn how to refine your architecture design by authoring interfaces, inspect linked textual requirements, define profiles and stereotypes, and run a static analysis on such an architecture model.
Open the project.
Each top-level component is decomposed into its subcomponents. Navigate through the hierarchy to view the composition for each component. The root component,
scExampleSmallUAVModel, has input and output ports that represent data exchange between the system and its environment.

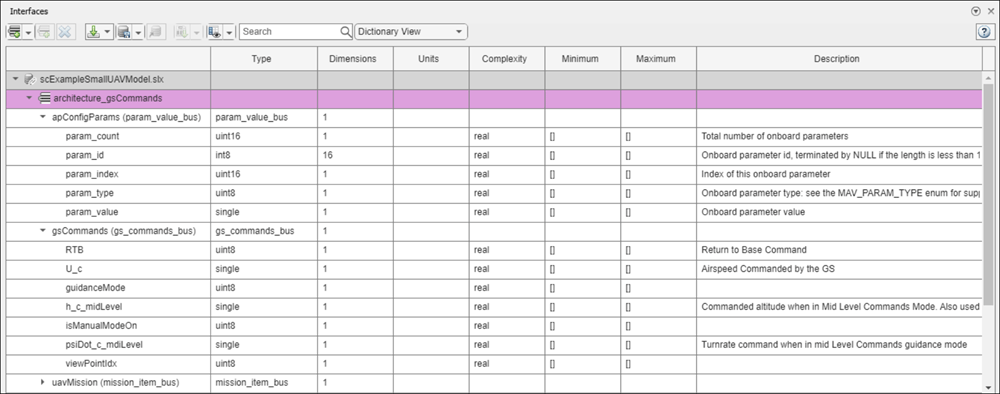

Define interfaces for domain-specific data between connections. The information shared between two ports defined by interface element property values further enhances the specification. In the Modeling tab in the toolstrip, select Design, then click Interface Editor.

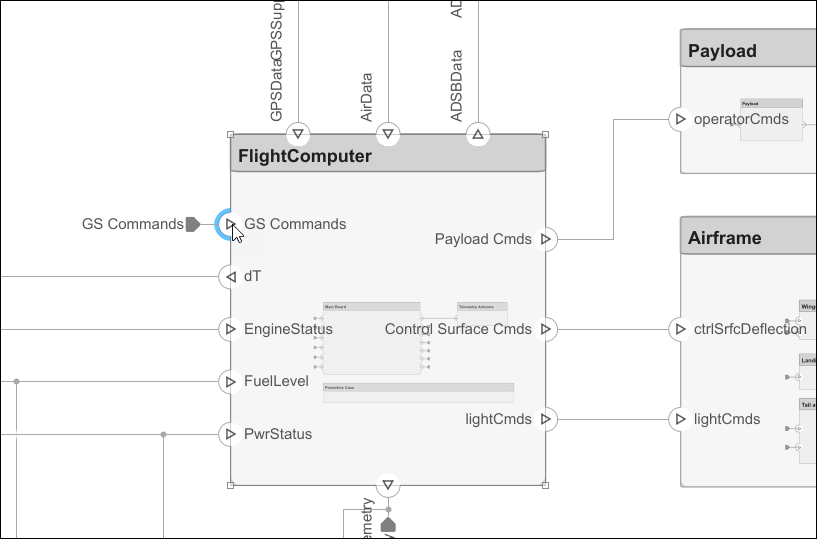

Click the GS Commands port on the architecture model to highlight the architecture_gsCommands interface and indicate the assignment of the interface.
A Simulink Requirements license is required to inspect requirements in a System Composer architecture model.
Components in the architecture model link to system requirements defined in
smallUAVReqs.slreqx. Open the Requirements Perspective. In the bottom right corner of the model pane, click Show Perspectives. Then, click Requirements.

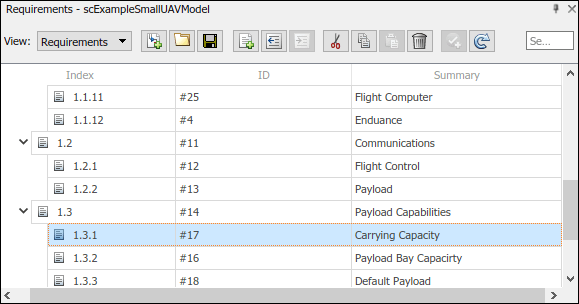

Select components on the model to see the requirement they link to, or, conversely, select items in the Requirements view to see which components implement them. Requirements can also be linked to connectors or ports to allow traceability throughout your design artifacts. To edit the requirements in
smallUAVReqs.slreqx, select the Requirements Editor from the menu.
Carrying Capacity requirement highlights the total mass able to be carried by the aircraft. This requirement, along with the weight of the aircraft, is part of the mass rollup analysis performed for early verification and validation.
To complete specifications and enable analysis later in the design process, stereotypes add custom metadata to architecture model elements. This model has stereotypes for these elements:
On-board element, applicable to components
RF connector, applicable to ports
RF wiring, applicable to connectors
Stereotypes are defined in
.xml files by using Profiles. The profile

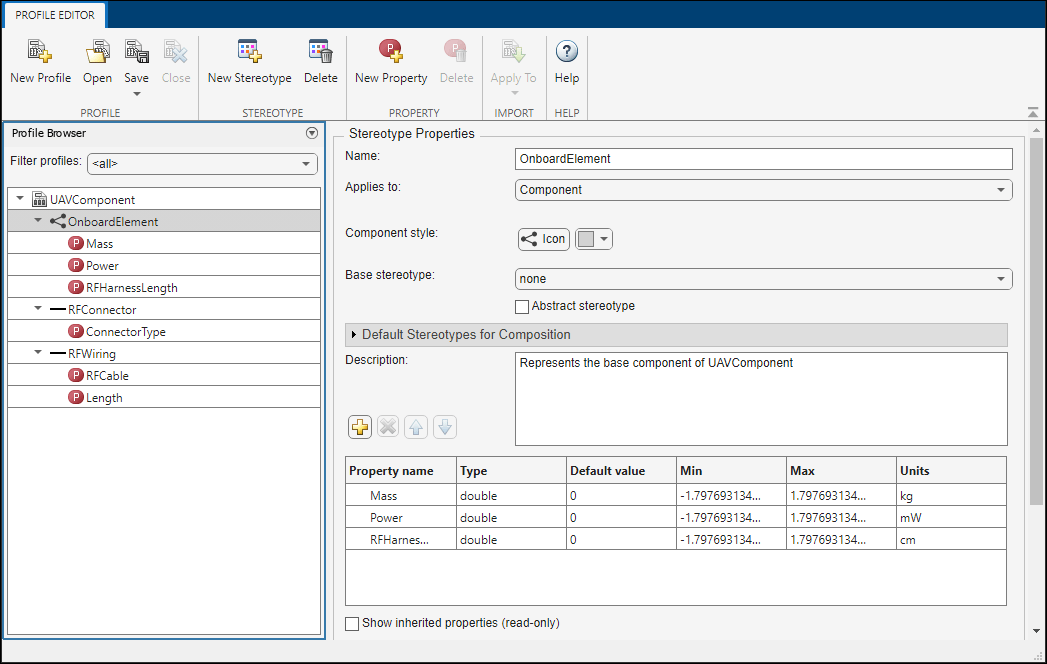

UAVComponent.xml is attached to this model. Edit a profile by using the Profile Editor. On the Modeling tab, click Import > Edit.
The display appears below.
To run static analyses on your system, create an Analysis Model from your architecture model. An Analysis Model is a tree of instances generated from the elements of the architecture model in which all referenced models are flattened out, and all variants are resolved.
Click Analysis Model on the Views menu.

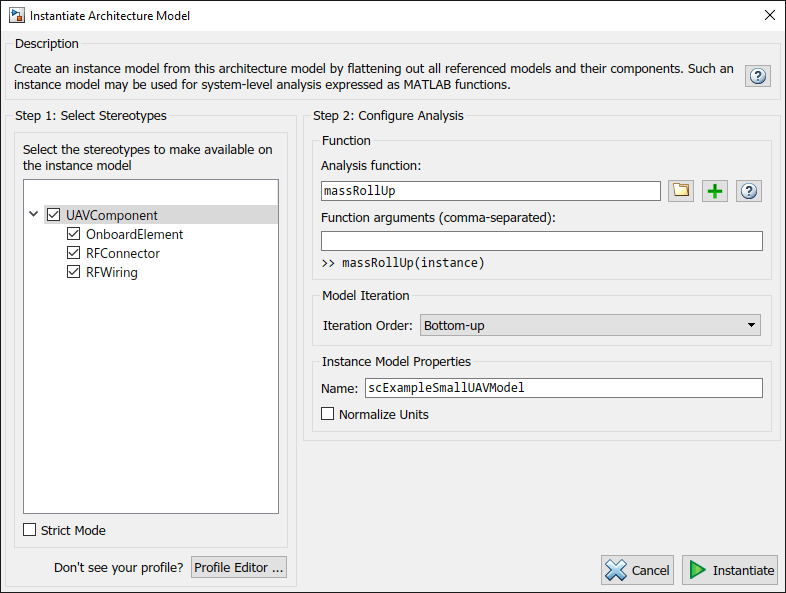

Run a mass rollup on this model. In the dialog, select the stereotypes that you want to include in your analysis. Select the analysis function by browsing to
utilities/massRollUp.m. Set the model iteration mode to Bottom-up.
Strict Mode so that all components can have a
Mass property instantiated to facilitate calculation of total mass. Click Instantiate to generate an analysis.
Once on the Analysis Viewer screen, click Analyze. The analysis function iterates through model elements bottom up, assigning the
Mass property of each component as a sum of the
Mass properties of its subcomponents. The overall weight of the system is assigned to the
Mass property of the top level component,
