# dualtree3

3-D dual-tree complex wavelet transform

## Syntax

``````[a,d] = dualtree3(x)``````
``````[a,d] = dualtree3(x,level)``````
``````[a,d] = dualtree3(___,Name,Value)``````
``````[a,d] = dualtree3(___,'excludeL1')``````

## Description

``````[a,d] = dualtree3(x)``` returns the 3-D dual-tree complex wavelet transform of `x` at the maximum level, `floor(log2(min(size(x))))`.```
``````[a,d] = dualtree3(x,level)``` returns the 3-D dual-tree wavelet transform down to `level`.```

example

``````[a,d] = dualtree3(___,Name,Value)``` specifies options using name-value pair arguments in addition to any of the input arguments in previous syntaxes.```

example

``````[a,d] = dualtree3(___,'excludeL1')``` excludes the first-level wavelet (detail) coefficients. Excluding the first-level wavelet coefficients can speed up the algorithm and saves memory. The first level does not exhibit the directional selectivity of levels 2 and higher. The perfect reconstruction property of the dual-tree wavelet transform holds only if the first-level wavelet coefficients are included. If you do not specify this option, or append `'includeL1'`, then the function includes the first-level coefficients.```

## Examples

collapse all

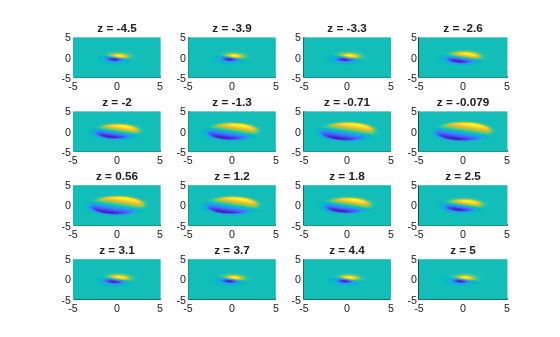

Generate a volumetric data set. Plot several cross-sections of the data seen from above. The data are not symmetric about the x-axis or the y-axis.

```xl = 64; xx = linspace(-5,5,xl); [x,y,z] = meshgrid(xx); G = (x+3*y)./(1+exp((x.^2+2*y.^2+z.^2)-10)); for k = 1:16 subplot(4,4,k) surf(xx,xx,G(:,:,4*k)) view(2) shading interp title(['z = ' num2str(xx(4*k),2)]) end```

Compute the 3-D dual-tree transform of the data down to level 4. Specify a Hilbert Q-shift filter-pair length of 14.

`[a,d] = dualtree3(G,4,'FilterLength',14);`

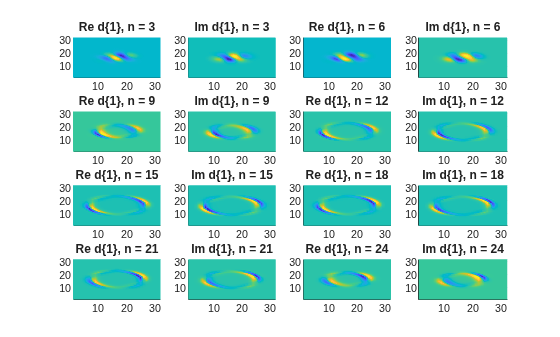

Plot the real and imaginary parts of the first-level wavelet coefficients for selected subbands. The coefficients have the same directionality as the data. The imaginary parts are shifted versions of the real parts.

```m = 1; for k = 1:8 subplot(4,4,2*k-1) surf(real(d{m}(:,:,3*k))) view(2) shading interp axis tight title(['Re d\{1\}, n = ' int2str(3*k)]) subplot(4,4,2*k) surf(imag(d{m}(:,:,3*k))) view(2) shading interp axis tight title(['Im d\{1\}, n = ' int2str(3*k)]) end```

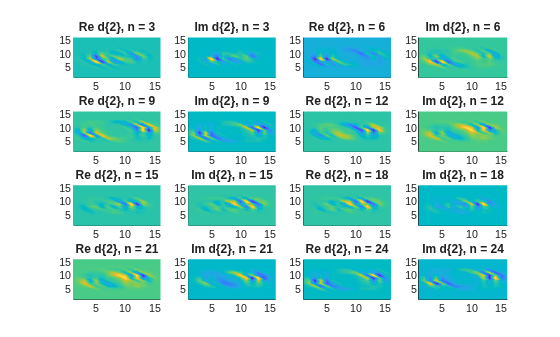

Repeat the procedure for the second-level coefficients. When the level number increases by one, the array of wavelet coefficients decreases by half along the first two dimensions.

```m = 2; for k = 1:8 subplot(4,4,2*k-1) surf(real(d{m}(:,:,3*k))) view(2) shading interp axis tight title(['Re d\{2\}, n = ' int2str(3*k)]) subplot(4,4,2*k) surf(imag(d{m}(:,:,3*k))) view(2) shading interp axis tight title(['Im d\{2\}, n = ' int2str(3*k)]) end```

Invert the transform, specifying the same filter-pair length. Check for perfect reconstruction.

```xrec = idualtree3(a,d,'FilterLength',14); max(abs(xrec(:)-G(:)))```
```ans = 1.9984e-14 ```

Load a set of MRI measurements of a human head. Truncate the data so that it is even along the third dimension. Compute the 3-D dual-tree transform, excluding the first-level wavelet coefficients.

```load wmri [A,D] = dualtree3(X(:,:,1:26),2,'excludeL1');```

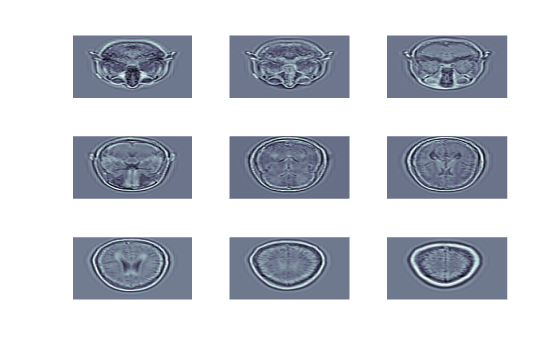

Reconstruct the data by inverting the transform. Set the final-level scaling coefficients explicitly to 0. Display an evenly spaced selection of reconstructed images.

```imrec = idualtree3(A*0,D); colormap bone for kj = 1:9 subplot(3,3,kj) surf(imrec(:,:,3*kj-2)) shading interp view(2) axis tight off end```

## Input Arguments

collapse all

Input data, specified as a real 3-D array. All three dimensions of `x` must be even and greater than or equal to 4.

Data Types: `double` | `single`

Transform level, specified as a positive integer greater than or equal to 2 and less than or equal to `floor(log2(min(size(x))))`.

Data Types: `double` | `single`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'LevelOneFilter','legall','FilterLength',6` computes a transform using LeGall analysis filters with scaling length 5 and wavelet length 3 at level 1, and length-6 Q-shift filters at levels 2 and greater.

Hilbert Q-shift filter-pair length, specified as the comma-separated pair consisting of `'FilterLength'` and one of 6, 10, 14, 16, or 18. `dualtree3` uses the orthogonal Hilbert Q-shift filter pair of length `'FilterLength'` for levels 2 and greater.

Data Types: `double` | `single`

First-level biorthogonal analysis filter, specified as the comma-separated pair consisting of `'LevelOneFilter'` and a character vector or string. By default, `dualtree3` uses for level 1 the near-symmetric biorthogonal wavelet filter with lengths 5 (scaling filter) and 7 (wavelet filter).

Data Types: `char` | `string`

## Output Arguments

collapse all

Final-level scaling (lowpass) coefficients, returned as a real-valued matrix.

Data Types: `double`

Wavelet coefficients, returned as a 1-by-`level` cell array. There are 28 wavelet subbands in the 3-D dual-tree transform at each level.

Data Types: `double`
Complex Number Support: Yes

## References

[1] Chen, H., and N. G. Kingsbury. “Efficient Registration of Nonrigid 3-D Bodies.” IEEE® Transactions on Image Processing. Vol 21, January 2012, pp. 262–272.

[2] Kingsbury, N. G. “Complex Wavelets for Shift Invariant Analysis and Filtering of Signals.” Journal of Applied and Computational Harmonic Analysis, Vol. 10, Number 3, May 2001, pp. 234–253.

## Version History

Introduced in R2017a
