ind2depo

Node index to node depth-position

Description

ind2depo is a tree-management utility.

[d,p] = ind2depo(ord,n) returns, for a tree of order ord, the depths d and positions p (at those depths) for the nodes with indices n.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

example

Examples

collapse all

Create a binary wavelet packet tree with three levels.

Ord = 2;
Lev = 3;
T = ntree(Ord,Lev);

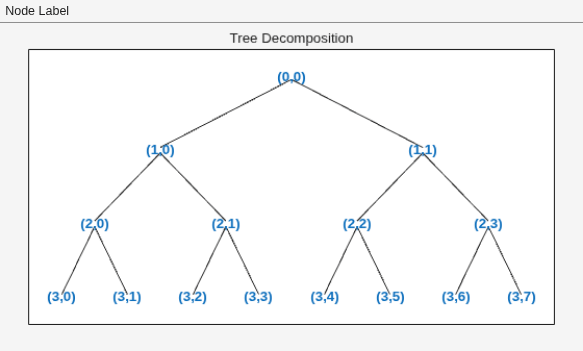

Plot the tree.

plot(T)

Use the allnodes function to obtain the indices of the nodes in linear order.

idx = allnodes(T);

Convert the indices to depth-position format.

[depth,pos] = ind2depo(Ord,idx);
table(idx,depth,pos)
ans=15×3 table
idx    depth    pos
___    _____    ___

0       0       0
1       1       0
2       1       1
3       2       0
4       2       1
5       2       2
6       2       3
7       3       0
8       3       1
9       3       2
10       3       3
11       3       4
12       3       5
13       3       6
14       3       7

Input Arguments

collapse all

Order of a tree, specified as a positive integer.

Example: A binary tree is a tree of order 2.

Node indices, specified as a column vector with nonnegative integer entries.

Output Arguments

collapse all

Depths and positions (at those depths) for the nodes with indices n, returned as a pair of column vectors with nonnegative integer entries.

The values of the depths D and positions N are such that 0≤D and 0≤ PordD-1.

Note

If n is a M-by-2 matrix, we have ind2depo(ord,n) = [n(:,1),n(:,2)].

Version History

Introduced before R2006a
