Scale to frequency



frq = scal2frq(A,wname,delta) returns the pseudo-frequencies corresponding to the scales given by A and the wavelet specified by wname and the sampling period delta. The output frq is real-valued and has the same dimensions as A.

frq = scal2frq(A,wname) is equivalent to frq = scal2frq(A,wname,1).


collapse all

This example shows how the pseudo-frequency changes as you double the scale.

Construct a vector of scales with 10 voices per octave over five octaves.

vpo = 10;
no = 5;
a0 = 2^(1/vpo);
ind = 0:vpo*no;
sc = a0.^ind;

Verify that the range of scales covers five octaves.

ans = 5.0000

If you plot the scales, you can use a data cursor to confirm that the scale at index n+10 is twice the scale at index n. Set the y-ticks to mark each octave.

grid on

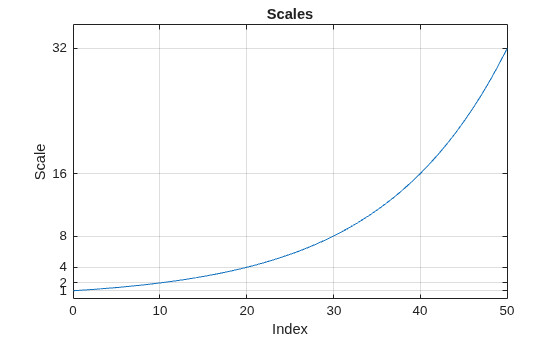

Figure contains an axes object. The axes object with title Scales contains an object of type line.

Convert the scales to pseudo-frequencies for the real-valued Morlet wavelet. First, assume the sampling period is 1.

pf = scal2frq(sc,"morl");
T = [sc(:) pf(:)];
T = array2table(T,'VariableNames',{'Scale','Pseudo-Frequency'});
    Scale     Pseudo-Frequency
    ______    ________________

         1          0.8125
    1.0718         0.75809
    1.1487         0.70732
    1.2311         0.65996
    1.3195         0.61576
    1.4142         0.57452
    1.5157         0.53605
    1.6245         0.50015
    1.7411         0.46666
    1.8661         0.43541
         2         0.40625
    2.1435         0.37904
    2.2974         0.35366
    2.4623         0.32998
     2.639         0.30788
    2.8284         0.28726
    3.0314         0.26803
     3.249         0.25008
    3.4822         0.23333
    3.7321          0.2177
         4         0.20313
    4.2871         0.18952
    4.5948         0.17683
    4.9246         0.16499
     5.278         0.15394
    5.6569         0.14363
    6.0629         0.13401
     6.498         0.12504
    6.9644         0.11666
    7.4643         0.10885
         8         0.10156
    8.5742        0.094761
    9.1896        0.088415
    9.8492        0.082494
    10.556         0.07697
    11.314        0.071816
    12.126        0.067006
    12.996        0.062519
    13.929        0.058332
    14.929        0.054426
        16        0.050781
    17.148        0.047381
    18.379        0.044208
    19.698        0.041247
    21.112        0.038485
    22.627        0.035908
    24.251        0.033503
    25.992         0.03126
    27.858        0.029166
    29.857        0.027213
        32        0.025391

Assume that data is sampled at 100 Hz. Construct a table with the scales, the corresponding pseudo-frequencies, and periods. Since there are 10 voices per octave, display every tenth row in the table. Observe that for each doubling of the scale, the pseudo-frequency is cut in half.

Fs = 100;
DT = 1/Fs;
pf = scal2frq(sc,"morl",DT);
T = [sc(:)/Fs pf(:) 1./pf(:)];
T = array2table(T,'VariableNames',{'Scale','Pseudo-Frequency','Period'});
ans=6×3 table
    Scale    Pseudo-Frequency     Period
    _____    ________________    ________

    0.01           81.25         0.012308
    0.02          40.625         0.024615
    0.04          20.313         0.049231
    0.08          10.156         0.098462
    0.16          5.0781          0.19692
    0.32          2.5391          0.39385

Note the presence of the Δt=1Fs factor in scal2frq. This is necessary in order to achieve the proper scale-to-frequency conversion. The Δt is needed to adjust the raw scales properly. For example, with:

f = scal2frq(1,'morl',0.01);

You are really asking what happens to the center frequency of the mother Morlet wavelet, if you dilate the wavelet by 0.01. In other words, what is the effect on the center frequency if instead of ψ(t), you look at ψ(t/0.01). The Δt provides the correct adjustment factor on the scales.

You could have obtained the same results by first converting the scales to their adjusted sizes and then using scal2frq without specifying Δt.

scadjusted = sc.*0.01;
pf2 = scal2frq(scadjusted,'morl');
ans = 0

The example shows how to create a contour plot of the CWT using approximate frequencies in Hz.

Create a signal consisting of two sine waves with disjoint support in additive noise. Assume the signal is sampled at 1 kHz.

Fs = 1000;
t = 0:1/Fs:1-1/Fs;
x = 1.5*cos(2*pi*100*t).*(t<0.25)+1.5*cos(2*pi*50*t).*(t>0.5 & t<=0.75);
x = x+0.05*randn(size(t));

Obtain the CWT of the input signal and plot the result.

[cfs,f] = cwt(x,Fs);
axis tight;
grid on;
ylabel('Approximate Frequency (Hz)');
title('CWT with Time vs Frequency');

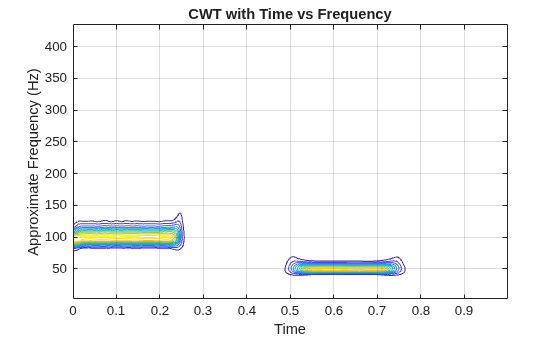

Figure contains an axes object. The axes object with title CWT with Time vs Frequency contains an object of type contour.

Input Arguments

collapse all

Scales, specified as a positive real-valued vector.

Wavelet, specified as a character vector or string scalar. See wavefun for more information.

Sampling period, specified as a real-valued scalar.

Example: pf = scal2frq([1:5],"db4",0.01)

More About

collapse all


There is only an approximate answer for the relationship between scale and frequency.

In wavelet analysis, the way to relate scale to frequency is to determine the center frequency of the wavelet, Fc, and use the following relationship:



  • a is a scale.

  • Fc is the center frequency of the wavelet in Hz.

  • Fa is the pseudo-frequency corresponding to the scale a, in Hz.

The idea is to associate with a given wavelet a purely periodic signal of frequency Fc. The frequency maximizing the Fourier transform of the wavelet modulus is Fc. The centfrq function computes the center frequency for a specified wavelet. From the above relationship, it can be seen that scale is inversely proportional to pseudo-frequency. For example, if the scale increases, the wavelet becomes more spread out, resulting in a lower pseudo-frequency.

Some examples of the correspondence between the center frequency and the wavelet are shown in the following figure.

Center Frequencies for Real and Complex Wavelets

As you can see, the center frequency-based approximation (red) captures the main wavelet oscillations (blue). The center frequency is a convenient and simple characterization of the dominant frequency of the wavelet.
