Would like to know what is this symbol and its function

3 vues (au cours des 30 derniers jours)

Ying Jie Tan le 26 Oct 2023

0
Lien

Utiliser le lien direct vers cette question

https://fr.mathworks.com/matlabcentral/answers/2079576-would-like-to-know-what-is-this-symbol-and-its-function

Commenté : Ying Jie Tan le 26 Oct 2023

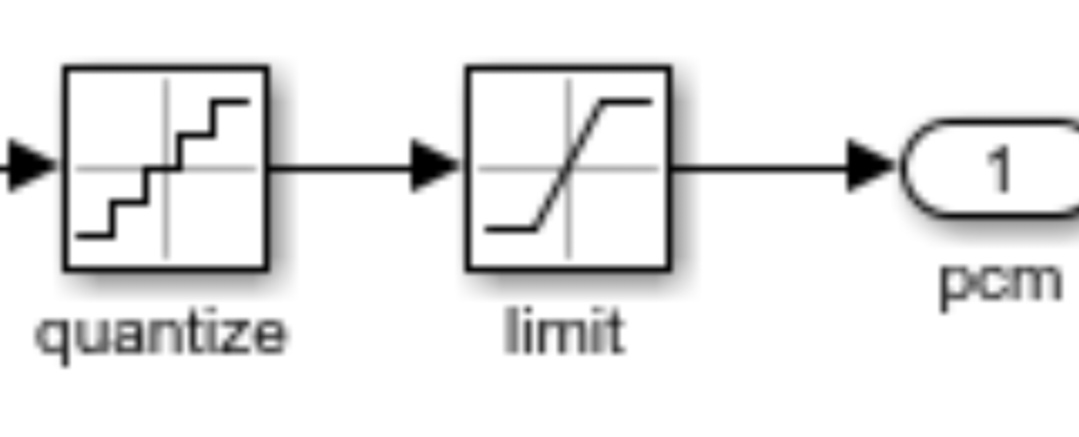

Good day community, can I know what is this symbol could be? It looks like a ramp/ continuous ramp. But I believe it is not both them. I saw someone connect it after a voltage/ current measurement. Can I know what is the function of this symbol too? Much appreciate for the answers given

2 commentaires
Afficher AucuneMasquer Aucune

Kilsu Kim le 26 Oct 2023

It looks like "Saturation" block but the direction of the block is opposite.

Ying Jie Tan le 26 Oct 2023

I've think about this before, but if Im not mistaken, the saturation block came with the y and x axis too right? Or we can hide that axes to become like the block I've attached above?
