Affichage graph dans page Web de Sketch ino
Dernière activité Modification par Caunes Jean-Paul
le 1 Jan 2022
Bonjour, J'utilise arduino Mega 2560 avec le shield Ethernet. Le sketch ino joint ci-après me permet de visualiser la jauge dans la page index.htm chargée sur la carte SD. ThingSpeak affiche bien le graph correspondant. Mais ma page web n'y a pas accès. Comment intégrer les codes dans la page ou dans le sketch pour cela ? Je vous joins la capture d'écran de cette page ainsi que les codes De la page et du sketch. Merci pour votre aide.
*********************************** Code Page "index.htm" ***********************************
<!DOCTYPE html>
<html>
<head>
<title>Arduino Internet Voltmeter</title>
<script>
var data_val = 0; // raw data from Arduino analog input (0 to 1023)
var volts = 0; // voltage calculated from Arduino analog raw data value
var num_updates = 0; // number of 200ms periods used to calculate time to send data to ThingSpeak
// gauge code
eval(function(p,a,c,k,e,r){e=function(c){return(c<a?'':e(parseInt(c/a)))+((c=c%a)>35?String.fromCharCode(c+29):c.toString(36))};if(!''.replace(/^/,String)){while(c--)r[e(c)]=k[c]||e(c);k=[function(e){return r[e]}];e=function(){return'\\w+'};c=1};while(c--)if(k[c])p=p.replace(new RegExp('\\b'+e(c)+'\\b','g'),k[c]);return p}('t W=v(f){W.2t.3T(A);A.B={Z:2u,19:1q,1h:1q,1J:U,1b:D,K:0,V:[\'0\',\'20\',\'40\',\'2A\',\'2B\',\'D\'],2r:10,2C:M,1E:U,2q:{2D:3,2E:2},2H:M,1c:{2j:10,2m:3y,2O:\'3v\'},J:{2P:\'#4h\',V:\'#31\',2r:\'#3k\',1J:\'#37\',1E:\'#37\',3e:\'#31\',1t:{2s:\'1e(3Y, 3d, 3d, 1)\',3c:\'1e(1Y, 5I, 5E, .9)\'}},1o:[{1n:20,1D:2A,1F:\'#3j\'},{1n:2A,1D:2B,1F:\'#36\'},{1n:2B,1D:D,1F:\'#5n\'}]};t g=0,1p=A,N=0,1S=0,1G=U;A.5d=v(a){N=f.1c?g:a;t b=(f.1b-f.K)/D;1S=a>f.1b?1S=f.1b+b:a<f.K?f.K-b:a;g=a;f.1c?3l():A.1g();C A};A.3m=v(a){N=g=a;A.1g();C A};A.4T=v(){g=N=1S=A.B.K;A.1g();C A};A.4R=v(){C g};A.13=v(){};v 2k(a,b){Q(t i 4P b){z(1H b[i]=="1W"&&!(4O.4y.2V.4p(b[i])===\'[1W 4n]\')&&i!=\'Z\'){z(1H a[i]!="1W"){a[i]={}}2k(a[i],b[i])}O{a[i]=b[i]}}};2k(A.B,f);A.B.K=1R(A.B.K);A.B.1b=1R(A.B.1b);f=A.B;N=g=f.K;z(!f.Z){4m 4j("4g 4d 4b 46 44 41 3Z 3W W 1W!");}t j=f.Z.5K?f.Z:2R.5v(f.Z),q=j.3u(\'2d\'),1i,1y,1A,14,17,u,1d;v 2M(){j.19=f.19;j.1h=f.1h;1i=j.4s(M);1d=1i.3u(\'2d\');1y=j.19;1A=j.1h;14=1y/2;17=1A/2;u=14<17?14:17;1i.2J=U;1d.3P(14,17);1d.G();q.3P(14,17);q.G()};2M();A.4Z=v(a){2k(A.B,a);2M();A.1g();C A};t k={4q:v(p){C p},4e:v(p){C E.1L(p,2)},4c:v(p){C E.1L(p,5)},3v:v(p){C 1-E.1O(E.5C(p))},5k:v(p){C 1-(v(p){Q(t a=0,b=1;1;a+=b,b/=2){z(p>=(7-4*a)/11){C-E.1L((11-6*a-11*p)/4,2)+E.1L(b,2)}}})(1-p)},4S:v(p){C 1-(v(p){t x=1.5;C E.1L(2,10*(p-1))*E.1T(20*E.1a*x/3*p)})(1-p)}};t l=2u;v 3S(d){t e=2v 3R;l=2x(v(){t a=2v 3R-e,1M=a/d.2m;z(1M>1){1M=1}t b=1H d.2g=="v"?d.2g:k[d.2g];t c=b(1M);d.3Q(c);z(1M==1){2b(l)}},d.2j||10)};v 3l(){l&&2b(l);t b=(1S-N),1n=N,29=f.1c;3S({2j:29.2j,2m:29.2m,2g:29.2O,3Q:v(a){N=1R(1n)+b*a;1p.1g()}})};q.5l="3O";A.1g=v(){z(!1i.2J){1d.3M(-14,-17,1y,1A);1d.G();t a=q;q=1d;3L();3K();3I();3H();3F();3D();3z();1i.2J=M;q=a;5G a}q.3M(-14,-17,1y,1A);q.G();q.4a(1i,-14,-17,1y,1A);z(!W.28){t b=2x(v(){z(!W.28){C}2b(b);2K();2L();z(!1G){1p.13&&1p.13();1G=M}},10)}O{2K();2L();z(!1G){1p.13&&1p.13();1G=M}}C A};v S(a){C a*E.1a/4J};v 1l(a,b,c){t d=q.4Y(0,0,0,c);d.1V(0,a);d.1V(1,b);C d};v 3L(){t a=u/D*5g,3x=u-a,2a=u/D*5q,5u=u-2a,1f=u/D*5z,5A=u-1f;3t=u/D*5F;q.G();z(f.2H){q.2o=3x;q.2n=\'1e(0, 0, 0, 0.5)\'}q.P();q.16(0,0,a,0,E.1a*2,M);q.L=1l(\'#42\',\'#43\',a);q.T();q.R();q.P();q.16(0,0,2a,0,E.1a*2,M);q.L=1l(\'#49\',\'#36\',2a);q.T();q.P();q.16(0,0,1f,0,E.1a*2,M);q.L=1l(\'#3j\',\'#3s\',1f);q.T();q.P();q.16(0,0,3t,0,E.1a*2,M);q.L=f.J.2P;q.T();q.G()};v 3H(){t r=u/D*2T;q.2e=2;q.2U=f.J.V;q.G();Q(t i=0;i<f.V.H;++i){t a=45+i*(1U/(f.V.H-1));q.1z(S(a));q.P();q.1K(0,r);q.F(0,r-u/D*15);q.1X();q.R();q.G()}z(f.2C){q.1z(S(2X));q.P();q.16(0,0,r,S(45),S(4N),U);q.1X();q.R();q.G()}};v 3I(){t r=u/D*2T;q.2e=1;q.2U=f.J.2r;q.G();t b=f.2r*(f.V.H-1);Q(t i=0;i<b;++i){t a=45+i*(1U/b);q.1z(S(a));q.P();q.1K(0,r);q.F(0,r-u/D*7.5);q.1X();q.R();q.G()}};v 3F(){t r=u/D*55;Q(t i=0;i<f.V.H;++i){t a=45+i*(1U/(f.V.H-1)),p=1w(r,S(a));q.1x=20*(u/1q)+"2i 2Y";q.L=f.J.3e;q.2e=0;q.2h="2f";q.27(f.V[i],p.x,p.y+3)}};v 3D(){z(!f.1J){C}q.G();q.1x=24*(u/1q)+"2i 2Y";q.L=f.J.1J;q.2h="2f";q.27(f.1J,0,-u/4.25);q.R()};v 3z(){z(!f.1E){C}q.G();q.1x=22*(u/1q)+"2i 2Y";q.L=f.J.1E;q.2h="2f";q.27(f.1E,0,u/3.25);q.R()};v 32(a){t b=f.2q.2E,34=f.2q.2D;a=1R(a);t n=(a<0);a=E.35(a);z(b>0){a=a.5t(b).2V().1j(\'.\');Q(t i=0,s=34-a[0].H;i<s;++i){a[0]=\'0\'+a[0]}a=(n?\'-\':\'\')+a[0]+\'.\'+a[1]}O{a=E.3O(a).2V();Q(t i=0,s=34-a.H;i<s;++i){a=\'0\'+a}a=(n?\'-\':\'\')+a}C a};v 1w(r,a){t x=0,y=r,1O=E.1O(a),1T=E.1T(a),X=x*1T-y*1O,Y=x*1O+y*1T;C{x:X,y:Y}};v 3K(){q.G();t a=u/D*2T;t b=a-u/D*15;Q(t i=0,s=f.1o.H;i<s;i++){t c=f.1o[i],39=(f.1b-f.K)/1U,1P=S(45+(c.1n-f.K)/39),1N=S(45+(c.1D-f.K)/39);q.P();q.1z(S(2X));q.16(0,0,a,1P,1N,U);q.R();q.G();t d=1w(b,1P),3a=1w(a,1P);q.1K(d.x,d.y);q.F(3a.x,3a.y);t e=1w(a,1N),3b=1w(b,1N);q.F(e.x,e.y);q.F(3b.x,3b.y);q.F(d.x,d.y);q.1C();q.L=c.1F;q.T();q.P();q.1z(S(2X));q.16(0,0,b,1P-0.2,1N+0.2,U);q.R();q.1C();q.L=f.J.2P;q.T();q.G()}};v 2L(){t a=u/D*12,1f=u/D*8,1u=u/D*3X,1r=u/D*20,2l=u/D*4,1B=u/D*2,38=v(){q.3f=2;q.3g=2;q.2o=10;q.2n=\'1e(5L, 3h, 3h, 0.45)\'};38();q.G();z(N<0){N=E.35(f.K-N)}O z(f.K>0){N-=f.K}O{N=E.35(f.K)+N}q.1z(S(45+N/((f.1b-f.K)/1U)));q.P();q.1K(-1B,-1r);q.F(-2l,0);q.F(-1,1u);q.F(1,1u);q.F(2l,0);q.F(1B,-1r);q.1C();q.L=1l(f.J.1t.2s,f.J.1t.3c,1u-1r);q.T();q.P();q.F(-0.5,1u);q.F(-1,1u);q.F(-2l,0);q.F(-1B,-1r);q.F(1B/2-2,-1r);q.1C();q.L=\'1e(1Y, 1Y, 1Y, 0.2)\';q.T();q.R();38();q.P();q.16(0,0,a,0,E.1a*2,M);q.L=1l(\'#3s\',\'#36\',a);q.T();q.R();q.P();q.16(0,0,1f,0,E.1a*2,M);q.L=1l("#47","#48",1f);q.T()};v 3i(x,y,w,h,r){q.P();q.1K(x+r,y);q.F(x+w-r,y);q.23(x+w,y,x+w,y+r);q.F(x+w,y+h-r);q.23(x+w,y+h,x+w-r,y+h);q.F(x+r,y+h);q.23(x,y+h,x,y+h-r);q.F(x,y+r);q.23(x,y,x+r,y);q.1C()};v 2K(){q.G();q.1x=40*(u/1q)+"2i 30";t a=32(g),2Z=q.4f(\'-\'+32(0)).19,y=u-u/D*33,x=0,2W=0.12*u;q.G();3i(-2Z/2-0.21*u,y-2W-0.4i*u,2Z+0.3n*u,2W+0.4k*u,0.21*u);t b=q.4l(x,y-0.12*u-0.21*u+(0.12*u+0.3o*u)/2,u/10,x,y-0.12*u-0.21*u+(0.12*u+0.3o*u)/2,u/5);b.1V(0,"#37");b.1V(1,"#3k");q.2U=b;q.2e=0.3n*u;q.1X();q.2o=0.3p*u;q.2n=\'1e(0, 0, 0, 1)\';q.L="#4o";q.T();q.R();q.3f=0.3q*u;q.3g=0.3q*u;q.2o=0.3p*u;q.2n=\'1e(0, 0, 0, 0.3)\';q.L="#31";q.2h="2f";q.27(a,-x,y);q.R()}};W.28=U;(v(){t d=2R,h=d.3r(\'4r\')[0],2S=4t.4u.4v().4w(\'4x\')!=-1,2Q=\'4z://4A-4B.4C/4D/4E/4F-7-4G.\'+(2S?\'4H\':\'4I\'),1I="@1x-4K {"+"1x-4L: \'30\';"+"4M: 2Q(\'"+2Q+"\');"+"}",1s,r=d.3w(\'1v\');r.2N=\'1I/4Q\';z(2S){h.2p(r);1s=r.2I;1s.3A=1I}O{4U{r.2p(d.4V(1I))}4W(e){r.3A=1I}h.2p(r);1s=r.2I?r.2I:(r.4X||d.3B[d.3B.H-1])}t b=2x(v(){z(!d.3C){C}2b(b);t a=d.3w(\'50\');a.1v.51=\'30\';a.1v.52=\'53\';a.1v.1h=a.1v.19=0;a.1v.54=\'56\';a.57=\'.\';d.3C.2p(a);58(v(){W.28=M;a.59.5a(a)},3y)},1)})();W.2t=[];W.2t.5b=v(a){z(1H(a)==\'5c\'){Q(t i=0,s=A.H;i<s;i++){z(A[i].B.Z.18(\'5e\')==a){C A[i]}}}O z(1H(a)==\'5f\'){C A[a]}O{C 2u}};v 3E(a){z(2G.3G){2G.3G(\'5h\',a,U)}O{2G.5i(\'5j\',a)}}3E(v(){v 2F(a){t b=a[0];Q(t i=1,s=a.H;i<s;i++){b+=a[i].1Z(0,1).5m()+a[i].1Z(1,a[i].H-1)}C b};v 3J(a){C a.5o(/^\\s+|\\s+$/g,\'\')};t c=2R.3r(\'5p\');Q(t i=0,s=c.H;i<s;i++){z(c[i].18(\'1k-2N\')==\'5r-5s\'){t d=c[i],B={},1m,w=2c(d.18(\'19\')),h=2c(d.18(\'1h\'));B.Z=d;z(w){B.19=w}z(h){B.1h=h}Q(t e=0,1s=d.3N.H;e<1s;e++){1m=d.3N.5w(e).5x;z(1m!=\'1k-2N\'&&1m.1Z(0,5)==\'1k-\'){t f=1m.1Z(5,1m.H-5).5y().1j(\'-\'),I=d.18(1m);z(!I){2z}5B(f[0]){2y\'J\':{z(f[1]){z(!B.J){B.J={}}z(f[1]==\'1t\'){t k=I.1j(/\\s+/);z(k[0]&&k[1]){B.J.1t={2s:k[0],3c:k[1]}}O{B.J.1t=I}}O{f.5D();B.J[2F(f)]=I}}26}2y\'1o\':{z(!B.1o){B.1o=[]}2w=I.1j(\',\');Q(t j=0,l=2w.H;j<l;j++){t m=3J(2w[j]).1j(/\\s+/),1Q={};z(m[0]&&m[0]!=\'\'){1Q.1n=m[0]}z(m[1]&&m[1]!=\'\'){1Q.1D=m[1]}z(m[2]&&m[2]!=\'\'){1Q.1F=m[2]}B.1o.3T(1Q)}26}2y\'1c\':{z(f[1]){z(!B.1c){B.1c={}}z(f[1]==\'2O\'&&/^\\s*v\\s*\\(/.5H(I)){I=3U(\'(\'+I+\')\')}B.1c[f[1]]=I}26}5J:{t n=2F(f);z(n==\'13\'){2z}z(n==\'V\'){I=I.1j(/\\s+/)}O z(n==\'2C\'||n==\'2H\'){I=I==\'M\'?M:U}O z(n==\'2q\'){t o=I.1j(\'.\');z(o.H==2){I={2D:2c(o[0]),2E:2c(o[1])}}O{2z}}B[n]=I;26}}}}t g=2v W(B);z(d.18(\'1k-3V\')){g.3m(1R(d.18(\'1k-3V\')))}z(d.18(\'1k-13\')){g.13=v(){3U(A.B.Z.18(\'1k-13\'))}}g.1g()}}});',62,358,'||||||||||||||||||||||||||ctx|||var|max|function||||if|this|config|return|100|Math|lineTo|save|length|attrValue|colors|minValue|fillStyle|true|fromValue|else|beginPath|for|restore|radians|fill|false|majorTicks|Gauge|||renderTo||||onready|CX||arc|CY|getAttribute|width|PI|maxValue|animation|cctx|rgba|r2|draw|height|cache|split|data|lgrad|prop|from|highlights|self|200|rOut|ss|needle|rIn|style|rpoint|font|CW|rotate|CH|pad2|closePath|to|units|color|imready|typeof|text|title|moveTo|pow|progress|ea|sin|sa|hlCfg|parseFloat|toValue|cos|270|addColorStop|object|stroke|255|substr||025||quadraticCurveTo|||break|fillText|initialized|cfg|r1|clearInterval|parseInt||lineWidth|center|delta|textAlign|px|delay|applyRecursive|pad1|duration|shadowColor|shadowBlur|appendChild|valueFormat|minorTicks|start|Collection|null|new|hls|setInterval|case|continue|60|80|strokeTicks|int|dec|toCamelCase|window|glow|styleSheet|i8d|drawValueBox|drawNeedle|baseInit|type|fn|plate|url|document|ie|81|strokeStyle|toString|th|90|Arial|tw|Led|444|padValue||cint|abs|ccc|888|shad|vd|pe|pe1|end|128|numbers|shadowOffsetX|shadowOffsetY|143|roundRect|eee|666|animate|setRawValue|05|045|012|004|getElementsByTagName|f0f0f0|r3|getContext|cycle|createElement|d0|250|drawUnits|cssText|styleSheets|body|drawTitle|domReady|drawNumbers|addEventListener|drawMajorTicks|drawMinorTicks|trim|drawHighlights|drawPlate|clearRect|attributes|round|translate|step|Date|_animate|push|eval|value|the|77|240|creating||when|ddd|aaa|specified||not|e8e8e8|f5f5f5|fafafa|drawImage|was|quint|element|quad|measureText|Canvas|fff|04|Error|07|createRadialGradient|throw|Array|babab2|call|linear|head|cloneNode|navigator|userAgent|toLocaleLowerCase|indexOf|msie|prototype|http|smart|ip|net|styles|fonts|digital|mono|eot|ttf|180|face|family|src|315|Object|in|css|getValue|elastic|clear|try|createTextNode|catch|sheet|createLinearGradient|updateConfig|div|fontFamily|position|absolute|overflow||hidden|innerHTML|setTimeout|parentNode|removeChild|get|string|setValue|id|number|93|DOMContentLoaded|attachEvent|onload|bounce|lineCap|toUpperCase|999|replace|canvas|91|canv|gauge|toFixed|d1|getElementById|item|nodeName|toLowerCase|88|d2|switch|acos|shift|122|85|delete|test|160|default|tagName|188'.split('|'),0,{}))
// function called periodically to get analog value from Arduino using Ajax
function GetArduinoInputs()
{
nocache = "&nocache=" + Math.random() * 1000000;
var request = new XMLHttpRequest();
request.onreadystatechange = function()
{
if (this.readyState == 4) {
if (this.status == 200) {
if (this.responseXML != null) {
document.getElementById("input3").innerHTML =
this.responseXML.getElementsByTagName('analog')[0].childNodes[0].nodeValue;
data_val = this.responseXML.getElementsByTagName('analog')[0].childNodes[0].nodeValue;
// calculate voltage
volts = data_val * 3.5 / 1023;
// only send data to ThingSpeak every 20 seconds or 100 x 200ms
if (num_updates >= 100) {
num_updates = 0;
// send voltage to ThingSpeak
ThingSpeakSend("xxxxxxxxxxxxxxxx", volts); // insert your ThingSpeak Write API Key here
}
num_updates++;
}
}
}
}
request.open("GET", "ajax_inputs" + nocache, true);
request.send(null);
setTimeout('GetArduinoInputs()', 200); // send the request for Arduino analog data every 200ms
}
// function to send data to ThingSpeak
function ThingSpeakSend(api_write_key, voltage)
{
var ts_req = new XMLHttpRequest();
// GET request string - modify if more fields are needed
var req_str = "http://api.thingspeak.com/update?key=" + api_write_key + "&field1=" + voltage;
ts_req.onreadystatechange = function()
{
// not doing anything with response from ThingSpeak
}
// send the data to ThingSpeak
ts_req.open("GET", req_str, true);
ts_req.send(null);
}
</script>
</head>
<body onload="GetArduinoInputs()">
<h1>Arduino Internet Voltmeter</h1>
<p>Analog (A2): <span id="input3">...</span></p>
<canvas id="an_gauge_1" data-major-ticks="0 0.5 1 1.5 2 2.5 3 3.5" data-type="canv-gauge" data-min-value="0" data-max-value="3.5" data-onready="setInterval( function() { Gauge.Collection.get('an_gauge_1').setValue(volts);}, 200);"></canvas>
<!-- insert ThingSpeak chart code here -->
<iframe width="450" height="260" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/1620920/charts/1?bgcolor=%23ffffff&color=%23d62020&dynamic=true&results=60&type=line&update=20&yaxismax=4&yaxismin=0"></iframe>
<!-- REPLACE THIS COMMENT WITH YOUR THINGSPEAK GRAPH -->
</body>
</html>********************************************* Code "eth_websrv_SD_Ajax_gauge.ino" : *********************************************
#include <Ethernet.h> #include <SD.h> #include <ThingSpeak.h>
// size of buffer used to capture HTTP requests #define REQ_BUF_SZ 50
// MAC address from Ethernet shield sticker under board
byte mac[] = { 0x90, 0xA2, 0xDA, 0x00, 0x1A, 0x71 };
IPAddress ip(192, 168, 1, 17); // IP address, may need to change depending on network
EthernetServer server(80); // create a server at port 80
File webFile; // the web page file on the SD card
char HTTP_req[REQ_BUF_SZ] = {0}; // buffered HTTP request stored as null terminated string
char req_index = 0; // index into HTTP_req buffer
void setup()
{
// disable Ethernet chip
pinMode(10, OUTPUT);
digitalWrite(10, HIGH);
Serial.begin(9600); // for debugging
// initialize SD card
Serial.println("Initializing SD card...");
if (!SD.begin(4)) {
Serial.println("ERROR - SD card initialization failed!");
return; // init failed
}
Serial.println("SUCCESS - SD card initialized.");
// check for index.htm file
if (!SD.exists("index.htm")) {
Serial.println("ERROR - Can't find index.htm file!");
return; // can't find index file
}
Serial.println("SUCCESS - Found index.htm file."); Ethernet.begin(mac, ip); // initialize Ethernet device
server.begin(); // start to listen for clients
Serial.print ("*\n -> Le serveur est sur l'adresse : ");
Serial.println(Ethernet.localIP());
}void loop()
{
EthernetClient client = server.available(); // try to get client
if (client) // got client?
{
boolean currentLineIsBlank = true; while (client.connected())
{
if (client.available()) // client data available to read
{
char c = client.read(); // read 1 byte (character) from client
// buffer first part of HTTP request in HTTP_req array (string)
// leave last element in array as 0 to null terminate string (REQ_BUF_SZ - 1)
if (req_index < (REQ_BUF_SZ - 1)) {
HTTP_req[req_index] = c; // save HTTP request character
req_index++;
}
// last line of client request is blank and ends with \n
// respond to client only after last line received
if (c == '\n' && currentLineIsBlank) {
// send a standard http response header
client.println("HTTP/1.1 200 OK");
// remainder of header follows below, depending on if
// web page or XML page is requested
// Ajax request - send XML file
if (StrContains(HTTP_req, "ajax_inputs")) {
// send rest of HTTP header
client.println("Content-Type: text/xml");
client.println("Connection: keep-alive");
client.println(); // send XML file containing input states
XML_response(client);
}
else { // web page request
// send rest of HTTP header
client.println("Content-Type: text/html");
client.println("Connection: keep-alive");
client.println();
// send web page
webFile = SD.open("index.htm"); // open web page file
if (webFile) {
while(webFile.available()) {
client.write(webFile.read()); // send web page to client
}
webFile.close();
}
}
// display received HTTP request on serial port
Serial.print(HTTP_req);
// reset buffer index and all buffer elements to 0
req_index = 0;
StrClear(HTTP_req, REQ_BUF_SZ);
break;
}
// every line of text received from the client ends with \r\n
if (c == '\n') {
// last character on line of received text
// starting new line with next character read
currentLineIsBlank = true;
}
else if (c != '\r') {
// a text character was received from client
currentLineIsBlank = false;
}
} // end if (client.available())
} // end while (client.connected())
delay(1); // give the web browser time to receive the data
client.stop(); // close the connection
} // end if (client)
}// send the XML file containing analog value
void XML_response(EthernetClient cl)
{
int analog_val;
cl.print("<?xml version = \"1.0\" ?>");
cl.print("<inputs>");
// read analog pin A2
analog_val = analogRead(2);
cl.print("<analog>");
cl.print(analog_val);
cl.print("</analog>");
cl.print("</inputs>");
}// sets every element of str to 0 (clears array)
void StrClear(char *str, char length)
{
for (int i = 0; i < length; i++) {
str[i] = 0;
}
}
// searches for the string sfind in the string str
// returns 1 if string found
// returns 0 if string not found
char StrContains(char *str, char *sfind)
{
char found = 0;
char index = 0;
char len;
len = strlen(str);
if (strlen(sfind) > len) {
return 0;
}
while (index < len) {
if (str[index] == sfind[found]) {
found++;
if (strlen(sfind) == found) {
return 1;
}
}
else {
found = 0;
}
index++;
}
return 0; }
5 commentaires
Date décroissante
There are two sites in the documentation that talk about embedding webpages in your site. Embed a chart and embed your ThingSpeak plots on web pages . I have tried to help with your code formatting above. My recommendation is to share smaller segments of your code, show the parts that you think are significant. That will make it much easier for others to parse it and try to help you out.

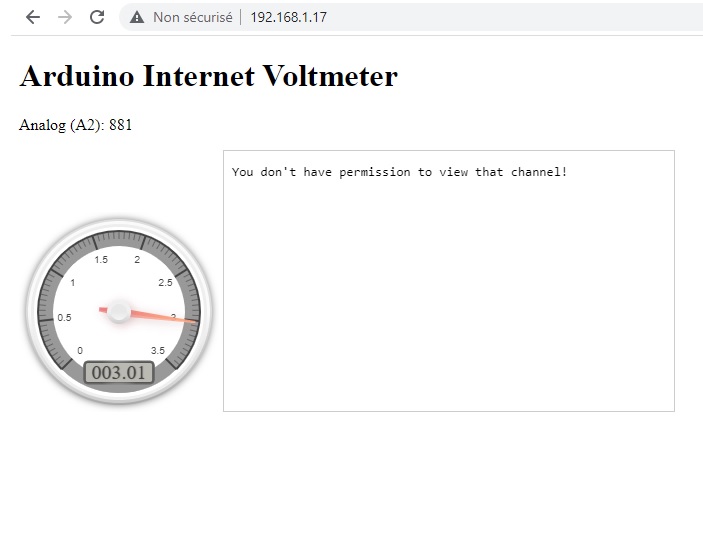

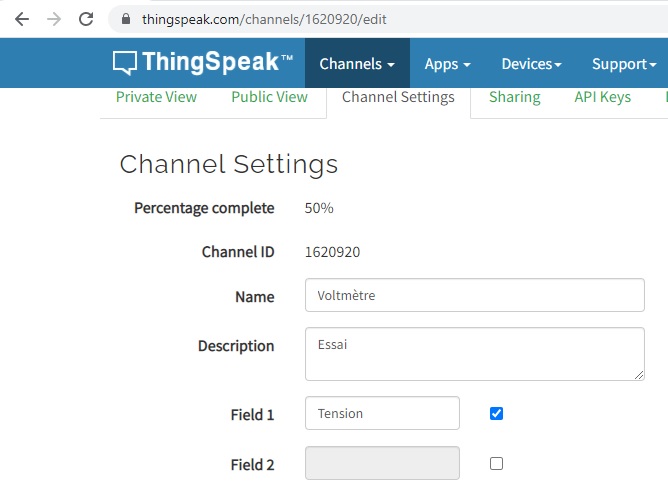

Merci Christophe pour votre réponse. J'ai consulté les liens que vous m'avez proposés et j'ai essayé de changer le code IFRAME des exemples. Sans succès. J'obtiens bien l'affichage du cadre du graph dans ma page Web, mais un message me précise que je n'ai pas la permission. J'ai pourtant bien récupéré le code de l'IFRANE avec l'icone bulle et l'ai intégré dans le code de la page Web. |* _width="450" height="260" style="border: 1px solid #cccccc;" src="https://thingspeak.com/channels/1620920/charts/1?bgcolor=%23ffffff&color=%23d62020&dynamic=true&results=60&title=Voltm%C3%A8tre+JPC+29%2F12%2F21&type=line&xaxis=Temps&yaxis=Tension+en+V&yaxismax=3.5&yaxismin=0"</iframe>_*| Est-ce que le FIELD_ID du "charts/FIELD_ID?" est bien "1" dans mon cas ? Faut-il intégrer le "WRITE" ou le "READ" Key ? L'image jointe montre les Shannels Settings Je joins également l'écran de ThingSpeak. Encore merci pour votre aide.
Your channel is private, so you will need to integrate the read API Key. Before making that change, you might want to try making your channel public or just reading a public channel such as the cheerlights channel 1417. For the field 1 plot, the FIELD_ID is 1, that is correct.
Merci Christophe. Ca marche super avec la déclaration publique. Bonne année à vous et merci encore pour votre disponibilité. Jean-Paul
See the read data or the charts API for the correct syntax. Happy New year to you as well! You seem to have some extra '/' and you have a dash instead of underscore for your api_key parameter. I would avoid sharing your API key here, its kind of a password.
