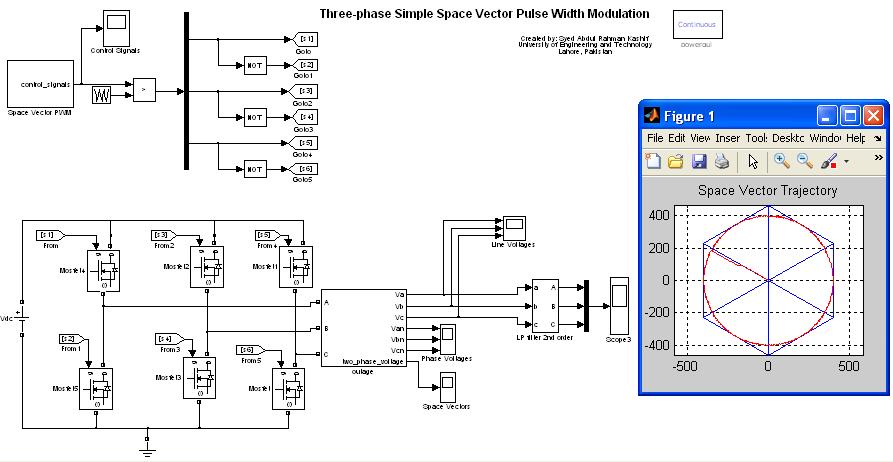

This model simulates a simple technique to implement space vector modulation. This method does not require too much computation at run time thus feasible for implementation with simple processors. Space vector trajectory is also plotted and can be checked at different modulation indexes using the parameter defined in model properties.
Syed Abdul Rahman Kashif (2021). Three-phase Simple Space Vector Pulse Width Modulation (https://www.mathworks.com/matlabcentral/fileexchange/32157-three-phase-simple-space-vector-pulse-width-modulation), MATLAB Central File Exchange. Retrieved .
Very good model but can I get the exact paper used for this model
Thanks in anticipation
Sir it's an honor that to be your student..... :)
Sir ca you please share the .slx file
thanks my brother
Sir How the repeating sequence is given? Is it taken in sector 1 (0127)?
Thank you so much sir.
Thank you so much sir for this model
Really good model. Does anybody know which SVPWM technique is used in this model?
This is a very good model that demonstrates the basic SVPWM technique. Thank you for the upload!
Hi Sir,may I know how to do the FFT analysis? I have clicked in powergui FFT analysis tool but the available signals is empty. Thanks in advance for the answer.
Its very helpful sir
You might want to decrease the Step, as the triangular carrier with this frequency does not cover the whole wave (-0.9 to 1 instead of the designed -1 to 1)
