Heightprofile from GoogleEarth to 3D-Surface

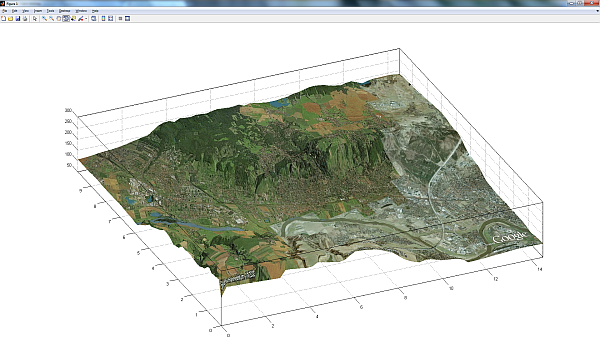

The tool get the height-Profile from GoogleEarth via COM-API and the image to generate a 3D-surface.
2.3K Downloads
Updated 8 May 2012

View License

This is an example script on how to get data (loacations with altitude, colored image) from GoogleEarth into
a matlab surface.
Use this function as a script so comment the first line!

The code was tested with Matlab 2010a an GoogleEarth 6 (actual version) so download it or try your actual
GE-version: http://www.google.com/intl/en/earth/index.html

Further help for GoogleEarthAPI you find under:
http://web.archive.org/web/20090301030557/http://earth.google.com/comapi/index.html

You need additional MCFE-files before script will run without errors:
http://www.mathworks.com/matlabcentral/fileexchange/5256-pos2dist
http://www.mathworks.com/matlabcentral/fileexchange/28357-jmouseemu-mouse-emulator-v2-2
http://www.mathworks.com/matlabcentral/fileexchange/28603
http://www.mathworks.com/matlabcentral/fileexchange/14584-clipboardimage

ATTENTION: There is a heavy workaround to get an colored image from GE in line 70 (jmouseemu). Here it is
necessery to set the mousepointer in the actual GE-picture, so the x and y pixels must be in it! The
problem is, that it will not work in debug mode.
Depending of internetconnection speed you must play a little with the pause-times to get all needed data.

Programmed by Sven Koerner: koerner(underline)sven(add)gmx.de
Date: 2011/07/27
