Test and Measurement
5G Toolbox™ provides waveform generation and analysis capabilities.
Generate, impair, and visualize uplink, downlink, and sidelink waveforms, test models, and FRCs programmatically or by using the 5G Waveform Generator app.
Analyze waveform quality and obtain metrics. For example, you can measure error vector magnitude (EVM), adjacent channel leakage ratio (ACLR), and obtain quality metrics based on channel state information reference signals (CSI-RS).
Perform carrier aggregation (CA): generate, aggregate, and demodulate multiple 5G NR carriers.
Apps
| 5G Waveform Analyzer | Analyze and visualize imported or captured 5G waveforms and export analysis results (Since R2024b) |
| 5G Waveform Generator | Create, impair, visualize, and export 5G NR waveforms |
Functions
Topics
- 5G NR Waveform Generation
Get an overview of 5G NR waveform generation workflows and the waveform types that you can generate.
Featured Examples
5G NR Downlink Vector Waveform Generation
Create mixed numerology DL waveforms containing SS burst, PDSCH, PDCCH, and CSI-RS.
5G NR Uplink Vector Waveform Generation
Create mixed numerology UL waveforms containing PUSCH, PUCCH, and SRS.
5G NR Uplink with PUCCH Vector Waveform Generation
Create mixed numerology UL waveforms containing PUSCH, PUCCH, and SRS.
5G NR-TM and FRC Waveform Generation
Use MATLAB® code to generate standard-compliant 5G NR test models, downlink FRCs, and uplink FRCs for FR1 and FR2.
NR Sidelink Vector Waveform Generation
Generate 5G NR V2X PSCCH and PSSCH, including SCI and SL-SCH transport channel coding.
App-Based 5G Waveform Generation
Use the 5G Waveform Generator app to generate, export, and transmit 5G NR waveforms.
App-Based 5G Waveform Analysis
Use the 5G Waveform Analyzer app to analyze and visualize imported or captured 5G waveforms and export analysis results.
5G NR Downlink ACLR Measurement
Measure ACLR for 5G NR test models in FR1 and FR2.
EVM Measurement of 5G NR Downlink Waveforms with RF Impairments
Measure EVM of NR-TM or NR-FRC waveforms with phase noise and memoryless nonlinearity impairments.

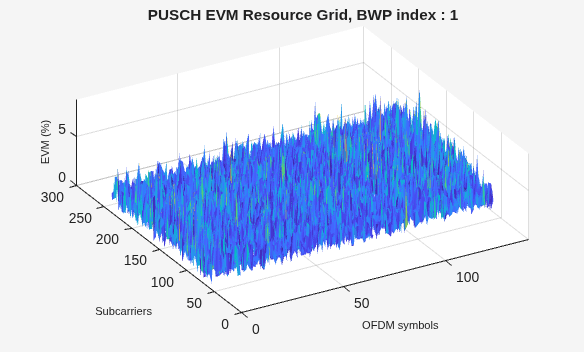

EVM Measurement of 5G NR PUSCH Waveforms
Measure EVM of PUSCH FRC waveforms with phase noise and memoryless nonlinearity impairments.
5G NR Downlink Carrier Aggregation, Demodulation, and Analysis
Generate, aggregate, and demodulate multiple 5G NR downlink carriers.
ACS Test Waveform Generation for 5G NR Receiver Testing
Generate waveform for ACS receiver test, as defined in TS 38.141-1, Section 7.4.1.
Dynamic Spectrum Sharing for 5G NR and LTE Coexistence
Generate coexisting LTE and 5G NR waveforms for dynamic spectrum sharing.

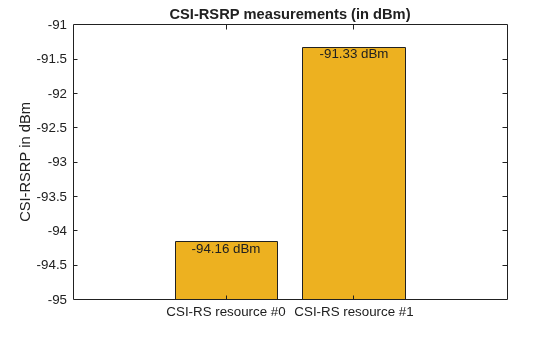

5G NR CSI-RS Measurements
Learn how to measure the CSI-RSRP, CSI-RSSI, and CSI-RSRQ using the CSI-RS.
5G NR Waveform Acquisition and Analysis
Transmit and capture generated 5G NR waveform over the air using instruments.
5G NR Waveform Capture and Analysis Using Software-Defined Radio
Generate and transmit a 5G NR waveform continuously over the air using a supported software-defined radio.

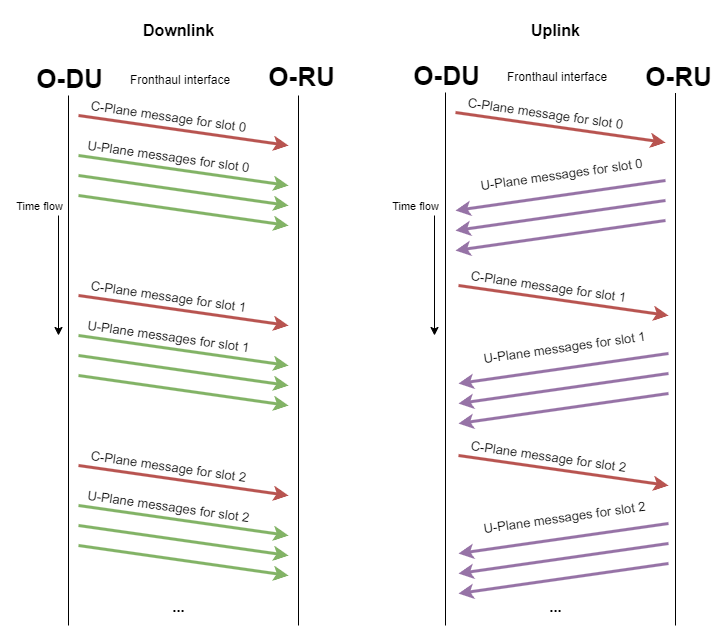

Generate CU-Plane Messages for O-RAN Fronthaul Test
Generate fronthaul control plane and user plane (CU-Plane) messages for O-RAN conformance tests, as defined in TS O-RAN.WG4.CONF.

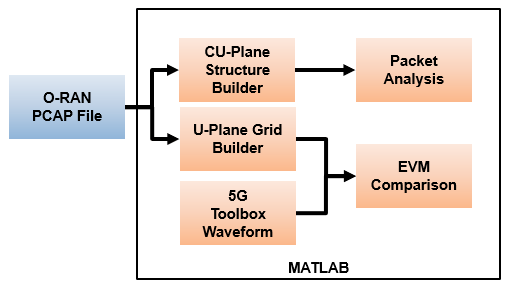

Analyze CU-Plane Messages for O-RAN Fronthaul Testing
Analyze the contents of a PCAP file containing O-RAN messages sent on the fronthaul CU-Planes between an O-DU and an O-RU.
