estimateMonoCameraParameters

Estimate extrinsic monocular camera parameters using calibration pattern

Description

[pitch,yaw,roll,height] = estimateMonoCameraParameters(intrinsics,imagePoints,worldPoints,patternOriginHeight) estimates the extrinsic parameters of a monocular camera by using the intrinsic parameters of the camera and a calibration pattern. The returned extrinsic parameters define the yaw, pitch, and roll rotation angles between the camera coordinate system and vehicle coordinate system axes. The function also returns the height of the camera above the ground. Specify the intrinsic parameters, the image and world coordinates of the calibration pattern key points, and the height of the calibration pattern's origin above the ground. The calibration pattern can be a checkerboard or a circle grid pattern.

By default, the function assumes that the camera is facing forward and that the calibration pattern is parallel with the ground. For all possible camera and calibration pattern placements, see Calibrate a Monocular Camera.

example

[pitch,yaw,roll,height] = estimateMonoCameraParameters(___,Name,Value) specifies options using one or more name-value pairs, in addition to the inputs and outputs from the previous syntax. For example, you can specify the orientation or position of the calibration pattern.

Examples

collapse all

Configure a monocular fisheye camera by removing lens distortion and then estimating the camera's extrinsic parameters. Use an image of a checkerboard as the calibration pattern. For a more detailed look at how to configure a monocular camera that has a fisheye lens, see the Configure Monocular Fisheye Camera example.

Load the intrinsic parameters of a monocular camera that has a fisheye lens. intrinsics is a fisheyeIntrinsics object.

ld = load('fisheyeCameraIntrinsics');
intrinsics = ld.intrinsics;

Load an image of a checkerboard pattern that is placed flat on the ground. This image is for illustrative purposes and was not taken from a camera mounted to the vehicle. In a camera mounted to the vehicle, the X-axis of the pattern points to the right of the vehicle, and the Y-axis of the pattern points to the camera. Display the image.

imageFileName = fullfile(toolboxdir('driving'),'drivingdata','checkerboard.png');
I = imread(imageFileName);
imshow(I)

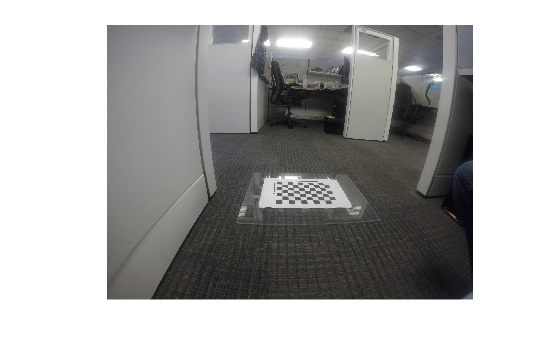

Figure contains an axes object. The hidden axes object contains an object of type image.

Detect the coordinates of the checkerboard corners in the image.

[imagePoints,boardSize] = detectCheckerboardPoints(I);

Generate the corresponding world coordinates of the corners.

squareSize = 0.029; % Square size in meters
worldPoints = patternWorldPoints('checkerboard',boardSize,squareSize);

Estimate the extrinsic parameters required to configure the monoCamera object. Because the checkerboard pattern is directly on the ground, set the height of the pattern's origin to 0.

patternOriginHeight = 0;
[pitch,yaw,roll,height] = estimateMonoCameraParameters(intrinsics, ...
                             imagePoints,worldPoints,patternOriginHeight);

Because monoCamera does not accept fisheyeIntrinsics objects, remove distortion from the image and compute new intrinsic parameters from the undistorted image. camIntrinsics is an cameraIntrinsics object. Display the image to confirm distortion is removed.

[undistortedI,camIntrinsics] = undistortFisheyeImage(I,intrinsics,'Output','full');
imshow(undistortedI)

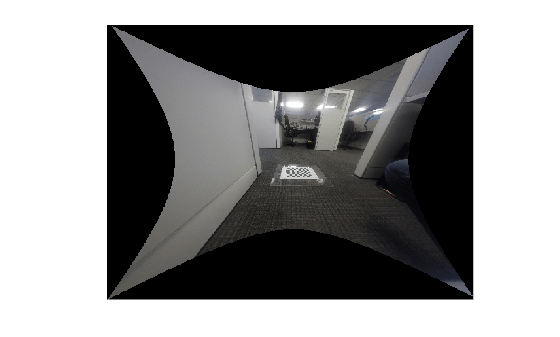

Figure contains an axes object. The hidden axes object contains an object of type image.

Configure the monocular camera using the estimated parameters.

monoCam = monoCamera(camIntrinsics,height,'Pitch',pitch,'Yaw',yaw,'Roll',roll)
monoCam =
  monoCamera with properties:

        Intrinsics: [1x1 cameraIntrinsics]
        WorldUnits: 'meters'
            Height: 0.4447
             Pitch: 21.8459
               Yaw: -3.6130
              Roll: -3.1707
    SensorLocation: [0 0]

Configure a monocular camera using a circle grid pattern and then estimate the camera's extrinsic parameters. Use an image of an asymmetric circle grid as the calibration pattern.

Load the intrinsic parameters of a monocular camera. intrinsics is a cameraIntrinsics object.

ld = load('IRCameraIntrinsics');
intrinsics = ld.intrinsics;

Load an image of an asymmetric circle grid pattern that is placed parallel to the ground placed at a height. This image is for illustrative purposes and was not taken from a camera mounted to the vehicle. In a camera mounted to the vehicle, the X-axis of the pattern points to the right of the vehicle, and the Y-axis of the pattern points to the camera. Display the image.

imageFileName = fullfile(toolboxdir('vision'),'visiondata', ...
    'calibration','circleGrid','stereo','left','left07.jpg');
I = imread(imageFileName);
imshow(I)

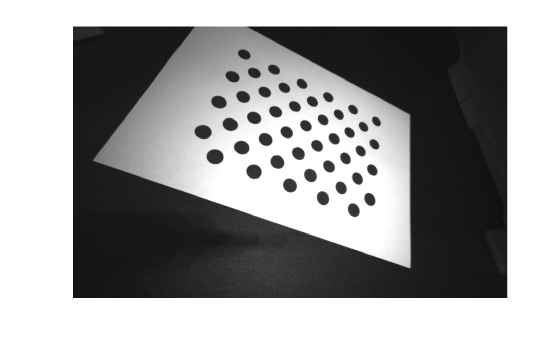

Figure contains an axes object. The hidden axes object contains an object of type image.

Define the circle grid pattern dimensions and detect the centers of the circles in the image.

patternDims = [4 11];
imagePoints = detectCircleGridPoints(I,patternDims);

Generate the corresponding world coordinates of the corners.

centerDistance = 0.0365; % Center-to-center distance in meters
worldPoints = patternWorldPoints('circle-grid-asymmetric',patternDims,centerDistance);

Estimate the extrinsic parameters required to configure the monoCamera object. Because the checkerboard pattern is placed at a height of 1.2 m from the ground, set the height of the pattern's origin to 1.2 m.

patternOriginHeight = 1.2;
[pitch,yaw,roll,height] = estimateMonoCameraParameters(intrinsics, ...
                             imagePoints,worldPoints,patternOriginHeight);

Configure the monocular camera using the estimated parameters.

monoCam = monoCamera(intrinsics,height,'Pitch',pitch,'Yaw',yaw,'Roll',roll)
monoCam =
  monoCamera with properties:

        Intrinsics: [1x1 cameraIntrinsics]
        WorldUnits: 'meters'
            Height: 1.3869
             Pitch: 60.2886
               Yaw: -26.5963
              Roll: -45.7440
    SensorLocation: [0 0]

Define the area in front of the camera that you want to transform into a bird's-eye view. Set an area from 0 to 2.5 meters in front of the camera, with 1.75 meters to either side of the camera.

bottomOffset = 0;
distAhead = 2.5;
spaceToOneSide = 1.75;

outView = [bottomOffset,distAhead,-spaceToOneSide,spaceToOneSide];

Set the output image width to 250 pixels. Compute the output length automatically from the width by setting the length to NaN.

outImageSize = [NaN,250];

Create an object for performing bird's-eye-view transforms, using the previously defined parameters.

birdsEye = birdsEyeView(monoCam,outView,outImageSize);

Transform the input image into a bird's-eye-view image and display the result.

BEV = transformImage(birdsEye,I);
imshow(BEV)

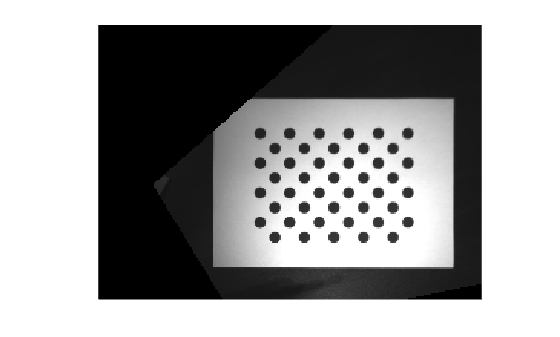

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

Intrinsic camera parameters, specified as a cameraIntrinsics, fisheyeIntrinsics, or a cameraIntrinsicskb object.

Calibration pattern images produced by these cameras can include lens distortion, which can affect the accuracy of corner point detections. To remove lens distortion and compute new intrinsic parameters, use these functions:

Image coordinates of calibration pattern key points, specified as an M-by-2 matrix of M number of [x y] vectors. These points must come from an image captured by a monocular camera. To detect these points in an image, use the detectCheckerboardPoints function.

estimateMonoCameraParameters assumes that all points in worldPoints are in the (XP, YP) plane and that M is greater than or equal to 4. To specify the height of the (XP, YP) plane above the ground, use patternOriginHeight.

Data Types: single | double

World coordinates of the key points in the calibration pattern, specified as an M-by-2 matrix of M number of [x y] vectors.

estimateMonoCameraParameters assumes that all points in worldPoints are in the (XP, YP) plane and that M is greater than or equal to 4. To specify the height of the (XP, YP) plane above the ground, use patternOriginHeight.

Point (0,0) corresponds to the bottom-right corner of the top-left square of the checkerboard.

Checkerboard with Xp axis, Yp axis, and origin labeled

Data Types: single | double

Height of the calibration pattern's origin above the ground, specified as a nonnegative real scalar. The origin is the bottom-right corner of the top-left square of the checkerboard.

The measurement of patternOriginHeight depends on the orientation of the calibration pattern, as shown in these diagrams.

Horizontal OrientationVertical Orientation

Checkerboard lying flat on an elevated plane with the pattern origin height labeled

Checkerboard hanging on wall with the pattern origin height labeled

To specify the pattern orientation, use the 'PatternOrientation' name-value pair. If you set 'PatternOrientation' to 'horizontal' (default), and the pattern is on the ground, then set patternOriginHeight to 0.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'PatternOrientation','vertical','PatternPosition','right'

Orientation of the calibration pattern relative to the ground, specified as the comma-separated pair consisting of 'PatternOrientation' and one of the following:

  • 'horizontal' — Calibration pattern is parallel to the ground.

  • 'vertical' — Calibration pattern is perpendicular to the ground.

Position of the calibration pattern relative to the ground, specified as the comma-separated pair consisting of 'PatternPosition' and one of the following:

  • 'front' — Calibration pattern is in front of the vehicle.

  • 'back' — Calibration pattern is behind the vehicle.

  • 'left' — Calibration pattern is to the left of the vehicle.

  • 'right' — Calibration pattern is to the right of the vehicle.

Output Arguments

collapse all

Pitch angle between the horizontal plane of the vehicle and the optical axis of the camera, returned as a real scalar in degrees. pitch uses the ISO convention for rotation, with a clockwise positive angle direction when looking in the positive direction of the vehicle's YV-axis.

Side-by-side images of a camera with the Xv, Yv, and Zv axes labeled. In the first image, the camera is straight. In the second image, the camera is tilted down to indicate a change in pitch angle.

For more details, see Angle Directions.

Yaw angle between the XV-axis of the vehicle and the optical axis of the camera, returned as a real scalar in degrees. yaw uses the ISO convention for rotation, with a clockwise positive angle direction when looking in the positive direction of the vehicle's ZV-axis.

Side-by-side images of a camera with the Xv, Yv, and Zv axes labeled. In the first image, the camera is facing forward. In the second image, the camera is rotated to the left to indicate a change in yaw angle.

For more details, see Angle Directions.

Roll angle of the camera around its optical axis, returned as a real scalar in degrees. roll uses the ISO convention for rotation, with a clockwise positive angle direction when looking in the positive direction of the vehicle's XV-axis.

Side-by-side images of a camera with the Xv, Yv, and Zv axes labeled. In the first image, the camera is straight. In the second image, the camera is rotated around its axis to indicate a change in pitch angle.

For more details, see Angle Directions.

Perpendicular height from the ground to the focal point of the camera, returned as a nonnegative real scalar in world units, such as meters.

Vehicle with front-facing camera and the camera height above the ground labeled

More About

collapse all

Vehicle Coordinate System

In the vehicle coordinate system (XV, YV, ZV) defined by a monoCamera object:

  • The XV-axis points forward from the vehicle.

  • The YV-axis points to the left, as viewed when facing forward.

  • The ZV-axis points up from the ground to maintain the right-handed coordinate system.

By default, the origin of this coordinate system is on the road surface, directly below the camera center (focal point of camera).

Vehicle with front-facing camera and Xv-axis, Yv-axis, and Zv-axis labeled

To obtain more reliable results from estimateMonoCameraParameters, the calibration pattern must be placed in precise locations relative to this coordinate system. For more details, see Calibrate a Monocular Camera.

Angle Directions

The monocular camera sensor uses clockwise positive angle directions when looking in the positive direction of the Z-, Y-, and X-axes, respectively.

2-D and 3-D pitch, yaw, and roll camera views

Version History

Introduced in R2018b
