coeffs
Returns the filter System object coefficients in a structure
Description
Examples
Coefficients of an FIR Halfband Interpolator
FIRHalfbandInterp = dsp.FIRHalfbandInterpolator(Specification="Filter order and transition width",... FilterOrder=26); C = coeffs(FIRHalfbandInterp); C.Numerator
ans = 1×27
0.0525 0 -0.0379 0 0.0537 0 -0.0771 0 0.1172 0 -0.2060 0 0.6345 1.0000 0.6345 0 -0.2060 0 0.1172 0 -0.0771 0 0.0537 0 -0.0379 0 0.0525
% Impulse response of the filter

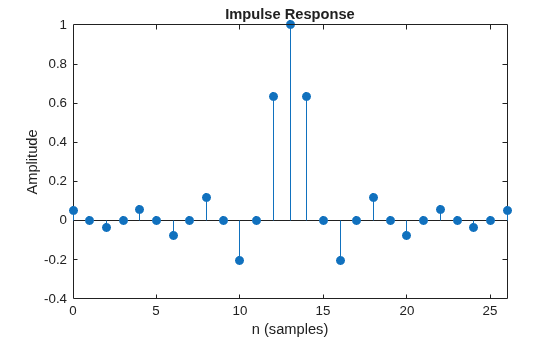

impz(FIRHalfbandInterp)
Input Arguments
sysobj
— Input filter
filter System object
arithType
— Arithmetic type
'double'
(default) | 'single'
| 'Fixed'
Arithmetic used in the filter analysis, specified as 'double'
,
'single'
, or 'Fixed'
. When the arithmetic
input is not specified and the filter System object is unlocked, the analysis tool assumes a double-precision filter. When the
arithmetic input is not specified and the System object is locked, the function performs the analysis based on the data type of
the locked input.
The 'Fixed'
value applies to filter System objects with fixed-point
properties only.
When the 'Arithmetic'
input argument is specified as
'Fixed'
and the filter object has the data type of the
coefficients set to 'Same word length as input'
, the arithmetic
analysis depends on whether the System object is unlocked or locked.
unlocked –– The analysis object function cannot determine the coefficients data type. The function assumes that the coefficients data type is signed, has a 16-bit word length, and is auto scaled. The function performs fixed-point analysis based on this assumption.
locked –– When the input data type is
'double'
or'single'
, the analysis object function cannot determine the coefficients data type. The function assumes that the data type of the coefficients is signed, has a 16-bit word length, and is auto scaled. The function performs fixed-point analysis based on this assumption.
To check if the System object is locked or unlocked, use the isLocked
function.
When the arithmetic input is specified as 'Fixed'
and the filter
object has the data type of the coefficients set to a custom numeric type, the object
function performs fixed-point analysis based on the custom numeric data type.
Output Arguments
s
— Structure
struct
Structure containing filter coefficients.
Version History
Introduced in R2011aR2024b: Support for dsp.VariableFIRDecimator
and dsp.VariableFIRInterpolator
Objects
Starting in R2024b, the coeffs
analysis function supports the
dsp.VariableFIRDecimator
and dsp.VariableFIRInterpolator
objects.
R2024b: dsp.BiquadFilter
object warns
The dsp.BiquadFilter
object issues a warning and will be removed
in a future release. Use the dsp.SOSFilter
object instead. For more information on how to replace
your existing code, see the Compatibility Considerations
section in the dsp.BiquadFilter
reference page.
R2024b: Support for dsp.DCBlocker
object
Starting in R2024b, this function supports the dsp.DCBlocker
object.
R2023b: Support for dsp.ParallelFilter
and dsp.Delay
Objects
Starting in R2023b, the coeffs
analysis function supports the
dsp.ParallelFilter
and the dsp.Delay
objects.
R2023b: dsp.BiquadFilter
object will be removed
The dsp.BiquadFilter
object will be removed in a future release.
Use the dsp.SOSFilter
object instead.
