Complex Divide HDL Optimized
Libraries:
FixedPoint Designer HDL Support /
Math Operations
Description
The Complex Divide HDL Optimized block outputs the result of dividing the scalar num by the scalar den, such that y = num/den.
Examples
Limitations
Data type override is not supported for the Complex Divide HDL Optimized block.
Ports
Input
num — Numerator
scalar  vector  matrix
Numerator, specified as a scalar, vector, or matrix. num
and
den
must have the same dimensions.
Slopebias representation is not supported for fixedpoint data types.
Data Types: single
 double
 fixed point
Complex Number Support: Yes
den — Denominator
scalar  vector  matrix
Denominator, specified as a scalar, vector, or matrix. num
and den
must have the same dimensions.
Slopebias representation is not supported for fixedpoint data types.
Data Types: single
 double
 fixed point
Complex Number Support: Yes
validIn — Whether input is valid
Boolean
scalar
Whether input is valid, specified as a Boolean scalar. This control signal
indicates when the data from the num and den
input ports are valid. When this value is 1
(true
), the block captures the values at the input ports
num and den. When this value is
0
(false
), the block ignores the input
samples.
Data Types: Boolean
Output
y — Output computed by dividing inputs
complex scalar
Output computed by dividing num by den, such that y = num/den, returned as a complex scalar with data type specified by Output datatype.
Data Types: single
 double
 fixed point
validOut — Whether output data is valid
Boolean
scalar
Whether the output data is valid, returned as a Boolean scalar. When the value of
this control signal is 1
(true
), the block has
successfully computed the output at port y. When this value is
0
(false
), the output data is not
valid.
Data Types: Boolean
Parameters
Output datatype — Data type of output
fixdt(1,18,10)
(default)  single
 fixdt(1,16,0)
 <data type expression>
Data type of output y, specified as
fixdt(1,18,10)
, single
,
fixdt(1,16,0)
, or as a userspecified data type expression. The
type can be specified directly or expressed as a data type object, such as
Simulink.NumericType
.
Programmatic Use
Block Parameter:
OutputType
Type: character vector
Values:
'fixdt(1,18,10)'  'single'
'fixdt(1,16,0)'  '<data type
expression>'
Default:
'fixdt(1,18,10)'
Tips
The blocks Divide by Constant HDL Optimized, Real Divide HDL Optimized, and Complex Divide HDL Optimized all perform the division operation and generate optimized HDL code.
Real Divide HDL Optimized and Complex Divide HDL Optimized are based on a CORIDC algorithm. These blocks accept a wide variety of inputs, but will result in greater latency.
Divide by Constant HDL Optimized accepts only real inputs and a constant divisor. Use of this block consumes DSP slices, but will complete the division operation in fewer cycles and at a higher clock rate.
Algorithms
CORDIC
CORDIC is an acronym for COordinate Rotation DIgital Computer. The Givens rotationbased CORDIC algorithm is one of the most hardwareefficient algorithms available because it requires only iterative shiftadd operations (see References). The CORDIC algorithm eliminates the need for explicit multipliers.
Fully Pipelined FixedPoint Computations
The Complex Divide HDL Optimized block supports HDL code generation for fixedpoint data with binarypoint scaling. It is designed with this application in mind, and employs hardware specific semantics and optimizations. One of these optimizations is pipelining its entire internal circuitry to maintain a very high throughput.
When deploying intricate algorithms to FPGA or ASIC devices, there is often a tradeoff between resource usage and total throughput for a given computation. Resourcesharing often reduces the resources consumed by a design, but also reduces the throughput in the process. Simple arithmetic and trigonometric computations, which typically form parts of bigger computations, require high throughput to drive circuits further in the design. Thus, fully pipelined implementations consume more onchip resources but are beneficial in large designs.
All of the key computational units in the Complex Divide HDL Optimized block are fully pipelined internally. This includes not only the CORDIC circuitry used to perform the Givens rotations, but also the adders and shifters used elsewhere in the design, thus ensuring maximum throughput.
How to Interface with the Complex Divide HDL Optimized Block

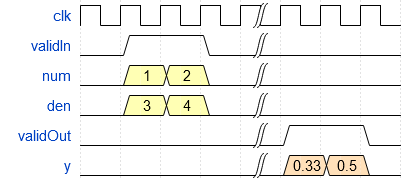

Because of its fully pipelined nature, the Complex Divide HDL Optimized block is able to accept input data on any cycle, including consecutive cycles. To send input data to the block, the validIn signal must be set to true. When the block has finished the computation and is ready to send the output, it will set validOut to true for one clock cycle. For inputs sent on consecutive cycles, validOut will also be set to true on consecutive cycles. Both the numerator and the denominator must be sent together on the same cycle.
The latency depends on the input data type, as summarized in the table. When the input
is a fixedpoint or scaled double fi
, the word length of the inputs
num
and
den
can
differ. In the table, u
represents the input with the larger word length.
When the input is a floatingpoint data type, the latency is determined by the datatype of
num
.
Input Type  Latency

Fixedpoint  1 + u.WordLength + 3 + (nextpow2(u.WordLength + 1  issigned(u)) +
1) + 2 + u.WordLength + 2  issigned(u) + 5
Scaled double  1 + u.WordLength + 3 + 2 + u.WordLength + 2  issigned(u) +
5
Floating point where  64
Floating point where  35
Division by Zero Behavior
For fixedpoint inputs when the denominator den
is zero,
If
, then the outputnum
>= 0y
is equal toupperbound(
.Output datatype
)If
, then the outputnum
< 0y
is equal tolowerbound(
.Output datatype
)
For floatingpoint inputs, the Complex Divide HDL Optimized block follows IEEE^{®} Standard 754.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Slopebias representation is not supported for fixedpoint data types.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
General

ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

Supports binarypoint scaled fixedpoint data types only.
Version History
Introduced in R2021a
