tunefis

Tune fuzzy inference system or tree of fuzzy inference systems

Syntax

fisOut = tunefis(fisIn,paramset,in,out)

fisOut = tunefis(fisIn,paramset,custcostfcn)

fisOut = tunefis(___,options)

[fisOut,summary] = tunefis(___)

Description

fisOut = tunefis(fisIn,paramset,in,out) tunes the fuzzy inference system fisin using the tunable parameter settings specified in paramset and the training data specified by in and out.

fisOut = tunefis(fisIn,paramset,custcostfcn) tunes the fuzzy inference system using a function handle to a custom cost function, custcostfcn.

fisOut = tunefis(___,options) tunes the fuzzy inference system with additional options from the object options created using tunefisOptions.

[fisOut,summary] = tunefis(___) tunes the fuzzy inference system and returns additional information about the tuning algorithm in summary.

Examples

Tune a Fuzzy Inference System

Create the initial fuzzy inference system using genfis.

x = (0:0.1:10)';
y = sin(2*x)./exp(x/5);
options = genfisOptions('GridPartition');
options.NumMembershipFunctions = 5;
fisin = genfis(x,y,options);

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

[in,out,rule] = getTunableSettings(fisin);

Tune the membership function parameters with "anfis".

fisout = tunefis(fisin,[in;out],x,y,tunefisOptions("Method","anfis"));

ANFIS info:
	Number of nodes: 24
	Number of linear parameters: 10
	Number of nonlinear parameters: 15
	Total number of parameters: 25
	Number of training data pairs: 101
	Number of checking data pairs: 0
	Number of fuzzy rules: 5


Start training ANFIS ...

1 	 0.0694086
2 	 0.0680259
3 	 0.066663
4 	 0.0653198
Step size increases to 0.011000 after epoch 5.
5 	 0.0639961
6 	 0.0626917
7 	 0.0612787
8 	 0.0598881
Step size increases to 0.012100 after epoch 9.
9 	 0.0585193
10 	 0.0571712

Designated epoch number reached. ANFIS training completed at epoch 10.

Minimal training RMSE = 0.0571712

Tune Specific Parameter Setting of Fuzzy Inference System

Create the initial fuzzy inference system using genfis.

x = (0:0.1:10)';
y = sin(2*x)./exp(x/5);
options = genfisOptions('GridPartition');
options.NumMembershipFunctions = 5;
fisin = genfis(x,y,options);

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

[in,out,rule] = getTunableSettings(fisin);

Tune the rule parameter only. In this example, the pattern search method is used.

fisout = tunefis(fisin,rule,x,y,tunefisOptions("Method","patternsearch"));

Iter     Func-count       f(x)      MeshSize     Method
    0           1       0.346649             1
    1          15       0.346649           0.5     Refine Mesh
    2          33       0.346649          0.25     Refine Mesh
    3          51       0.346649         0.125     Refine Mesh
    4          69       0.346649        0.0625     Refine Mesh
    5          87       0.346649       0.03125     Refine Mesh
    6         105       0.346649       0.01562     Refine Mesh
    7         123       0.346649      0.007812     Refine Mesh
    8         141       0.346649      0.003906     Refine Mesh
    9         159       0.346649      0.001953     Refine Mesh
   10         177       0.346649     0.0009766     Refine Mesh
   11         195       0.346649     0.0004883     Refine Mesh
   12         213       0.346649     0.0002441     Refine Mesh
   13         231       0.346649     0.0001221     Refine Mesh
   14         249       0.346649     6.104e-05     Refine Mesh
   15         267       0.346649     3.052e-05     Refine Mesh
   16         285       0.346649     1.526e-05     Refine Mesh
   17         303       0.346649     7.629e-06     Refine Mesh
   18         321       0.346649     3.815e-06     Refine Mesh
   19         339       0.346649     1.907e-06     Refine Mesh
   20         357       0.346649     9.537e-07     Refine Mesh
patternsearch stopped because the mesh size was less than options.MeshTolerance.

Learn Rules for FIS

You can configure tunefis to learn the rules of a fuzzy system. For this example, learn rules for a tipping FIS.

Load the original tipping FIS.

fisin = readfis('tipper');

Generate training data using this FIS.

x = 10*rand(100,2);
y = evalfis(fisin,x);

Remove the rules from the FIS.

fisin.Rules = [];

To learn rules, set the OptimizationType option of tunefisOptions to "learning".

options = tunefisOptions( ...
    "OptimizationType","learning", ...
    "Display","none");

Set the maximum number of rules in the tuned FIS to 5.

options.NumMaxRules = 5;

Learn the rules without tuning any membership function parameters.

fisout = tunefis(fisin,[],x,y,options);

Tune a Fuzzy Inference System with Custom Parameter Settings

Create the initial fuzzy inference system using genfis.

x = (0:0.1:10)';
y = sin(2*x)./exp(x/5);
options = genfisOptions('GridPartition');
options.NumMembershipFunctions = 5;
fisin = genfis(x,y,options);

Obtain the tunable settings of inputs, outputs, and rules of the fuzzy inference system.

[in,out,rule] = getTunableSettings(fisin);

You can tune with custom parameter settings using setTunable or dot notation.

Do not tune input 1.

in(1) = setTunable(in(1),false);

For output 1:

• do not tune membership functions 1 and 2,

• do not tune membership function 3,

• set the minimum parameter range of membership function 4 to -2,

• and set the maximum parameter range of membership function 5 to 2.

out(1).MembershipFunctions(1:2) = setTunable(out(1).MembershipFunctions(1:2),false);
out(1).MembershipFunctions(3).Parameters.Free = false;
out(1).MembershipFunctions(4).Parameters.Minimum = -2;
out(1).MembershipFunctions(5).Parameters.Maximum = 2;

For the rule settings,

• do not tune rules 1 and 2,

• set the antecedent of rule 3 to non-tunable,

• allow NOT logic in the antecedent of rule 4,

• and do not ignore any outputs in rule 3.

rule(1:2) = setTunable(rule(1:2),false);
rule(3).Antecedent.Free = false;
rule(4).Antecedent.AllowNot = true;
rule(3).Consequent.AllowEmpty = false;

Set the maximum number of iterations to 20 and tune the fuzzy inference system.

opt = tunefisOptions("Method","particleswarm");
opt.MethodOptions.MaxIterations = 20;
fisout = tunefis(fisin,[in;out;rule],x,y,opt);

                                 Best            Mean     Stall
Iteration     f-count            f(x)            f(x)    Iterations
    0              90          0.3265           1.857        0
    1             180          0.3265           4.172        0
    2             270          0.3265           3.065        1
    3             360          0.3265           3.839        2
    4             450          0.3265           3.386        3
    5             540          0.3265           3.249        4
    6             630          0.3265           3.311        5
    7             720          0.3265           2.901        6
    8             810          0.3265           2.868        7
    9             900          0.3181            2.71        0
   10             990          0.3181           2.068        1
   11            1080          0.3181           2.692        2
   12            1170          0.3165           2.146        0
   13            1260          0.3165           1.869        1
   14            1350          0.3165           2.364        2
   15            1440          0.3165            2.07        0
   16            1530          0.3164           1.678        0
   17            1620          0.2978           1.592        0
   18            1710          0.2977           1.847        0
   19            1800          0.2954           1.666        0
   20            1890          0.2947           1.608        0
Optimization ended: number of iterations exceeded OPTIONS.MaxIterations.

Prevent Overfitting Using K-Fold Cross-Validation

Since R2020a

To prevent the overfitting of your tuned FIS to your training data using k-fold cross validation.

Load training data. This training data set has one input and one output.

load fuzex1trnData.dat

Create a fuzzy inference system for the training data.

opt = genfisOptions('GridPartition');
opt.NumMembershipFunctions = 4;
opt.InputMembershipFunctionType = "gaussmf";
inputData = fuzex1trnData(:,1);
outputData = fuzex1trnData(:,2);
fis = genfis(inputData,outputData,opt);

For reproducibility, set the random number generator seed.

rng('default')

Configure the options for tuning the FIS. Use the default tuning method with a maximum of 30 iterations.

tuningOpt = tunefisOptions;
tuningOpt.MethodOptions.MaxGenerations = 30;

Configure the following options for using k-fold cross validation.

• Use a k-fold value of 3.

• Compute the moving average of the validation cost using a window of length 2.

• Stop each training-validation iteration when the average cost is 5% greater than the current minimum cost.

tuningOpt.KFoldValue = 3;
tuningOpt.ValidationWindowSize = 2;
tuningOpt.ValidationTolerance = 0.05;

Obtain the settings for tuning the membership function parameters of the FIS.

 [in,out] = getTunableSettings(fis);

Tune the FIS.

[outputFIS,info] = tunefis(fis,[in;out],inputData,outputData,tuningOpt);

Single objective optimization:
16 Variables

Options:
CreationFcn:       @gacreationuniform
CrossoverFcn:      @crossoverscattered
SelectionFcn:      @selectionstochunif
MutationFcn:       @mutationadaptfeasible

                                  Best           Mean      Stall
Generation      Func-count        f(x)           f(x)    Generations
    1              400          0.2257           0.534        0
ga stopped by the output or plot function. The reason for stopping:
Validation tolerance exceeded.

Cross validation iteration 1: Minimum validation cost 0.307868 found at training cost 0.262340

Single objective optimization:
16 Variables

Options:
CreationFcn:       @gacreationuniform
CrossoverFcn:      @crossoverscattered
SelectionFcn:      @selectionstochunif
MutationFcn:       @mutationadaptfeasible

                                  Best           Mean      Stall
Generation      Func-count        f(x)           f(x)    Generations
    1              400            0.26          0.5522        0
    2              590           0.222          0.4914        0
ga stopped by the output or plot function. The reason for stopping:
Validation tolerance exceeded.

Cross validation iteration 2: Minimum validation cost 0.253280 found at training cost 0.259991

Single objective optimization:
16 Variables

Options:
CreationFcn:       @gacreationuniform
CrossoverFcn:      @crossoverscattered
SelectionFcn:      @selectionstochunif
MutationFcn:       @mutationadaptfeasible

                                  Best           Mean      Stall
Generation      Func-count        f(x)           f(x)    Generations
    1              400          0.2588          0.4969        0
    2              590          0.2425          0.4366        0
    3              780          0.2414          0.4006        0
ga stopped by the output or plot function. The reason for stopping:
Validation tolerance exceeded.

Cross validation iteration 3: Minimum validation cost 0.199193 found at training cost 0.242533

Evaluate the FIS for each of the training input values.

outputTuned = evalfis(outputFIS,inputData);

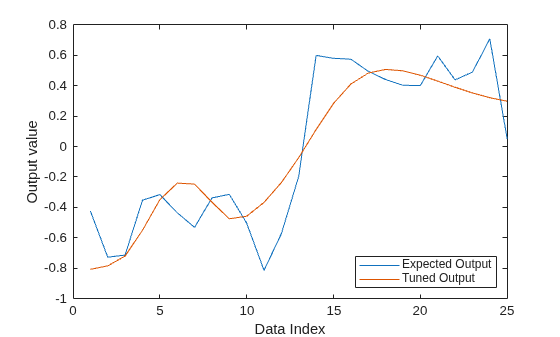

Plot the output of the tuned FIS along with the expected training output.

plot([outputData,outputTuned])
legend("Expected Output","Tuned Output","Location","southeast")
xlabel("Data Index")
ylabel("Output value")

Tune FIS Tree

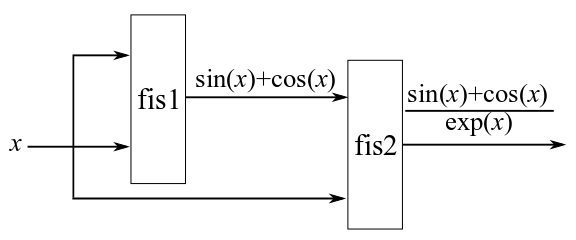

Create a FIS tree to model $\frac{\sin \left(\mathit{x}\right)+\cos \left(\mathit{x}\right)}{\exp \left(\mathit{x}\right)}$, as shown in the following figure. For more information on creating FIS trees, see FIS Trees.

Create fis1 with two inputs, both with range [0, 10] and three MFs each. Use a smooth, differentiable MF, such as gaussmf, to match the characteristics of the data type you are modeling.

fis1 = sugfis("Name","fis1");
fis1 = addInput(fis1,[0 10], ...
    "NumMFs",3, ...
    "MFType","gaussmf");
fis1 = addInput(fis1,[0 10], ...
    "NumMFs",3, ...
    "MFType","gaussmf");

Add an output with the range [–1.5, 1.5] having nine MFs corresponding to the nine possible input MF combinations. Set the output range according to the possible values of $\sin \left(\mathit{x}\right)+\cos \left(\mathit{x}\right)$.

fis1 = addOutput(fis1,[-1.5 1.5],"NumMFs",9);

Create fis2 with two inputs. Set the range of the first input to [–1.5, 1.5], which matches the range of the output of fis1. The second input is the same as the inputs of fis1. Therefore, use the same input range, [0, 10]. Add three MFs for each of the inputs.

fis2 = sugfis("Name","fis2");
fis2 = addInput(fis2,[-1.5 1.5], ...
    "NumMFs",3, ...
    "MFType","gaussmf");
fis2 = addInput(fis2,[0 10], ...
    "NumMFs",3, ...
    "MFType","gaussmf");

Add an output with range [0, 1] and nine MFs. The output range is set according to the possible values of $\frac{\sin \left(\mathit{x}\right)+\cos \left(\mathit{x}\right)}{\exp \left(\mathit{x}\right)}$.

fis2 = addOutput(fis2,[0 1],"NumMFs",9);

Connect the inputs and the outputs as shown in the diagram. The first output of fis1 connects to the first input of fis2. The inputs of fis1 connect to each other and the second input of fis1 connects to the second input of fis2.

con1 = ["fis1/output1" "fis2/input1"];
con2 = ["fis1/input1" "fis1/input2"];
con3 = ["fis1/input2" "fis2/input2"];

Create a FIS tree using the specified FISs and connections.

fisT = fistree([fis1 fis2],[con1;con2;con3]);

Add an additional output to the FIS tree to access the output of fis1.

fisT.Outputs = ["fis1/output1";fisT.Outputs];

For this example, generate input and output training data using the known mathematical operations. Generate data for both the intermediate and final output of the FIS tree.

x = (0:0.1:10)';
y1 = sin(x)+cos(x);
y2 = y1./exp(x);
y = [y1 y2];

Learn the rules of the FIS tree using particle swarm optimization, which is a global optimization method.

options = tunefisOptions( ...
    "Method","particleswarm", ...
    "OptimizationType","learning");

This tuning step uses a small number of iterations to learn a rule base without overfitting the training data.

options.MethodOptions.MaxIterations = 5;
rng("default")  % for reproducibility
fisTout1 = tunefis(fisT,[],x,y,options);

                                 Best            Mean     Stall
Iteration     f-count            f(x)            f(x)    Iterations
    0             100          0.6682          0.9395        0
    1             200          0.6682           1.023        0
    2             300          0.6652          0.9308        0
    3             400          0.6259           0.958        0
    4             500          0.6259           0.918        1
    5             600          0.5969          0.9179        0
Optimization ended: number of iterations exceeded OPTIONS.MaxIterations.

Tune all the FIS tree parameters at once using pattern search, which is a local optimization method.

options.Method = "patternsearch";
options.MethodOptions.MaxIterations = 25;

Use getTunableSettings to obtain input, output, and rule parameter settings from the FIS tree.

[in,out,rule] = getTunableSettings(fisTout1);

Tune the FIS tree parameters.

fisTout2 = tunefis(fisTout1,[in;out;rule],x,y,options);

Iter     Func-count       f(x)      MeshSize     Method
    0           1       0.596926             1
    1           8       0.594989             2     Successful Poll
    2          14       0.580893             4     Successful Poll
    3          14       0.580893             2     Refine Mesh
    4          36       0.580893             1     Refine Mesh
    5          43       0.577757             2     Successful Poll
    6          65       0.577757             1     Refine Mesh
    7          79        0.52794             2     Successful Poll
    8         102        0.52794             1     Refine Mesh
    9         120       0.524443             2     Successful Poll
   10         143       0.524443             1     Refine Mesh
   11         170        0.52425             2     Successful Poll
   12         193        0.52425             1     Refine Mesh
   13         221       0.524205             2     Successful Poll
   14         244       0.524205             1     Refine Mesh
   15         329       0.508752             2     Successful Poll
   16         352       0.508752             1     Refine Mesh
   17         434       0.508233             2     Successful Poll
   18         457       0.508233             1     Refine Mesh
   19         546       0.506136             2     Successful Poll
   20         569       0.506136             1     Refine Mesh
   21         659       0.505982             2     Successful Poll
   22         682       0.505982             1     Refine Mesh
   23         795       0.505811             2     Successful Poll
   24         818       0.505811             1     Refine Mesh
   25         936       0.505811           0.5     Refine Mesh
   26         950       0.504362             1     Successful Poll
patternsearch stopped because it exceeded options.MaxIterations.

The optimization cost is lower after the second tuning process.

Evaluate the FIS tree using the input training data.

yOut = evalfis(fisTout2,x);

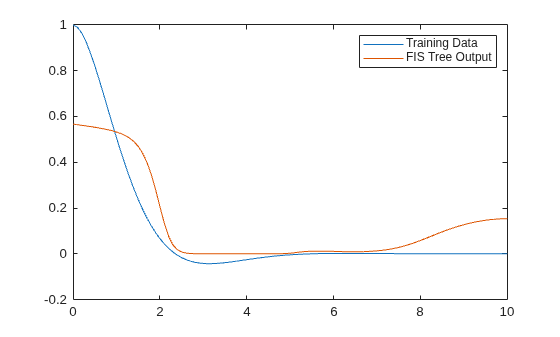

Plot the final output along with the corresponding output training data.

plot(x,y(:,2),"-",x,yOut(:,2),"-")
legend("Training Data","FIS Tree Output")

The results do not perform well at the beginning and end of the input range. To improve performance, you could try:

• Increasing the number of training iterations in each stage of the tuning process.

• Increasing the number of membership functions for the input and output variables.

• Using a custom cost function to model the known mathematical operations. For an example, see Tune FIS Using Custom Cost Function.

Input Arguments

fisIn — Fuzzy inference system

mamfis object | sugfis object | mamfistype2 object | sugfistype2 object | fistree object

Fuzzy inference system, specified as one of the following objects.

• mamfis object — Mamdani fuzzy inference system

• sugfis object — Sugeno fuzzy inference system

• mamfistype2 object — Type-2 Mamdani fuzzy inference system

• sugfistype2 object — Type-2 Sugeno fuzzy inference system

• fistree object — Tree of interconnected fuzzy inference systems

paramset — Tunable parameter settings

array

Tunable parameter settings, specified as an array of input, output, and rule parameter settings in the input FIS. To obtain these parameter settings, use the getTunableSettings function with the input fisin.

paramset can be the input, output, or rule parameter settings, or any combination of these settings.

in — Input training data

matrix

Input training data, specified as an m-by-n matrix, where m is the total number of input datasets and n is the number of inputs. The number of input and output datasets must be the same.

out — Output training data

matrix

Output training data, specified as an m-by-q matrix, where m is the total number of output datasets and q is the number of outputs. The number of input and output datasets must be the same.

options — FIS tuning options

tunefisOptions object

FIS tuning options, specified as a tunefisOptions object. You can specify the tuning algorithm method and other options for the tuning process.

custcostfcn — custom cost functions

function handle

Custom cost function, specified as a function handle. The custom cost function evaluates fisout to calculate its cost with respect to an evaluation criterion, such as input/output data. custcostfcn must accept at least one input argument for fisout and returns a cost value. You can provide an anonymous function handle to attach additional data for cost calculation, as described in this example:

function fitness = custcost(fis,trainingData)
  ...
end
custcostfcn = @(fis)custcost(fis,trainingData);

Output Arguments

fisOut — Tuned fuzzy inference system

mamfis object | sugfis object | mamfistype2 object | sugfistype2 object | fistree object

Tuned fuzzy inference system, returned as one of the following objects.

• mamfis object — Mamdani fuzzy inference system

• sugfis object — Sugeno fuzzy inference system

• mamfistype2 object — Type-2 Mamdani fuzzy inference system

• sugfistype2 object — Type-2 Sugeno fuzzy inference system

• fistree object — Tree of interconnected fuzzy inference systems

fisout is the same type of FIS as fisin.

summary — Tuning algorithm summary

structure

Tuning algorithm summary, specified as a structure containing the following fields:

• tuningOutputs — Algorithm-specific tuning information

• totalFunctionCount — Total number of evaluations of the optimization cost function

• totalRuntime — Total execution time of the tuning process in seconds

• errorMessage — Any error message generated when updating fisin with new parameter values

tuningOutputs is a structure that contains tuning information for the algorithm specified in options. The fields in tuningOutputs depend on the specified tuning algorithm.

When using k-fold cross validation:

• tuningOutputs is an array of k structures, each containing the tuning information for one training-validation iteration.

• totalFunctionCount and totalRuntime include the total function cost function evaluations and total run time across all k training-validation iterations.

Alternative Functionality

Fuzzy Logic Designer App

Starting in R2023a, you can interactively tune fuzzy inference systems using the Fuzzy Logic Designer app. For an example, see Tune Fuzzy Inference System Using Fuzzy Logic Designer.

Version History

Introduced in R2019a

R2020a: K-fold cross validation

To prevent overfitting of your fuzzy inference system (FIS) parameters to your training data, you can use k-fold cross validation. K-fold validation randomly partitions your training data into k subsets of approximately equal size. The function then performs k training-validation iterations. For each iteration, one data subset is used as validation data with the remaining k-1 subsets used as training data.
