im2frame

Convert image to movie frame

collapse all in page

Syntax

F = im2frame(RGB)
F = im2frame(X,map)
F = im2frame(X)

Description

F = im2frame(RGB) converts the truecolor image, RGB, into a movie frame F.

example

F = im2frame(X,map) converts the indexed image, X, and the associated colormap, map, into a movie frame F.

F = im2frame(X) converts the indexed image, X, into a movie frame F using the current colormap.

Examples

collapse all

Open Live Script

Load an indexed image of a mandrill's face.

load mandrill

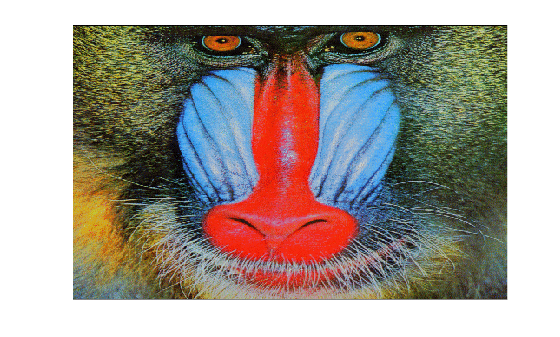

Display the image X using its associated colormap, map, which has 220 colors.

figure
image(X)
colormap(map)
axis off

Figure contains an axes object. The hidden axes object contains an object of type image.

Make a movie that shows the effect of reducing the number of colors of the image. There will be eight movie frames in total. Preallocate an array of structures to store the movie frames.

F(8) = struct('cdata',[],'colormap',[]);

In a loop, reduce the number of colors in the indexed image by using the imapprox function. Use the im2frame function to convert the images into frames of a movie. The first frame is the original image with all 220 colors. The second frame has 128 colors. Each successive frame has half the number of colors. The last frame has the minimum number of colors, 2.

for j = 1:8
    q = 2^(9-j);
    [Y,newmap] = imapprox(X,map,q,'nodither');
    F(j) = im2frame(Y,newmap);
end

To play the movie twice with a frame rate of three frames per second, use movie(F,2,3).

Input Arguments

collapse all

Truecolor image, specified as an m-by-n-by-3 numeric array. If you specify an image of data type double, then values must be in the range [0, 1].

Data Types: double | uint8

Indexed image, specified as an m-by-n matrix of integers.

Data Types: double | uint8

Colormap associated with indexed image X, specified as a c-by-3 numeric matrix with values in the range [0, 1]. Each row of map is a three-element RGB triplet that specifies the red, green, and blue components of a single color of the colormap.

Data Types: double

Output Arguments

collapse all

Movie frame, returned as a structure with two fields:

  • cdata — The image data stored as an array of uint8 values.

  • colormap — The colormap. For truecolor (RGB) images, this field is empty.

Version History

Introduced before R2006a
