frame2im
Return image data associated with movie frame
Description
Examples
Convert Movie Frame to Image Data

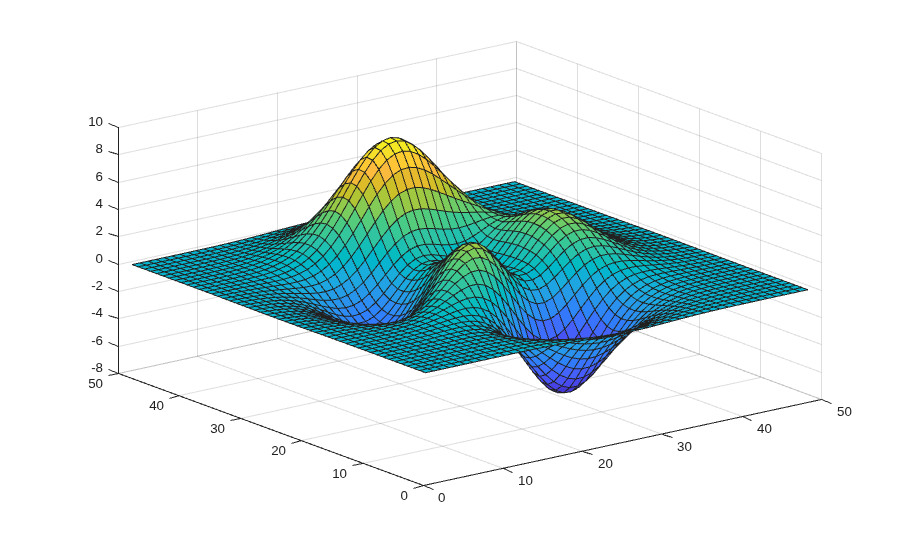

Create a surface plot. The data tip gives the x-, y- and z-coordinate of points along the surface.
surf(peaks)
Use getframe
to capture the plot as a movie frame. The 'colormap'
field is empty, therefore the movie frame contains a truecolor (RGB) image.
F = getframe
F = struct with fields: cdata: [357x452x3 uint8] colormap: []
Convert the captured movie frame to image data.
RGB = frame2im(F);
Display the truecolor image. The data tip gives information about the column and row indices and RGB value of pixels.
figure imshow(RGB)
Input Arguments
F
— Movie frame
structure
Movie frame, specified as a structure with two fields:
cdata
— The image data stored as an array ofuint8
values.colormap
— The colormap. If the movie frame contains a truecolor (RGB) images, then this field is empty ([]
).
You can create a movie frame structure by using the functions im2frame
and getframe
.
Output Arguments
RGB
— Truecolor image
m-by-n-by-3 numeric array
Truecolor image, returned as an m-by-n-by-3 numeric array.
Data Types: uint8
X
— Indexed image
m-by-n numeric matrix
Indexed image, returned as an m-by-n numeric matrix.
Data Types: uint8
map
— Colormap
c-by-3 numeric matrix
Colormap associated with indexed image X
, returned as
a c-by-3 numeric matrix with values in the range [0, 1].
Each row of map
is a three-element RGB triplet that
specifies the red, green, and blue components of a single color of the
colormap.
Data Types: double
Version History
Introduced before R2006a
