Smooth 3-D data



    W = smooth3(V) smooths the volumetric data V and returns the smoothed data in W. W is a double array with the same dimensions as V.

    W = smooth3(V,method) uses the specified smoothing method to define the convolution kernel and smooth the data.


    W = smooth3(V,method,size) specifies the 3-D window size for the smoothing method.

    W = smooth3(V,method,size,sd) specifies the standard deviation for the "gaussian" smoothing method.


    collapse all

    Load the mri data set and squeeze the 4-D array stored in the D variable into three dimensions. Then smooth the data.

    load mri
    D = squeeze(D);
    W = smooth3(D);

    Display the raw data and the smoothed data as an isosurface.

    p1 = patch(isosurface(D,5),"FaceColor","cyan", ...
    title("Raw Data")
    p2 = patch(isosurface(W,5),"FaceColor","cyan", ...
    title("Smoothed Data")

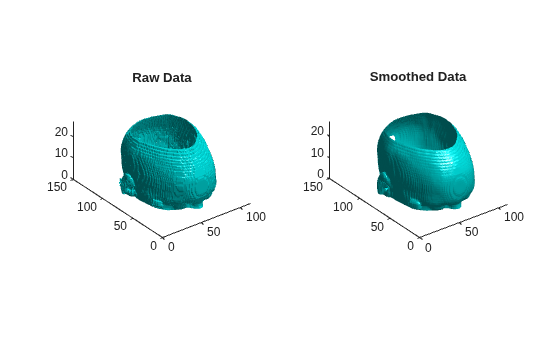

    Figure contains 2 axes objects. Axes object 1 with title Raw Data contains an object of type patch. Axes object 2 with title Smoothed Data contains an object of type patch.

    Create a 10-by-10-by-10 array of random data. Smooth the data using the "gaussian" method with a 3-D window size of 5.

    data = rand(10,10,10);
    data = smooth3(data,"gaussian",5);

    Display the data as an isosurface with end caps.

    patch(isocaps(data,0.5), ...
    p1 = patch(isosurface(data,0.5), ...
    axis vis3d tight
    camlight left
    lighting gouraud

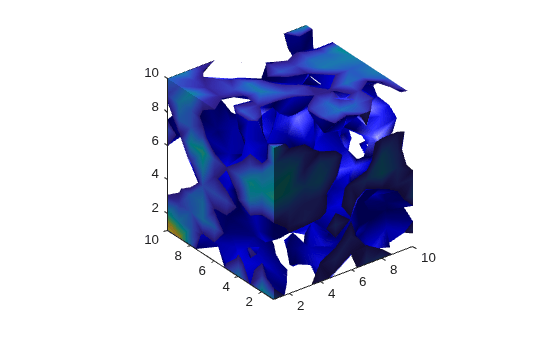

    Figure contains an axes object. The axes object contains 2 objects of type patch.

    Input Arguments

    collapse all

    Volumetric data, specified as a 3-D array.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

    Smoothing method, specified as one of these filters:

    • "box" — Weighted moving average over each window of V

    • "gaussian" — Gaussian-weighted moving average over each window of V

    The smoothing method determines the convolution kernel.

    Window size of the selected smoothing method, specified as a three-element vector of positive odd integers or a positive off integer scalar. If size is scalar, then size is interpreted as [size size size].

    The window size determines how much smoothing is applied to the data. As the window size increases, more data points are used for the averaging process, and therefore more smoothing occurs.

    When using the "gaussian" smoothing method, both standard deviation and window size determine how much smoothing is applied to the data.

    Standard deviation for the "gaussian" smoothing method, specified as a numeric value. As the standard deviation value increases, more averaging is applied within the filter window.

    If the smoothing method is set to "box", sd has no effect.

    Data Types: single | double

    Extended Capabilities

    Version History

    Introduced before R2006a
