Optimal Trajectory Generation for Urban Driving

This example shows how to perform dynamic replanning in an urban scenario using trajectoryOptimalFrenet.

In this example, you will:

  1. Explore an urban scenario with predefined vehicles.

  2. Use trajectoryOptimalFrenet to do local planning for navigating the Urban scenario.

Contents

Introduction

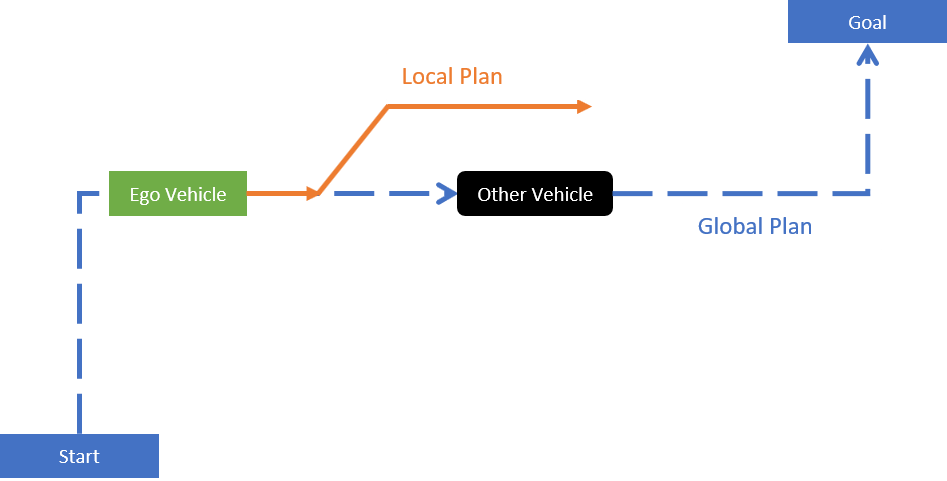

Automated driving in an urban scenario needs planning on two levels, global and local. The global planner finds the most feasible path between start and goal points. The local planner does dynamic replanning to generate an optimal trajectory based on the global plan and the surrounding information. In this example, an ego vehicle (green box) follows a global plan (dotted blue line). Local planning is done (solid orange line) while trying to avoid another vehicle (black rectangle).

Local planners use obstacle information to generate optimal collision-free trajectories. Obstacle information from various on-board sensors like camera, radar, and lidar are fused to keep the occupancy map updated. This occupancy map is egocentric, where the local frame is centered on the ego vehicle. The map is used for local planning when obstacles are detected from the sensors and placed on the map.

Explore An Urban Scenario For Local Planning

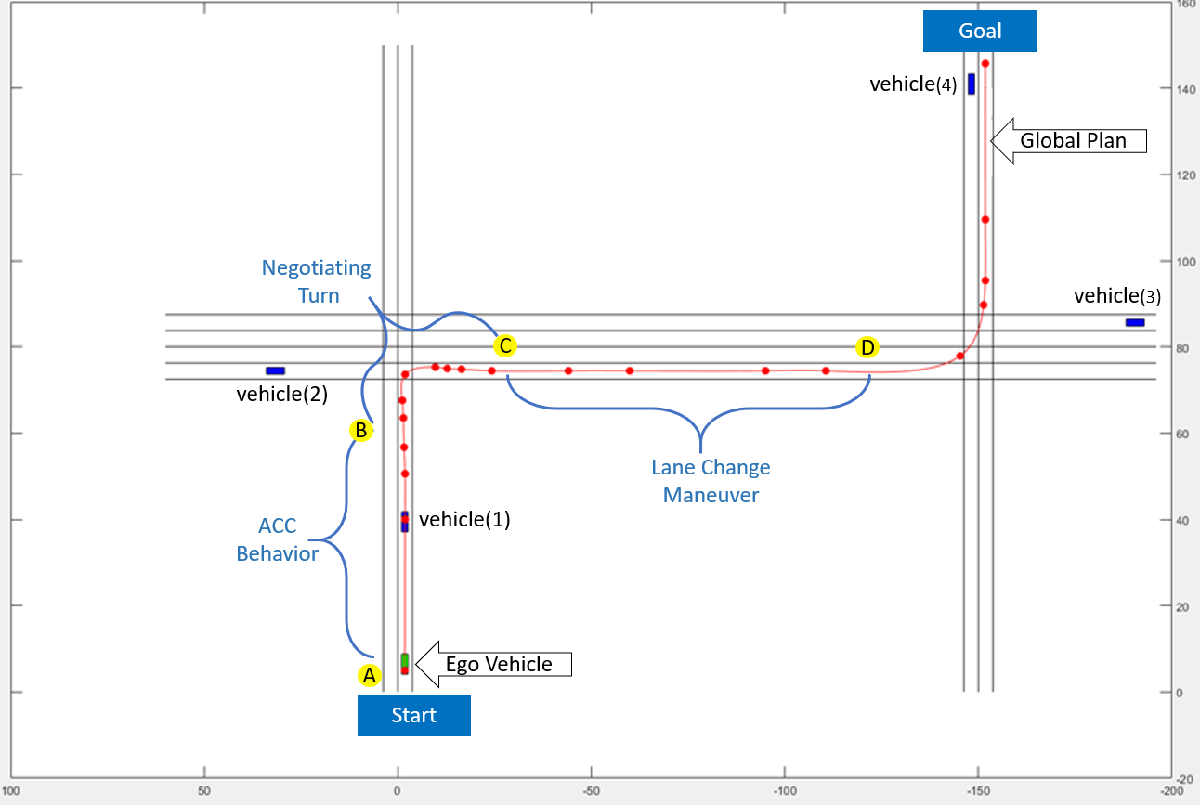

This example scenario has four other vehicles (blue rectangles), which are moving in predefined paths at different velocities. The figure below illustrates this scenario and the global plan (solid red line) used in this example. Solid red dots in the below figure represent the waypoints of the global plan between the start and goal positions. The green rectangle represents the ego vehicle.

The ego vehicle uses trajectoryOptimalFrenet to navigate from position A to position D in three segments with three different configuration parameters.

  • First (A to B), the vehicle demonstrates Adaptive Cruise Control (ACC) behavior.

  • Second (B to C), the vehicle negotiates a turn to follow the global plan.

  • Third (C to D), the vehicle performs a lane change maneuver.

Set up the required data and environment variables:

% Load data from urbanScenarioData.mat file, initialize required variables
[otherVehicles,globalPlanPoints,stateValidator] = exampleHelperUrbanSetup;
  1. otherVehicles: [1 x 4] Structure array containing fields: Position, Yaw, Velocity, and SimulationTime, of each vehicle in the scenario.

  2. globalPlanPoints: [18 x 2] Matrix contains precomputed global plan consisting of eighteen waypoints, each representing a position in the scenario.

  3. stateValidator: validatorOccupancyMap object that acts as the state validator based on a given 2-D grip map. A fully occupied egocentric occupancy map is updated based on obstacle information and road boundaries. A custom state validator can also be used based on the application. For more information, see nav.StateValidator.

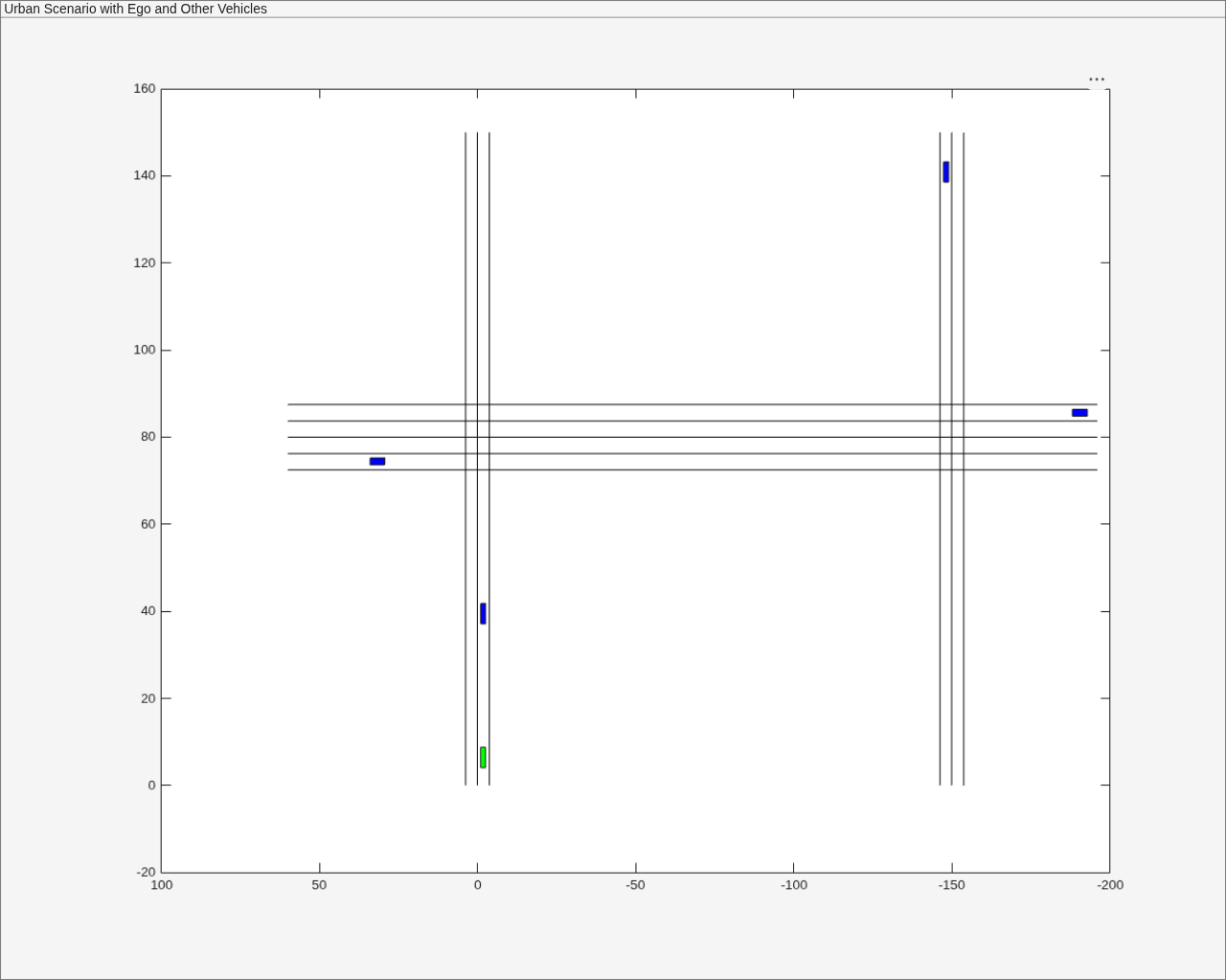

Plot the scenario.

exampleHelperPlotUrbanScenario;

Create local planner

Specify the state validator and global plan to create a local planner using trajectoryOptimalFrenet.

localPlanner = trajectoryOptimalFrenet(globalPlanPoints,stateValidator);

Explore properties of localPlanner

The localPlanner has a variety of properties that can be tuned to achieve the desired behavior. This section explores some of these properties and their default values.

localPlanner.TerminalStates

  • Longitudinal: [30 45 60 75 90]: Defines longitudinal sampling distance in meters. This value can be a scalar or vector.

  • Lateral: [-2 -1 0 1 2]: Defines lateral deviation in meters from the reference path (Global plan in our case).

  • Time: 7: Time in seconds to reach the end of trajectory.

  • Speed: 10: Velocity in meters per second, to be achieved at the end of the trajectory

  • Acceleration: 0: Acceleration at the end of the trajectory in m/s^2.

localPlanner.FeasibilityParameters

  • MaxCurvature: 0.1 : Maximum feasible value for the curvature in m^-1

  • MaxAcceleration: 2.5: Maximum feasible acceleration in m/s^2.

localPlanner.TimeResolution: 0.1: Trajectory discretization interval in seconds

Use trajectoryOptimalFrenet to demonstrate Adaptive Cruise Control (ACC) behavior

In this section, assign the properties needed to configure localPlanner to demonstrate Adaptive Cruise Control (ACC) behavior.

To demonstrate ACC, the ego vehicle needs to follow a lead vehicle by maintaining a safe distance. The lead vehicle in this segment is fetched using otherVehicles(1).

% Get leadVehicle in segment from Postion A to Position B
leadVehicle = otherVehicles(1);

% Define ACC safe distance
ACCSafeDistance = 35; % in meters
% Adjusting the time resolution of planner object to make the ego vehicle
% travel smoothly
timeResolution = 0.01;
localPlanner.TimeResolution = timeResolution;

Set up the ego vehicle at position A and define its initial velocity and orientation (Yaw).

% Set positions A, B, C and D
positionA =  [5.1, -1.8, 0];
positionB =  [60, -1.8, 0];
positionC =  [74.45, -30.0, 0];
positionD =  [74.45, -135, 0];
goalPoint =  [145.70, -151.8, 0];

% Set the initial state of the ego vehicle
egoInitPose     = positionA;
egoInitVelocity = [10, -0.3, 0];
egoInitYaw      = -0.165;
currentEgoState = [egoInitPose(1), egoInitPose(2), deg2rad(egoInitYaw),...
    0, norm(egoInitVelocity), 0];
vehicleLength = 4.7; % in meters
% Replan interval in number of simulation steps
% (default 50 simulation steps)
replanInterval = 50;

Visualize the simulation results.

% Initialize Visualization
exampleHelperInitializeVisualization;

The ACC behavior is achieved by setting the TerminalStates of localPlanner as below:

To maintain the safe distance from lead vehicle, set localPlanner.TerminalStates.Longitudinal to Distance to Lead Vehicle - Vehicle Length;

To maintain relative velocity with respect to the lead vehicle, set localPlanner.TerminalStates.Speed to Lead Vehicle Velocity;

To continue navigating on the global plan, set localPlanner.TerminalStates.Lateral to 0;

In the following code snippet, localPlanner generates trajectory that is executed and visualized using exampleHelperUpdateVisualization for every simulation step. However, replanning is done for every 100th simulation step. The following is the sequence of events during replanning:

  • Update the occupancy map using vehicle information using exampleHelperUpdateOccupancyMap.

  • Update the localPlanner.TerminalStates.

  • Trajectory generation using plan(localPlanner,currentStateInFrenet).

% Simulate till the ego vehicle reaches position B
simStep = 1;
% Check only for X as there is no change in Y.
while currentEgoState(1) <= positionB(1)

    % Replan at every "replanInterval"th simulation step
    if rem(simStep, replanInterval) == 0 || simStep == 1
        % Compute the replanning time
        previousReplanTime = simStep*timeResolution;

        % Updating occupancy map with vehicle information
        exampleHelperUpdateOccupancyMap(otherVehicles,simStep,currentEgoState);

        % Compute distance to Lead Vehicle and leadVehicleVelocity
        distanceToLeadVehicle = pdist2(leadVehicle.Position(simStep,1:2), ...
            currentEgoState(1:2));
        leadVehicleVelocity = leadVehicle.Velocity(simStep,:);

        % Set localPlanner.TerminalStates for ACC behavior
        if distanceToLeadVehicle <= ACCSafeDistance
            localPlanner.TerminalStates.Longitudinal = distanceToLeadVehicle - vehicleLength;
            localPlanner.TerminalStates.Speed = norm(leadVehicleVelocity);
            localPlanner.TerminalStates.Lateral = 0;
            desiredTimeBound = localPlanner.TerminalStates.Longitudinal/...
                localPlanner.TerminalStates.Speed;
            localPlanner.TerminalStates.Time = desiredTimeBound;
            localPlanner.FeasibilityParameters.MaxCurvature = 0.5;
        end

        % Generate optimal trajectory for current set of parameters
        currentStateInFrenet = cart2frenet(localPlanner, [currentEgoState(1:5) 0]);
        trajectory = plan(localPlanner, currentStateInFrenet);

        % Visualize the ego-centric occupancy map
        show(egoMap,"Parent",hAxes1)
        title("Ego Centric Occupancy Map","Parent",hAxes1)

        % Visualize ego vehicle on occupancy map
        egoCenter = currentEgoState(1:2);
        egoPolygon = exampleHelperTransformPointtoPolygon(rad2deg(currentEgoState(3)), egoCenter);
        hold(hAxes1,"on")
        fill(egoPolygon(1, :),egoPolygon(2, :),"g","Parent",hAxes1)

        % Visualize the Trajectory reference path and trajectory
        show(localPlanner,"Trajectory","optimal","Parent",hAxes1)
    end

    % Execute and Update Visualization
    [isGoalReached, currentEgoState] = ...
        exampleHelperExecuteAndVisualize(currentEgoState,simStep,...
        trajectory,previousReplanTime);
    if(isGoalReached)
        break;
    end

    % Update the simulation step for the next iteration
    simStep = simStep + 1;
    pause(0.01);
end

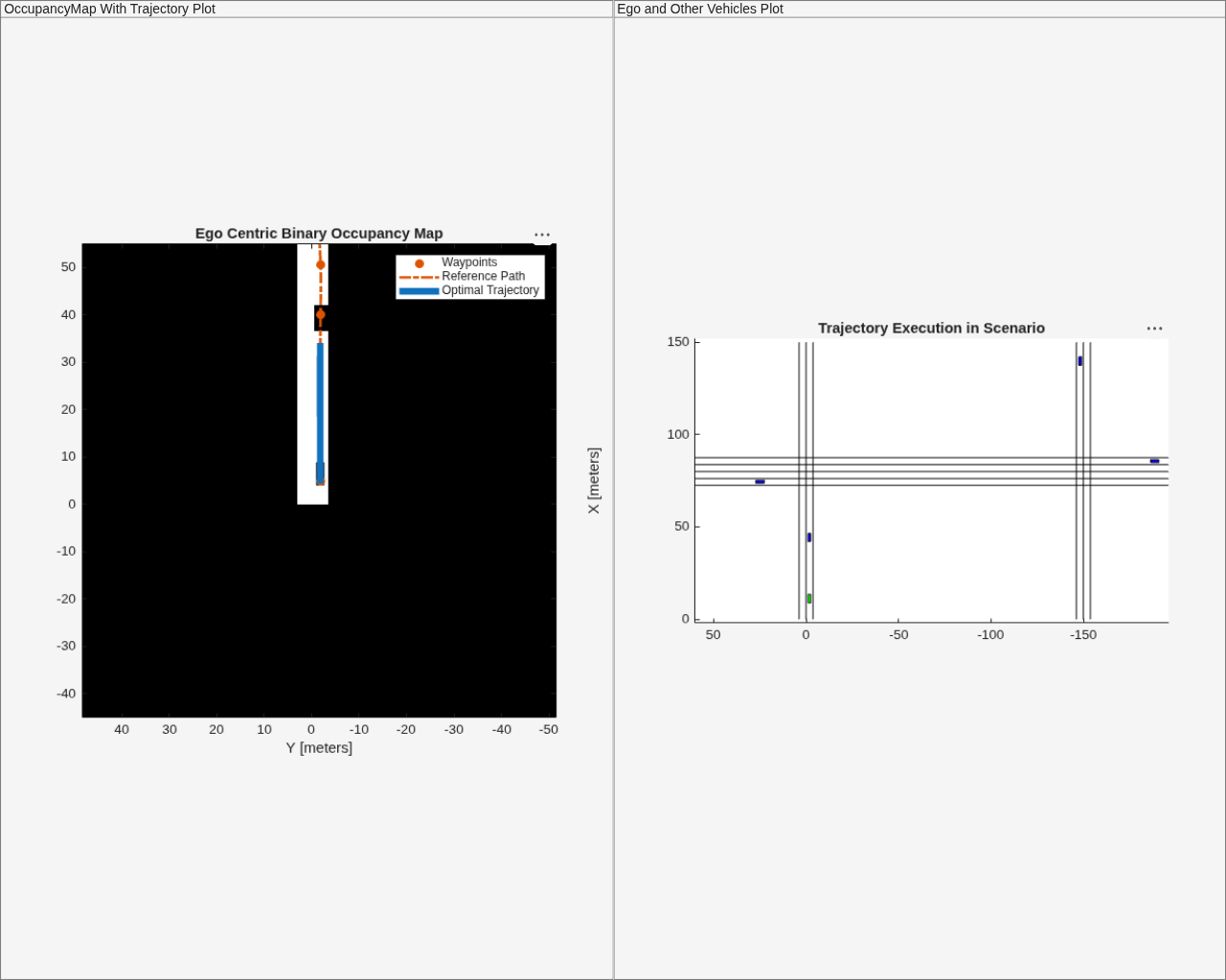

At the end of this execution, the ego vehicle is at position B.

Next, configure trajectoryOptimalFrenet for negotiating a turn in the second segment from position B to position C.

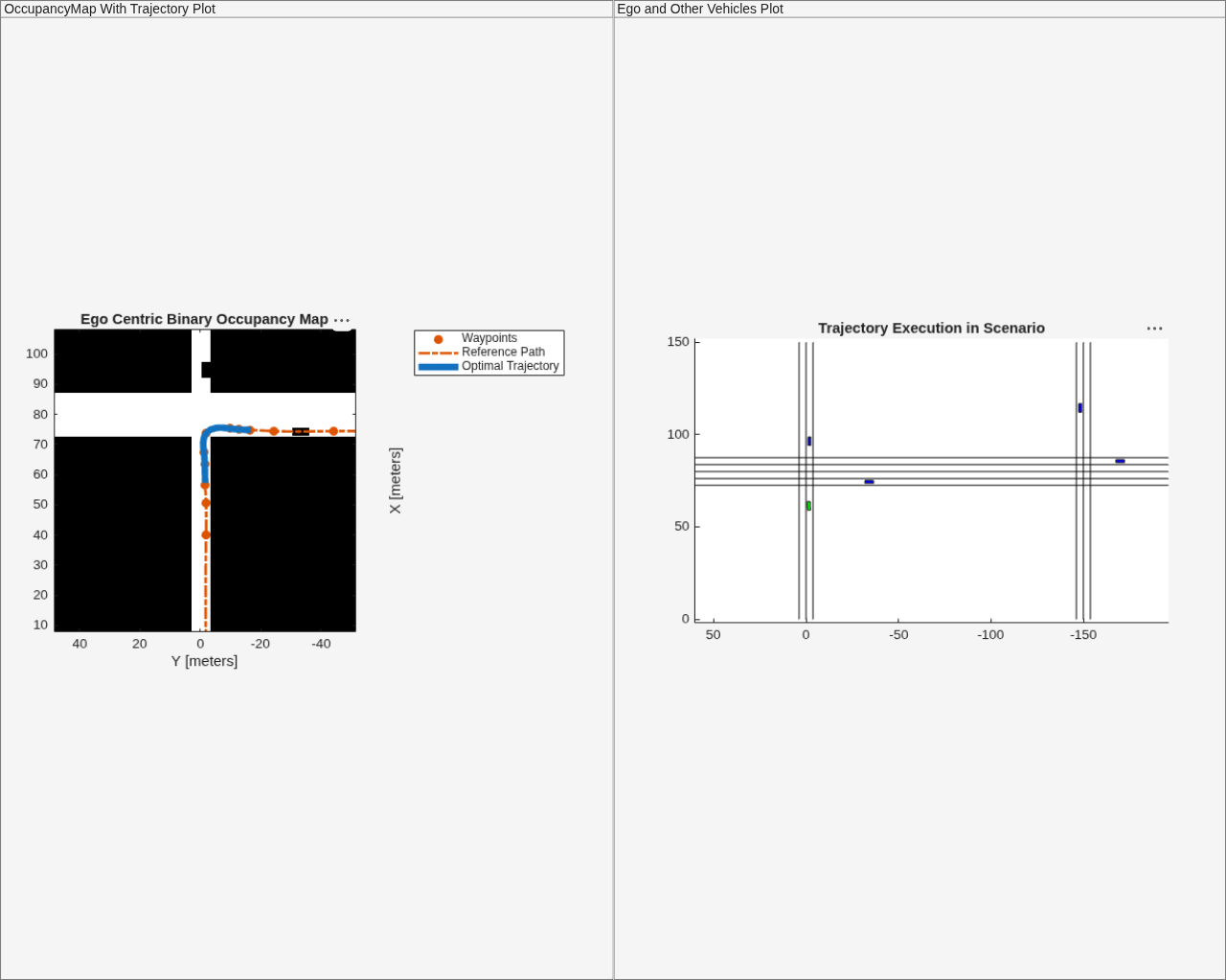

Use trajectoryOptimalFrenet to Negotiate a Smooth Turn

The current set properties of the localPlanner are sufficient to negotiate a smooth turn. However, in the second segment, the lead vehicle is fetched from otherVehicles(2).

% Set Lead Vehicle to correspond to the vehicle in second segment
% from position B to position C
leadVehicle = otherVehicles(2);

% Simulate till the ego vehicle reaches position C
% Check only for Y as there is no change in X at C
while currentEgoState(2) >= positionC(2)

    % Replan at every "replanInterval"th simulation step
    if rem(simStep, replanInterval) == 0
        % Compute the replanning time
        previousReplanTime = simStep*timeResolution;

        % Updating occupancy map with vehicle information
        exampleHelperUpdateOccupancyMap(otherVehicles, simStep, currentEgoState);

        % Compute distance to Lead Vehicle and leadVehicleVelocity
        distanceToLeadVehicle = pdist2(leadVehicle.Position(simStep,1:2), ...
            currentEgoState(1:2));
        leadVehicleVelocity = leadVehicle.Velocity(simStep,:);

        if(distanceToLeadVehicle <= ACCSafeDistance)
            localPlanner.TerminalStates.Longitudinal = distanceToLeadVehicle - vehicleLength;
            localPlanner.TerminalStates.Speed = norm(leadVehicleVelocity);
            localPlanner.TerminalStates.Lateral = 0;
            desiredTimeBound = localPlanner.TerminalStates.Longitudinal/...
                localPlanner.TerminalStates.Speed;
            localPlanner.TerminalStates.Time = desiredTimeBound;
            localPlanner.FeasibilityParameters.MaxCurvature = 0.5;
            localPlanner.FeasibilityParameters.MaxAcceleration = 5;
        end

        % Generate optimal trajectory for current set of parameters
        currentStateInFrenet = cart2frenet(localPlanner, [currentEgoState(1:5) 0]);
        trajectory = plan(localPlanner, currentStateInFrenet);

        % Visualize the ego-centric occupancy map
        show(egoMap,"Parent",hAxes1)
        title("Ego Centric Occupancy Map","Parent",hAxes1)

        % Visualize ego vehicle on occupancy map
        egoCenter = currentEgoState(1:2);
        egoPolygon = exampleHelperTransformPointtoPolygon(rad2deg(currentEgoState(3)), egoCenter);
        hold(hAxes1,"on")
        fill(egoPolygon(1, :), egoPolygon(2, :), "g", "Parent", hAxes1)

        % Visualize the Trajectory reference path and trajectory
        show(localPlanner, "Trajectory", "optimal", "Parent", hAxes1)
    end

    % Execute and Update Visualization
    [isGoalReached, currentEgoState] = ...
        exampleHelperExecuteAndVisualize(currentEgoState,simStep,...
        trajectory,previousReplanTime);
    if(isGoalReached)
        break;
    end

    % Update the simulation step for the next iteration
    simStep = simStep + 1;
    pause(0.01);
end

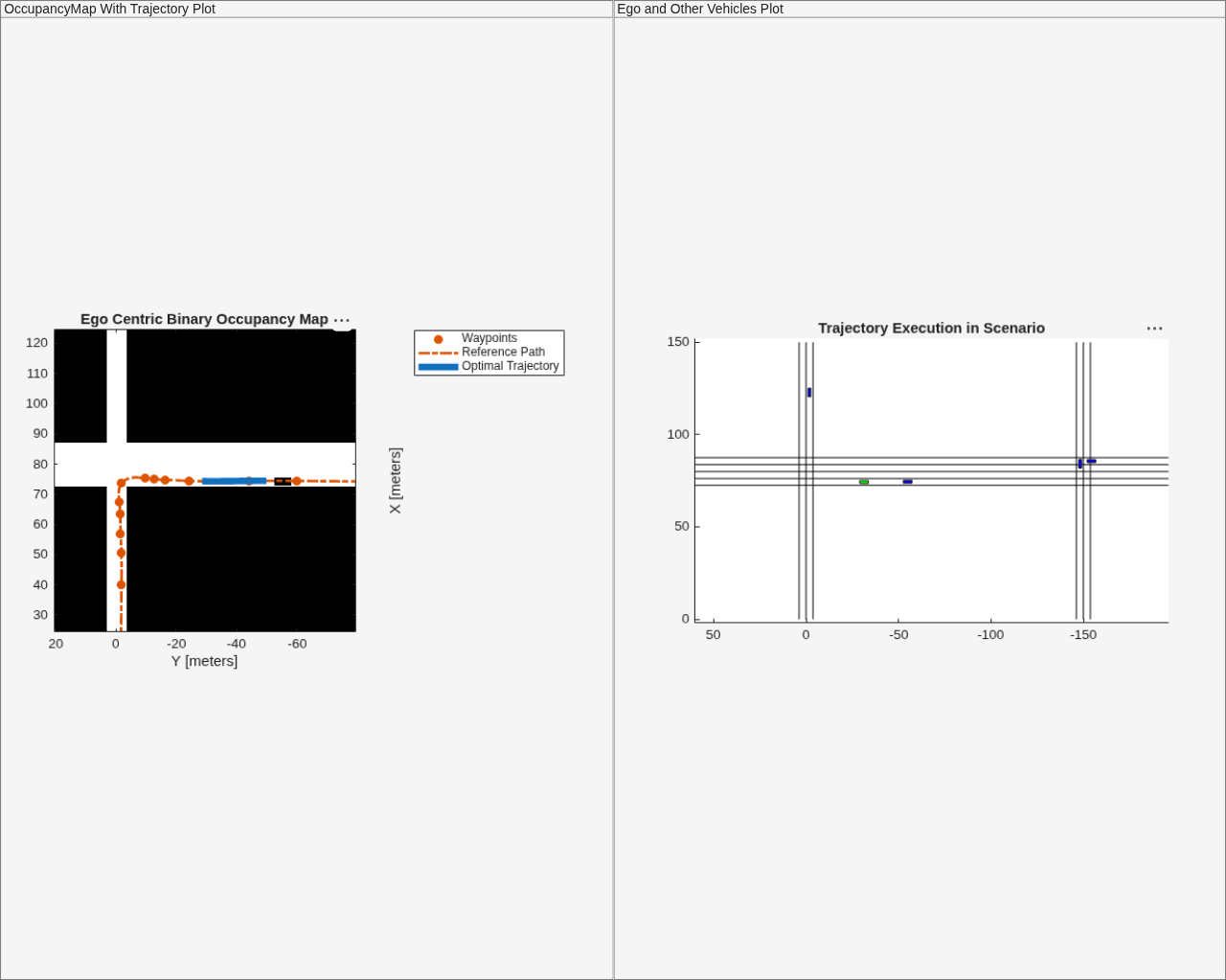

At the end of this execution, the ego vehicle is at position C.

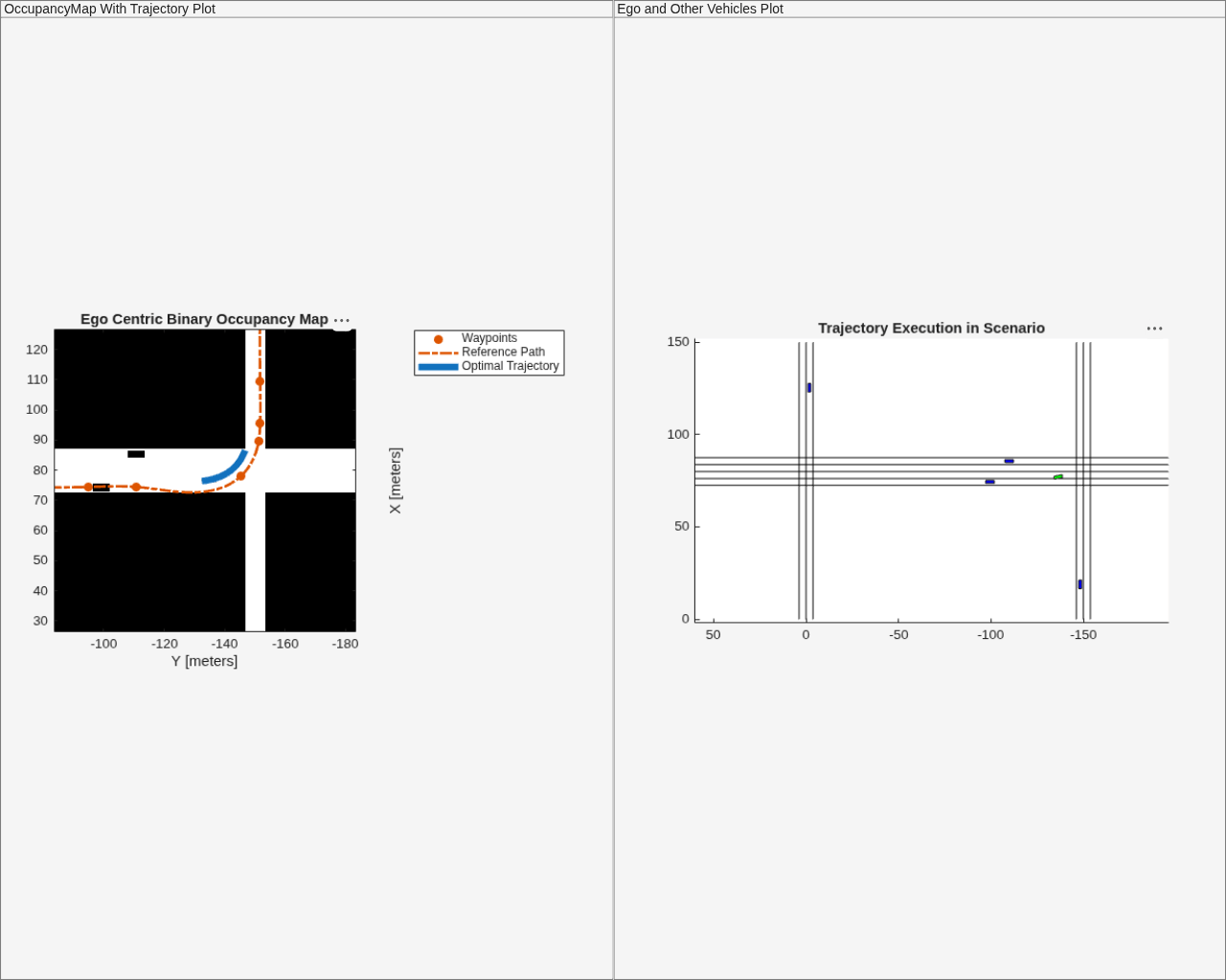

Next, configure trajectoryOptimalFrenet for performing a lane change maneuver from position C to position D.

Use trajectoryOptimalFrenet to perform Lane Change maneuver

Lane change maneuver can be performed by appropriately configuring the Lateral terminal states of the planner. This can be achieved by setting the lateral terminal state to lane width (3.6m in this example) and assuming the reference path is aligned to the center of the current ego lane.

% Simulate till the ego vehicle reaches position D
% Set Lane Width
laneWidth = 3.6;
% Check only for Y as there is no change in X at D
while currentEgoState(2) >= positionD(2)

    % Replan at every "replanInterval" simulation step
    if rem(simStep, replanInterval) == 0
        % Compute the replanning time
        previousReplanTime = simStep*timeResolution;

        % Updating occupancy map with vehicle information
        exampleHelperUpdateOccupancyMap(otherVehicles,simStep,currentEgoState);

        % TerminalState settings for negotiating Lane change
        localPlanner.TerminalStates.Longitudinal = 20:5:40;
        localPlanner.TerminalStates.Lateral = laneWidth;
        localPlanner.TerminalStates.Speed = 10;
        desiredTimeBound = localPlanner.TerminalStates.Longitudinal/...
            ((currentEgoState(1,5) + localPlanner.TerminalStates.Speed)/2);
        localPlanner.TerminalStates.Time = desiredTimeBound;
        localPlanner.FeasibilityParameters.MaxCurvature = 0.5;
        localPlanner.FeasibilityParameters.MaxAcceleration = 15;

        % Generate optimal trajectory for current set of parameters
        currentStateInFrenet = cart2frenet(localPlanner,[currentEgoState(1:5) 0]);
        trajectory = plan(localPlanner,currentStateInFrenet);

        % Visualize the ego-centric occupancy map
        show(egoMap,"Parent",hAxes1)
        title("Ego Centric Occupancy Map","Parent",hAxes1)

        % Visualize ego vehicle on occupancy map
        egoCenter = currentEgoState(1:2);
        egoPolygon = exampleHelperTransformPointtoPolygon(rad2deg(currentEgoState(3)), egoCenter);
        hold(hAxes1,"on")
        fill(egoPolygon(1, :),egoPolygon(2, :),"g","Parent",hAxes1)

        % Visualize the Trajectory reference path and trajectory
        show(localPlanner,"Trajectory","optimal","Parent",hAxes1)
    end

    % Execute and Update Visualization
    [isGoalReached, currentEgoState] = ...
        exampleHelperExecuteAndVisualize(currentEgoState,simStep,...
        trajectory,previousReplanTime);
    if(isGoalReached)
        break;
    end

    % Update the simulation step for the next iteration
    simStep = simStep + 1;
    pause(0.01);
end

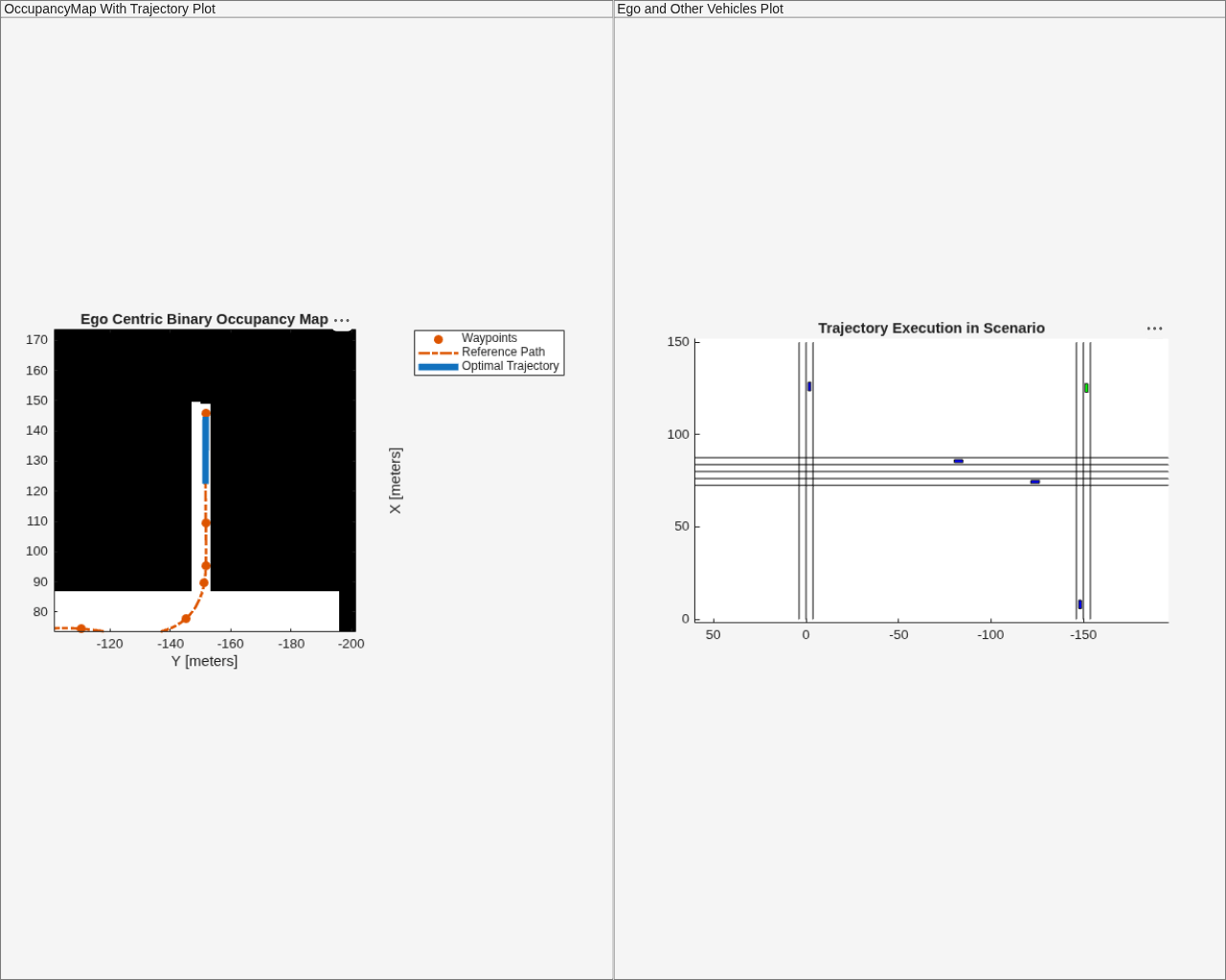

Simulate ego vehicle execution to reach the goal point

The localPlanner is now configured to navigate from position D to the goal position.

% Simulate till the ego vehicle reaches Goal position
% Check only for X as there is no change in Y at Goal.
while currentEgoState(1) <= goalPoint(1)

    % Replan at every "replanInterval"th simulation step
    if rem(simStep, replanInterval) == 0
        % Compute the replanning time
        previousReplanTime = simStep*timeResolution;

        % Updating occupancy map with vehicle information
        exampleHelperUpdateOccupancyMap(otherVehicles, simStep, currentEgoState);
        localPlanner.TerminalStates.Longitudinal = 20;
        localPlanner.TerminalStates.Lateral = [-1 0 1];
        desiredTimeBound = localPlanner.TerminalStates.Longitudinal/...
            ((currentEgoState(1,5) + localPlanner.TerminalStates.Speed)/2);
        localPlanner.TerminalStates.Time = desiredTimeBound:0.2:desiredTimeBound+1;

        % Generate optimal trajectory for current set of parameters
        currentStateInFrenet = cart2frenet(localPlanner, [currentEgoState(1:5) 0]);
        trajectory = plan(localPlanner, currentStateInFrenet);

        % Visualize the ego-centric occupancy map
        show(egoMap,"Parent",hAxes1)
        title("Ego Centric Occupancy Map","Parent",hAxes1)

        % Visualize ego vehicle on occupancy map
        egoCenter = currentEgoState(1:2);
        egoPolygon = exampleHelperTransformPointtoPolygon(rad2deg(currentEgoState(3)), egoCenter);
        hold(hAxes1,"on")
        fill(egoPolygon(1, :),egoPolygon(2, :),"g","Parent",hAxes1)

        % Visualize the Trajectory reference path and trajectory
        show(localPlanner,"Trajectory","optimal","Parent",hAxes1)
    end

    % Execute and Update Visualization
    [isGoalReached, currentEgoState] = ...
        exampleHelperExecuteAndVisualize(currentEgoState,simStep,...
        trajectory,previousReplanTime);
    % Goal reached will be true only in this section.
    if(isGoalReached)
        break;
    end

    % Update the simulation step for the next iteration
    simStep = simStep + 1;
    pause(0.01);
end

Log the ego vehicle positions in egoPoses variable that is available in the base workspace. You can playback the vehicle path in DrivingScenario using exampleHelperPlayBackInDS(egoPoses).

% Clear workspace variables that were created during the example run.
% This excludes egoPoses to allow the user to playback the simulation in DS
exampleHelperUrbanCleanUp;

Conclusion

This example has explained how to perform dynamic re-planning in an urban scenario using trajectoryOptimalFrenet. In particular, we have learned how to use trajectoryOptimalFrenet to realize the following behavior.

  • Adaptive Cruise Control

  • Negotiating turns

  • Lane Change Maneuver.
