rationalfit

Approximate data using stable rational function object

Syntax

``fit = rationalfit``
``fit = rationalfit(freq,data)``
``fit = rationalfit(s)``
``fit = rationalfit(filename)``
``fit = rationalfit(___,tol)``
``fit = rationalfit(s,i,j)``
``fit = rationalfit(___,Name=Value)``
``[fit,errdb] = rationalfit(___)``

Description

The `rationalfit` function uses vector fitting with complex frequencies to perform rational fitting on a complex frequency-dependent data. The `rationalfit` returns an `rfmodel.rational` object. The fit of the each element of the `rationalfit` function is given by this equation:

Note

`rational` is recommend over `rationalfit` because it enables faster simulation and improved fitting of complex frequency-dependent data. (since R2023b)

````fit = rationalfit` creates a non-reflective one-port `rationalfit` object with default properties.```
````fit = rationalfit(freq,data)` performs rational fitting for the given frequency vector `freq` and network parameter data `data`.```

example

````fit = rationalfit(s)` performs rational fitting for the N-port S-parameters object `s`. ```
````fit = rationalfit(filename)` performs rational fitting of network data in the file specified in `filename`.```
````fit = rationalfit(___,tol)` strives to satisfy the relative error tolerance `tol` when performing rational fit.```
````fit = rationalfit(s,i,j)` performs the rational fitting only on the (`i`,`j`)th element of the N-port `sparameters` object `s`.```

example

````fit = rationalfit(___,Name=Value)` specifies options to control aspects of fit. For example, ```fit = rationalfit(s,PoleSharing='Column')``` shares the poles by S-parameter column terms for the fit. Specify name-value arguments after any of the input arguments from the previous syntaxes.```
````[fit,errdb] = rationalfit(___)`also returns the error of the fit `errdb`.```

Examples

collapse all

Fit a rational function object to S-parameter data, and compare the results by plotting the object against the data.

Read the S-parameter data into an RF data object.

```orig_data = read(rfdata.data,'passive.s2p'); freq = orig_data.Freq; data = orig_data.S_Parameters(1,1,:);```

Fit a rational function to the data using `rationalfit`.

`fit_data = rationalfit(freq,data)`
```fit_data = rfmodel.rational with properties: A: [19x1 double] C: [19x1 double] D: 0 Delay: 0 Name: 'Rational Function' ```

Compute the frequency response of the rational function using `freqresp`.

`[resp,freq] = freqresp(fit_data,freq);`

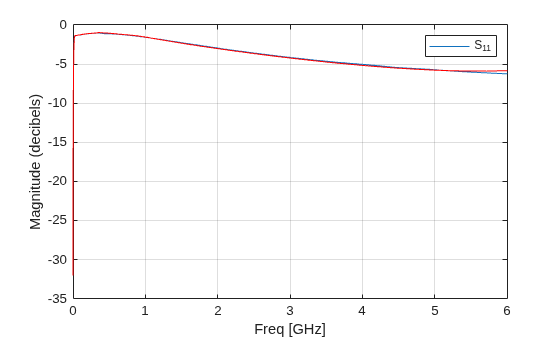

Plot the magnitude of the original data against the rational function approximation. ${S}_{11}$ data appears in blue, and the rational function appears in red. Scaling the frequency values by `1e9` converts them to units of GHz.

```figure title('Rational fitting of S11 magnitude') plot(orig_data,'S11','dB') hold on plot(freq/1e9,20*log10(abs(resp)),'r');```

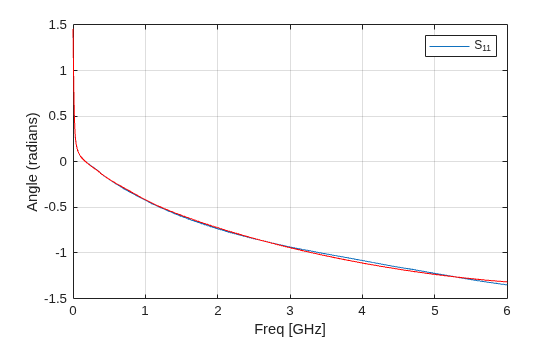

Plot the angle of the original data against the rational function approximation.

```figure title('Rational fitting of S11 angle') plot(orig_data,'S11','Angle (radians)') hold on plot(freq/1e9,unwrap(angle(resp)),'r')```

`rationalfit(freq,data)` also handles input 3D array of data (n x n x p), an input frequency array (p x 1), and returns a matrix (n x n) of rationalfit objects. Index into the matrix of rationalfit objects to access corresponding rationalfit information.

Use `rationalfit` on multiple datasets defined in a matrix.

```orig_data = sparameters('defaultbandpass.s2p'); data = orig_data.Parameters; freq = orig_data.Frequencies; fit_data = rationalfit(freq, data)```
```fit_data = 2x2 rfmodel.rational array with properties: A C D Delay Name ```

To access `rationalfit` data, use indexing on the rationalfit array. For example, to access the rational fit for the 1st element of the matrix, use:

`S = fit_data(1, 1)`
```S = rfmodel.rational with properties: A: [12x1 double] C: [12x1 double] D: 0 Delay: 0 Name: 'Rational Function' ```

Create a `sparameter` object from the file `passive.s2p`.

`S = sparameters('passive.s2p');`

Use the `rationalfit` object to fit a `sparameter` object and calculate the relative error tolerance of the fit.

`[fit,errdB] = rationalfit(S,1,1,'TendsToZero',false)`
```fit = rfmodel.rational with properties: A: [5x1 double] C: [5x1 double] D: -0.4843 Delay: 0 Name: 'Rational Function' ```
```errdB = -40.6263 ```

Input Arguments

collapse all

Nonnegative frequencies, specified as a vector of nonnegative frequencies in Hz.

Data Types: `double`

Network parameter data, specified as a vector, a 2-D array or a 3-D array. The length of the data values must equal the length of the frequency values `freq`.

Error tolerance ε, specified as a scalar in units of dB. The error-fitting equation is

`${10}^{\epsilon /20}\ge \frac{\sqrt{\sum _{k=0}^{n}{|{W}_{k}{F}_{0}\left\{{f}_{k}\right\}-F\left(s\right)|}^{2}}}{\sqrt{\text{ }\sum _{k=0}^{n}{|{W}_{k}{F}_{0}\left\{{f}_{k}\right\}|}^{2}}}$`

where

• ε is the specified value of `tol`.

• F0 is the value of the original data (`data`) at the specified frequency fk (`freq`).

• F is the value of the rational function at s = j2πf.

• W is the weighting of the data.

Note

• Do not specify the `tol` input argument and `Tolerance` name-value argument when specifying number of poles of the fit using the `NPoles` property.

• The `rationalfit` function computes the relative error as a vector containing the dependent values of the fit data. If the object does not fit the original data within the specified tolerance, a warning message appears.

S-parameters, specified as `sparameters` object.

Network data file name, specified as a character vector. The data file must have `.snp` file extension (a Touchstone file).

Row index of data to plot, specified as a positive integer.

Column index of data to plot, specified as a positive integer.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'DelayFactor',0.2`

Scaling factor that controls the amount of delay to fit to the data, specified as a scalar between 0 and 1 inclusive. The `Delay` parameter of the `rationalfit` function is equal to the specified value of `'DelayFactor'` times an estimate of the group delay of the data. If the original data has delay, increasing this value might allow `rationalfit` to fit the data with a lower-order object.

Maximum number of `rationalfit` iterations, specified as a two-element vector of positive integers. Provide a two-element vector to specify minimum and maximum `[M1 M2]` of rational fit iterations. Increasing the limit extends the time that the algorithm takes to produce a fit, but it might produce more accurate results.

Number of poles, specified as an nonegative integer or vector of two nonnegative integers.

For an accurate rational fit, choose a maximum value of `Npoles` greater than or equal to twice the number of peaks on a plot of the data in the frequency domain.

After completing a rational fit, the function removes coefficient sets whose residues (Ck) are zero. Thus, when you specify a range for `Npoles`, the number of poles of the fit may be less than `Npoles(1)`.

Note

Do not specify `tol` as one of the inputs or `Tolerance` as one of the name-value arguments when specifying number of poles of the fit using the `NPoles` name-value argument.

Asymptotic behavior of the rational function as frequency approaches infinity, specified as a logical value. When this argument is `true`, the resulting rational function variable D is zero, and the function tends to zero. A value of `false` allows a nonzero value for `D`.

Error tolerance ε, specified as the comma-separated pair consisting of `'Tolerance'` and a scalar in units of dB. The error-fitting equation is

`${10}^{\epsilon /20}\ge \frac{\sqrt{\sum _{k=0}^{n}{|{W}_{k}{F}_{0}\left\{{f}_{k}\right\}-F\left(s\right)|}^{2}}}{\sqrt{\text{ }\sum _{k=0}^{n}{|{W}_{k}{F}_{0}\left\{{f}_{k}\right\}|}^{2}}}$`

where

• ε is the specified tolerance.

• F0 is the value of the original data (`data`) at the specified frequency fk (`freq`).

• F is the value of the rational function at s = j2πf.

• W is the weighting of the data.

Note

• Do not specify `tol` as one of the inputs or `Tolerance` as one of the name-value arguments when specifying number of poles of the fit using the `NPoles` name-value argument.

• The `rationalfit` function computes the relative error as a vector containing the dependent values of the fit data. If the object does not fit the original data within the specified tolerance, a warning message appears.

Since R2024a

Type of pole sharing to share the poles of the S-parameters, specified as one of the following:

• `All` — Share all the poles of the S-parameters.

• `Column` — Share the poles by S-parameter column terms.

• `Individual` — Share the poles individually by S-parameter terms.

Data Types: `char` | `string`

Logical value that toggles display of the graphical wait bar during fitting, specified as either `true` or `false`. The `true` setting shows the graphical wait bar, and the `false` setting hides it. If you expect `rationalfit` to take a long time, and you want to monitor its progress, set `'WaitBar'` to `true`.

Weighting of the data at each frequency, specified as a vector of positive numbers or an array same as that of the data. Each entry in `weight` corresponds to a frequency in `freq`, so the length of `weight` must be equal to the length of `freq`. Increasing the weight at a particular frequency improves the object fitting at that frequency.

Note

Specifying a weight of `0` at a particular frequency causes `rationalfit` to ignore the corresponding data point.

Output Arguments

collapse all

One or more rational function objects, returned as an N-by-N `rfmodel.rational` object. The number of dimensions in `data` determines the dimensionality of `h`.

Relative error achieved, returned as a `double`, in dB.

Tips

To see how well the object fits the original data, use the `freqresp` function to compute the frequency response of the object. Then, plot the original data and the frequency response of the rational function object. For more information, see the `freqresp` reference page or the above examples.
