bendRightAngle

Create right-angle bend shape on X-Y plane

Since R2021b

Description

Use the bendRightAngle object to create a right-angle bend shape on the X-Y plane.

Note

This shape object supports behavioral modeling. For more information, see Behavioral Models.

Creation

Syntax

bend = bendRightAngle

bend = bendRightAngle(Name=Value)

Description

bend = bendRightAngle creates a right-angle bend shape on the X-Y plane.

bend = bendRightAngle(Name=Value) sets Properties using one or more name-value arguments. For example, bendRightAngle(ReferencePoint=[1 1]) creates a right-angle bend shape with the reference point at [1 1]. Properties not specified retain their default values.

Properties

Name — Name of right-angle bend shape

'myRightAnglebend' (default) | character vector | string scalar

Name of the right-angle bend shape, specified as a character vector or a string scalar.

Example: bend = bendRightAngle(Name="bendrightangle1")

Data Types: char

ReferencePoint — Reference point

[0 0] (default) | two-element vector

Reference point for the right-angle bend shape in Cartesian coordinates, specified as a two-element vector.

Example: bend = bendRightAngle(ReferencePoint=[1 2])

Data Types: double

Length — Length of right-angle bend shape

[0.0100 0.0100] (default) | two-element vector

Length of the right-angle bend shape in meters, specified as a two-element vector.

Example: bend = bendRightAngle(Length=[0.0500 0.0500])

Data Types: double

Width — Width of right-angle bend shape

[0.0050 0.0050] (default) | two-element vector

Width of the right-angle bend shape in meters, specified as a two-element vector.

Example: bend = bendRightAngle(Width=[0.0200 0.0200])

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Default Right-Angle Bend

Create a right-angle bend with default properties.

bend = bendRightAngle

bend =
  bendRightAngle with properties:

              Name: 'myRightAnglebend'
    ReferencePoint: [0 0]
            Length: [0.0100 0.0100]
             Width: [0.0050 0.0050]

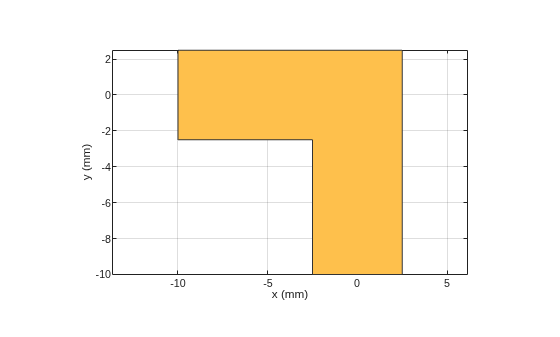

View the shape.

show(bend)

Mesh Rotated Right-Angle Bend Shape

Create a right-angle bend shape of lengths of 10 m and 2 m, width of 2m, and rotate it about the Z-axis by 60 degrees.

bend = bendRightAngle(Length=[10 2],Width=[2 2]);
bend = rotateZ(bend,60)

bend =
  bendRightAngle with properties:

              Name: 'myRightAnglebend'
    ReferencePoint: [0 0]
            Length: [10 2]
             Width: [2 2]

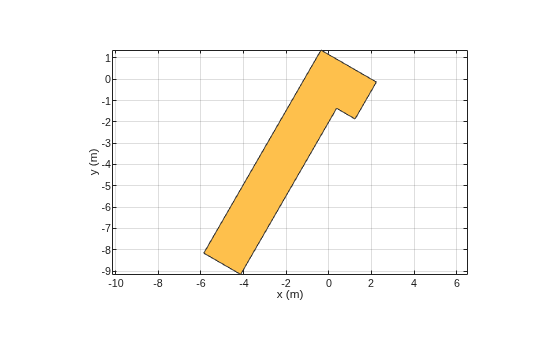

show(bend)

Mesh the right-angle bend shape at a maximum edge length of 1 m.

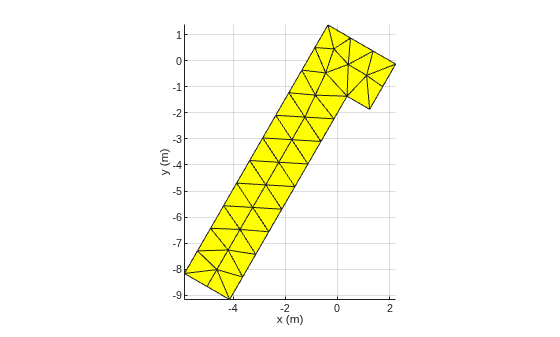

mesh(bend,MaxEdgeLength=1)

Version History

Introduced in R2021b
