Pseudospectrum using eigenvector method

`[`

implements the eigenvector spectral estimation method and returns `S`

,`wo`

] = peig(`x`

,`p`

)`S`

,
the pseudospectrum estimate of the input signal `x`

, and a vector
`wo`

of normalized frequencies (in rad/sample) at which the
pseudospectrum is evaluated. The pseudospectrum is calculated using estimates of the
eigenvectors of a correlation matrix associated with the input data
`x`

. You can specify the signal subspace dimension using the input
argument `p`

.

`peig(___)`

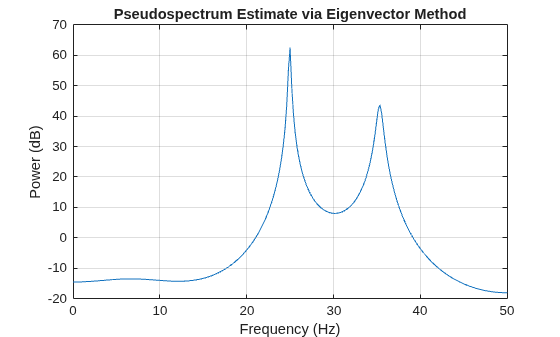

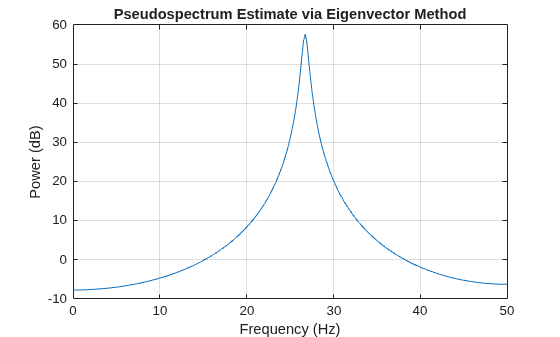

with no output arguments plots the
pseudospectrum in the current figure window.

The eigenvector method estimates the pseudospectrum from a signal or a correlation matrix
using a weighted version of the MUSIC algorithm derived from Schmidt's eigenspace analysis
method [1]
[2]. The algorithm performs
eigenspace analysis of the signal's correlation matrix to estimate the signal's frequency
content. If you do not supply the correlation matrix, the eigenvalues and eigenvectors of the
signal's correlation matrix are estimated using `svd`

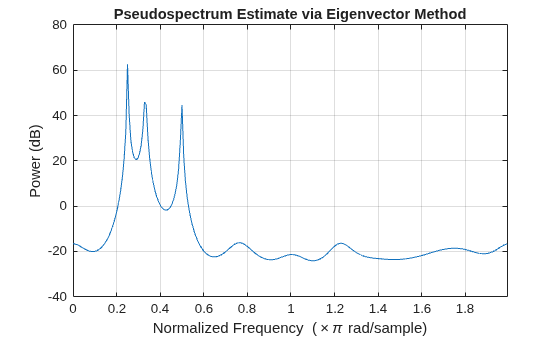

. This algorithm is particularly suitable for signals that are the sum of
sinusoids with additive white Gaussian noise.

The eigenvector method produces a pseudospectrum estimate given by

$${P}_{\text{ev}}(f)=\frac{1}{{\displaystyle \sum _{k=p+1}^{N}|{\text{v}}_{k}^{H}e(f){|}^{2}/{\lambda}_{k}}}$$

where *N* is the dimension of the eigenvectors and
*v _{k}*is the

[1] Marple, S. Lawrence.
*Digital Spectral Analysis*. Englewood Cliffs, NJ: Prentice-Hall, 1987,
pp. 373–378.

[2] Schmidt, R. O. “Multiple
Emitter Location and Signal Parameter Estimation.” *IEEE ^{®} Transactions on Antennas and Propagation*. Vol. AP-34, March,
1986, pp. 276–280.

[3] Stoica, Petre, and Randolph L.
Moses. *Spectral Analysis of Signals*. Upper Saddle River, NJ: Prentice
Hall, 2005.
