batterySimulationChart

Dynamically visualize battery objects

Since R2023b

Description

Use batterySimulationChart to construct a dynamic version of the BatteryChart object. Use the dynamic version of the battery chart to visualize the time-series data of a dynamic variable that you store inside a BatterySimulationLog object.

Use this object with a BatterySimulationLog object to visualize how the relevant states of a specific battery block are impacted by the electro-thermal design and battery architecture, including cell temperature, current, or state of charge.

The BatterySimulationChart object scales the variable values on a colormap by using the maximum and minimum values of that variable over the course of the entire simulation. The software then uses this colormap to update the colors of a BatteryChart object respecting the battery model resolution and the location of each cell within the battery design. The software overlays the colormap with a 3-D battery representation for every cell within that battery at every desired timestep.

If you set the ModelResolution property of the battery to "Lumped", the colors of all the battery cells in the visualization are the same. Conversely, if you set the ModelResolution property of the battery to "Detailed", the colors of each battery cell in the visualization differ depending on parameters and the dynamic simulation settings, including different thermal boundary conditions.

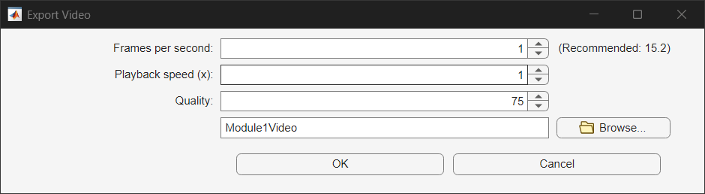

To export the dynamic version of the battery chart as an AVI file, click the Save video button in the container window to open the Export Video window. This window allows you to specify the frames per second, playback speed, and quality of the exported video.

Alternatively, you can use the createVideo function.

Creation

Syntax

chart = batterySimulationChart(Parent,BatterySimulationLog)

chart = batterySimulationChart(BatterySimulationLog)

chart = batterySimulationChart(___,Name=Value)

Description

chart = batterySimulationChart(Parent,BatterySimulationLog) creates a BatterySimulationChart object that displays the time-series data from the BatterySimulationLog property in the container you specify in the Parent property.

chart = batterySimulationChart(BatterySimulationLog) creates a BatterySimulationChart object that displays the time-series data from the BatterySimulationLog property.

chart = batterySimulationChart(___,Name=Value) sets Properties using one or more name-value arguments. Specify the name-value arguments after all the arguments in any of the previous syntaxes.

Properties

Parent — Container for battery visualization

Figure object (default) | Tab object | Panel object | ButtonGroup object | TiledChardLayout object | GridLayout object

Container for the visualization of the battery, specified as a Figure object or a Figure object created using the uifigure function or one of its child containers: Tab, Panel, ButtonGroup, TiledChardLayout, or GridLayout.

BatterySimulationLog — Simulation data to visualize on battery chart

BatterySimulationLog object

Simulation data to visualize on the battery chart, specified as a BatterySimulationLog object.

PlaybackTime — Current simulation time that battery chart displays

0 (default) | positive scalar

Current simulation time that the battery chart displays, specified as a positive scalar.

FramesPerSecond — Number of video frames to capture per second

1 (default) | positive scalar

Since R2026a

Number of video frames to capture per second, specified as a positive scalar. The step size of the playback timer is inversely proportional to the value of this property. If you set this property to a value greater than the value of the RecommendedFramesPerSecond property, the rendering of the battery chart video might occur at a slower rate than real time.

The software updates the battery simulation chart video by using this equation:

(1/FramePerSecond)*PlaybackSpeed

The playback speed is set to 1 by default. To modify the playback speed, set the PlaybackSpeed name-value argument or, in the container window of the BatterySimulationChart object, set the playback speed combo box to the desired speed.

Note

When you set the playback speed to 1, specifying the FramesPerSecond property in the range [1, RecommendedFramesPerSecond] enables the BatterySimulationChart video to play in real time. Increasing the value of the FramesPerSecond property results in smoother color transitions for the logged variable in the video. However, the actual playback performance depends on the complexity of the battery model and the processing power of your machine. If the computational load is high, the BatterySimulationChart video might not be able to render at the intended real-time speed, and playback might appear slower than expected.

RecommendedFramesPerSecond — Maximum recommended frames per second

Read-only: positive scalar

Since R2026a

This property is read-only.

Maximum recommended value for the FramesPerSecond property, returned as a positive scalar. The value of this property is inversely proportional to the amount of time it takes to conduct one graphics update of the colors for the BatterySimulationChart object.

Note

The value of the RecommendedFramesPerSecond property is not a hard limit. You can set the FramesPerSecond property to a value greater than the value of this property and still get real-time updates. The frequency of video updates depends on many different factors, including the complexity of your battery model and the processing power of your machine.

Quality — Video quality

75 (default) | nonnegative scalar

Since R2026a

Video quality, specified as an integer in the range [0,100]. Specifying a higher value for the Quality property produces videos with higher visual quality and larger file sizes. Conversely, specifying a lower value for this property results in videos with reduced visual quality and smaller file sizes.

PlaybackSpeed — Playback speed of video

"1x" (default) | "0.5x" | "2x" | "5x" | "10x"

Since R2026a

Playback speed of the BatterySimulationChart video, specified as "0.5x","1x","2x","5x", or "10x".

AxesVisible — Option to visualize axes of chart

"on" (default) | "off"

Option to visualize the axes of the chart, specified as "on" or "off".

AxesXDir — Direction of increasing values along x-axis

"normal" (default) | "reverse"

Direction of increasing values along the x-axis, specified as one of these values:

• "normal" — Values increase outward from the center of the chart.

• "reverse" — Values decrease outward from the center of the chart.

AxesYDir — Direction of increasing values along y-axis

"normal" (default) | "reverse"

Direction of increasing values along the y-axis, specified as one of these values:

• "normal" — Values increase outward from the center of the chart.

• "reverse" — Values decrease outward from the center of the chart.

AxesZDir — Direction of increasing values along z-axis

"normal" (default) | "reverse"

Direction of increasing values along the z-axis, specified as one of these values:

• "normal" — Values increase outward from the center of the chart.

• "reverse" — Values decrease outward from the center of the chart.

SimulationStrategyVisible — Option to visualize simulation strategy

"on" (default) | "off"

Option to visualize the simulation strategy on the chart, specified as "on" or "off".

SimulationStrategyLineColor — Color of line for simulation strategy

[0.8500 0.3250 0.0980] (default) | RGB triplet | hexadecimal color code | 'r' | 'g' | 'b' | ...

Color of the line for the simulation strategy highlighted on the chart, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
'red'	'r'	[1 0 0]	'#FF0000'
'green'	'g'	[0 1 0]	'#00FF00'
'blue'	'b'	[0 0 1]	'#0000FF'
'cyan'	'c'	[0 1 1]	'#00FFFF'
'magenta'	'm'	[1 0 1]	'#FF00FF'
'yellow'	'y'	[1 1 0]	'#FFFF00'
'black'	'k'	[0 0 0]	'#000000'
'white'	'w'	[1 1 1]	'#FFFFFF'
'none'	Not applicable	Not applicable	Not applicable	No color

Here are the RGB triplets and hexadecimal color codes for the default colors.

RGB Triplet	Hexadecimal Color Code	Appearance
[0 0.4470 0.7410]	'#0072BD'
[0.8500 0.3250 0.0980]	'#D95319'
[0.9290 0.6940 0.1250]	'#EDB120'
[0.4940 0.1840 0.5560]	'#7E2F8E'
[0.4660 0.6740 0.1880]	'#77AC30'
[0.3010 0.7450 0.9330]	'#4DBEEE'
[0.6350 0.0780 0.1840]	'#A2142F'

SimulationStrategyLineStyle — Line style for simulation strategy

":" (default) | character vector | string scalar

Line style for the simulation strategy display, specified as a character vector or string scalar containing symbols.

Example: '--' is a dashed line

Line Style	Description	Resulting Line
'-'	Solid line
'--'	Dashed line
':'	Dotted line
'-.'	Dash-dotted line

SimulationStrategyLineWidth — Line width for simulation strategy

1.5 (default) | positive scalar

Line width for the simulation strategy display, specified as a positive scalar in points, where one point is 1/72 of an inch.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

LightColor — Color of light

[1 1 1] (default) | RGB triplet | hexadecimal color code | 'r' | 'g' | 'b' | ...

Color of light, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name. The default RGB triplet of [1 1 1] corresponds to white.

RGB triplets and hexadecimal color codes are useful for specifying custom colors.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
'red'	'r'	[1 0 0]	'#FF0000'
'green'	'g'	[0 1 0]	'#00FF00'
'blue'	'b'	[0 0 1]	'#0000FF'
'cyan'	'c'	[0 1 1]	'#00FFFF'
'magenta'	'm'	[1 0 1]	'#FF00FF'
'yellow'	'y'	[1 1 0]	'#FFFF00'
'black'	'k'	[0 0 0]	'#000000'
'white'	'w'	[1 1 1]	'#FFFFFF'

Here are the RGB triplets and hexadecimal color codes for the default colors.

RGB Triplet	Hexadecimal Color Code	Appearance
[0 0.4470 0.7410]	'#0072BD'
[0.8500 0.3250 0.0980]	'#D95319'
[0.9290 0.6940 0.1250]	'#EDB120'
[0.4940 0.1840 0.5560]	'#7E2F8E'
[0.4660 0.6740 0.1880]	'#77AC30'
[0.3010 0.7450 0.9330]	'#4DBEEE'
[0.6350 0.0780 0.1840]	'#A2142F'

Example: 'green'

LightStyle — Type of light source

'infinite' (default) | 'local'

Type of light source, specified as:

• 'infinite' — Place the light at infinity. Use the LightPosition property to specify the direction from which the light shines in parallel rays.

• 'local' — Place the light at the location specified by the LightPosition property. The light is a point source that radiates from the location in all directions.

LightPosition — Location of light source

[-1 -1 1] (default) | three-element vector of the form [x y z]

Location of the light source, specified as a three-element vector of the form [x y z]. Define the vector elements in data units from the axes origin to the (x, y, z) coordinate. The actual location of the light depends on the value of the LightStyle property.

Example: [-40 -4 140]

LightVisible — Visibility of light from light source

'on' (default) | on/off logical value

Visibility of light from light source, specified as 'on' or 'off', or as numeric or logical 1 (true) or 0 (false). A value of 'on' is equivalent to true, and 'off' is equivalent to false. Thus, you can use the value of this property as a logical value.

Object Functions

createVideo

Create video of battery simulation chart

Examples

Visualize Dynamic Module Object Based on Cell Temperature

Create the Simscape Battery block.

cell = batteryCell(batteryCylindricalGeometry);
cell.CellModelOptions.BlockParameters.ThermalModel = "LumpedThermalMass";
pset = batteryParallelAssembly(cell,15,Rows=3);
module = batteryModule(pset, ...
    ModelResolution="Detailed", ...
    AmbientThermalPath="CellBasedThermalResistance");
libraryname = "Batteries";
buildBattery(module,"LibraryName",libraryname);

Create and open the Simulink battery model.

modelname = "batterymodel";
open_system(new_system(modelname));

Name and add the required blocks to the mode.

batteryBlockPath = strcat(modelname,"/","Module1");
electricalRefBlockPath = strcat(modelname,"/","ElectricalReference");
solverConfigBlockPath = strcat(modelname,"/","Solver");
currentSourceBlockPath = strcat(modelname,"/","Current Source");
temperatureSourceBlockPath = strcat(modelname,"/","Temperature Source");

% Add blocks to the model
add_block( strcat(libraryname,"_lib/",module.Name),batteryBlockPath,'position',[150,100,300,250]);
add_block("fl_lib/Electrical/Electrical Elements/Electrical Reference",electricalRefBlockPath,'position',[215,320,235,340],'orientation',"down");
add_block("nesl_utility/Solver Configuration",solverConfigBlockPath,'position',[-80,280,-30,320]);
add_block("fl_lib/Electrical/Electrical Sources/DC Current Source",currentSourceBlockPath,'position',[-30,150,0,200],'orientation',"down",'i0',num2str(-500));
add_block("fl_lib/Thermal/Thermal Sources/Temperature Source",temperatureSourceBlockPath,'position',[80,160,120,200],'orientation',"left");

Connect all blocks by using the simscape.addConnection function.

simscape.addConnection(batteryBlockPath,"n",currentSourceBlockPath,"n");
simscape.addConnection(batteryBlockPath,"p",currentSourceBlockPath,"p");
simscape.addConnection(batteryBlockPath,"AmbH",temperatureSourceBlockPath,"A");
simscape.addConnection(electricalRefBlockPath,"V",solverConfigBlockPath,"port");
simscape.addConnection(batteryBlockPath,"n",electricalRefBlockPath,"V");

Enable the logged simulation data for your model.

set_param(modelname,"SimscapeLogType",'all')
set_param(batteryBlockPath,"AmbientResistance",strcat("[",num2str((60-1).*rand(15,1)' + 1),"]"));

Simulate the model.

out = sim(modelname,'StartTime','0','StopTime','160');

Create a BatterySimulationLog object. Select the variable for visualization, then display the object.

batterySimLog = batterySimulationLog(module,out.simlog.Module1,SelectedVariable="batteryTemperature");
disp(batterySimLog)

  BatterySimulationLog with properties:

                 Battery: [1×1 simscape.battery.builder.Module]
                  SimLog: [1×1 simscape.logging.Node]
        SelectedVariable: "batteryTemperature"
    SelectedVariableUnit: "K"
          ModelVariables: ["socCell"    "numCycles"    "batteryVoltage"    "batteryTemperature"    "batteryCurrent"]

Visualize the selected variable using the BatterySimulationChart object.

f = uifigure("Color","w");
g = uigridlayout(f,[1,1]);
moduleChart = batterySimulationChart(g,batterySimLog);
moduleChartColorBar = colorbar(moduleChart);
ylabel(moduleChartColorBar,strcat(batterySimLog.SelectedVariable," (",batterySimLog.SelectedVariableUnit,")"));

Version History

Introduced in R2023b

R2026a: Specify frames per second and video quality

You can set the frames per second and quality of the dynamic version of the battery chart by specifying the FramesPerSecond and Quality properties. You can also define these values in the Export Video window when you export the dynamic version of the battery chart as an AVI file. To open the window, click the Save video button in the BatterySimulationChart container window.

The step size of the playback timer is inversely proportional to the value of the FramesPerSecond property. If you set this property to a value greater than the value of the RecommendedFramesPerSecond property, the battery chart video might render at a rate slower than real time.

The Quality property defines the quality of the exported video. Specifying a higher value for the Quality property produces videos with higher visual quality and larger file sizes. Conversely, specifying a lower value for this property results in videos with reduced visual quality and smaller file sizes.

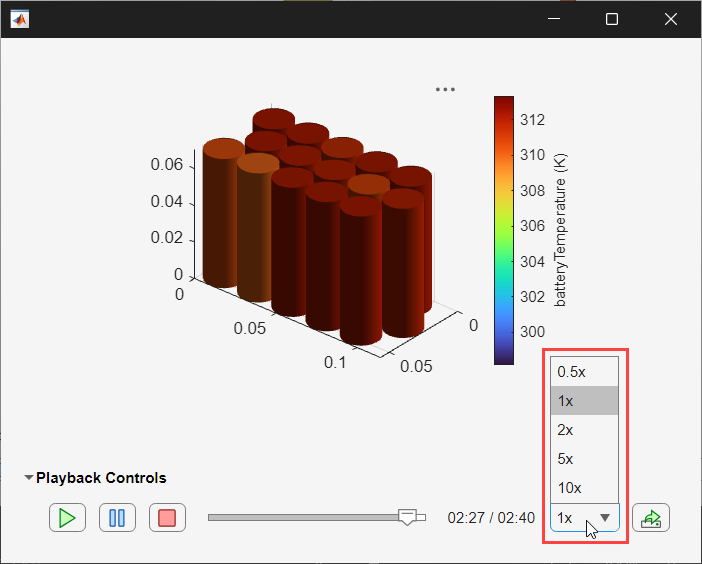

R2026a: Specify playback speed of video programmatically using name-value argument

You can set the playback speed of the BatterySimulationChart video programmatically by using the PlaybackSpeed name-value argument. Specify this argument as "0.5x", "1x", "2x", "5x", or "10x".

Before R2026a, you can set the playback speed of the video only by using the combo box in the container window of the BatterySimulationChart object.
