Detect Rise Positive

Detect rising edge when signal value increases to strictly positive value, and its previous value was nonpositive

Libraries:
Simulink / Logic and Bit Operations

Description

The Detect Rise Positive block detects a rising edge by determining if the input is strictly positive, and its previous value was nonpositive.

• The output is true (equal to `1`) when the input signal is greater than zero, and the previous value was less than or equal to zero.

• The output is false (equal to `0`) when the input is negative or zero, or if the input is positive, the previous value was also positive.

This block supports only discrete sample times.

Examples

expand all

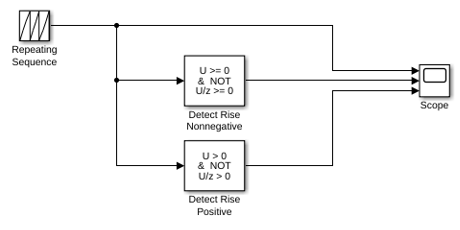

This example shows how to detect the rising edge of a signal using the Detect Rise Nonnegative and Detect Rise Positive blocks.

With a fixed-step size of 0.25, this example illustrates the difference between the Detect Rise Nonnegative and Detect Rise Positive blocks. The Detect Rise Nonnegative block outputs true (`1`) at `t=1` because the input signal increased from a negative value to a nonnegative value (`0`). The Detect Rise Positive block outputs true (`1`) at `t=1.25` because the input signal increased from a nonpositive value (`0`) to a strictly positive value.

Ports

Input

expand all

Input signal, specified as a scalar, vector, or matrix.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `Boolean` | `fixed point`

Output

expand all

Output signal that detects a rising edge whenever the input is strictly positive, and its previous value was nonpositive. The output can be a scalar, vector, or matrix.

• The output is true (equal to `1`) when the input signal is greater than zero, and the previous value was less than or equal to zero.

• The output is false (equal to `0`) when the input is negative or zero, or if the input is positive, the previous value was also positive.

Data Types: `uint8` | `Boolean`

Parameters

expand all

Set the initial condition of the Boolean expression ```U/z > 0```.

Programmatic Use

 Block Parameter: `vinit` Type: character vector Values: scalar | vector | matrix Default: `'0'`

Specify whether the block performs sample- or frame-based processing:

• `Columns as channels (frame based)` — Treat each column of the input as a separate channel (frame-based processing).

Note

Frame-based processing requires a DSP System Toolbox™ license.

• `Elements as channels (sample based)` — Treat each element of the input as a separate channel (sample-based processing).

Use Input processing to specify whether the block performs sample- or frame-based processing. For more information about these two processing modes, see Sample- and Frame-Based Concepts (DSP System Toolbox).

Programmatic Use

 Block Parameter: `InputProcessing` Type: character vector Values: ```'Columns as channels (frame based)'``` | ```'Elements as channels (sample based)'``` Default: ```'Elements as channels (sample based)'```

Specify the output data type as `boolean` or `uint8`.

Programmatic Use

 Block Parameter: `OutDataTypeStr` Type: character vector Values: `'boolean' | 'uint8'` Default: `'boolean'`

Block Characteristics

 Data Types `Boolean` | `double` | `fixed point` | `integer` | `single` Direct Feedthrough `yes` Multidimensional Signals `yes` Variable-Size Signals `yes` Zero-Crossing Detection `no`

Version History

Introduced before R2006a
