replace_block

Replace blocks in Simulink model

Syntax

replBlks = replace_block(sys,current,new)

replBlks = replace_block(sys,Name,Value,new)

replBlks = replace_block(___,'noprompt')

Description

replBlks = replace_block(sys,current,new) replaces the blocks current in the model sys with blocks of type new. You can use a block from a Simulink^® library or from another model as the replacement block.

Load the model sys before using this function. The function prompts you to select the blocks you want to replace from a list of blocks that match the current argument.

Tip

Save the model before using this command.

replBlks = replace_block(sys,Name,Value,new) replaces the blocks that match the block parameters specified by the Name,Value pair arguments. You can also use find_system Name,Value pairs to qualify the search for blocks to replace.

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

With the replace_block function, you can use block parameter and value pairs. For a list of all the block parameters, see Common Block Properties and Block-Specific Parameters.

To specify additional information about the search for blocks to replace, you use find_system Name,Value pairs before the block parameters. For example, you can use 'CaseSensitive','off' to make the search for blocks case insensitive or 'FollowLinks','on' to follow links into library links. See find_system for that list of Name,Value pairs.

replBlks = replace_block(___,'noprompt') replaces the blocks without prompting you to select them from a dialog box.

Examples

Replace Blocks in a Model

Replace blocks in the 'vdp' model.

Load the model 'vdp'.

load_system('vdp');

Replace Gain blocks with Integrator blocks.

RepNames = replace_block('vdp','Gain','Integrator');

A dialog box prompts you to select the blocks you want to replace.

With vdp/Mu selected in the dialog box, click OK.

Replace Scope blocks with To Workspace blocks.

RepNames = replace_block('vdp','Scope','simulink/Sinks/To Workspace');

A dialog box prompts you to select the blocks you want to replace.

With vdp/Scope selected in the dialog box, click OK.

Replace Blocks in a Subsystem Using Parameter Values

Replace blocks in the Unlocked subsystem of the sldemo_clutch model. Replace blocks whose Gain parameter is set to bv.

Load the model sldemo_clutch.

openExample('sldemo_clutch');

In the 'Unlocked' subsystem, replace blocks whose Gain value is bv with Integrator blocks.

replace_block('sldemo_clutch/Unlocked','Gain','bv','Integrator');

A dialog box prompts you to select the blocks to replace.

With sldemo_clutch/Unlocked/VehicleDamping selected in the dialog box, click OK.

Replace Blocks Without Dialog Box

Load the model f14.

load_system('f14')

Replace Gain blocks with Integrator blocks. The command returns the blocks it found to replace and replaces the blocks.

repl = replace_block('f14','Gain','Integrator','noprompt')

repl = 13x1 cell
    {'f14/Aircraft...'     }
    {'f14/Aircraft...'     }
    {'f14/Aircraft...'     }
    {'f14/Aircraft...'     }
    {'f14/Controller/Gain' }
    {'f14/Controller/Gain2'}
    {'f14/Controller/Gain3'}
    {'f14/Gain'            }
    {'f14/Gain1'           }
    {'f14/Gain2'           }
    {'f14/Gain5'           }
    {'f14/Nz pilot...'     }
    {'f14/Nz pilot...'     }

Use find_system Pairs with replace_block

Select a block that is a library link. Follow the library links and replace Gain blocks with Integrator blocks within them.

 replace_block(gcb, 'FollowLinks', 'on', 'BlockType', 'Gain', 'Integrator', 'noprompt')

Input Arguments

sys — Model or subsystem whose blocks to replace

character vector

Name of model whose blocks to replace, specified as a character vector. If you specify a model, the command replaces all blocks that match in the model. If you specify a subsystem, the command replaces blocks in that subsystem and below.

Example: 'vdp', 'sldemo_fuelsys/fuel_rate_control'

current — Type of block to replace

BlockType value | MaskType value

Type of block to replace, specified as a BlockType or MaskType value. To find out the block type, select the block and, at the command prompt, enter:

get_param(gcb,'BlockType')

For masked blocks, to find out the mask type, select the block and enter:

get_param(gcb,'MaskType')

new — Block to replace current blocks

BlockType value | MaskType value | library path | block path name from a model

Block to replace the current block, specified in one of these forms:

• BlockType value of the replacement block. Specifying this value uses a library block as the replacement block.

• MaskType value of the replacement block. Specifying this value uses a library block as the replacement block.

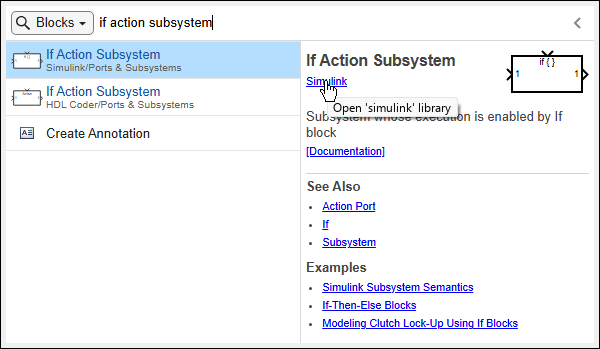

• Library path of the replacement block, for example, 'simulink/Sinks/To Workspace'. Hover over the block in the library to see the library path.

• Block path name of a block from a different model, for example, 'vdp/Mu'. Use this value to reuse an instance of a block from another model in your model.

Output Arguments

replBlks — Blocks returned by the current argument

cell array of character vectors

Blocks returned by the current argument, returned as a cell array of character vectors. The function returns the values regardless of whether you complete the replacement.

Version History

Introduced before R2006a
