Selector

Select input elements from vector, matrix, or multidimensional signal

  • Selector block

Libraries:
Simulink / Signal Routing
HDL Coder / Signal Routing

Description

The Selector block extracts selected elements of an input vector, matrix, or multidimensional signal based on specified indices. The extracted signals can be grouped differently than the input signals.

Based on the value you enter for the Number of input dimensions parameter, a table of indexing settings is displayed. Each row of the table corresponds to one of the input dimensions in Number of input dimensions. For each dimension, you define the elements of the signal to work with. Specify a vector signal as a 1-D signal and a matrix signal as a 2-D signal. When you configure the Selector block for multidimensional signal operations, the block icon changes.

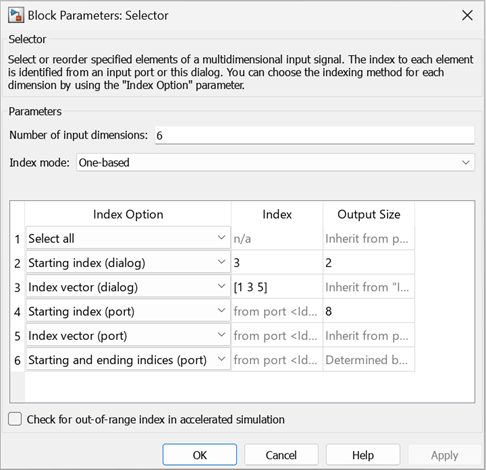

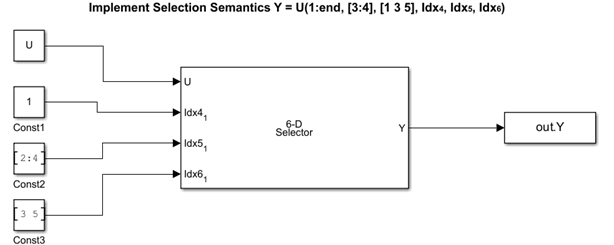

For example, assume a 6-D signal with a one-based index mode. The table of the Selector block dialog changes to include one row for each dimension. If you define dimensions as shown in the next table, the output is Y = U(1:end,2:6,[1 3 5],Idx4:Idx4+7,Idx5,Idx6(1):Idx6(2)), where Idx4, Idx5, and Idx6 are the index ports for dimensions 4, 5, and 6.

RowIndex OptionIndexOutput Size
1Select all
2Starting index (dialog)25
3Index vector (dialog)[1 3 5]
4Starting index (port) 8
5Index vector (port)
6Starting and ending indices (port)

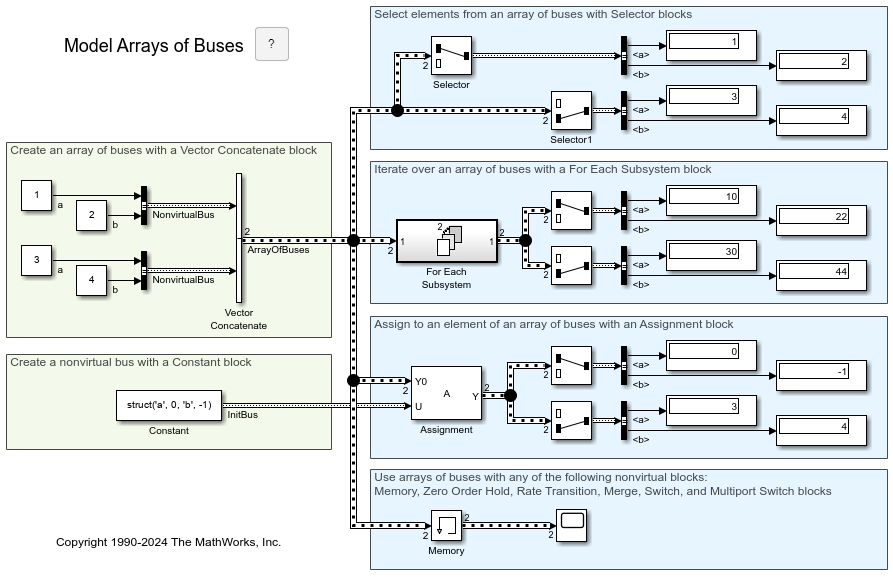

You can use an array of buses as an input signal to a Selector block. For details about defining and using an array of buses, see Group Nonvirtual Buses in Arrays of Buses.

Limitations

  • The Index parameter is not tunable during simulation. If the Index Option for a dimension is set to Index vector (dialog) or Starting index (dialog) and you specify a symbolic value, including a Simulink.Parameter object, for the corresponding Index in the block dialog, then the instantaneous value at the start of simulation will be used throughout the simulation, and the parameter will appear as an inlined value in the generated code. See Tune and Experiment with Block Parameter Values. You can adjust the selection index dynamically by using index ports.

Ports

Input

expand all

Input signal and source of elements to output signal.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus | image

External port specifying an index for the selection of the corresponding output element.

You can specify integer of custom width (for example, a 15-bit integer or 23-bit integer) as an index signal value. When you configure the width of the integer, you must specify the Mode as Fixed point, with Word length less than or equal to 128, Slope equal to 1, and Bias equal to 0. For more information on specifying a fixed-point data type, see Specify Data Types Using Data Type Assistant.

Dependencies

To enable an external index port, in the corresponding row of the Index Option table, set Index Option to Index vector (port), Starting index (port), or Starting and ending indices (port).

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Output

expand all

Output signal generated from selected or reordered elements of input signal.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus | image

Parameters

expand all

Specifies the number of dimensions of the input signal.

Programmatic Use

Block Parameter: NumberOfDimensions
Type: character vector
Values: integer
Default: '1'

Specifies the indexing mode. If One-based is selected, an index of 1 specifies the first element of the input vector. If Zero-based is selected, an index of 0 specifies the first element of the input vector.

Programmatic Use

Block Parameter: IndexMode
Type: character vector
Values: 'One-based' | 'Zero-based'
Default: 'One-based'

Defines, by dimension, how the elements of the signal are to be indexed. From the list, select:

  • Select all

    No further configuration is required. All elements are selected.

  • Index vector (dialog)

    Enables the Index column. Enter the vector of indices of the elements.

  • Index vector (port)

    No further configuration is required.

  • Starting index (dialog)

    Enables the Index and Output Size columns. Enter the starting index of the range of elements to select in the Index column and the number of elements to select in the Output Size column.

  • Starting index (port)

    Enables the Output Size column. Enter the number of elements to be selected in the Output Size column.

  • Starting and ending indices (port)

    No further configuration is required.

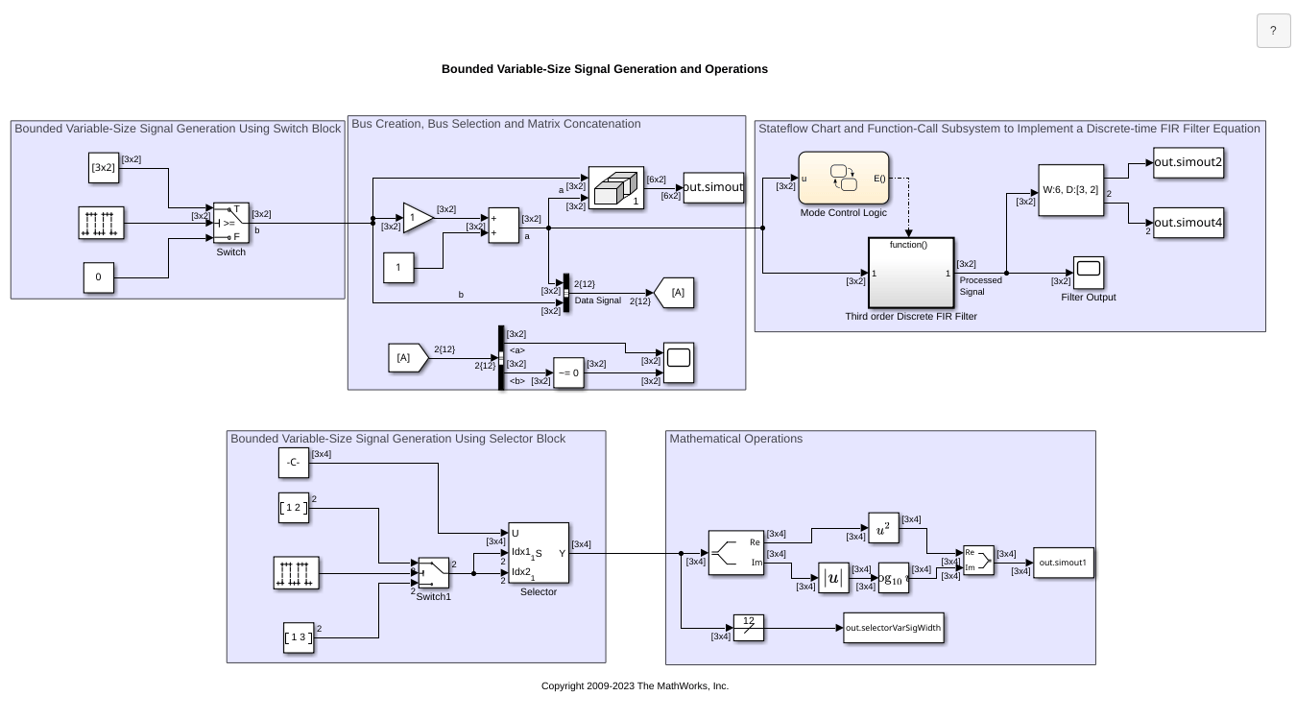

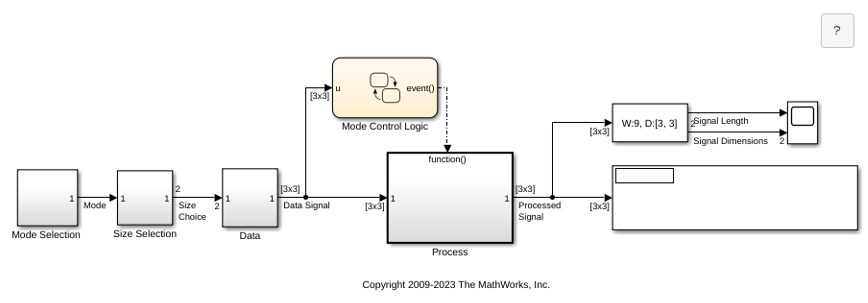

    Using this option results in a variable-size output signal. When you update, the output dimension is set to be the same as the input signal dimension. During execution, the output dimension is updated based on the signal feeding the index.

    When logging output signal data, signals not selected are padded with NaN values.

The Index and Output Size columns appear as needed.

Programmatic Use

Block Parameter: IndexOptionArray
Type: character vector
Values: 'Select all' | 'Index vector (dialog)' | 'Index option (port)' | 'Starting index (dialog)' | 'Starting index (port)' | Starting and ending indices (port)
Default: 'Index vector (dialog)'

If the Index Option is Index vector (dialog), enter the index of each element you are interested in.

If the Index Option is Starting index (dialog), enter the starting index of the range of elements to be selected.

Programmatic Use

Block Parameter: IndexParamArray
Type: character vector
Values: cell array
Default: '{ }'

Specifies the width of the block output signal.

Programmatic Use

Block Parameter: OutputSizeArray
Type: character vector
Values: cell array
Default: '{ }'

Specify the width of the block input signal for 1-D signals. Enter -1 to inherit from the driving block.

Programmatic Use

Block Parameter: InputPortWidth
Type: character vector
Values: integer
Default: '3'

Specify the time interval between samples. To inherit the sample time, set this parameter to -1. For more information, see Specify Sample Time.

Dependencies

This parameter is visible only if you set it to a value other than -1. To learn more, see Blocks for Which Sample Time Is Not Recommended.

Programmatic Use

Block Parameter: SampleTime
Type: string scalar or character vector
Default: "-1"

Select this check box to have Simulink® check during simulation in accelerator or rapid accelerator mode whether any index values are outside the range of valid indices for the relevant dimension of the input signal. If an index is out of range, Simulink stops the simulation and displays an error message.

Note

If you do not select this check box, out-of-range index values could lead to undefined behavior during accelerator or rapid accelerator mode simulation.

Simulink performs this check during normal mode simulation regardless of whether you select this check box.

Programmatic Use

Parameter: RuntimeRangeChecks
Type: character vector
Values: 'Off' | 'On'
Default: 'Off'

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | half | integer | single

Direct Feedthrough

no

Multidimensional Signals

yes

Variable-Size Signals

yes

Zero-Crossing Detection

no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
