Vehicle Motion
Use the vehicle, motorcycle, and trailer body blocks to implement 1DOF, 3DOF, and 6DOF vehicle motion.
Blocks
Vehicles
Vehicle Body Total Road Load | Vehicle motion using coast-down testing coefficients |
Vehicle Body 1DOF Longitudinal | Two-axle vehicle in forward and reverse motion |
Vehicle Body 3DOF Longitudinal | 3DOF rigid vehicle body to calculate longitudinal, vertical, and pitch motion |
Vehicle Body 3DOF | 3DOF rigid vehicle body to calculate longitudinal, lateral, and yaw motion |
Vehicle Body 6DOF | Two-axle vehicle body with translational and rotational motion |
Vehicle Body 3DOF Three Axles | Three-axle vehicle body with longitudinal, lateral, and yaw motion (Since R2020a) |
Vehicle Body 6DOF Three Axles | Three-axle vehicle tractor body with translational and rotational motion (Since R2020b) |
Bicycle Model | Implement a single track 3DOF rigid vehicle body to calculate longitudinal, lateral, and yaw motion |
Trailers
Trailer Body 3DOF | Trailer body with longitudinal, lateral, and yaw motion (Since R2020a) |
Trailer Body 6DOF | Trailer body with translational and rotational motion (Since R2020b) |
Motorcycles
Motorcycle Body Longitudinal In-Plane | Longitudinal in-plane motorcycle vehicle motion (Since R2021b) |
Motorcycle Chain | Implement motorcycle chain (Since R2021b) |
Topics
- Coordinate Systems in Vehicle Dynamics Blockset
Understand coordinate systems for representing vehicle dynamics.
- Passenger Vehicle Dynamics Models
Use passenger 3DOF, 7DOF, and 14DOF vehicle dynamic models for ride and handling studies.
Featured Examples

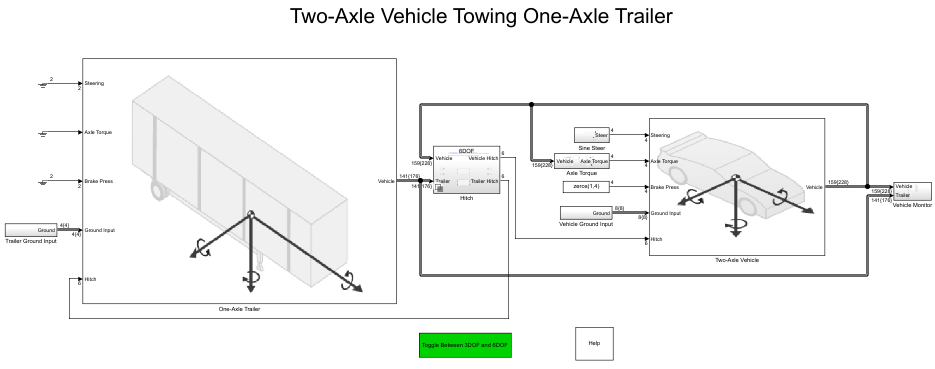

Two-Axle Tractor Towing a One-Axle Trailer
Simulate a two-axle tractor towing a one-axle trailer for a commercial trucking application. Model implements a hitch subsystem, sinusoidal wave steering input, and an axle torque applied to the rear wheels of the tractor.
Two-Axle Tractor Towing a Two-Axle Trailer
Simulate a two-axle tractor towing a two-axle trailer for a commercial trucking application. Model implements a hitch subsystem, sinusoidal wave steering input, and an axle torque applied to the rear wheels of the tractor.
Three-Axle Tractor Towing a Three-Axle Trailer
Simulates three-axle tractor towing a three-axle trailer for commercial trucking applications. Implements hitch subsystem, sinusoidal wave steering or braking test, and axle torque applied to tractor rear wheels.

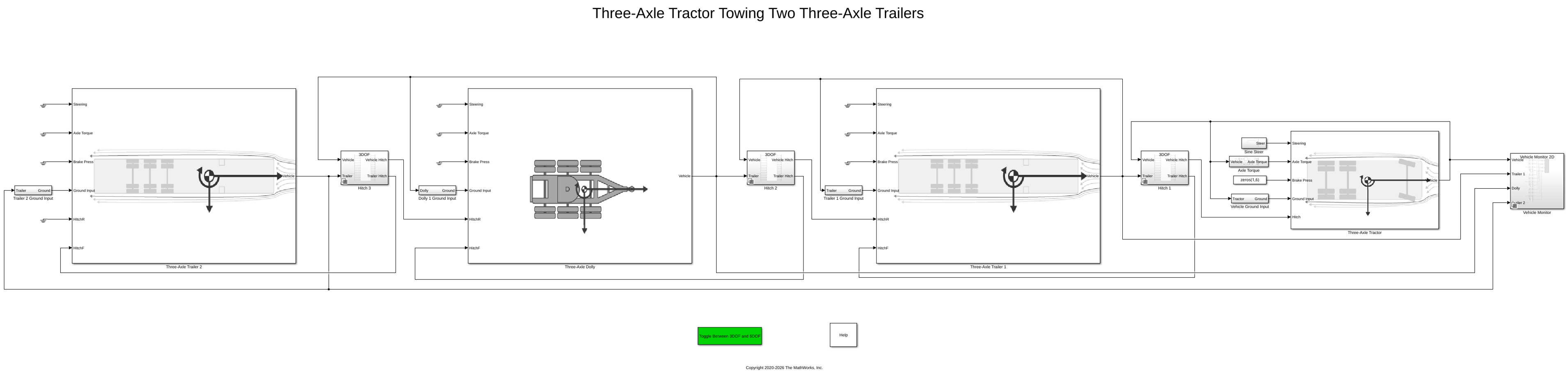

Three-Axle Tractor Towing Two Three-Axle Trailers
Simulate a three-axle tractor towing two three-axle trailers for a commercial trucking application. Model implements hitch subsystems, sinusoidal wave steering input, and an axle torque applied to the rear wheels of the tractor.
