Backhoe Model in Simscape

Version 24.1.2.12 (7,54 Mo) par Steve Miller
Backhoe model, including hydraulic actuators for arm and bucket tilt, and multibody dynamics.
4.8
(6)
6,2K téléchargements
Mise à jour 18 août 2024
Afficher la licence sur GitHub

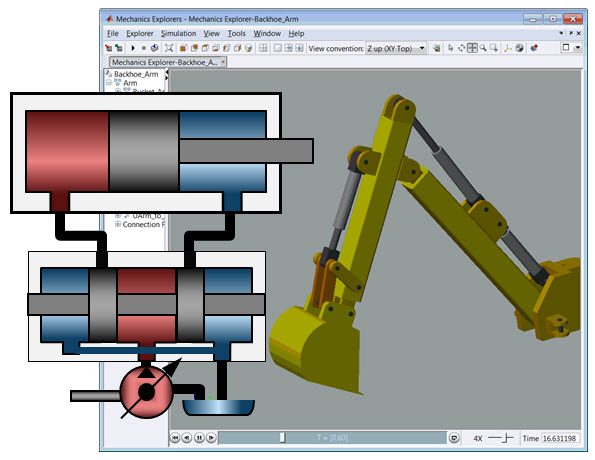

This file contains a model of a backhoe arm built using Simscape. The hydraulic actuation system, including pump, valves, and hydraulic cylinders, actuates the arm and bucket. The three-dimensional mechanical system is modeled, including the arm joints and bucket linkage. Examples in this submission show how to model custom hydraulic valves, tune controller and physical system parameters, and generate C code from the entire model.
Please read the README.md file to get started.
Use the "Download" button above to get files compatible with the latest release of MATLAB.
You can also test this example in MATLAB Online.
Use the links below to get files compatible with earlier releases of MATLAB.
Try these free, hands-on tutorials to learn how to use Simscape:
See an overview of this model in this video (5 min):
Find other Simscape examples by searching posts for the keyword "physical modeling"
Learn more about MathWorks Simscape Products:

Citation pour cette source

Steve Miller (2024). Backhoe Model in Simscape (https://github.com/mathworks/Simscape-Backhoe-Arm/releases/tag/24.1.2.12), GitHub. Extrait(e) le .

Compatibilité avec les versions de MATLAB
Créé avec R2024a
Compatible avec les versions R2013a à R2024a
Plateformes compatibles
Windows macOS Linux
