Quadcopter Drone Model in Simscape

Version 24.1.1.7 (6,48 Mo) par Steve Miller

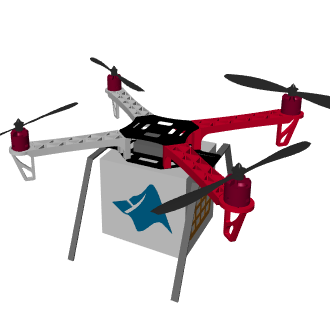

Quadcopter with multibody, electrical and thermal models follows a path to deliver a package.
4.8
(24)
11,5K téléchargements
Mise à jour 18 août 2024
Afficher la licence sur GitHub
This example models a quadcopter that navigates a path to deliver a package.
  • Electric motors and battery enable estimation of current draw and drone range
  • CAD files of the chassis and propellers model the mechanical system
  • Cascaded PID controllers adjust motor speeds to control altitude and attitude
  • Path following and speed controllers provide high-level commands
  • Python queries to a weather database obtain location-specific wind conditions
  • Wind gust profiles test stability of drone controllers
  • Profitability analysis in a MATLAB App enables exploring technical and business tradeoffs
Open the project file Quadcopter_Drone.prj to get started.
Use the "Download" button above to get files compatible with the latest release of MATLAB.
You can try this example in MATLAB Online.
Use the links below to get files compatible with earlier releases of MATLAB.
Quadcopter and Control System
Quadcopter Mechanical and Electrical Systems
Quadcopter Motors and Battery
