Rectangular, conical, circular, and ridged waveguides

Waveguides are hollow metallic tube structures used for transmitting electromagnetic waves by reflections from inner walls. These are most commonly used at microwave frequencies. Waveguides are commonly used to feed horn antennas and parabolic dishes.

The waveguide object supports AI-based tuning and analysis. For more details, see design and AIAntenna documentation.


Antenna DesignerDesign, visualize, and analyze antennas

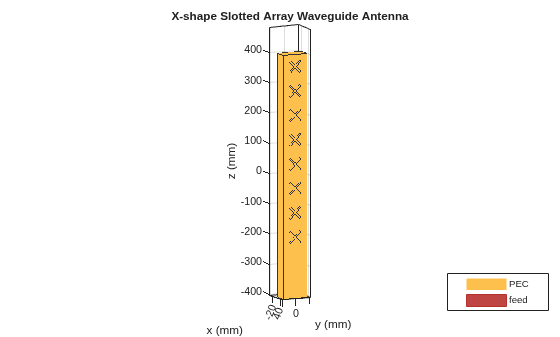

waveguideSlottedCreate slotted waveguide antenna (Since R2019b)
waveguideCreate regular or AI-based rectangular waveguide
waveguideCircularCreate circular waveguide (Since R2019b)
waveguideRidgeCreate ridged waveguide antenna (Since R2019b)


showDisplay antenna, array structures, shapes, or platform
infoDisplay information about antenna, array, or platform
hornangle2sizeEquivalent flare width and flare height from flare angles
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
