# swarmchart3

3-D swarm scatter chart

## Syntax

``swarmchart3(x,y,z)``
``swarmchart3(x,y,z,sz)``
``swarmchart3(x,y,z,sz,c)``
``swarmchart3(___,mkr)``
``swarmchart3(___,'filled')``
``swarmchart3(___,Name,Value)``
``swarmchart3(ax,___)``
``s = swarmchart3(___)``

## Description

example

````swarmchart3(x,y,z)` displays a 3-D swarm chart, which is a scatter plot with the points offset (jittered) in the `x`- and `y`-dimensions. The points form distinct shapes, and the outline of each shape is similar to a violin plot. 3-D swarm charts help you to visualize discrete (`x`,`y`) data with the distribution of the z data. At each (`x`,`y`) location, the points are jittered based on the kernel density estimate of `z`.```

example

````swarmchart3(x,y,z,sz)` specifies the marker sizes. To plot all the markers with the same size, specify `sz` as a scalar. To plot the markers with different sizes, specify `sz` as a vector that is the same size as `x`, `y`, and `z`.```

example

````swarmchart3(x,y,z,sz,c)` specifies the marker colors. To plot all the markers with the same color, specify `c` as a color name or an RGB triplet. To assign a different color to each marker, specify a vector the same size as `x`, `y`, and `z`. Alternatively, you can specify a three-column matrix of RGB triplets. The number of rows in the matrix must match the length of `x`, `y`, and `z`.```

example

````swarmchart3(___,mkr)` specifies a different marker than the default marker, which is a circle. Specify `mkr` after all the arguments in any of the previous syntaxes.```

example

````swarmchart3(___,'filled')` fills in the markers. Specify the `'filled'` option after all the arguments in any of the previous syntaxes.```
````swarmchart3(___,Name,Value)` specifies additional properties for the swarm chart using one or more `Name,Value` pair arguments. Specify the properties after all other input arguments. For a list of properties, see Scatter Properties.```

example

````swarmchart3(ax,___)` displays the swarm chart in the target axes. Specify the axes before all the arguments in any of the previous syntaxes.```

example

````s = swarmchart3(___)` returns the `Scatter` object. Use `s` to modify properties of the chart after creating it. For a list of properties, see Scatter Properties.```

## Examples

collapse all

Read the `BicycleCounts.csv` data set into a timetable called `tbl`. This data set contains bicycle traffic data over a period of time. Display the first five rows of `tbl`.

```tbl = readtable(fullfile(matlabroot,'examples','matlab','data','BicycleCounts.csv')); tbl(1:5,:)```
```ans=5×5 table Timestamp Day Total Westbound Eastbound ___________________ _____________ _____ _________ _________ 2015-06-24 00:00:00 {'Wednesday'} 13 9 4 2015-06-24 01:00:00 {'Wednesday'} 3 3 0 2015-06-24 02:00:00 {'Wednesday'} 1 1 0 2015-06-24 03:00:00 {'Wednesday'} 1 1 0 2015-06-24 04:00:00 {'Wednesday'} 1 1 0 ```

Create a vector `x` with the day name from each observation.

```daynames = ["Sunday" "Monday" "Tuesday" "Wednesday" "Thursday" "Friday" "Saturday"]; x = categorical(tbl.Day,daynames);```

Create a categorical vector `y` containing the values `"pm"` or `"am"` according to the time for each observation in the table. Create vector `z` of eastbound traffic data. Then create a swarm chart of `x`, `y`, and `z`. The chart shows the data distributions for each morning and evening of the week.

```ispm = tbl.Timestamp.Hour < 12; y = categorical; y(ispm) = "pm"; y(~ispm) = "am"; z= tbl.Eastbound; swarmchart3(x,y,z);``` Create vector `x` as a combination of zeros and ones, and create `y` as a vector containing all ones. Create `z` as a vector of squared random numbers. Then create a swarm chart of `x`, `y`, and `z`, and specify the size marker size as `5`.

```x = [zeros(1,500) ones(1,500)]; y = ones(1,1000); z = randn(1,1000).^2; swarmchart3(x,y,z,5);``` Create vector `x` as a combination of zeros and ones, and create `y` as a vector containing all ones. Create `z` as a vector of squared random numbers. Then create a swarm chart of `x`, `y`, and `z`, and specify the point (`'.'`) marker symbol.

```x = [zeros(1,500) ones(1,500)]; y = ones(1,1000); z = randn(1,1000).^2; swarmchart3(x,y,z,'.');``` Create vector `x` containing a combination of zeros and ones, and create `y` containing a random combination of ones and twos. Create `z` as a vector of squared random numbers. Specify the colors for the markers by creating vector `c` as the square root of `z`. Then create a swarm chart of `x`, `y`, and `z`. Set the marker size to `50` and specify the colors as `c`. The values in `c` index into the figure's colormap. Use the `'filled'` option to fill the markers with color instead of displaying them as hollow circles.

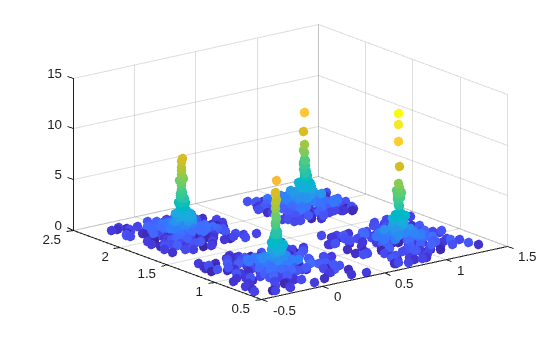

```x = [zeros(1,500) ones(1,500)]; y = randi(2,1,1000); z = randn(1,1000).^2; c = sqrt(z); swarmchart3(x,y,z,50,c,'filled');``` Create vector `x` containing a combination of zeros and ones, and create `y` containing a random combination of the numbers one through four. Create `z` as a vector of squared random numbers. Then create a swarm chart of `x`, `y`, and `z` by calling the `swarmchart` function with a return argument that stores the `Scatter` object. Add x- and y-axis labels so you can see the effect of changing the jitter properties in each dimension.

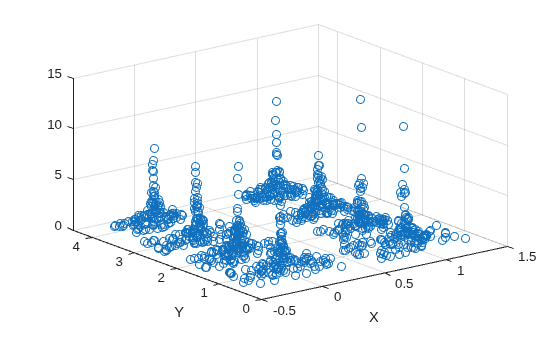

```x = [zeros(1,500) ones(1,500)]; y = randi(4,1,1000); z = randn(1,1000).^2; s = swarmchart3(x,y,z); xlabel('X') ylabel('Y')``` Change the shapes of the clusters of points by setting the jitter properties on the `Scatter` object. In the `x` dimension, specify uniform random jitter, and change the jitter width to `0.5` data units. In the `y` dimension, specify normal random jitter, and change the jitter width to `0.1` data units. The spacing between points does not exceed the jitter width you specify.

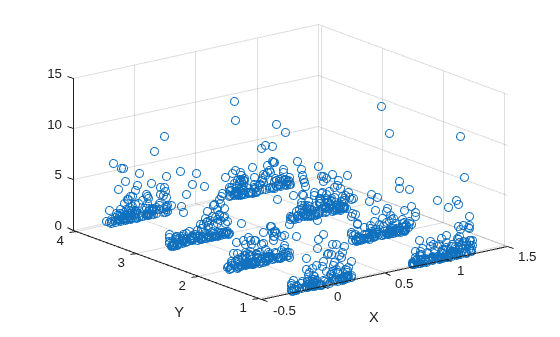

```s.XJitter = 'rand'; s.XJitterWidth = 0.5; s.YJitter = 'randn'; s.YJitterWidth = 0.1;``` Read the `BicycleCounts.csv` data set into a timetable called `tbl`. This data set contains bicycle traffic data over a period of time. Display the first five rows of `tbl`.

```tbl = readtable(fullfile(matlabroot,'examples','matlab','data','BicycleCounts.csv')); tbl(1:5,:)```
```ans=5×5 table Timestamp Day Total Westbound Eastbound ___________________ _____________ _____ _________ _________ 2015-06-24 00:00:00 {'Wednesday'} 13 9 4 2015-06-24 01:00:00 {'Wednesday'} 3 3 0 2015-06-24 02:00:00 {'Wednesday'} 1 1 0 2015-06-24 03:00:00 {'Wednesday'} 1 1 0 2015-06-24 04:00:00 {'Wednesday'} 1 1 0 ```

Create vector `x` with the days names for each observation. Create a categorical vector `y` containing the values `"pm"` or `"am"` according to the time for each observation in the table. Define `ze` as a vector of eastbound traffic data, and define `zw` as a vector of westbound traffic data.

```daynames = ["Sunday" "Monday" "Tuesday" "Wednesday" "Thursday" "Friday" "Saturday"]; x = categorical(tbl.Day,daynames); ispm = tbl.Timestamp.Hour<12; y = categorical; y(ispm) = 'pm'; y(~ispm) = 'am'; ze = tbl.Eastbound; zw = tbl.Westbound;```

Create a tiled chart layout in the `'flow'` tile arrangement, so that the axes fill the available space in the layout. Call the `nexttile` function to create an axes object and return it as `ax1`. Then create a swarm chart of the eastbound data by passing `ax1` to the `swarmchart` function.

```tiledlayout('flow') ax1=nexttile; swarmchart3(ax1,x,y,ze,'.');``` Repeat the process to create a second axes object and a swarm chart for the westbound traffic.

```ax2 = nexttile; z = tbl.Westbound; swarmchart3(ax2,x,y,zw,'.');``` ## Input Arguments

collapse all

x-coordinates, specified as a numeric scalar or a vector the same size as `y` and `z`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `categorical`

y-coordinates, specified as a numeric scalar or a vector the same size as `x` and `z`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `categorical`

z-coordinates, specified as a numeric scalar or a vector the same size as `x` and `y`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `datetime` | `duration`

Marker size in points, specified in one of these forms:

• Numeric scalar — Plot all markers with equal size.

• Row or column vector — Use different sizes for each marker. The length of `sz` must equal the length of `x`, `y`, and `z`.

• `[]` — Use the default size of 36 points.

Marker color, specified in one of these forms:

• RGB triplet or color name — Plot all the markers with the same color. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range `[0,1]`. Alternatively, you can specify a color name from the table below.

• Three column matrix of RGB triplets — Use different colors for each marker. Each row of the matrix specifies an RGB triplet color for the corresponding marker. The number of rows must equal the length of `x`, `y`, and `z`.

• Vector — Use different colors for each marker. The values in `c` index into the current colormap, and they cover the full range of the colormap. The length of `c` must equal the length of `x`, `y`, and `z`. To change the colormap, use the `colormap` function.

Color NameDescriptionEquivalent RGB Triplet
`'red'` or `'r'`Red`[1 0 0]`
`'green'` or `'g'`Green`[0 1 0]`
`'blue'` or `'b'`Blue`[0 0 1]`
`'yellow'` or `'y'`Yellow`[1 1 0]`
`'magenta'` or `'m'`Magenta`[1 0 1]`
`'cyan'` or `'c'`Cyan`[0 1 1]`
`'white'` or `'w'`White`[1 1 1]`
`'black'` or `'k'`Black`[0 0 0]`

Marker type, specified as one of the values listed in this table.

MarkerDescription
`'o'`Circle
`'+'`Plus sign
`'*'`Asterisk
`'.'`Point
`'x'`Cross
`'_'`Horizontal line
`'|'`Vertical line
`'s'`Square
`'d'`Diamond
`'^'`Upward-pointing triangle
`'v'`Downward-pointing triangle
`'>'`Right-pointing triangle
`'<'`Left-pointing triangle
`'p'`Pentagram
`'h'`Hexagram

Option to fill the interior of the markers, specified as `'filled'`. Use this option with markers that have a face, for example, `'o'` or `'square'`. Markers that do not have a face and contain only edges do not render at all (`'+'`, `'*'`, `'.'`, and `'x'`).

The `'filled'` option sets the `MarkerFaceColor` property of the `Scatter` object to `'flat'` and the `MarkerEdgeColor` property to `'none'`. In this case, MATLAB® draws the marker faces, but not the edges.

Target axes, specified as an `Axes` object. If you do not specify the axes, MATLAB plots into the current axes, or it creates an `Axes` object if one does not exist.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `swarmchart3(randi(2,500,1),randi(2,500,1),randn(500,1),'MarkerFaceColor','red')` specifies red filled markers.

Type of jitter (spacing of points) along the x-dimension, specified as one of the following values:

• `'none'` — Do not jitter the points.

• `'density'` — Jitter the points using the kernel density estimate of y for 2-D charts. If you specify this option in two dimensions for a 3-D chart, the points are jittered based on the kernel density estimate in the third dimension. For example, setting `XJitter` and `YJitter` to `'density'` uses the kernel density estimate of z.

• `'rand'` — Jitter the points randomly with a uniform distribution.

• `'randn'` — Jitter points randomly with a normal distribution.

Maximum amount of jitter (offset between points) along the x-dimension, specified as a nonnegative scalar value in data units.

For example, to set the jitter width to 90% of the shortest distance between adjacent points, take the minimum distance between unique values of `x` and scale by `0.9`.

`XJitterWidth = 0.9 * min(diff(unique(x)));`

Type of jitter (spacing of points) along the y-dimension, specified as one of the following values:

• `'none'` — Do not jitter the points.

• `'density'` — Jitter the points using the kernel density estimate of x for 2-D charts. If you specify this option in two dimensions for a 3-D chart, the points are jittered based on the kernel density estimate in the third dimension. For example, setting `XJitter` and `YJitter` to `'density'` uses the kernel density estimate of z.

• `'rand'` — Jitter the points randomly with a uniform distribution.

• `'randn'` — Jitter points randomly with a normal distribution.

Maximum amount of jitter (offset between points) along the y-dimension, specified as a nonnegative scalar value in data units.

For example, to set the jitter width to 90% of the shortest distance between adjacent points, take the minimum distance between unique values of `y` and scale by `0.9`.

`YJitterWidth = 0.9 * min(diff(unique(y)));`

## Algorithms

The points in a swarm chart are jittered using uniform random values that are weighted by the Gaussian kernel density estimate of `z` and the relative number of points at each (`x`, `y`) location. This behavior corresponds to the default `'density'` setting of the `XJitter` and `YJitter` properties on the `Scatter` object when you call the `swarmchart3` function.

The maximum spread of points at each `x` location is 90% of the smallest distance between adjacent points by default. For example, in the `x` dimension, the spread is calculated as:

`spread = 0.9 * min(diff(unique(x)));`

You can control the offset by setting the `XJitterWidth` and `YJitterWidth` properties on the `Scatter` object.

## See Also

### Properties

Introduced in R2020b
