Bibliothèque Utilities
R2026aCette bibliothèque contient des blocs nécessaires et couramment utilisés pour la définition de l’environnement de simulation, l’interfaçage avec des modèles Simulink et la génération à la volée de composants personnalisés.
Les blocs de la bibliothèque Network Couplers vous proposent des points de départ pour scinder votre réseau Simscape™ en plusieurs réseaux distincts plus petits qui s’interfacent les uns avec les autres via des connexions Simulink.
Blocs Simscape
 | Array Connection | Concatenate arrays of conserving connections into single array-of-nodes port (depuis R2025a) |
 | Connection Label | Virtual connection between conserving ports |
 | Connection Port | Physical Modeling connector port for subsystem |
 | Probe | Output block variables as signals during simulation |
 | PS-Simulink Converter | Convert physical signal into Simulink output signal |
 | Simulink-PS Converter | Convert Simulink input signal into physical signal |
 | Simscape Bus | Bus for conserving connection lines |
 | Simscape Component | Deploy Simscape language component as block |
 | Solver Configuration | Physical network environment and solver configuration |
 | Variant Connector | Remove or disconnect physical components from network |
 | Network Coupler (Compressible Link) | Split network at a mechanical translational connection (depuis R2022a) |
 | Network Coupler (Flexible Shaft) | Split network at a mechanical rotational connection (depuis R2022a) |
 | Network Coupler (Inductor) | Split network at an electrical connection by replacing an inductor (depuis R2022a) |
 | Network Coupler (Capacitor) | Split network at an electrical connection by replacing a capacitor (depuis R2022a) |
 | Network Coupler (Current-Voltage) | Split network at an electrical connection (depuis R2022a) |
 | Network Coupler (Voltage-Current) | Split network at an electrical connection (depuis R2022a) |
 | Network Coupler (Voltage-Voltage) | Split network at an electrical connection (depuis R2022a) |
 | Network Coupler (Thermal Mass) | Split network at a thermal connection (depuis R2022a) |
 | Network Coupler (Constant Volume Chamber (IL)) | Split network at an isothermal liquid connection (depuis R2022a) |
 | Network Coupler (Constant Volume Chamber (TL)) | Split network at a thermal liquid connection (depuis R2022a) |
 | Prediction (discrete->continuous) | Prevent accuracy loss when connecting fixed-step network to variable-step network (depuis R2022a) |
 | Prediction (slow->fast) | Prevent accuracy loss when connecting fixed-step networks with different step sizes (depuis R2022a) |
 | Smoothing (continuous->discrete) | Apply output smoothing when connecting variable-step network to fixed-step network (depuis R2022a) |
 | Smoothing (fast->slow) | Apply output smoothing when connecting fixed-step networks with different step sizes (depuis R2022a) |
Blocs
 | Spectrum Analyzer | Display frequency spectrum |
Fonctions
Rubriques
Techniques de base
- Créer un nouveau modèle Simscape
Une façon rapide de créer un nouveau modèle. - Essential Physical Modeling Techniques
Brief summary of physical modeling rules and techniques. - Modeling Best Practices
How to use best practices in your model architecture to avoid numerical simulation issues.
Bus de connexion
- Design Rigid Interface Specifications for Conserving Connections
Lock down connection types for Simscape Bus and Connection Port blocks.
Network Couplers
- Using Network Couplers to Split Physical Networks
General workflow and types of models that can benefit from splitting their network.
Variants
- Using Variant Connectors to Implement Variations in Physical Networks
Implement variations in physical network.
Sélection d՚exemples
Disjoncteur avec bloc Probe
Cet exemple modélise un disjoncteur avec un bloc Simscape Probe permettant d’accéder au courant et à la tension dans le bloc Electrical switch et un autre bloc Simscape Probe permettant d’accéder à la tension à travers une charge.

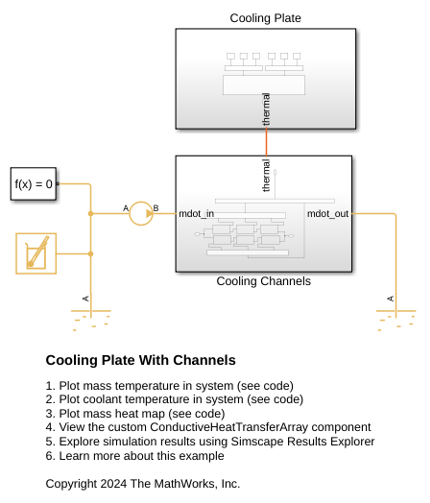

Cooling Plate with Channels
A discretized cooling plate with cooling channels, divided into six segments: three on the top and three on the bottom. Each cooling plate segment is modeled as a thermal mass, while cooling channels are modeled using the Pipe (TL). The ConductiveHeatTransferArray, a custom component, models thermal conduction between the cooling plate segments.

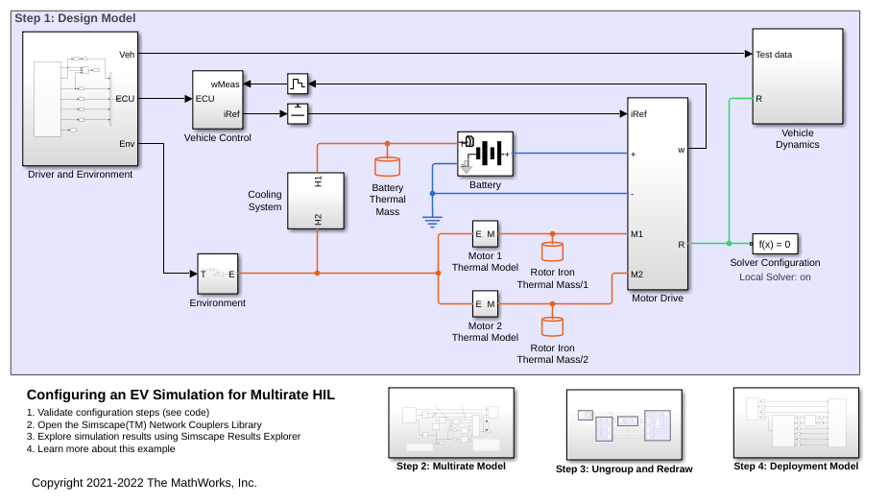

Configuring an EV Simulation for Multirate HIL
An electric vehicle model suitable for multirate Hardware-In-the-Loop (HIL) deployment. The example uses the Simscape™ Network Couplers Library to split the model into separate Simulink® subsystems that can be deployed at different sample rates. This allows you to run parts of the system (for example thermal components) with a slower sample time thereby reducing overall computational cost.

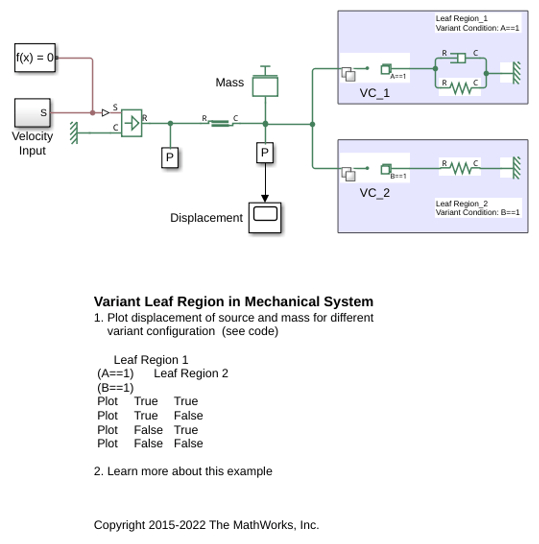

Variant Leaf Region in Mechanical System
Simulate the displacement of velocity sources and mass for different variant configurations using leaf type Variant Connector blocks. Variant Connector blocks allow you to activate or deactivate a set of components in the network during simulation without having to physically remove the components or exclude them from simulation.

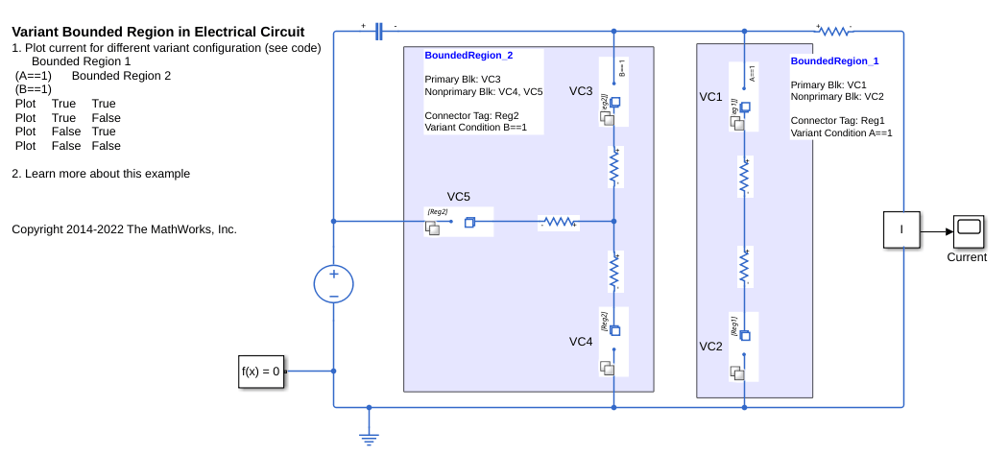

Variant Bounded Region in Electrical Circuit
Simulate the flow of a current in an electrical circuit for different variant configurations using primary and nonprimary type Variant Connector blocks. Variant Connector blocks allow you to activate or deactivate a set of components in the network during simulation without having to physically remove the components or exclude them from simulation.

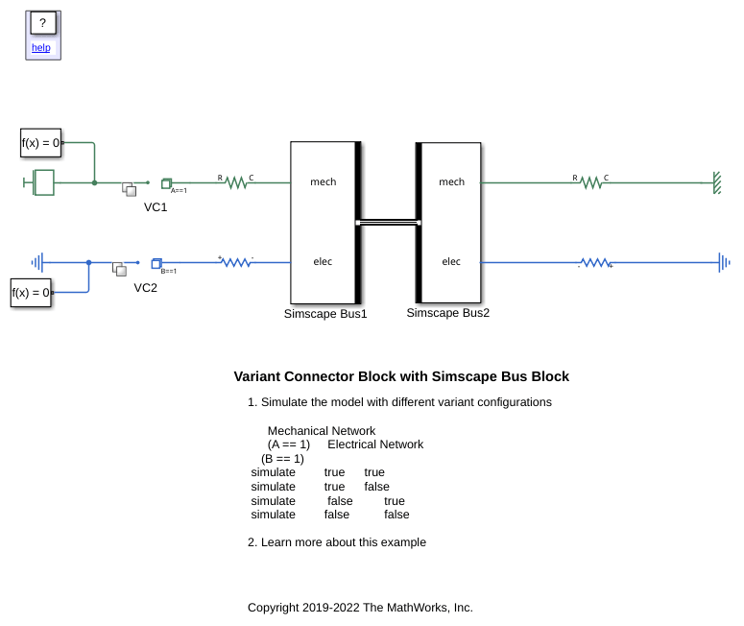

Variant Connector Block with Simscape Bus Block
Use Variant Connector blocks with the Simscape Bus block.

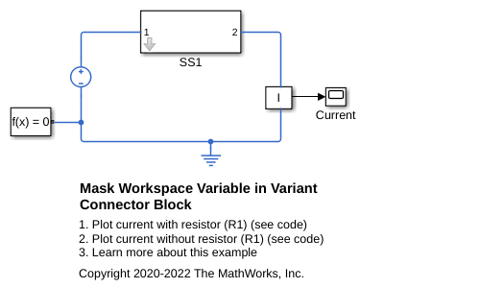

Mask Workspace Variable in Variant Connector Block
Use a mask workspace variable as a variant control variable in a Variant Connector block.
