# tqwtmra

Tunable Q-factor multiresolution analysis

Since R2021b

## Description

mra = tqwtmra(wt,n) returns the tunable Q-factor wavelet multiresolution analysis (MRA) for the TQWT analysis, wt, obtained with the default quality factor of 1.

example

mra = tqwtmra(wt,n,QualityFactor=qf) uses the quality factor qf in obtaining the tunable Q-factor MRA. qf must match the value used in obtaining wt from tqwt.

tqwtmra(___) with no output arguments plots the tunable Q-factor wavelet MRA in a new figure. For complex-valued data, the real part is plotted in the first color in the MATLAB® color order matrix and the imaginary part is plotted in the second color. This syntax does not support multidimensional MRAs.

## Examples

collapse all

Load an ECG signal. Obtain the TQWT of the signal down to level 6 with a quality factor of 2.

wt = tqwt(wecg,QualityFactor=2,Level=6);

Obtain the tunable Q-factor MRA of the signal.

mra = tqwtmra(wt,length(wecg),QualityFactor=2);

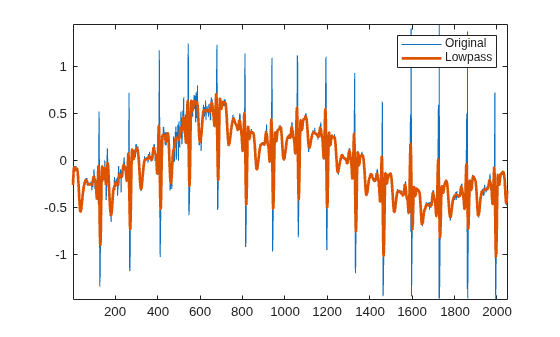

Plot the original signal and the lowpass subband.

plot(wecg)
hold on
plot(mra(end,:),linewidth=2)
hold off
axis tight
legend(["Original","Lowpass"])

Confirm the sum along the rows of the MRA equals the original signal.

mraSum = sum(mra,1);
max(abs(mraSum(:)-wecg(:)))
ans = 9.4369e-16

Load the Kobe earthquake data. Obtain the tunable Q-factor wavelet transform of the data using a quality factor of 3.

qf = 3;
wt = tqwt(kobe,QualityFactor=qf);

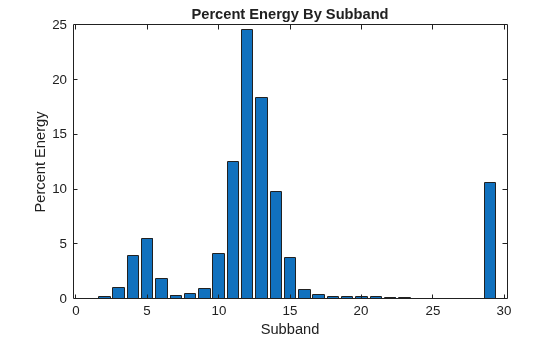

Identify the subbands that contain at least 15% of the total energy. Note that the last element of wt contains the lowpass subband coefficients.

EnergyBySubband = cellfun(@(x)norm(x,2)^2,wt)./norm(kobe,2)^2*100;
idx15 = EnergyBySubband >= 15;
bar(EnergyBySubband)
title("Percent Energy By Subband")
xlabel("Subband")
ylabel("Percent Energy")

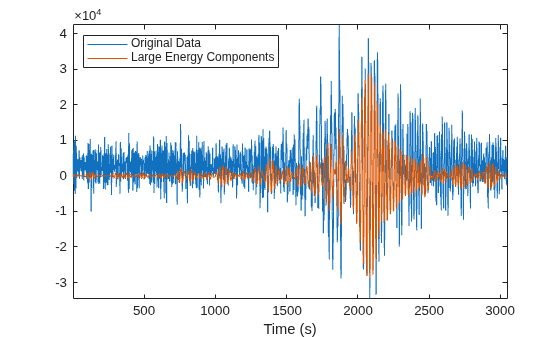

Obtain a multiresolution analysis and sum those MRA components corresponding to previously identified subbands.

mra = tqwtmra(wt,numel(kobe),QualityFactor=qf);
ts = sum(mra(idx15,:));
plot([kobe ts'])
axis tight
legend("Original Data","Large Energy Components",...
Location="NorthWest")
xlabel("Time (s)")

## Input Arguments

collapse all

Tunable Q-factor wavelet transform, specified as a cell array. The elements of wt contain the wavelet subband and lowpass coefficients. wt is expected to be the output of tqwt.

Data Types: single | double
Complex Number Support: Yes

Original signal length in samples, specified as a positive integer. If the original signal length n is odd, n is extended to n+1 to obtain the MRA and the final sample is removed before returning the MRA.

Data Types: single | double

Quality factor, specified as a real-valued scalar greater than or equal to 1. If unspecified, the quality factor defaults to 1.

Example: wt = tqwtmra(qt,2024,QualityFactor=1.5) specifies a quality factor of 1.5.

Data Types: single | double

## Output Arguments

collapse all

Multiresolution analysis, returned as an array. mra is an Ns-by-N-by-C-by-B array where Ns denotes number of subbands in the tunable Q-factor wavelet transform ordered by decreasing center frequency, N is the number of signal samples in time, C is the number of channels, and B is the batch size.

Data Types: single | double

## References

[1] Selesnick, Ivan W. “Wavelet Transform With Tunable Q-Factor.” IEEE Transactions on Signal Processing 59, no. 8 (August 2011): 3560–75. https://doi.org/10.1109/TSP.2011.2143711.
