Robot Arm with Conveyor Belts

Version 23.2.2.5 (11,6 Mo) par Steve Miller
Robot arm transfers parts between two conveyor belts
5.0
(13)
4,2K téléchargements
Mise à jour 6 déc. 2023
Afficher la licence sur GitHub

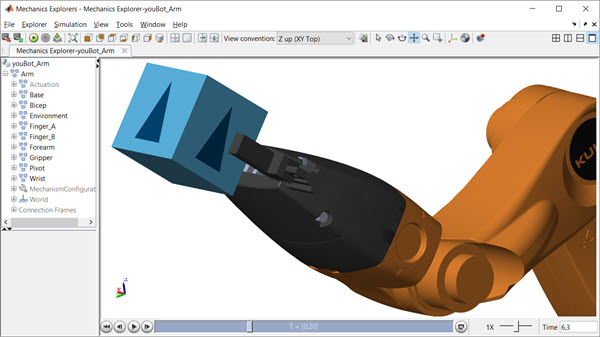

Models a robot arm with 5 degrees of freedom and a gripper, along with two conveyor belts. The robot transfers parts from one conveyor belt to the other. One conveyor belt brings the parts to the robot arm, and the other belt transports the parts away from the robot arm. The model includes electrical actuation, supervisory logic, and optimization of end effector trajectory.
Please read the README.md file to get started.
Use the "Download" button above to get files compatible with the latest release of MATLAB.
You can also test this example in MATLAB Online.
Use the links below to get files compatible with earlier releases of MATLAB.
The robot arm model was created in Onshape and imported into Simscape Multibody.
Visit this File Exchange entry to learn more about Onshape
